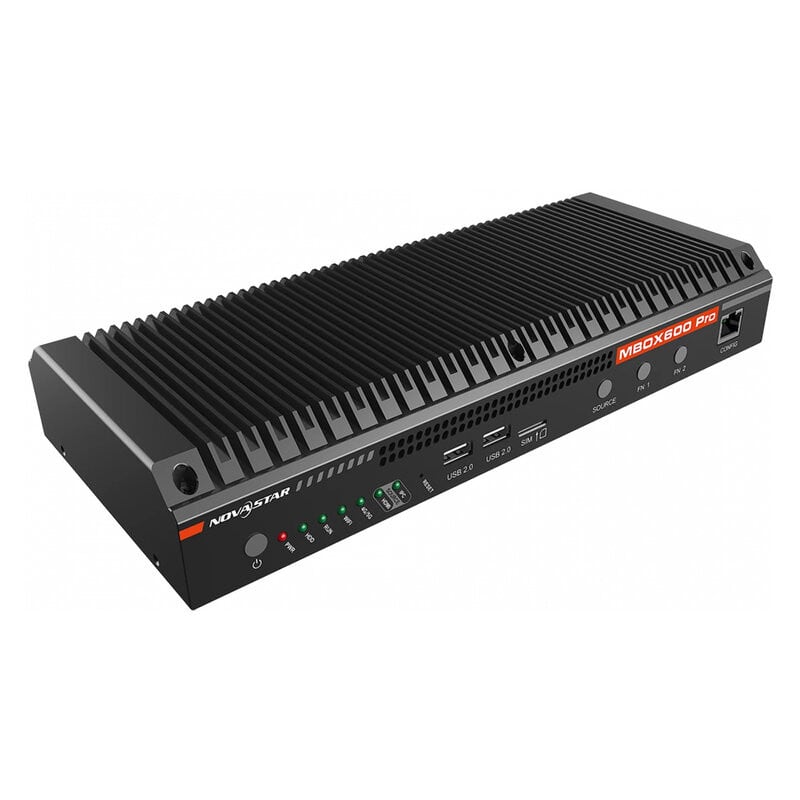

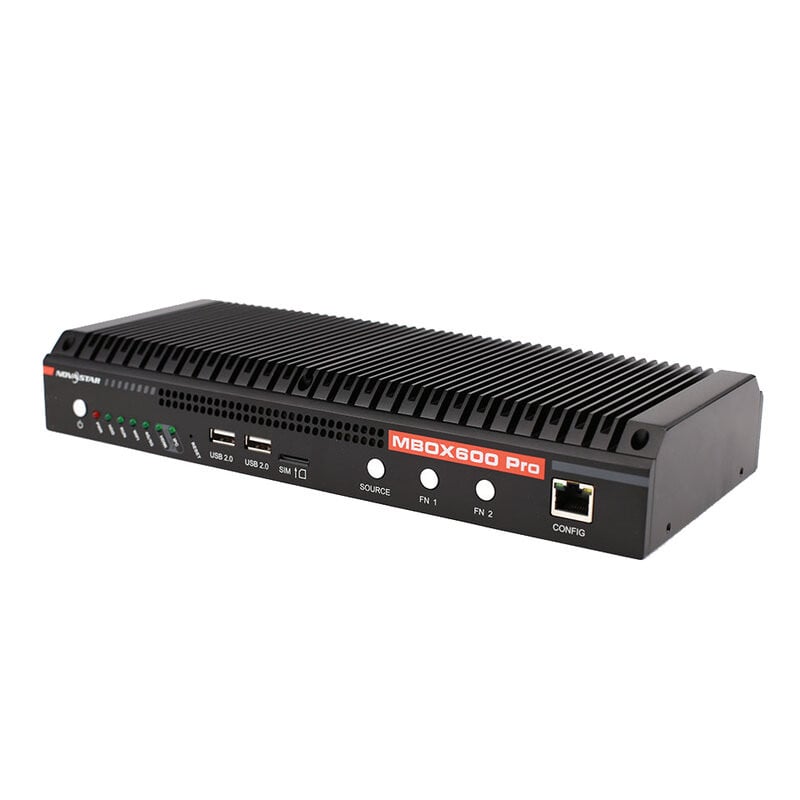

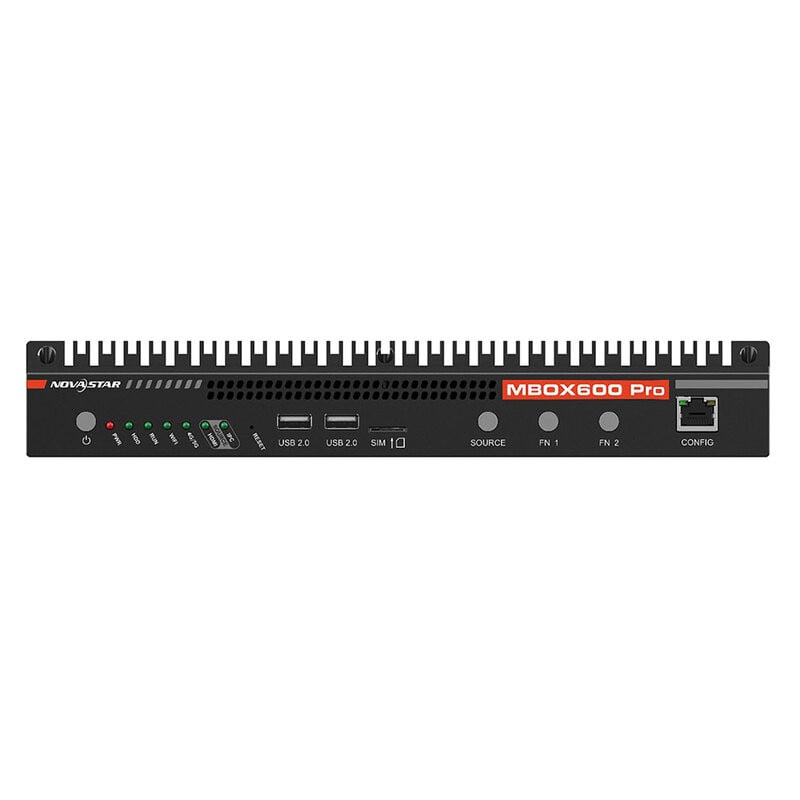

NovaStar - MBOX600 Pro

NovaStar MBOX600 Pro is an advanced industrial controller designed for managing LED displays with high performance and an integrated architecture. This device combines an industrial PC with a sender card, reducing wiring complexity and improving system reliability. Thanks to its 2.6 Mpixel load capacity, it can manage large screens with impeccable visual quality.

MBOX600 Pro offers an intuitive web interface, eliminating the need for dedicated software and ensuring simple and flexible configuration. It is compatible with Windows and Linux, allowing versatile management that can be adapted to different operational needs. In addition, the device is equipped with intelligent sensors that detect the ambient brightness and the temperature of the receiving cards, automatically adjusting the brightness of the LED display to optimize visibility and prevent overheating.

Thanks to the support of the SNMP V2 and V3 protocol, MBOX600 Pro allows efficient remote monitoring, reducing management costs and improving maintenance. Its ability to acquire real-time display status via LAN and web interface enables precise diagnostics and immediate error localization.

The device is designed to provide intelligent cloud control, offering advanced management and greater operational flexibility. With a compact and robust structure, the MBOX600 Pro is an ideal solution for professional applications.

User benefits

• Integrated architecture that combines an industrial PC with a sending card, simplifying wiring and improving reliability
• Manages large-scale LED displays
• Intuitive web interface that does not require dedicated software
• Intelligent sensors to detect ambient brightness and receiving card temperature
• Cloud control for greater flexibility in display management
• Real-time diagnostics

Areas of use

• Digital Signage
• Events
• Permanent installations

Technical characteristics

• Loading capacity: 2.6 million
• Maximum width & height:
  • Maximum width: 4096
  • Maximum height: 1920
• OS:
  • Windows: 10 & 11 loT Enterprise
  • Linux: ubuntu22.04
• Wi-Fi: Wi-Fi (station), Wi-Fi 5, 2.4G / 5G
• CPU: Intel processor N97
• Storage: 4 G + 128 G, 8 G + 256 G

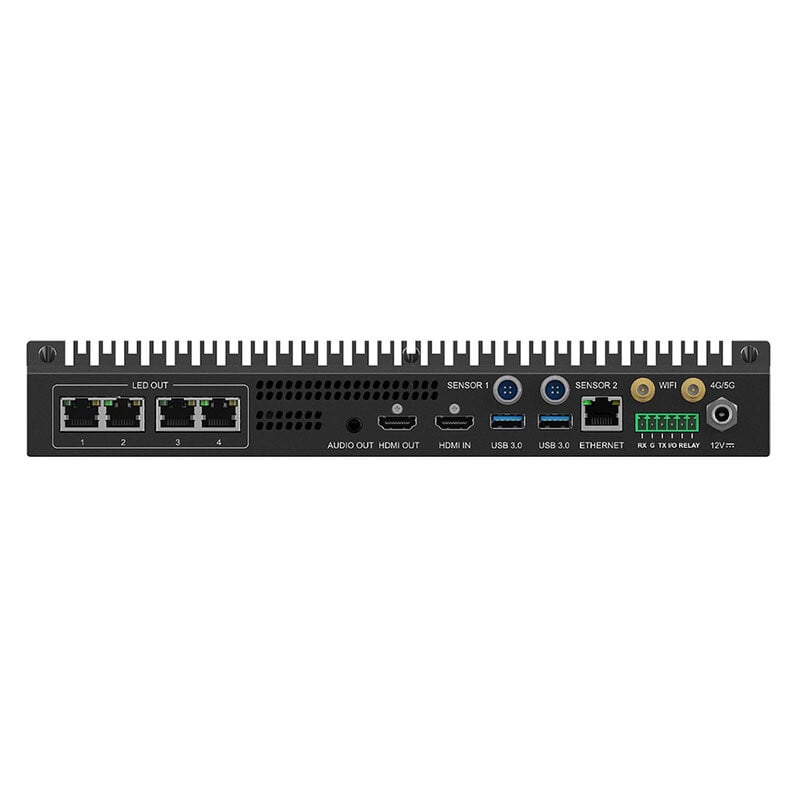

• Input ports:
  • 1 x HDMI 1.3
  • 2 x USB 2.0
  • 2 x USB 3.0
• Output ports:
  • 4 x RJ45
  • 1 x HDMI 1.3
  • 1 x 3.5 mm audio
• Control ports:
  • 2 x Gigabit Ethernet port
  • 1 x RS232
  • 2 x sensor port
• Free scaling: support
• SNMP: support
• Remote control: support
• Input voltage: 12 V_DC 7 A
• Stand-by power consumption: ~ 1.6 W
• Size: 31.9 x 13.59 x 4.55 mm
