NovaStar - MX_2xDP1.4 input card

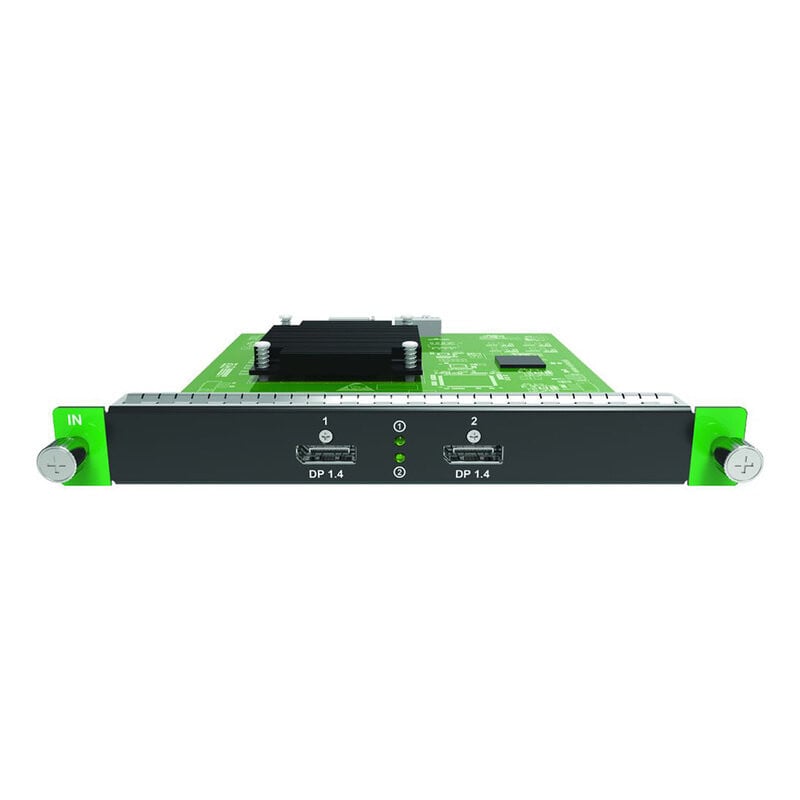

The MX_2xDP1.4 is an input card designed for Novastar MX series LED controllers, such as the MX2000 Pro and MX6000 Pro.

It features two DisplayPort 1.4 ports and supports a forced maximum resolution of 7680 x 4320 at 30 Hz and a minimum resolution of 800 x 600 at 60 Hz. The forced maximum width and height reach 8192 pixels, with configurations such as 8192 x 4320 at 25 Hz or 4320 x 8192 at 25 Hz. It is compatible with a wide range of refresh rates, from 23.98 to 240 Hz. It supports HDR10 and HLG, complying with SMPTE ST 2084 and ST 2086 standards.

EDID management allows standard resolutions up to 3840 x 2160 at 60 Hz and even custom resolutions. It also complies with HDCP 2.3 and is backward compatible with HDCP 2.2, 1.4, and 1.3. It does not support interlaced video signals.

Technical characteristics

• 2 x DP1.4 inputs
•  Resolution:
  • Max. resolution: 7680 x 4320 @ 30 Hz (forced)
  • Min resolution: 800 x 600 @ 60 Hz
• Max. width / height (forced):
  • Max. width: 8192 pixels (8192 x 4320 @ 25 Hz)
  • Max. height: 8192 pixels (4320 x 8192 @ 25 Hz)
• Frame rates: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
• HDR:
  • HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards
  • HLG
• EDID management:
  • Support standard resolutions, up to 3840 x 2160 @ 60 Hz
  • Support custom input resolutions
• HDCP: HDCP 2.3 compliant, backwards compatible with HDCP 2.2 / HDCP 1.4 / HDCP 1.3
• Interlaced signal inputs: not supported

• Compatability: MX Series LED display controllers, including MX2000 Pro and MX6000 Pro
