SKU: M08050165

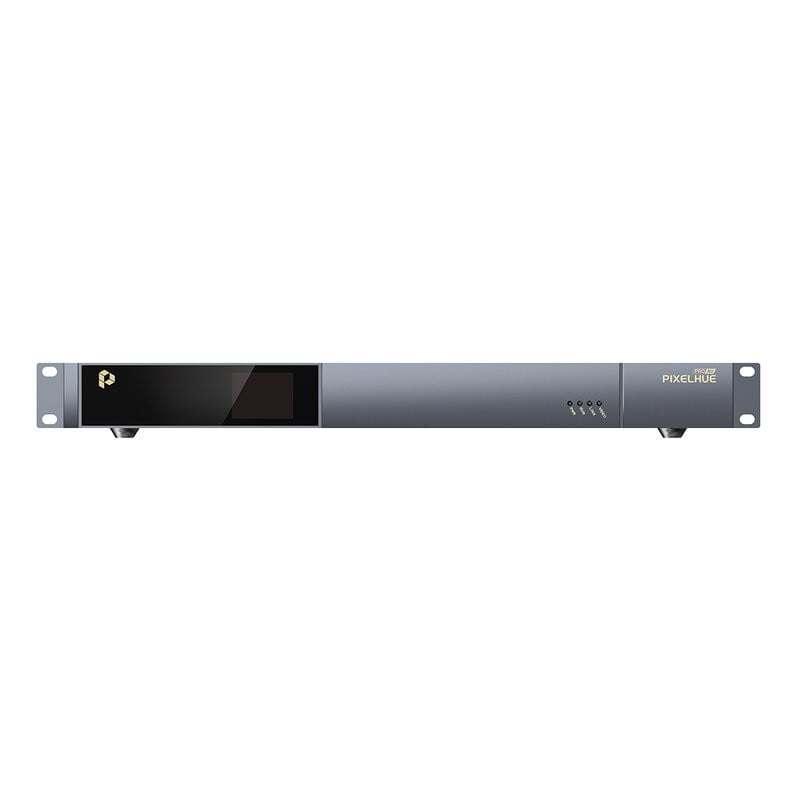

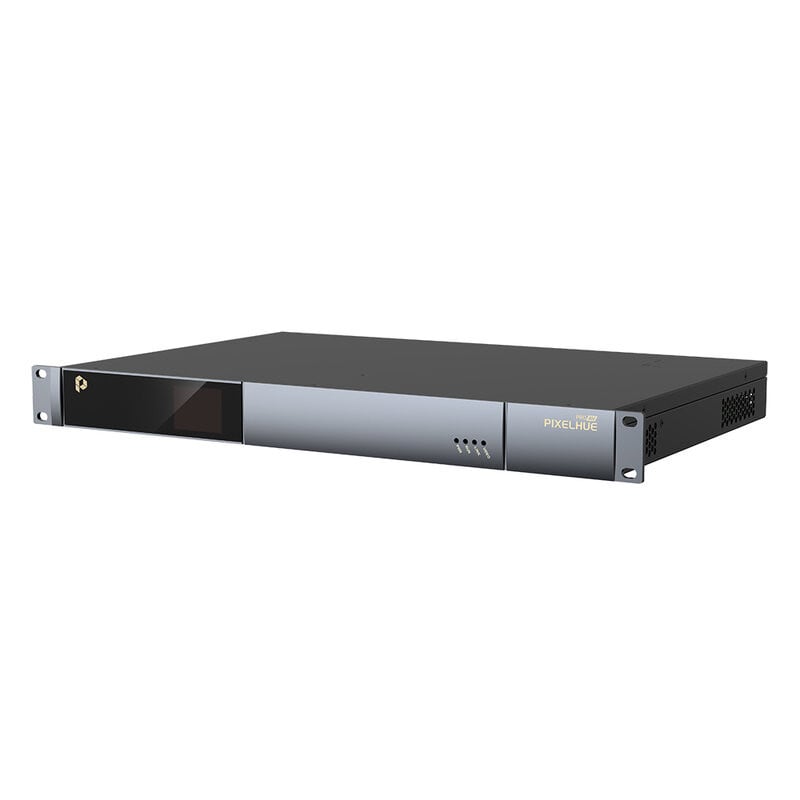

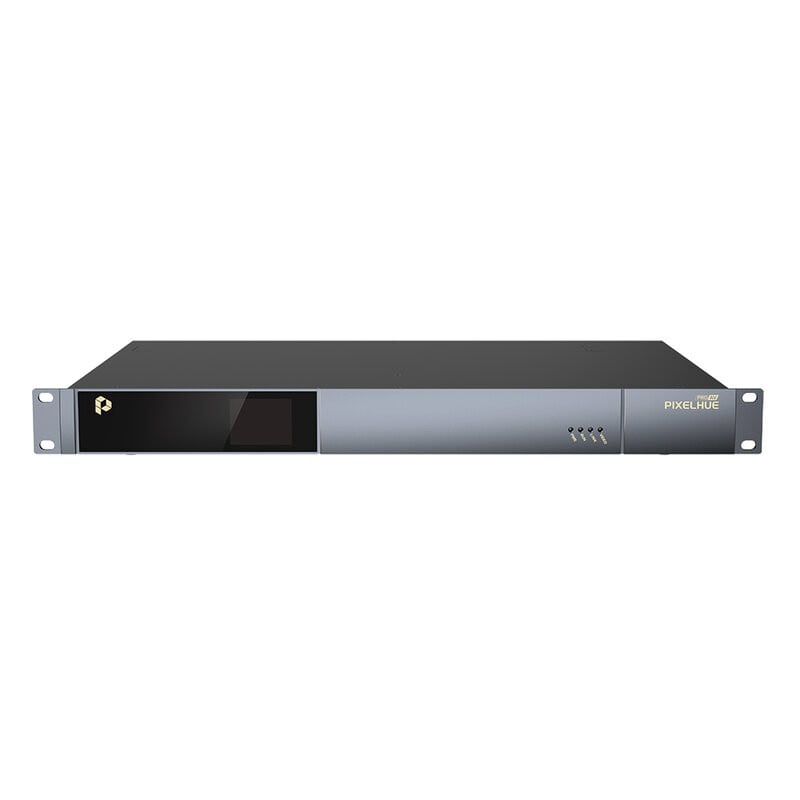

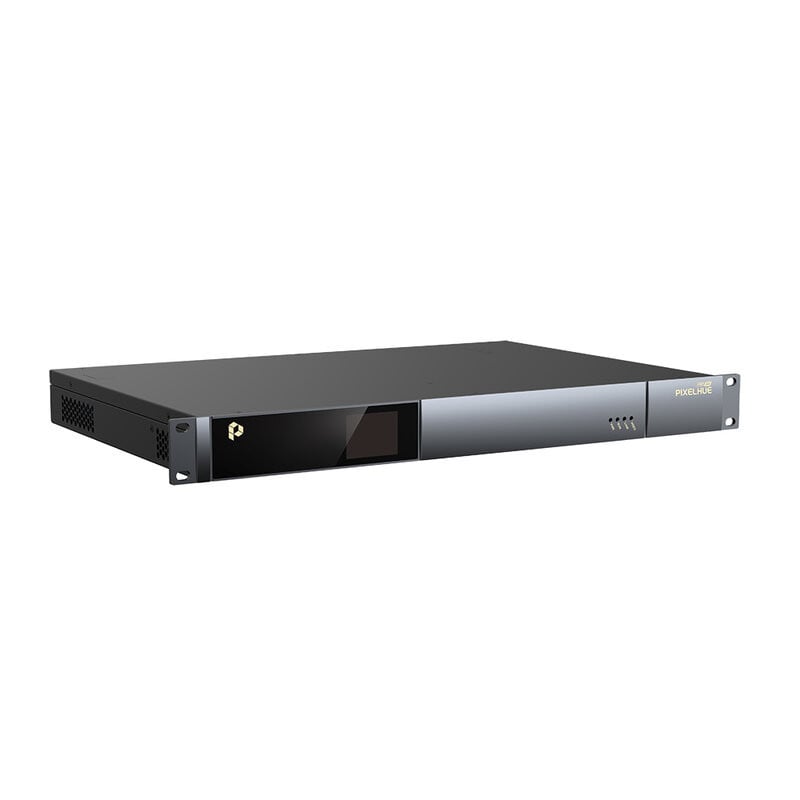

PIXELHUE - PD3-S10

Dual-streaming AVoIP LED controller with 10 Ethernet outputs, up to 6.5 million pixels, 4K @ 60 Hz primary stream, ultra-low latency of 2 ms via InstSight compression
Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition: New

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



Product Details

The PD3-S10 is a distributed LED controller and dual-streaming AVoIP processor, designed for professional environments requiring advanced, decentralized management of audiovisual content. Unlike traditional processors, it does not have physical video inputs such as HDMI or SDI: it receives signals exclusively over an IP network, via a 1 Gbps Ethernet port and a 1 Gbps optical port, compatible with RTSP, RTP, RTCP, and ONVIF protocols. This allows the PD3-S10 to directly decode video streams from distributed encoders, IP cameras, and media servers, even if they are located far from the LED walls being controlled.

The device simultaneously transmits two video streams: a high-quality primary stream, compressed with the proprietary InstSight algorithm, and a standard-quality secondary stream, based on H.264 / H.265. This dual-streaming architecture enables efficient content distribution with minimal latency (up to 2 ms) and reduced network bandwidth impact. The PD3-S10 can handle up to 24 video layers in Full HD resolution and supports a primary layer up to 4K @ 60 Hz, with nanosecond synchronization between nodes to ensure perfectly smooth, tear-free viewing.

Designed for complex and distributed installations, such as control rooms, conference centers, airports, and data centers, the PD3-S10 enables centralized content management even in multi-site scenarios, thanks to VLAN compatibility and the ability to configure each node as an autonomous control center. The visual management interface allows real-time content monitoring, free layout configuration, preset management, and remote control, even via tablet.

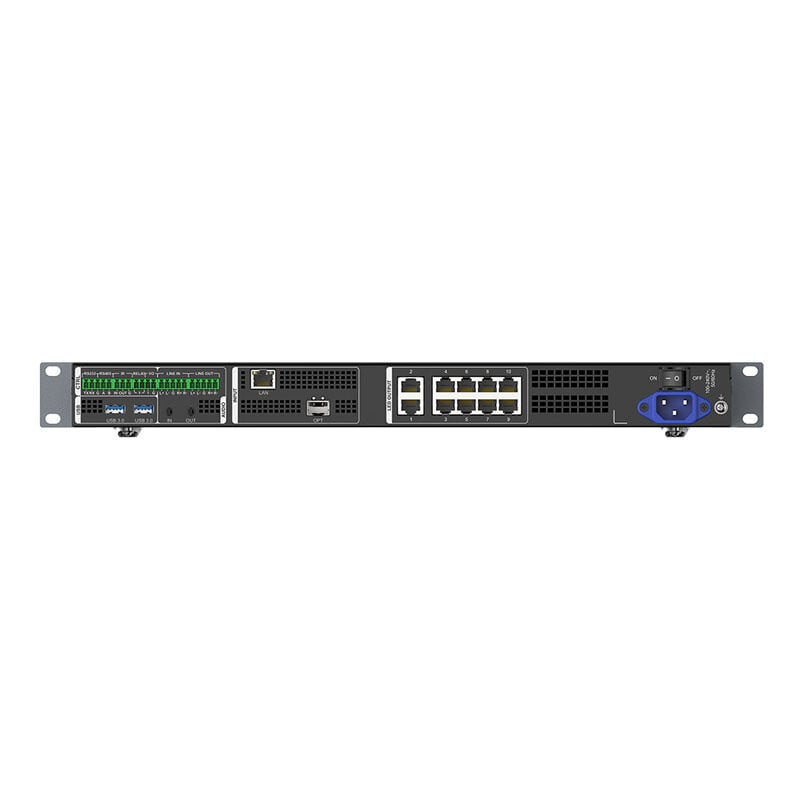

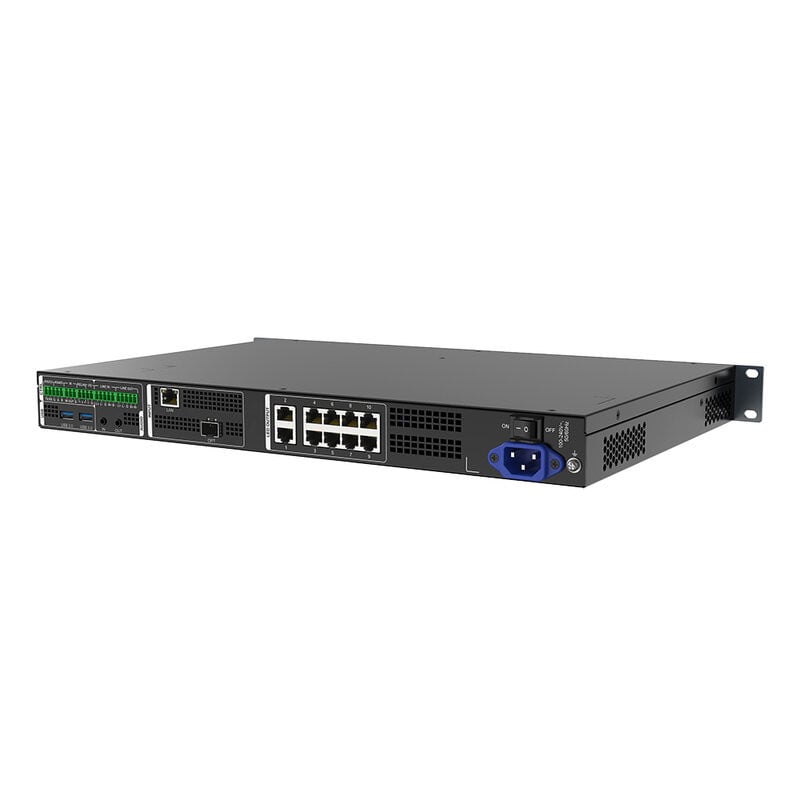

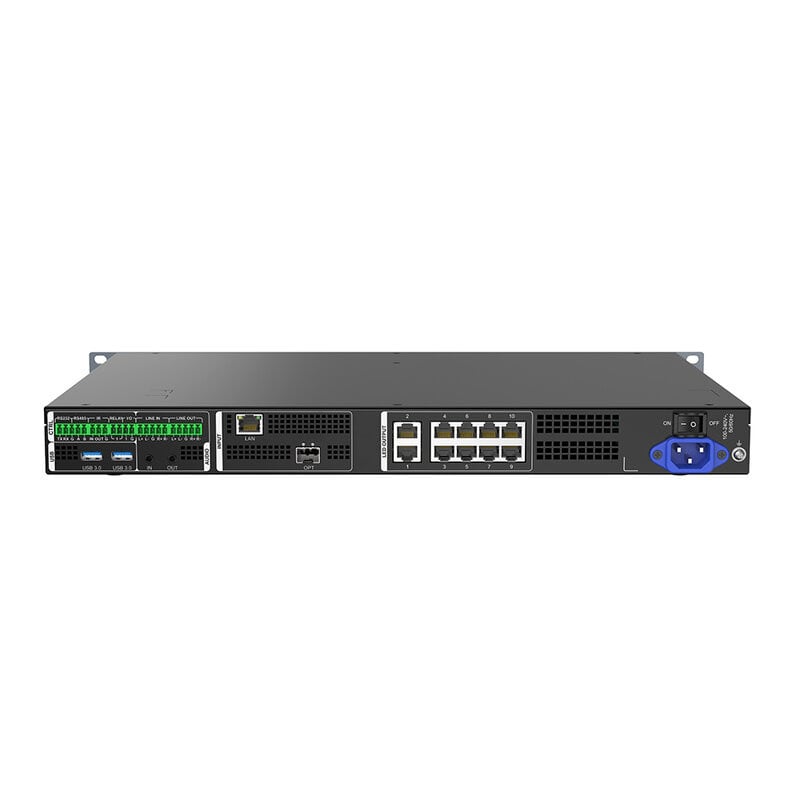

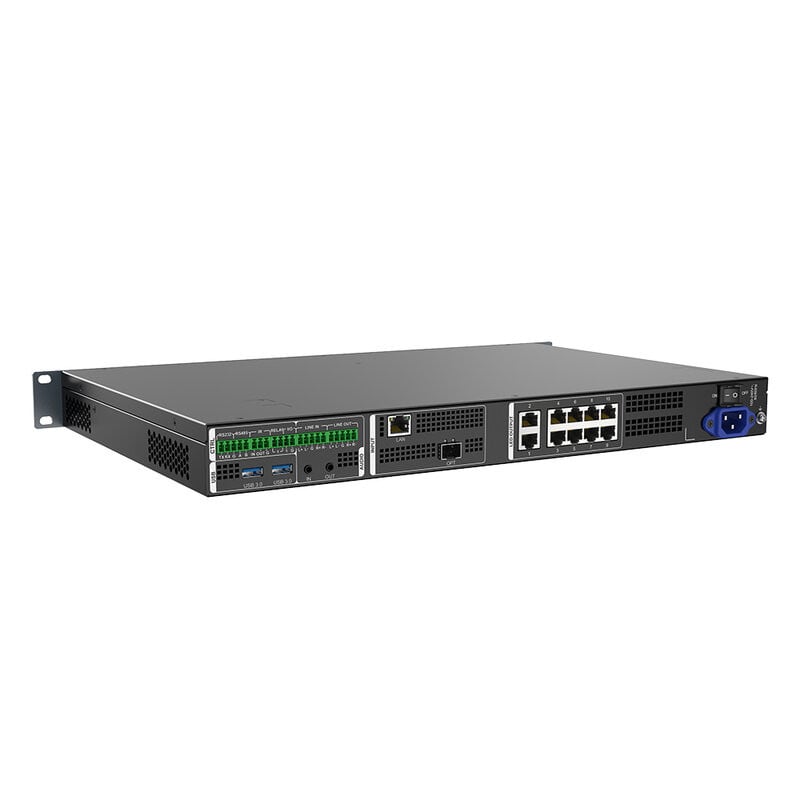

On the hardware front, the PD3-S10 is equipped with 10 Ethernet ports for direct loading of LED walls, with a maximum capacity of 6.5 Mpixels. It supports 8/10-bit 4:4:4 RGB output, even irregular LED screen configurations, custom EDID management, and a wide range of refresh rates. It also includes audio inputs and outputs (MIC / line IN, line OUT), with support for AAC and G.711 formats, as well as control connectors such as RS232, RS485, IR, I/O, and RELAY.

In summary, the Pixelhue PD3-S10 is a powerful and flexible solution for distributing and controlling audiovisual content on LED walls in distributed environments, where the distance between source and display is no longer a limitation, but an opportunity to simplify the infrastructure and improve operational efficiency.

User benefits

  • Simultaneous dual-stream transmission
  • Low latency thanks to InstSight technology
  • Decentralized deployment: no central management server required
  • Direct control of LED walls via 10 Ethernet ports
  • Advanced visual management with customizable layouts, real-time preview, fast switching, and tablet control via the VICP platform
  • Unlimited expansion thanks to IP architecture and VLAN support
  • Security and reliability: each node can operate autonomously, with automatic backup
  • Flexible screen configuration supports multi-layer layouts, irregular LED screens, custom EDID management, and programmable presets
  • Analog audio inputs and outputs

Areas of use

  • Live events
  • Fixed installations
  • Broadcast productions
  • Airports
  • Control rooms
  • Conference centers
  • Data centers

Technical characteristics

  • Layer specifications:
    • H.265 + InstSight: 24 x 1920 x 1080 @ 30 Hz secondary stream layers
    • 1 x 4096 x 2160 @ 60 Hz primary stream layer + 23 x 1920 x 1080 @ 30 Hz secondary stream layers
    • H.264 + InstSight: 16 x 1920 x 1080 @ 30 Hz secondary stream layers
    • 1 x 4096 x 2160 @ 60 Hz primary stream layer + 15 x 1920 x 1080 @ 30 Hz secondary stream layers
  • MTBF: 456,412 hours
  • Primary stream:
    • InstSight compression algorithm (self-developed)
    • Max bandwidth: 716,800 Kbps
    • Min end-to-end latency: 2 ms
    • Average latency: 25 ms
  • Secondary stream:
    • H.264  /H.265 compression algorithm (self-developed based on standard)
    • Max bandwidth: 102,400 Kbps
    • End-to-end latency: ≤ 60 ms
  • InstSight compression ratios:
    • ≤SL spec (1920 x 1080 @ 60 Hz, width ≤ 2048 px): smooth 6 x, excellent 5 x, ultimate 4 x
    • >SL spec: smooth 400 Mbps, excellent 600 Mbps, ultimate 700 Mbps
    • Max. compression ratio: 24x, min. compression ratio: 6 x
  • Network:
    • 1 GE, IPv4
    • Multicast IGMPv2 / IGMP snooping v2
    • RTP/RTCP over UDP
  • Network bandwidth:
    • Unicast: up to 5 clients per encoder
    • Multicast supported
    • Peak bitrate: 950 Mbps
  • Power:
    • 100 – 240 VAC 50/60 Hz
    • Max power consumption: 25 W
  • Operating environment:
    • Temperature: 0 to 50 °C
    • Humidity: 5% to 85% RH, non-condensing
  • Storage environment:
    • Temperature: -20 to 70 °C
    • Humidity: 5% to 95% RH, non-condensing
  • Dimensions: 48.26 x 30 x 5.01 cm
  • Net weight: 4.2 kg
  • Total weight: 6.6 kg
  • Packing box: 59.5 x 42 x 14 cm
  • Accessories included:
    • 5 x Phoenix connectors
    • 1 x Silicone dustproof plug
    • 1 x Power cable
    • 1 x Certificate of approval
    • 1 x Safety manual
