Pulse-Eight - HDBaseT3 Extender

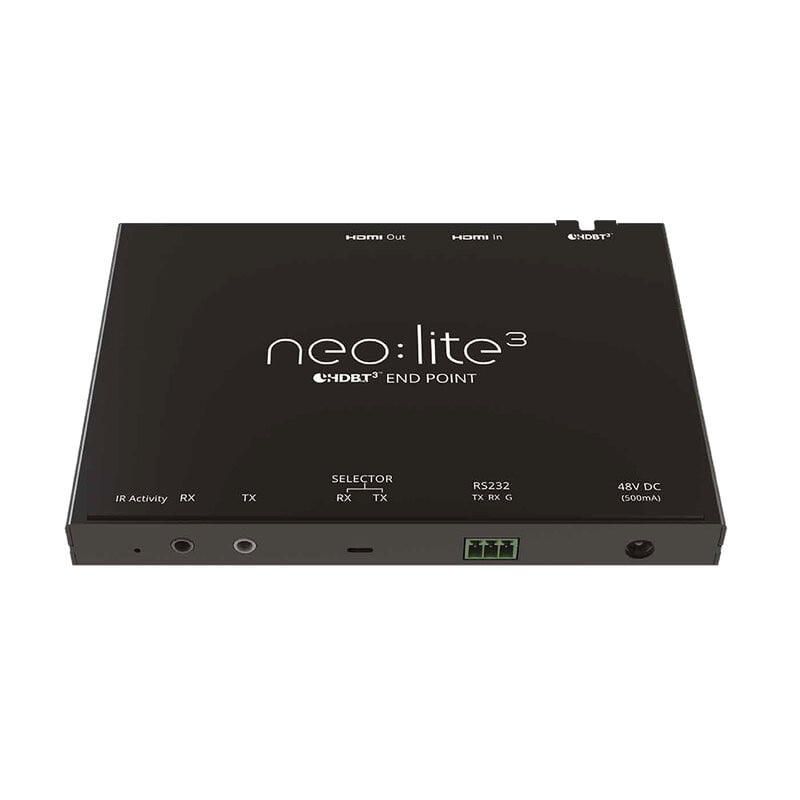

The Pulse-Eight HDBT3 L-TRX is an innovative HDMI over HDBaseT3 transceiver designed to revolutionize professional AV installations. With superior performance, seamless integration and versatile features, the HDBT3 L-TRX is the definitive HDMI over HDBaseT3 solution, making it the ideal choice for those looking for reliable and efficient video and IR signal transmission.

As a transceiver, it can operate as both an HDMI transmitter and receiver, providing great versatility in system design. It can be used in point-to-point configurations or as part of a video distribution system, with bi-directional IR control and full HDMI-CEC support. When set to transmitter mode, the HDMI output mirrors the input signal, allowing you to connect a secondary display without the need for additional splitters. This feature is ideal for monitoring, presentations and other applications that require real-time preview.

Designed to simplify your AV connection, the HDBT3 L-TRX ensures exceptional video quality. It supports HDMI 2.0 with 18 Gbps bandwidth and a maximum resolution of 4K @ 60 Hz 4:4:4, ensuring crystal-clear images without compression. Unlike other compression-based solutions, HDBT3 L-TRX preserves signal integrity, also supporting HDR and DolbyVision formats. The kit, consisting of two units, allows transmission up to 40 meters in 4K.

Installation of HDBT3 L-TRX is easy thanks to the support of PoH (Power over HDBaseT) and automatic power management, reducing the use of external power supplies and simplifying cable management. Compatible with CAT6A and above, it ensures economical and efficient long-distance HDMI transmission.

HDBT3 L-TRX is equipped with standard encryption, with support for HDCP 1.4, 2.2 and 2.3 for secure content transmission. LED indicators provide immediate feedback on the system status, making monitoring and troubleshooting easier.

User benefits

• Superior video quality (4K @ 60 Hz 4:4:4 uncompressed!)
• A single device that can function as a transmitter or receiver by simply flipping a switch
• Bi-directional IR control and full support for HDMI-CEC
• Simplified installation thanks to Power over HDBaseT
• Standard encryption (with support for HDCP 1.4, 2.2 and 2.3) for secure content transmission
• Stable transmission over long distances with low latency

Areas of use

• Events and live shows: HDBaseT 3 technology is designed to ensure uncompressed transmission, minimizing latency and preserving signal quality
• Conference rooms and corporate meetings
• High-end residential installations, ideal for home theater and home automation systems thanks to its ability to transmit HDR and DolbyVision signals without quality loss
  Broadcast and TV studios
• Digital Signage
• Monitoring and security thanks to the HDMI Loopback function that allows you to connect a secondary display for real-time control, useful in surveillance and access control environments

Technical characteristics

• Modes: transmit or receive
• Maximum video resolution: 4K @ 60 Hz 4:4:4
• HDMI inputs: 1 x HDMI 2.0
• HDMI outputs: 1 x HDMI 2.0
• HDBaseT recommended cable: CAT6A or greater
• Serial control: yes, RS232
• IR control: bi-directional
• HDMI-CEC passthrough: yes
• ARC (Audio Return Channel): yes
• DSC (Display Stream Compression): no compression
• PoH: yes with automatic switching
• Max. pixel clock: 600 MHz
• Max. bandwidth: 18 Gbps
• LED indicators: yes
• Extend: 4K / 1080p up to 40 m
• Encryption: HDCP 1.4 and HDCP 2.2
• Colour supported: 4K 4:4:4: 8bit, 4K 4:2:2: 10bit
• HDR support: yes (up to 4K 4:2:2 10 bit HDR)
• Power consumption: 12 W
• Power supply: 1 x 48 V_DC @ 0.5 A
• Wall mountable: yes - brackets included in kit
• Material: powder coated aluminium
• Operating temp range: 0 to 35 °C
• Storage temp range: -20 to 60 °C
• Humidity range: 5 to 90% RH (no condensation)
• Safety & emissions: UKCA, CE, FCC, RoHS
• Manufactured in Great Britain by Pulse-Eight
• Dimensions: 14.7 x 10.7 x 1.6 cm each
• Weight: 0.2 kg each
