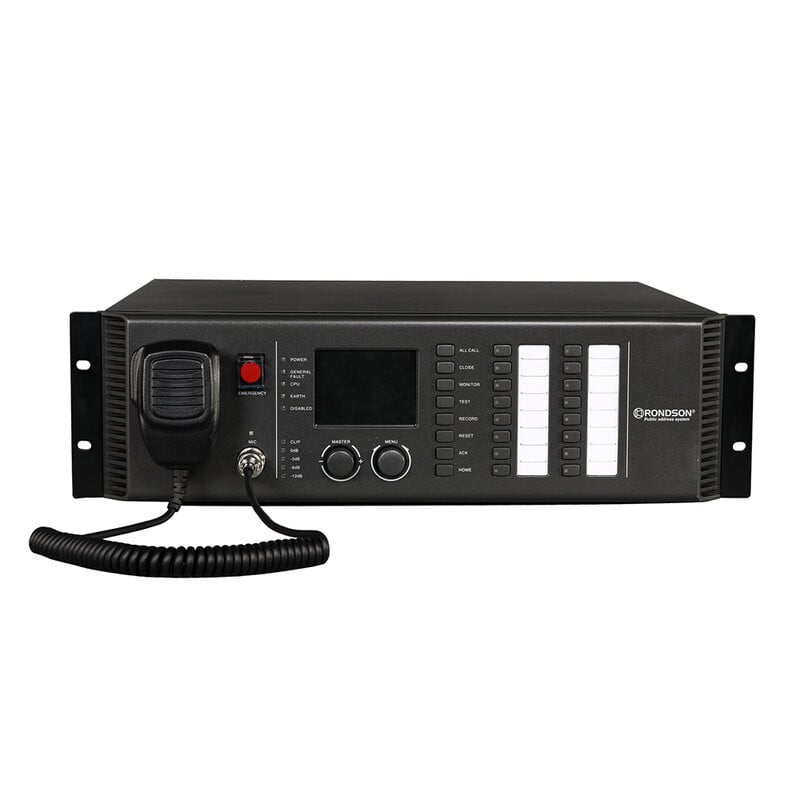

Rondson - EVA-3000M

The EVA-3000M is the main control unit of the Honeywell INTEVIO voice evacuation and public address system, designed to manage, monitor, and coordinate all connected devices. It serves as the operational heart of the entire system, integrating advanced features such as audio storage and playback, zone control, signal monitoring, timed programming, and automatic fault diagnosis.

It features a built-in 500 W amplifier capable of driving up to 8 speaker lines, making it ideal for small to medium-sized applications. For larger installations, it can be connected to zone expanders to increase system capacity.

The system is fully supervised and can detect and report anomalies related to the main and backup power supply, CPU, microphones, amplifiers, speaker circuits, and potential-free contacts, with logs recorded in internal memory. Even in the event of a CPU malfunction, the unit still allows emergency announcements to be made via the PTT microphone, ensuring operational continuity.

The EVA-3000M also integrates features such as instant message recording and playback, dual audio channels for background music and simultaneous announcements, external amplifier management, and automatic backup solutions that reduce system costs. Configuration can be performed via dedicated software or directly from the front LCD panel.

User benefits

• Automatic diagnostics with fault logging and complete monitoring of power supplies, CPU, microphones, amplifiers, and speaker lines
• Guaranteed operational continuity: announcements function even in the event of a CPU failure
• Built-in 500W Class-D amplifier with support for up to 8 zones, expandable with additional modules
• Immediate message recording and playback via PTT microphone or call stationPlug & Play features, integrated timer, audio monitoring, and an intuitive LCD interface
• Cost reduction thanks to amplifier sharing and the possibility of using a single backup amplifier for the entire system
• Compatibility with third-party systems, such as fire alarm systems, via dry contacts
• 1 GB internal memory and 4 GB SD card for audio files, configurations, and logs

Areas of use

• EN 54-16 certified voice evacuation systems in single buildings
• Commercial facilities: shopping centers, supermarkets, shops
• Public buildings: schools, offices, libraries, Municipalities
• Industrial and logistics environments
• Hotels, hospitality facilities, and multifunctional complexes
• Systems requiring scheduled announcements, background music, and emergency communications
• Installations requiring continuous supervision and high operational reliability

Technical characteristics

• Main power supply: 100 - 240 V_AC 50/60 Hz
• Backup power supply: 21.5V - 28.5 V_DC
• Fuse: T10AH 250 V
• Power consumption: < 740 W

PTT microphone

• Sensitivity: -59 ±3 dBV
• Frequency response: 100 Hz - 14 kHz, ±3 dB
• SNR: > 50dB, A-weighted

Auxiliary input

• Number: 2
• Input sensitivity: 1 V (0 dBV)
• Input impedance: 10 kohm
• Frequency response: 85 Hz - 18 kHz, ±3 dB
• SNR: >80 dB, A-weighted

MIC / line Input

• Input sensitivity: 5 mV / 1 V, set by DIP switch
• Input impedance: 20 kohm
• Frequency response: 80 Hz - 18 kHz, ±3 dB
• SNR: > 80 dB, A-weighted
• Phantom power output: 24 V_DC, set by DIP switch

Audio output

• Output channels: CH1, CH2 and record
• Output signal: 1 V (0 dBV)
• THD: < 0.1%

Internal power amplifier

• Max. power output: 500 W
• Output signal: 100 V (CH1A)
• Frequency response: 80 Hz - 18 kHz, ±3 dB
• THD: < 0.1%

Power amplifier interface

• Number: 3 (CH1, CH2 and spare amplifier)
• Output signal: 1.4 V
• THD: < 0.1%
• Control signal: self-testing, amplifier fault and power saving control signal

Loudspeaker Interface

• Zone number: 8 (each has A and B output)
• Max. load power: 500 W

Contact IN/OUT

• Contact input: 10 contact input interfaces with supervision
• Contact output: 8 contact output interfaces (NO, NC and COM), “Fault” output and “Alarm” output
• Max. voltage of the outputs: 250 V_AC DC 30V
• Max. current of the outputs: 2.5 A

Others

• DC power output: 24 V / 1 A
• Monitoring loudspeaker: 2 W / 8 ohm
• Ethernet interface: 10M / 100M
• Memory capacity: 1 GB flash memory, 4 GB SD card

Working conditions

• Relative humidity: < 95%, without condensing
• Operating temperature: -10 to 50 °C
• Storage temperature: -40 to 70 °C

Specification

• Dimensions (W x H x D): 48.2 x 13.35 x 42 cm
• Net weight: 14.3 kg
