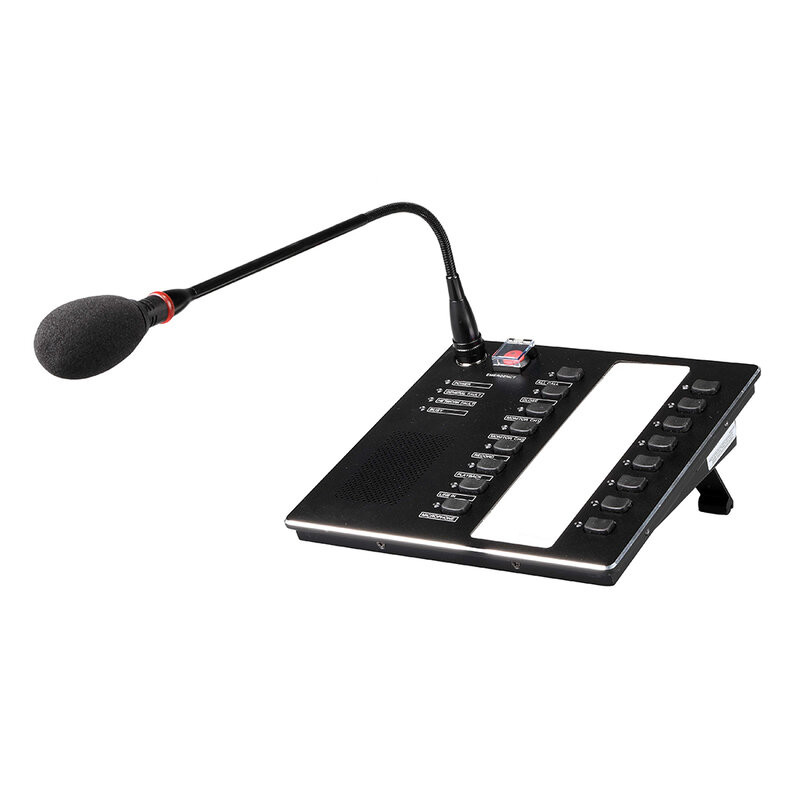

Rondson - EVA-MIC3000

The EVA‑MIC3000 is the remote microphone station in the EVA‑3000 series, designed to manage live announcements, pre-recorded messages, and paging operations for individual zones or groups of zones.

Equipped with 8 function keys and 8 programmable keys, it allows control of functions such as all-call, zone closure, audio monitoring, temporary recording, playback, input selection, and microphone management. Thanks to the integrated monitoring speaker, the operator can preview the audio on channels 1 and 2, preventing transmission errors. The station supports gooseneck microphones or PTT, includes a line input for external sources (CD, DVD, tuner), and can be expanded with additional keypad modules.

The EVA‑MIC3000 integrates microphone and communication line fault detection functions, with dedicated LED indicators for power, general fault, network fault, and audio channel busy. It can be powered directly from the Master Control Unit or via an external power supply.

User benefits

• Support for gooseneck or PPT microphones
• Full support for live announcements, BGM, pre-recorded messages, and multi-zone paging
• Integrated audio monitoring to prevent transmission errors
• Immediate temporary recording for quick and updateable messages
• Automatic microphone and communication fault detection
• Up to 6 EVA-MIC300 devices can be connected to a single system
• CAT5 connection up to 600 m
• Compatible with EN 54-16 systems

Areas of use

• Voice evacuation and fire alarm systems (PA / VA)
• Public address systems in public and commercial buildings
• Shopping centers, supermarkets, schools, hospitals, hotels, offices
• Applications requiring multi-zone paging and centralized announcement management
• Installations requiring audio monitoring and secure operational control

Technical characteristics

• Power supply: 24 V_DC
• Power consumption: 10 W

Microphone

• Sensitivity: -50 dB ±3 dB
• SNR: > 60 dB, A-weighted
• Optimal pickup distance: 10 – 20 cm

Line input

• Input signal: 1 V (0 dBV)
• Input impedance: 10 kohm
• Frequency response: 80 Hz – 18 kHz ±3 dB
• SNR: > 85 dB, A-weighted
• THD: < 0.1%

Others

• Built-in loudspeaker: 2 W / 8 ohm

Working conditions

• Relative humidity: < 95% without condensing
• Operating temperature: -10 to 55 °C
• Storage temperature: -40 to 70 °C

Specification

• Dimensions (W x H x D): 20 × 4.65 x 20 cm
• Net weight: 1.4 kg
