Rondson - MIC-404

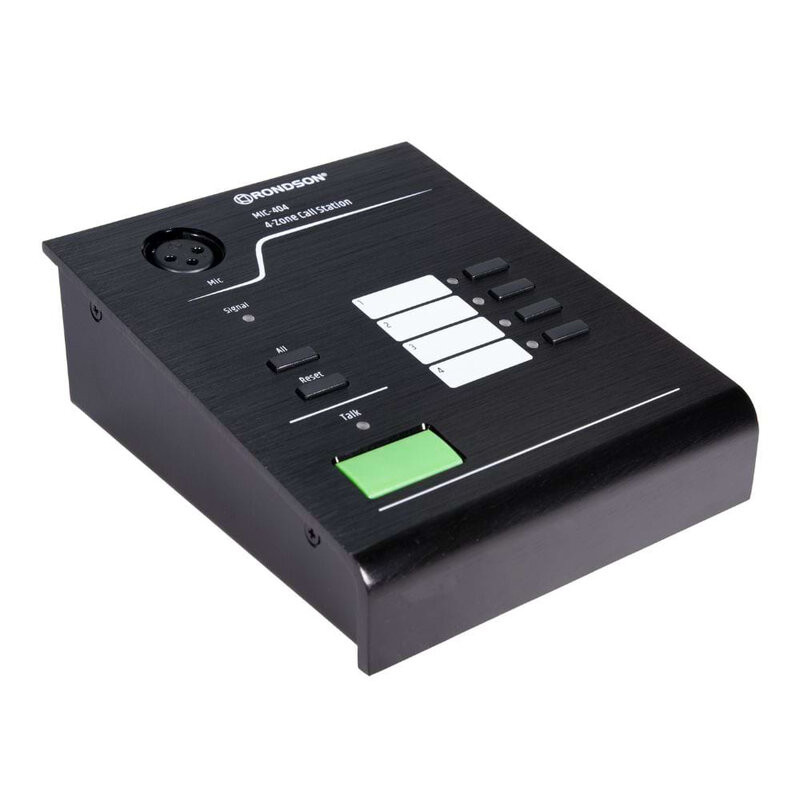

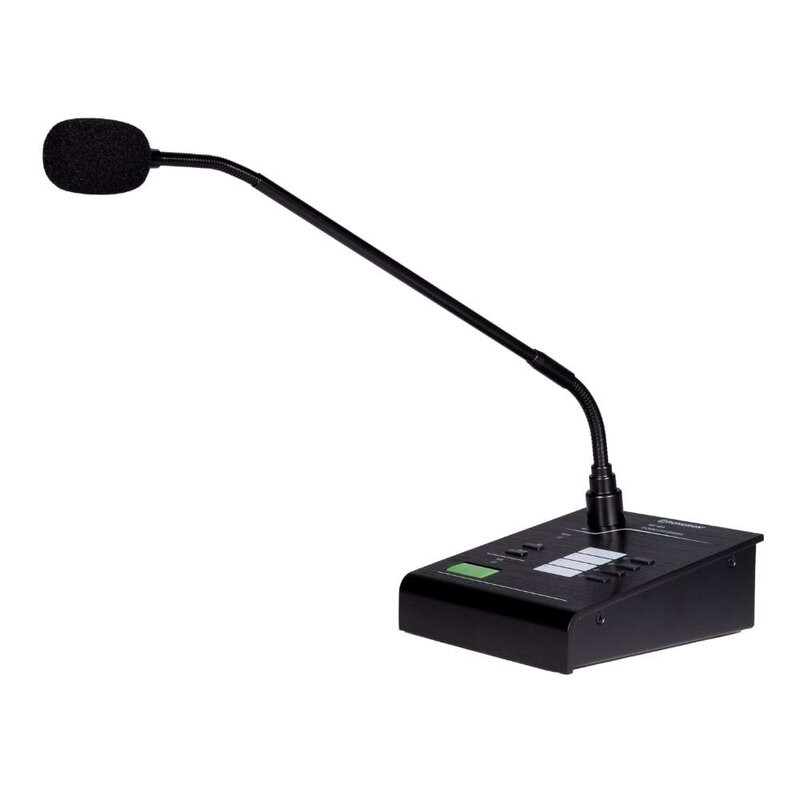

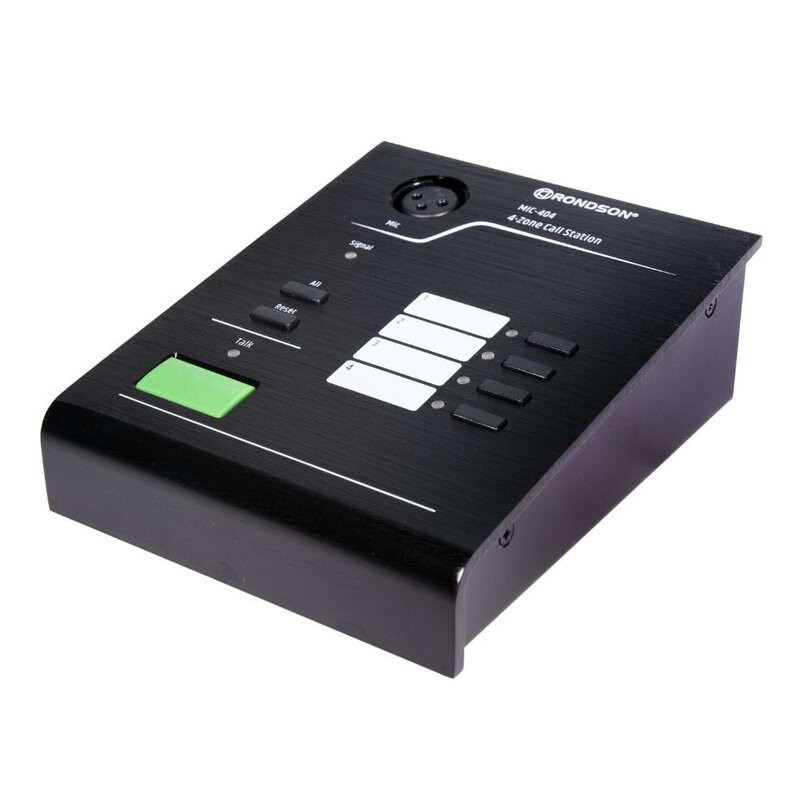

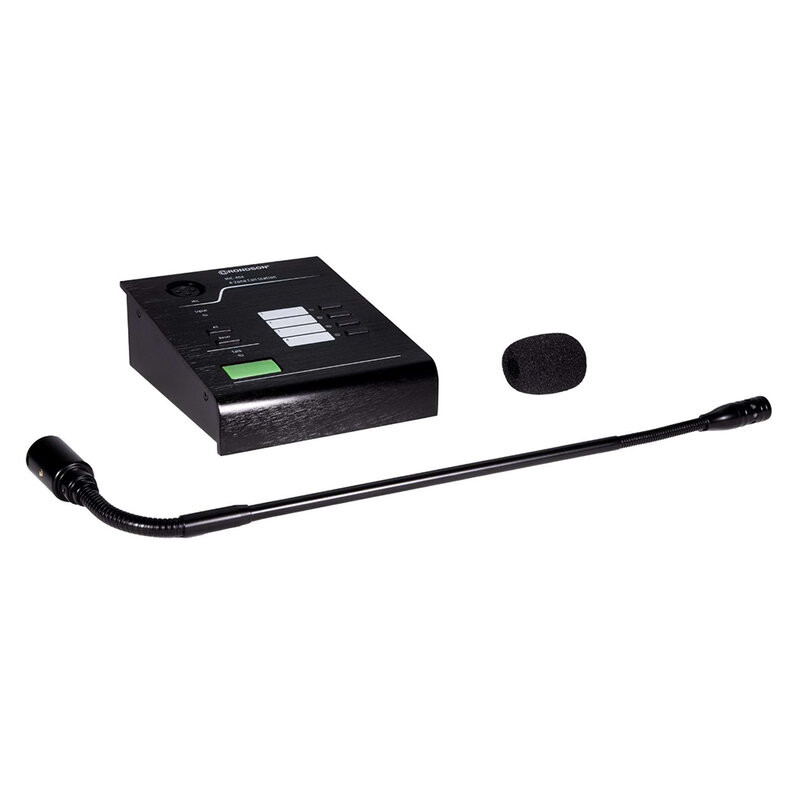

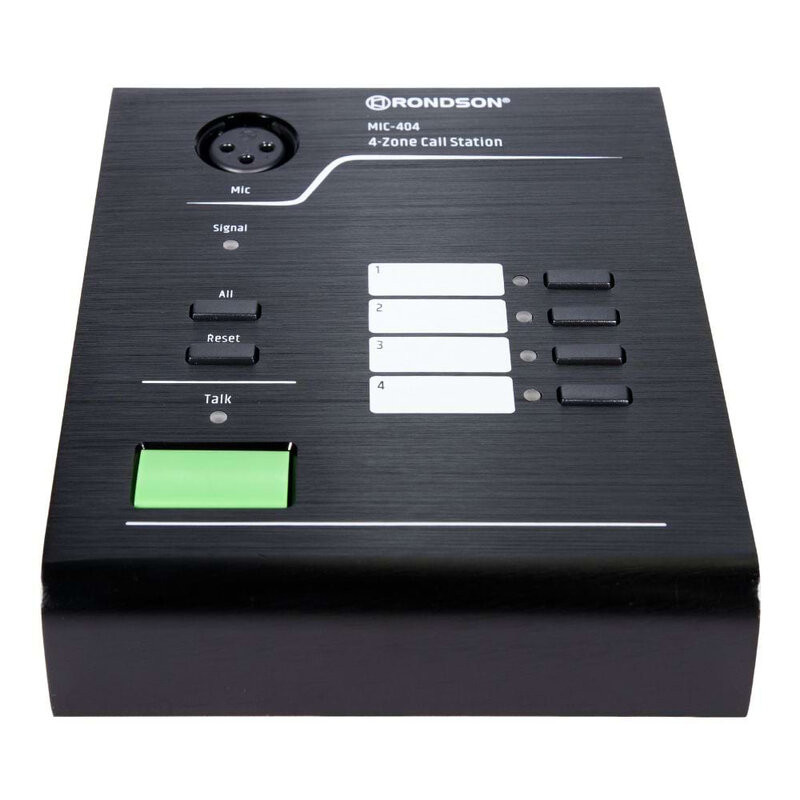

The MIC-404 is a multi-zone, desktop call microphone designed to work with the Rondson MX-404 preamplifier.

It features a unidirectional microphone and allows the selection and management of (up to) four independent zones using dedicated controls. It includes a chime activation switch and a priority / slave switch, allowing use in systems with call priority. The “Talk” button activates the microphone signal and automatically enables the 24 V input on the amplifier, activating the priority mode.

Up to thirty-two MIC-404 microphone stations can be daisy-chained using UTP-CAT5 cabling with RJ45 connectors, simplifying installation. Advanced features include surge protection, faulty microphone detection and a power saving system in stand-by mode.

It includes a DC adapter power input and integrates a low voltage detector, ensuring reliability even in unstable power conditions.

User benefits

• Possibility to select and manage up to four zones independently
• Daisy chain up to 32 microphones, with simple wiring via UTP-CAT5
• Integrated chime switch and priority / slave switch, ideal for public environments where an acoustic signal is needed
• before announcements
• DC input with insufficient voltage detection

Areas of use

• General and selective call in public environments, schools, shopping centers
• Any context where controlled audio diffusion for multiple zones is required

Technical characteristics

• Multi-zone unidirectional microphone console
• Supports up to 32 daisy-chained microphone units
• Chime ON/OFF switch
• Priority / Slave mode selector
• Faulty microphone detection (short circuit, open, fault)
• Overvoltage protection circuit with ON/OFF interlock
• Power-saving circuit with stand-by mode
• Low voltage detection

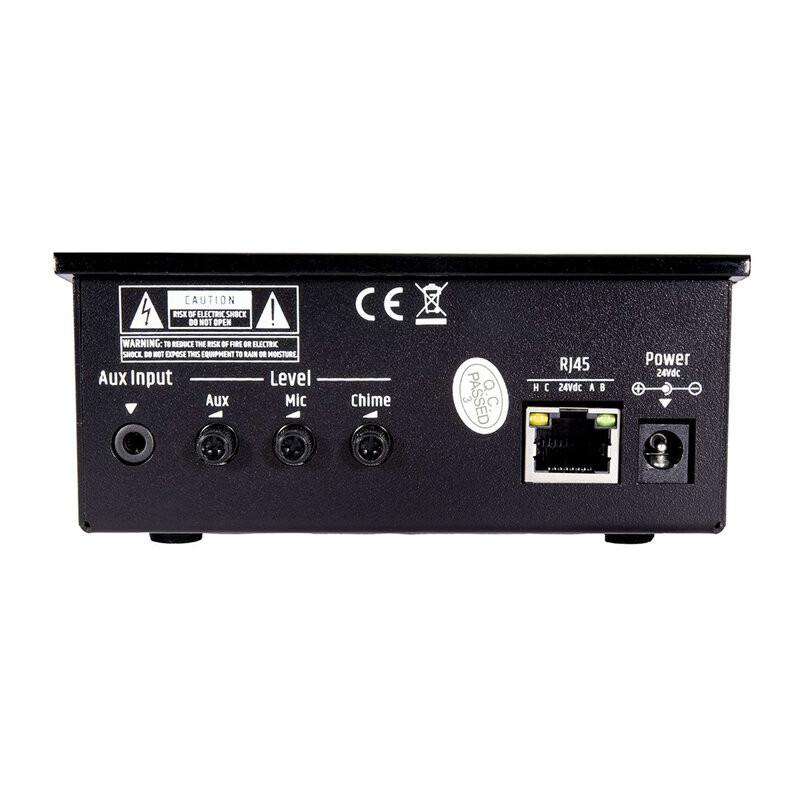

• DC adapter input socket
• Uses UTP-CAT5 cable with RJ45 connectors
• Zone selection buttons
