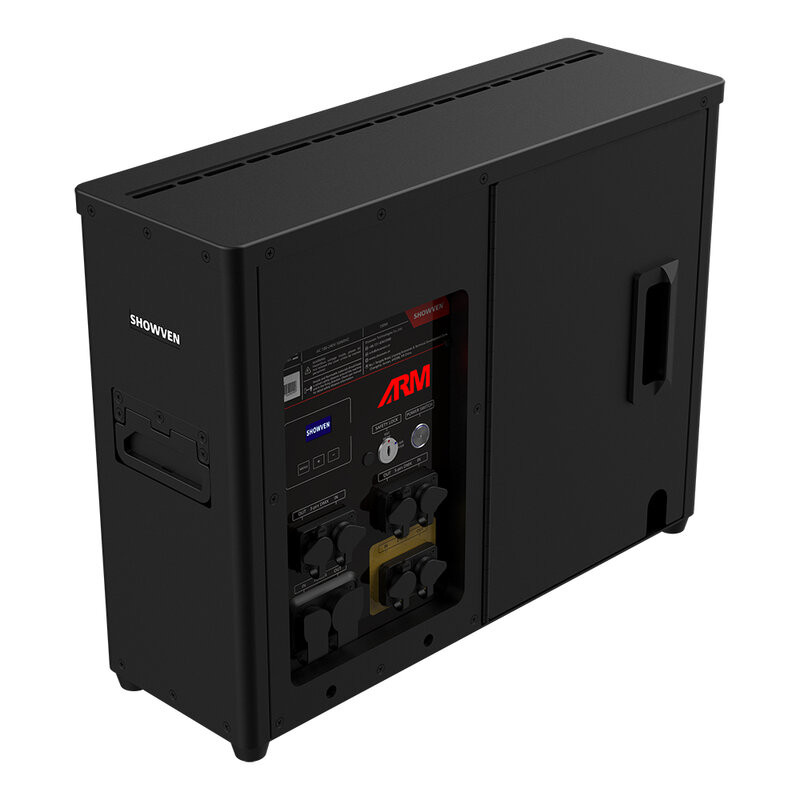

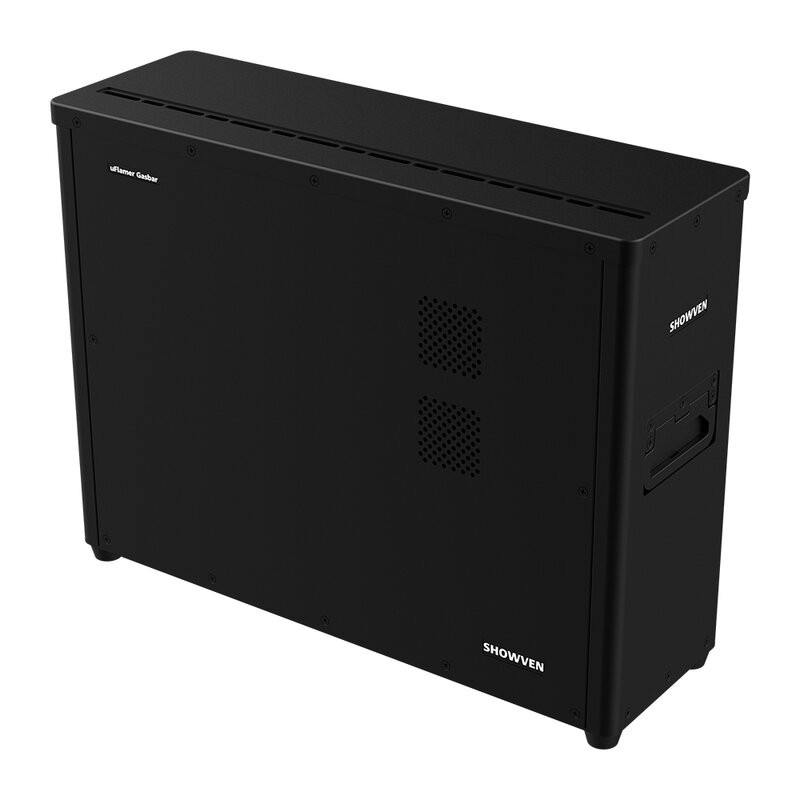

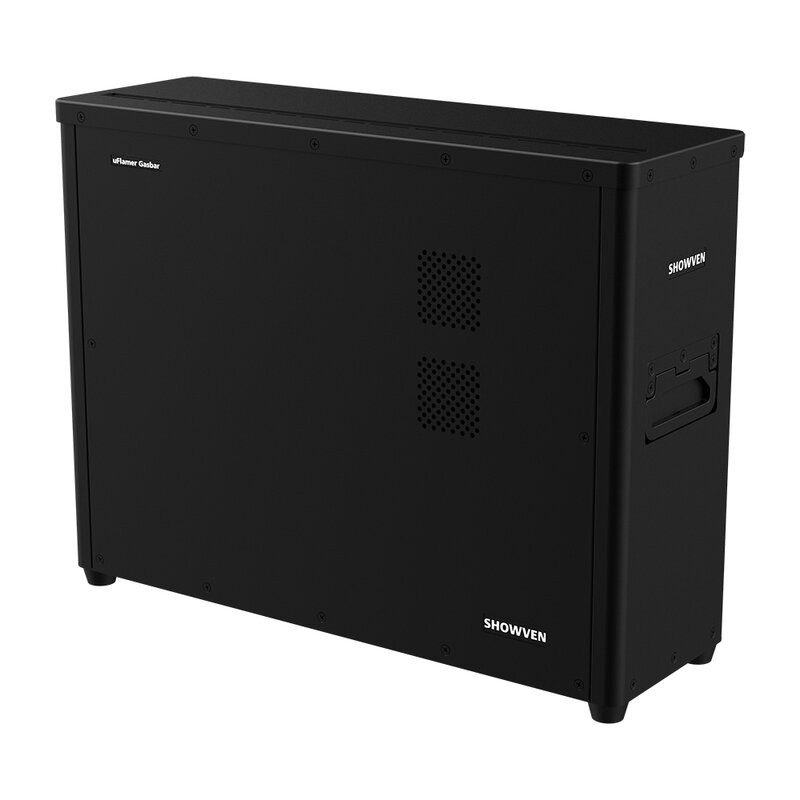

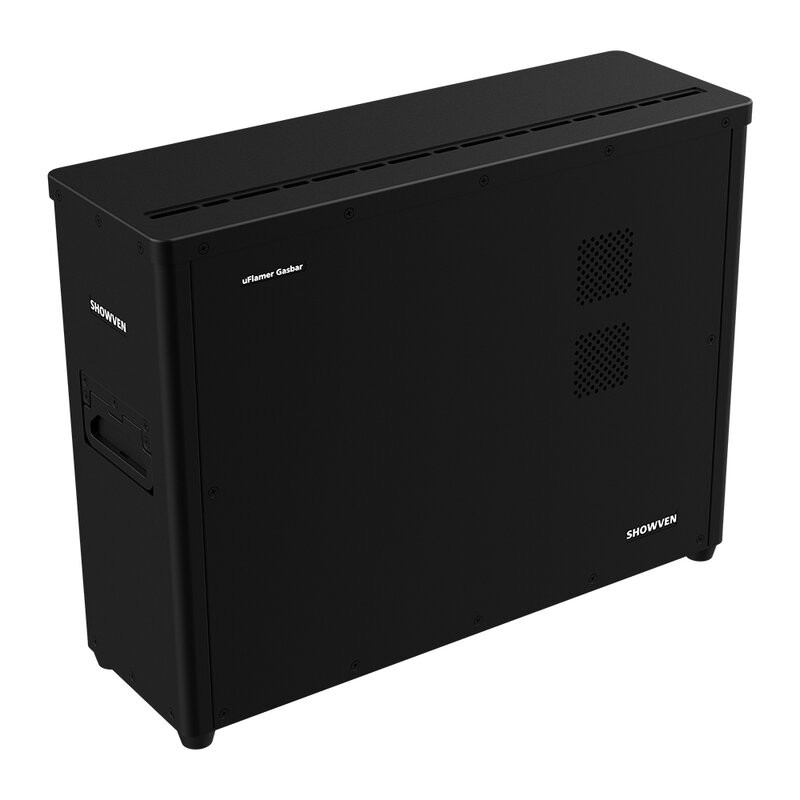

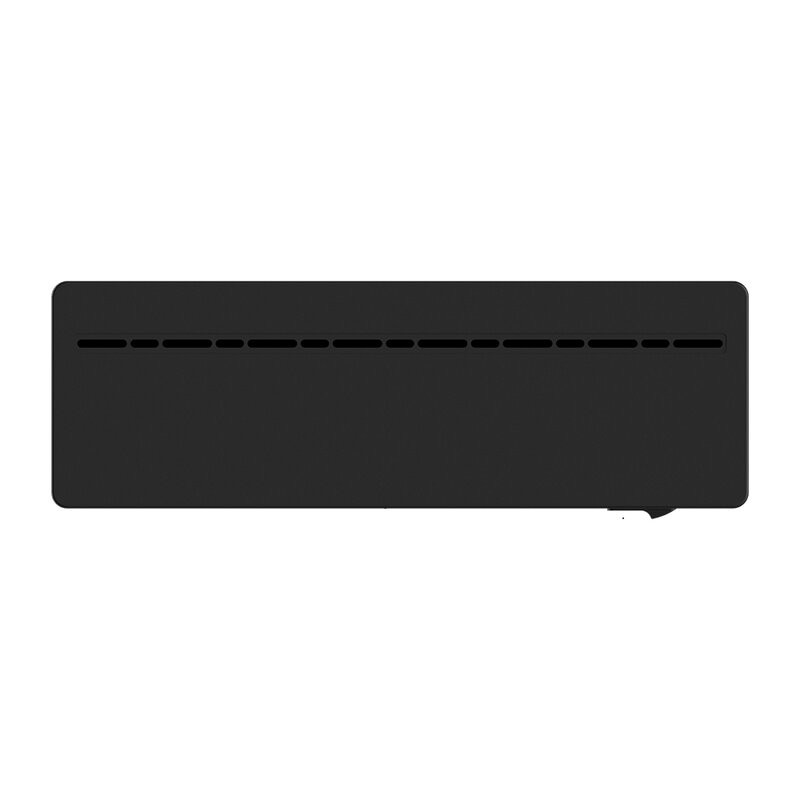

SHOWVEN - uFlamer Gasbar

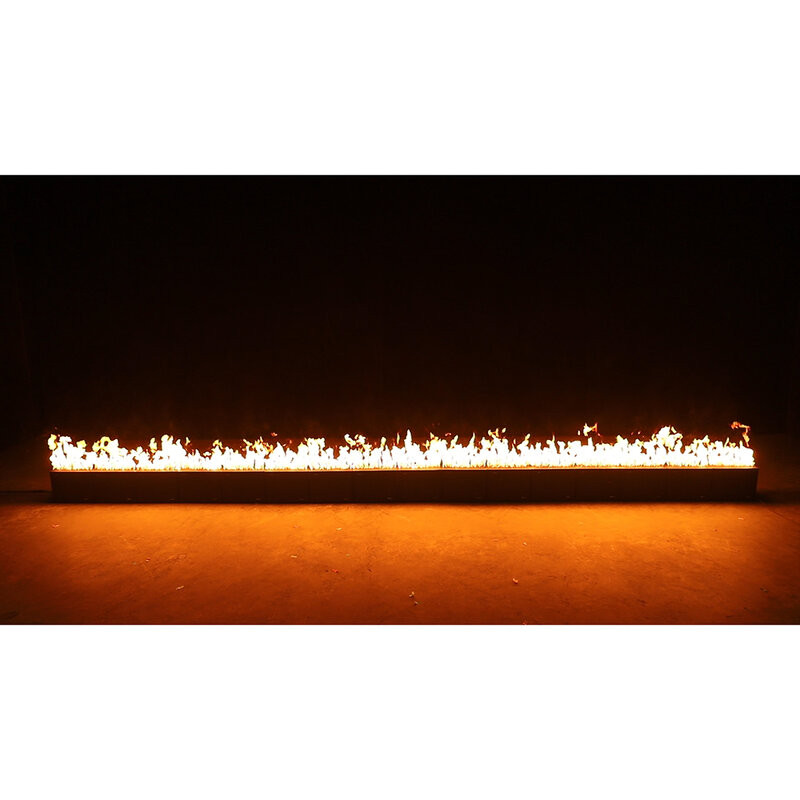

The uFlamer Gasbar is an innovative "flame bar" - an elongated, linear element that generates vertical flames along its length rather than from a single central nozzle - designed to create dynamic, modular fire displays.

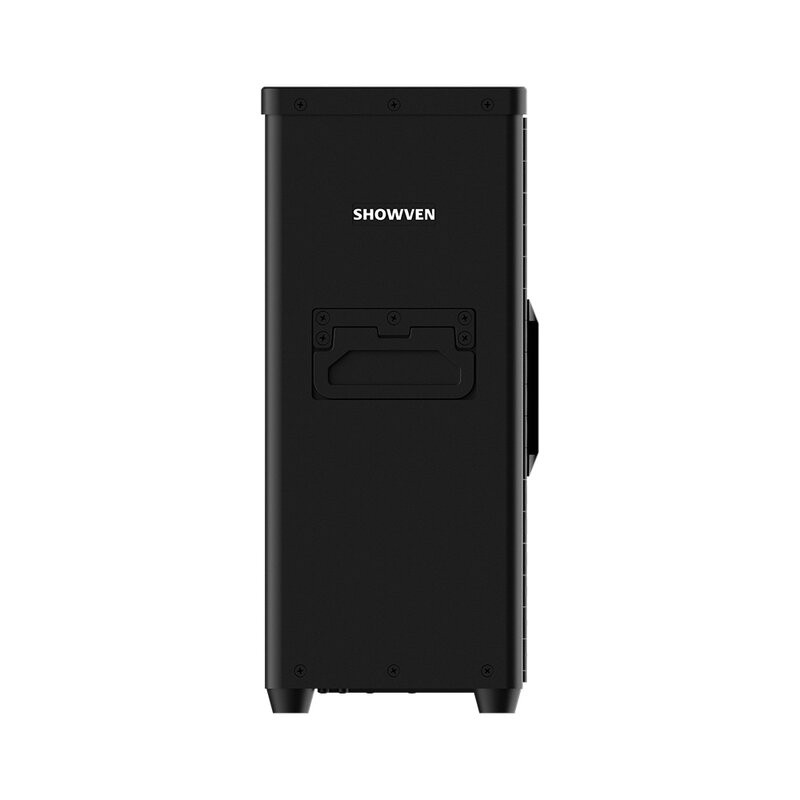

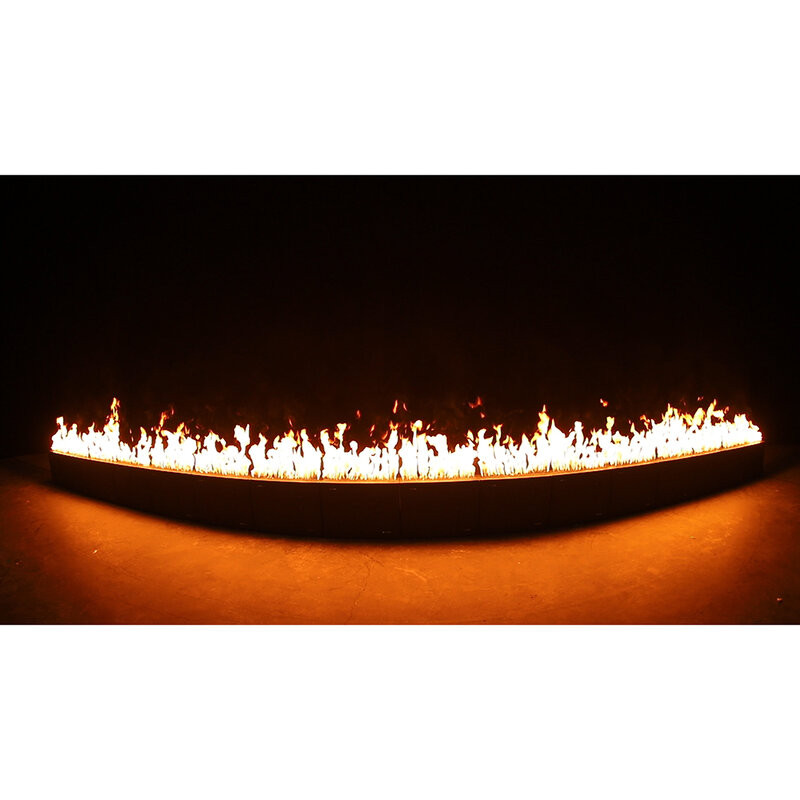

It features a weather-resistant stainless steel body, designed for both indoor and outdoor use, with a built-in gas cartridge holder and a quick-connect connection for external gas cylinders. Its key feature is the ability to combine multiple units to create customized structures: fire walls, separation barriers, curved surfaces, or more complex configurations, all controllable via DMX or an integrated wireless DMX receiver.

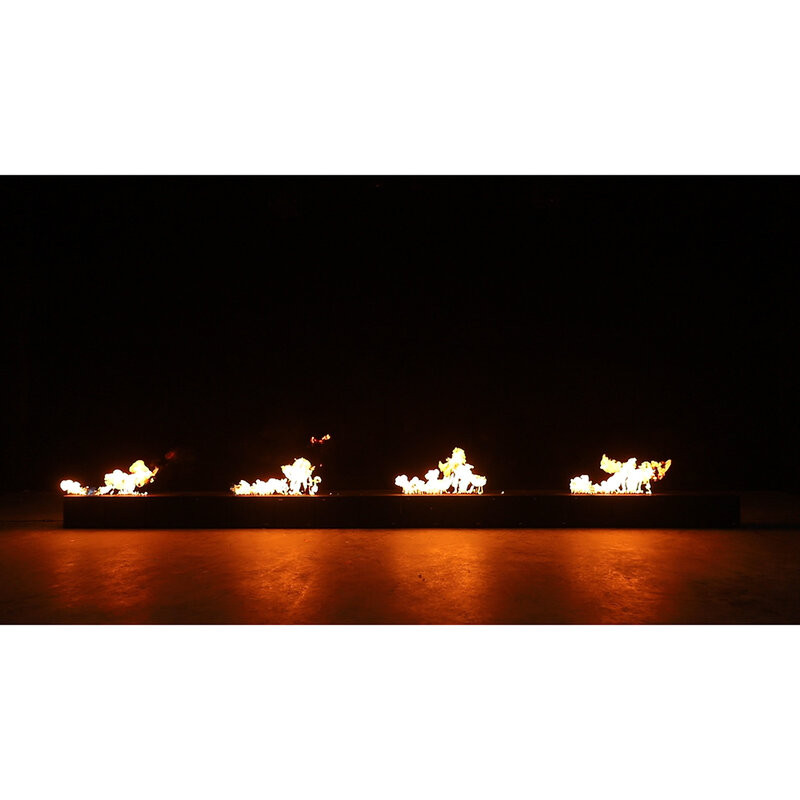

The dual ignition system is independent at both ends, allowing for effects such as flame waves, chases, and continuous rhythmic sequences. The flame height is adjustable via DMX, and the machine can maintain output for up to 60 consecutive minutes. This is also thanks to the option to operate with integrated 18650 batteries, making it more flexible in installations where wiring is a limitation. Safety is ensured by flame monitoring with sensitivity up to 0.1 seconds, multiple temperature sensors, and an emergency stop system. Compatibility with gases such as propane or butane and the ability to handle pressures up to 2 MPa make it suitable for large-scale productions.

User benefits

• DMX-adjustable flame effect heights (two levels)
• Dual-end controllable ignition
• Dual ignition monitoring, triple solenoid valve, and triple temperature monitoring for safer operation
• Integrated cartridge holder and quick connection for external gas cylinder
• Integrated 18650 battery
• Weatherproof construction, can be used in the rain

Areas of use

• Spectacular events
• Ceremonies
• Live shows
• Stage installations

Technical characteristics

• Input voltage: 100 - 240 V_AC 50/60 Hz
• Work power: 150 W
• Battery: 8 x 18650 battery

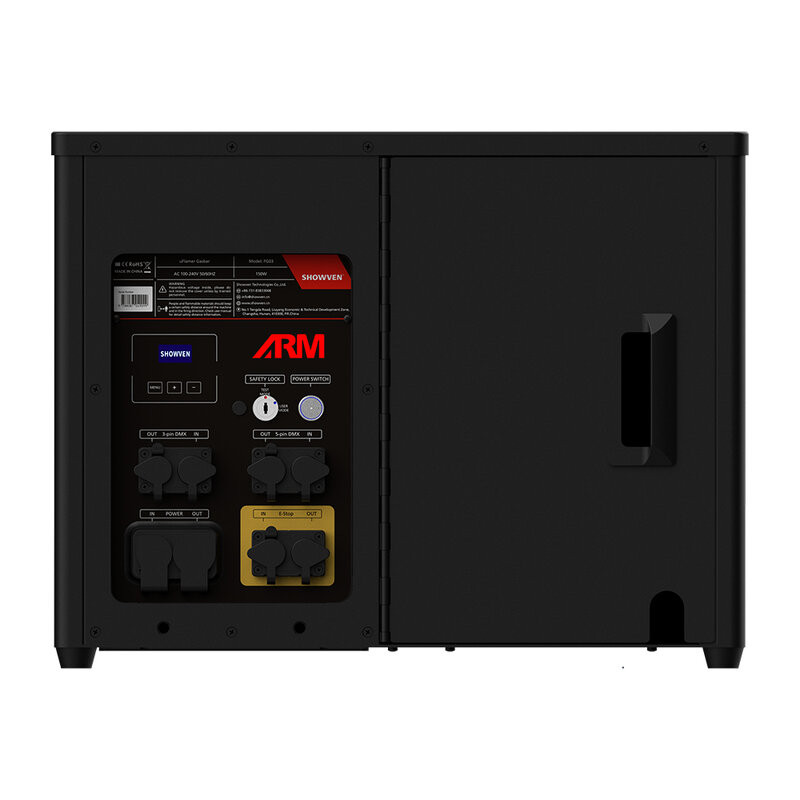

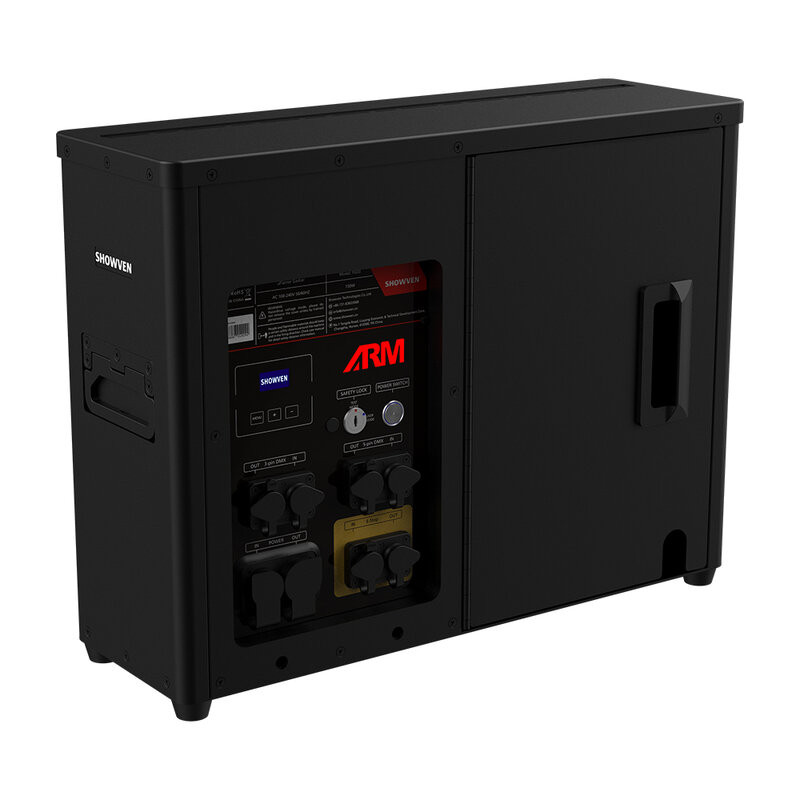

• Interface: Neutrik powerCON TRUE1 IN/OUT; waterproof 3-pin and 5-pin XLR IN/OUT
• Control: DMX-512; Wirelss DMX receiver (5-pin DMX IN with 5 V_DC power supply)
• Ignition: 2 x high voltage electron ignition (dual-end ignition)
• High sensitive flame monitoring: yes, sensitivity up to 0.1 s
• Temperature monitoring: real-time PCB and internal system temperature monitoring
• Pressure: 0 - 2 MPa
• Effect direction: vertical
• Flame height: adjustable (depending on sequence settings)
• Firing duration: 0.1 s - 60 min
• Fuel: LPG propane or butane gas, etc.
• Fuel connection: 3 x 7/16-28 UNEF interfaces; 1 x gas cylinder coupler
• Dimension: 50.5 x 17.3 x 38.8 cm
• Weight: 16.8 kg
