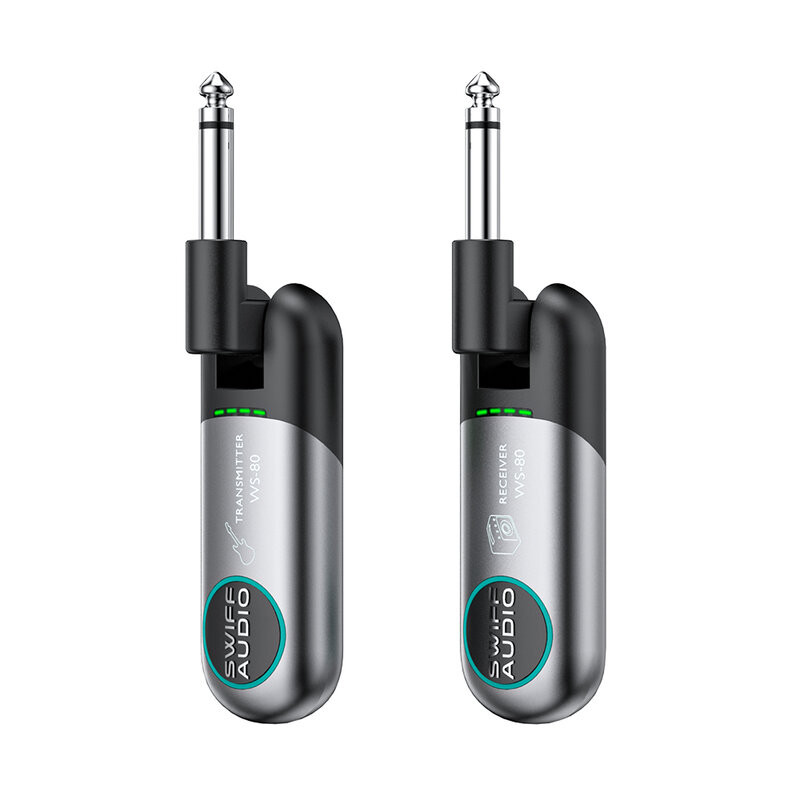

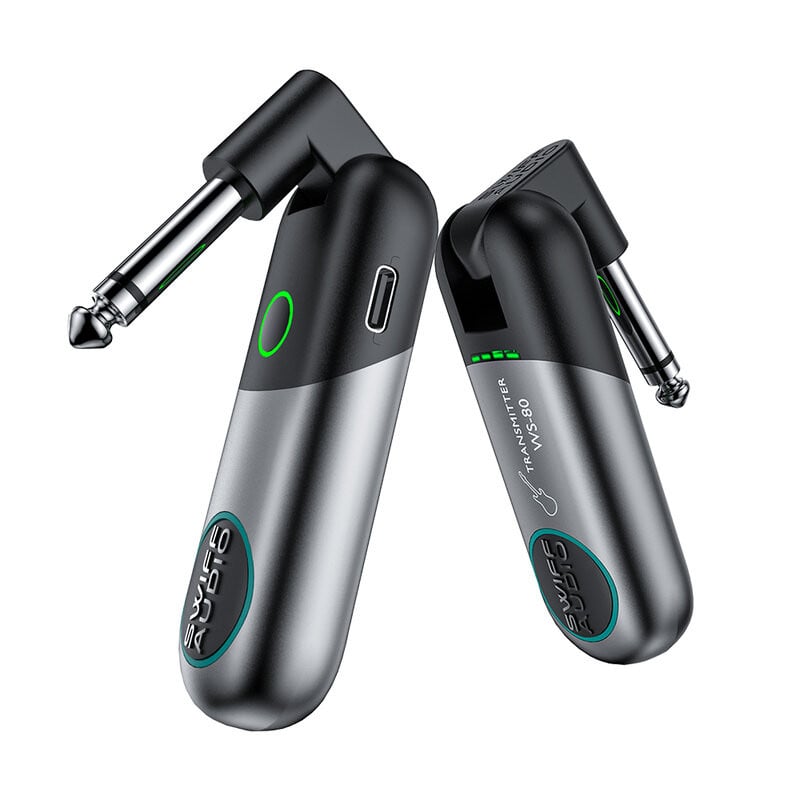

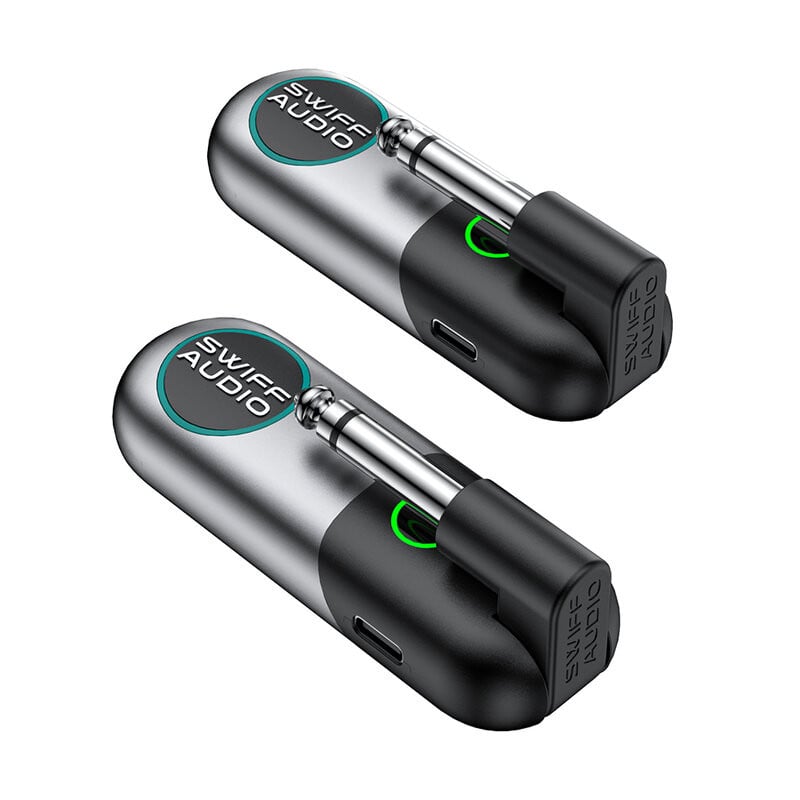

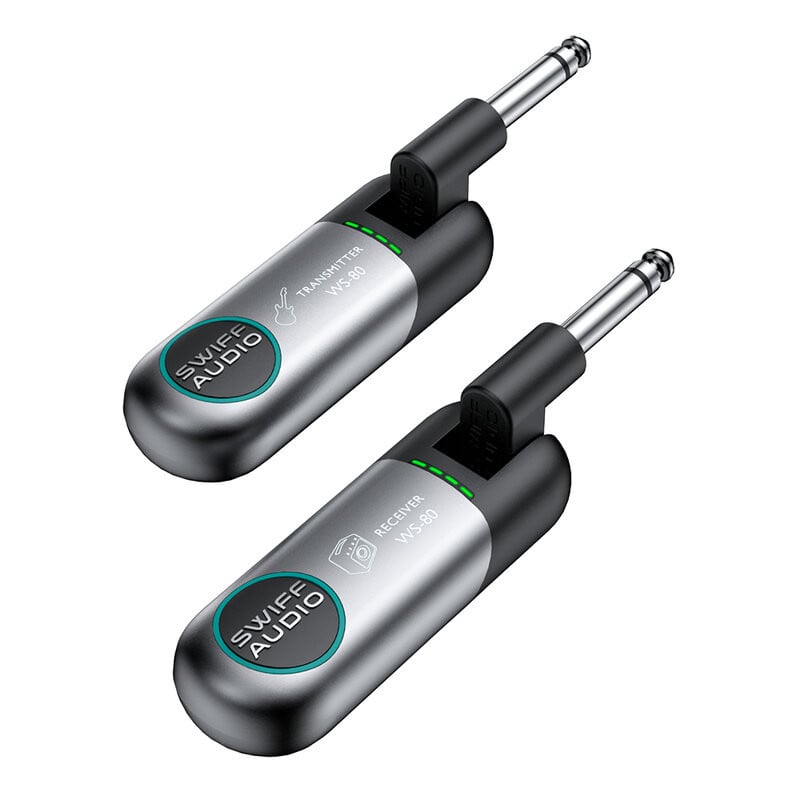

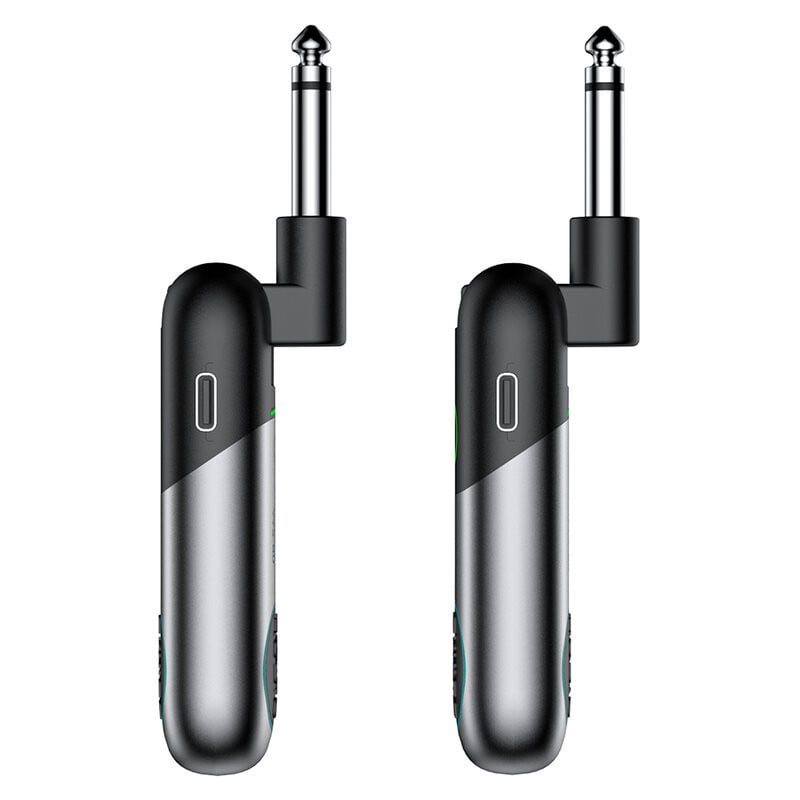

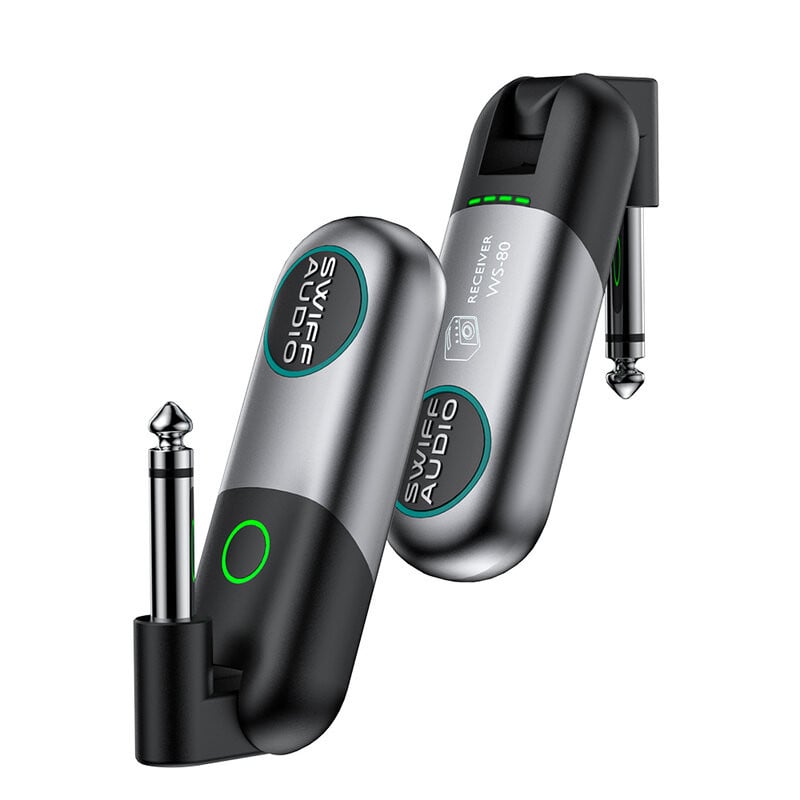

SWIFF AUDIO - WS-80

The WS-80 by Swiff Audio is a wireless transmission system (TX + RX) designed for musical instruments and dynamic microphones. Extremely compact in size, it has a 220° foldable jack connector to take up even less space during transport.

It is compatible with devices equipped with a 6.35 mm and 3.5 mm audio jack interface, offering a versatile solution for musicians and sound engineers.

UHF digital transmission guarantees a stable and interference-free signal, with a latency of less than 2 ms, ideal for live performances and professional recordings. The system covers a frequency range from 20 Hz to 20 kHz, with a dynamic of 102 dB, ensuring clear and detailed sound. The range varies from 30 to 50 m.

With a double click on the appropriate button, you can check the battery status via a 4-LED indicator.

The built-in 2000 mAh battery provides up to 5 hours of battery life, rechargeable via USB-C, eliminating the need for disposable batteries.

The WS-80 supports up to 10 simultaneous channels, allowing multiple systems to be used simultaneously without interference.

User benefits

• Suitable for guitars, basses, keyboards and other electronic instruments
• Freedom of movement on stage with a range of up to 50 m
• 220° rotatable jack connector
• 5 hours of battery life
• Extremely compact and lightweight

Areas of use

• Professional and amateur musicians
• Rehearsal rooms and teaching environments
• Project studios
• Concerts and live performances
• Events and audiovisual productions

Technical characteristics

• 10 channels
• Reception sensitivity: < -110 dBm @ 20 dBsinad
• SNR: > 85 dB
• Frequency response: 20 Hz - 20 kHz
• Latency:< 2 ms
• Distorsion: < 0.02%
• Transmission distance: 30 - 50 m
• Full working hours: 5 hours
