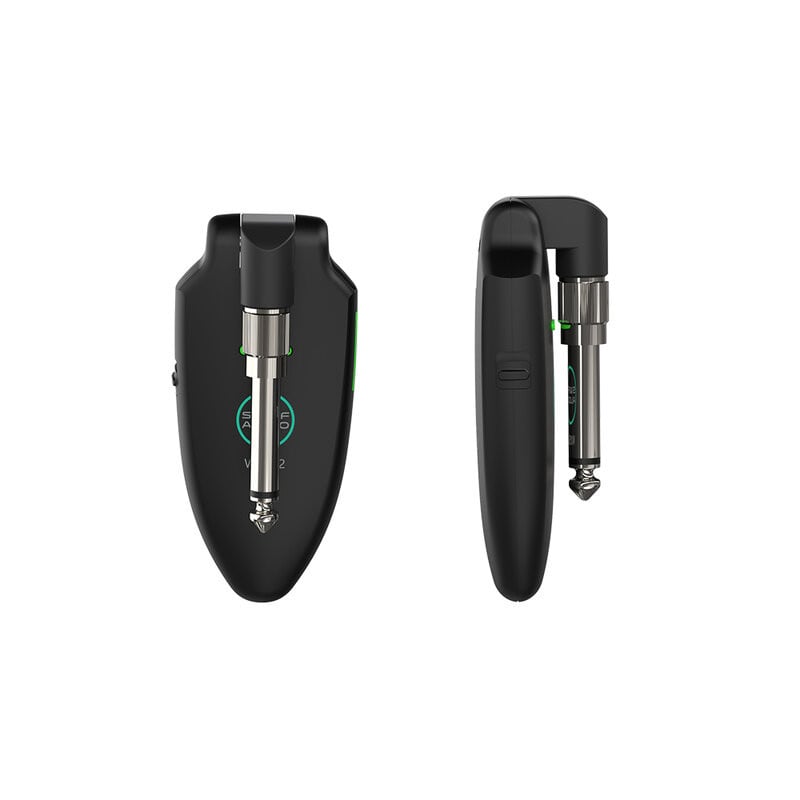

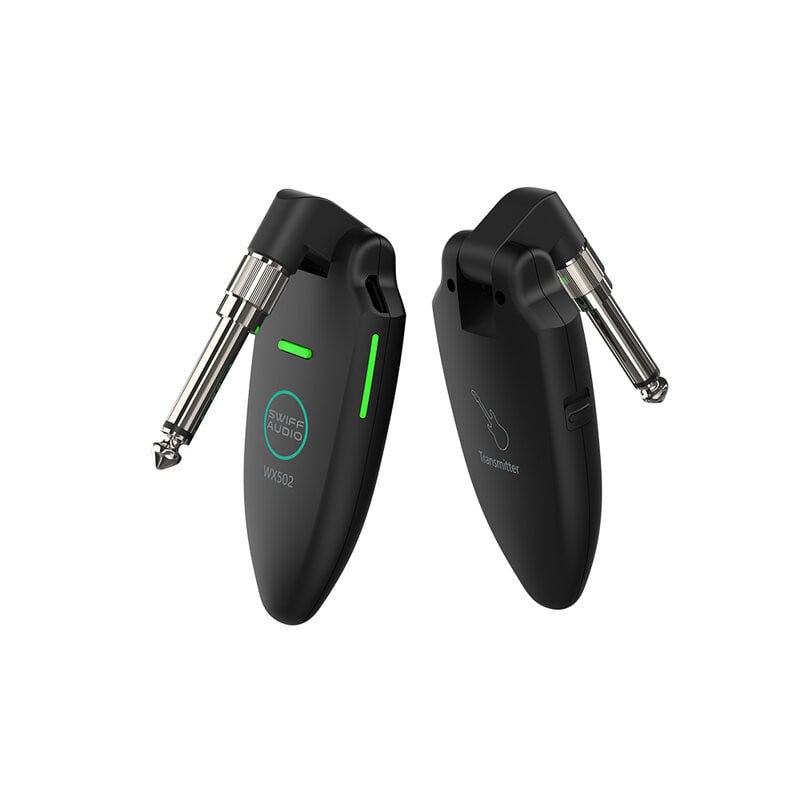

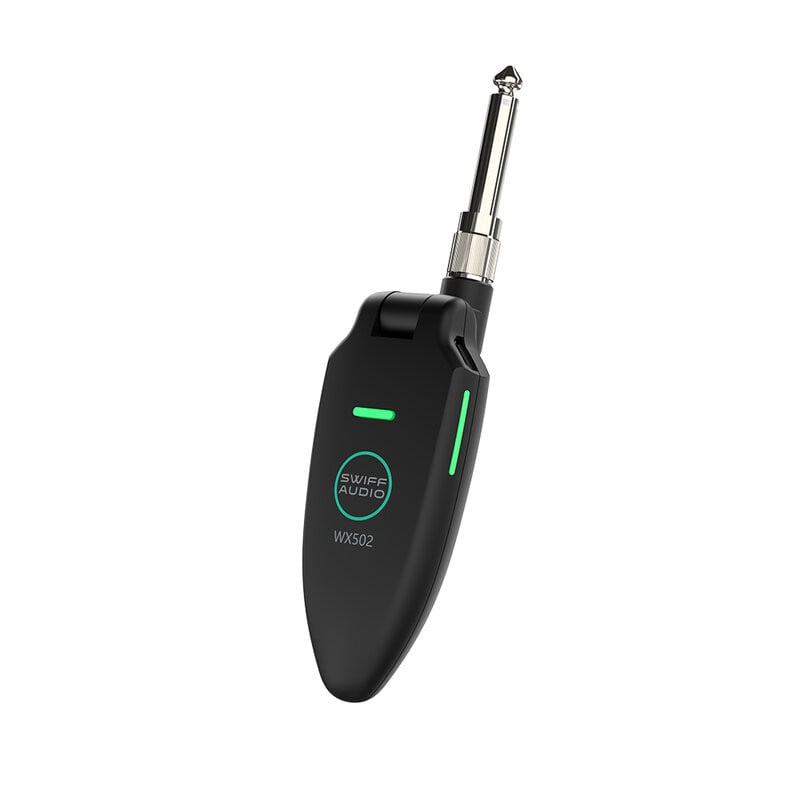

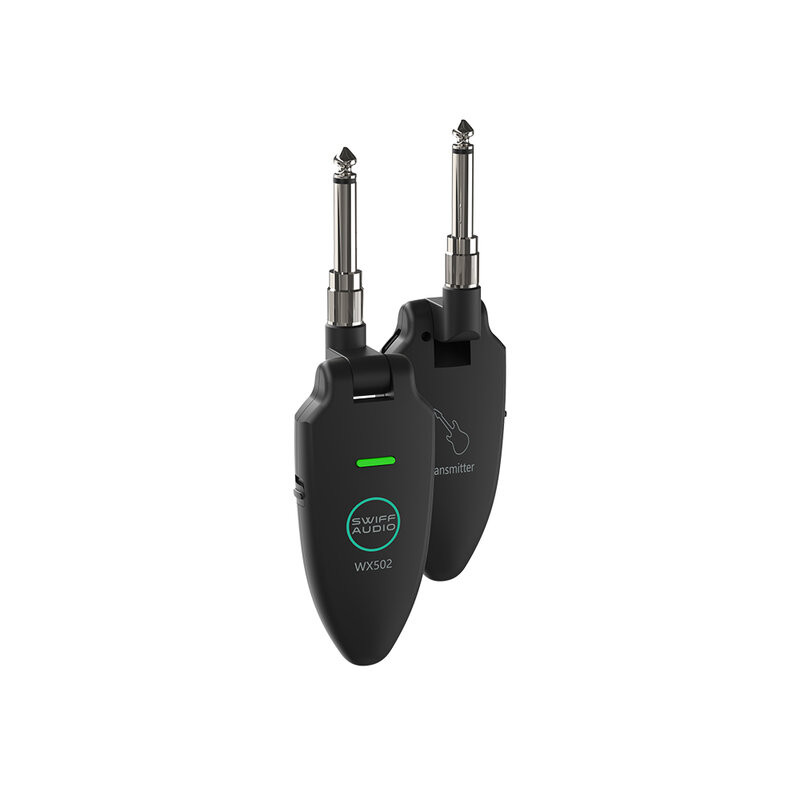

SWIFF AUDIO - WX-502

SWIFF AUDIO WX-502 Digital Wireless System is a wireless transmission system designed for musical instruments, which uses 5.8 GHz technology to ensure a stable and interference-free connection, high sound quality, reliable signal encryption and strong wall penetration capability.

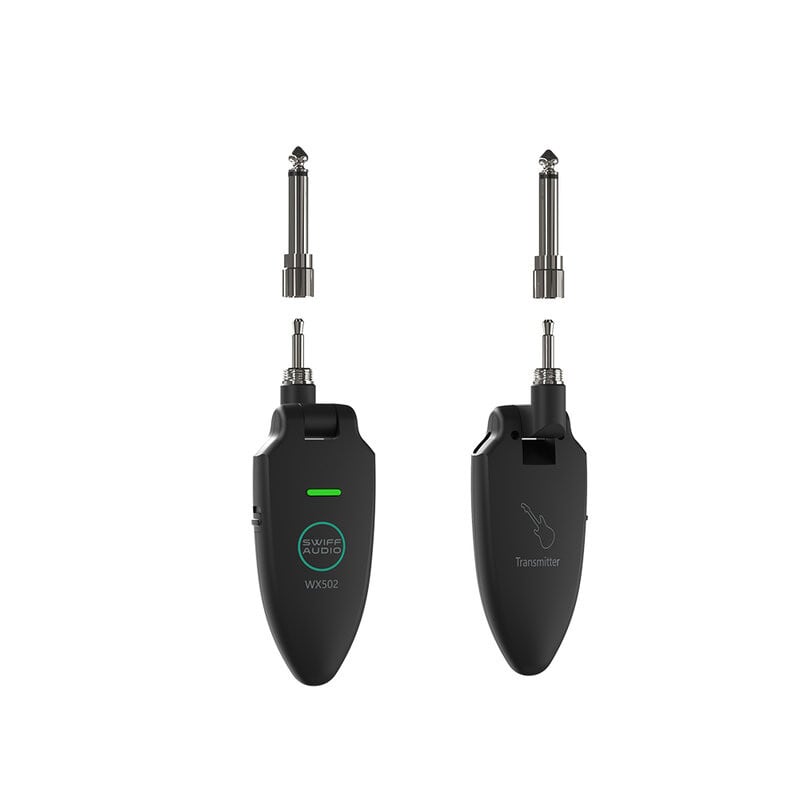

Wireless transmission allows the system to be connected to any instrument with a 6.35 mm or 3.5 mm interface, making it compatible with a wide range of audio devices; the foldable 6.35 mm jack connector screws onto the 3.5 mm mini-jack when needed.

Thanks to its advanced technology, the WX-502 offers low latency, ensuring faithful sound reproduction without perceptible delays. The transmission distance varies between 30 and 50 m and with 100 channels it supports up to 10 receivers simultaneously without them interfering with each other.

The internal lithium-ion battery ensures a battery life of over 6 hours. A special indicator allows you to monitor the charge status.

Benefits for users

• Suitable for guitars, basses, keyboards and other electronic instruments
• Freedom of movement on stage thanks to a range of up to 50 m
• Rotatable jack connector
• Over 6 hours of battery life
• Extremely compact and lightweight

Areas of use

• Professional and amateur musicians
• Rehearsal rooms and teaching environments
• Project studio
• Concerts and live performances
• Events and audiovisual productions

Technical characteristics

• 100 channels
• Reception sensitivity: < -110 dBm @ 20 dBsinad
• SNR: > 85 dB
• Frequency response: 20 Hz - 20 kHz
• Latency:< 2 ms
• Distorsion: < 0.05%
• Transmission distance: 30 - 50 m
• Full working hours: ~ 6 h
• Dimensions: 80 x 36 x 26 mm
• What's in the box:
  • WX-502 TX + WX-502 RX
  • 1 x double-ended USB charging cable
  • 1 x user manual
