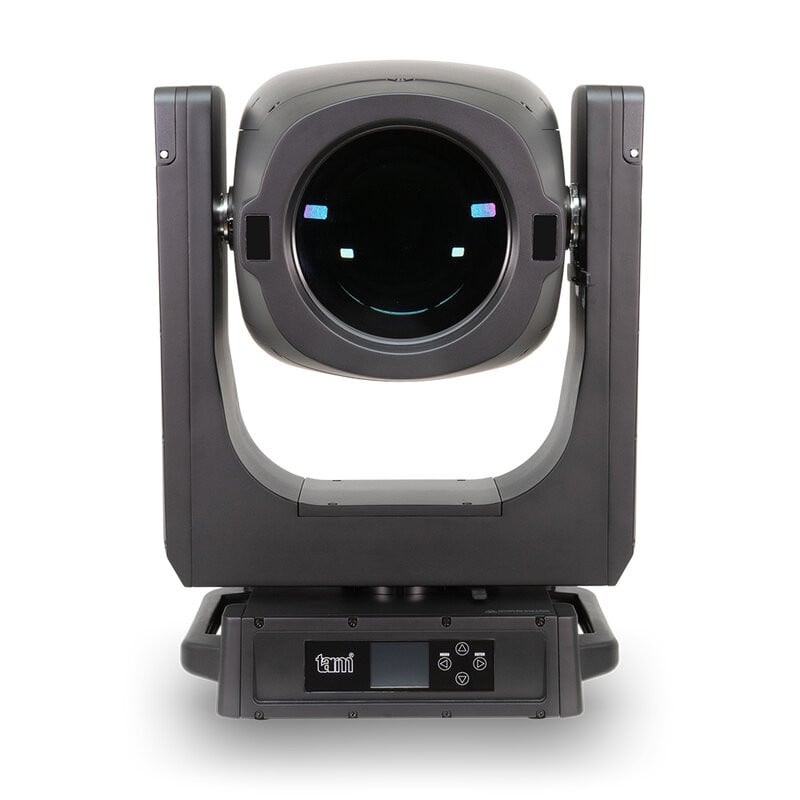

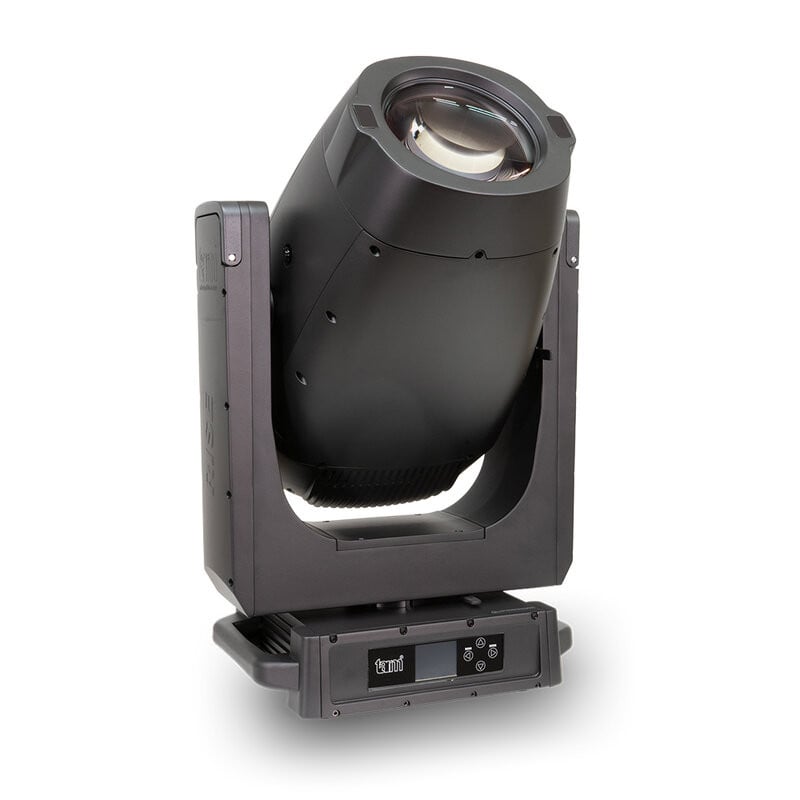

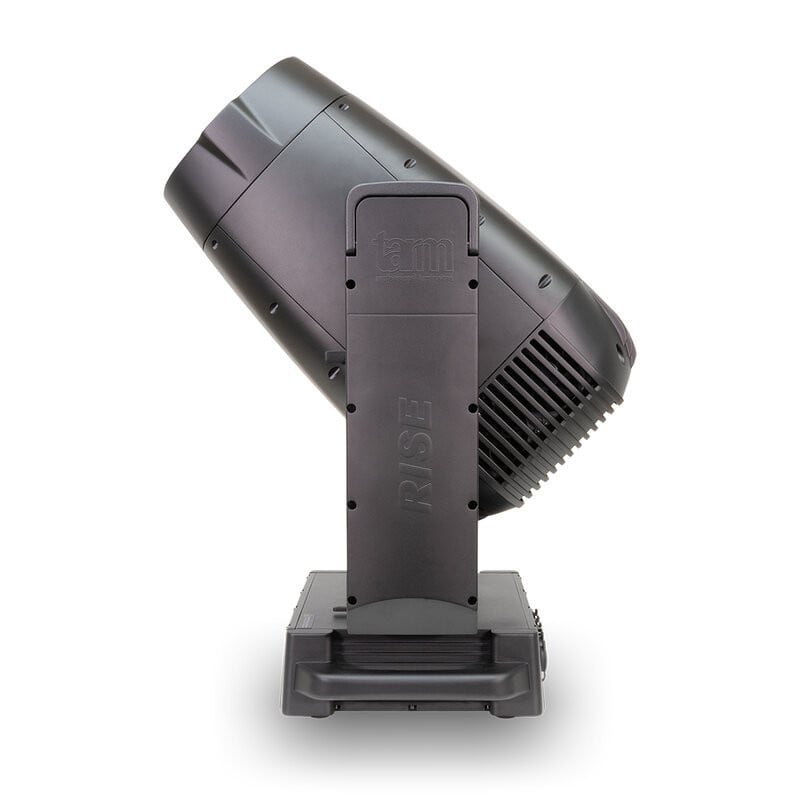

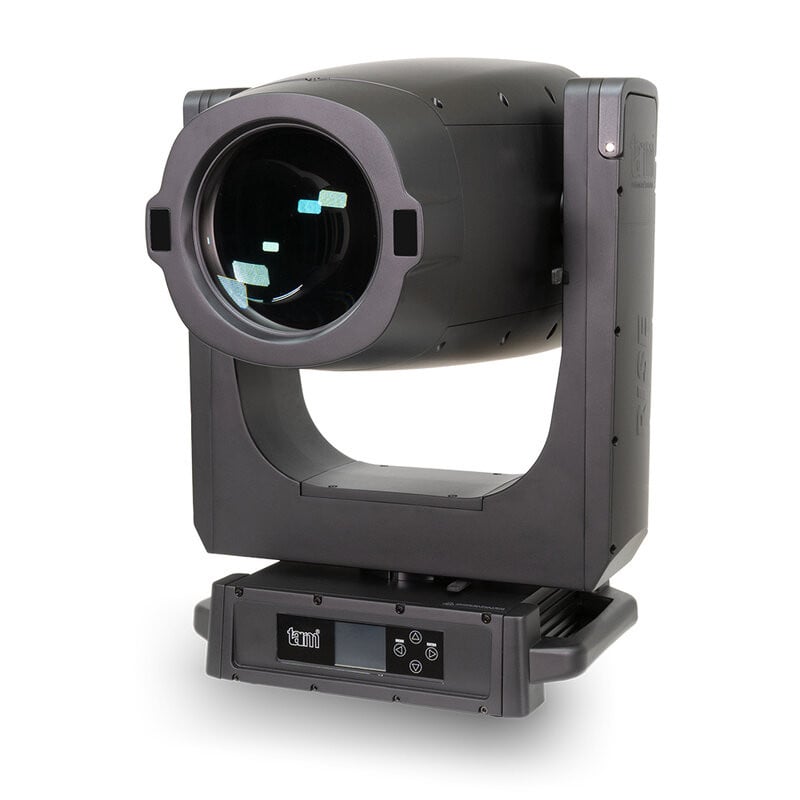

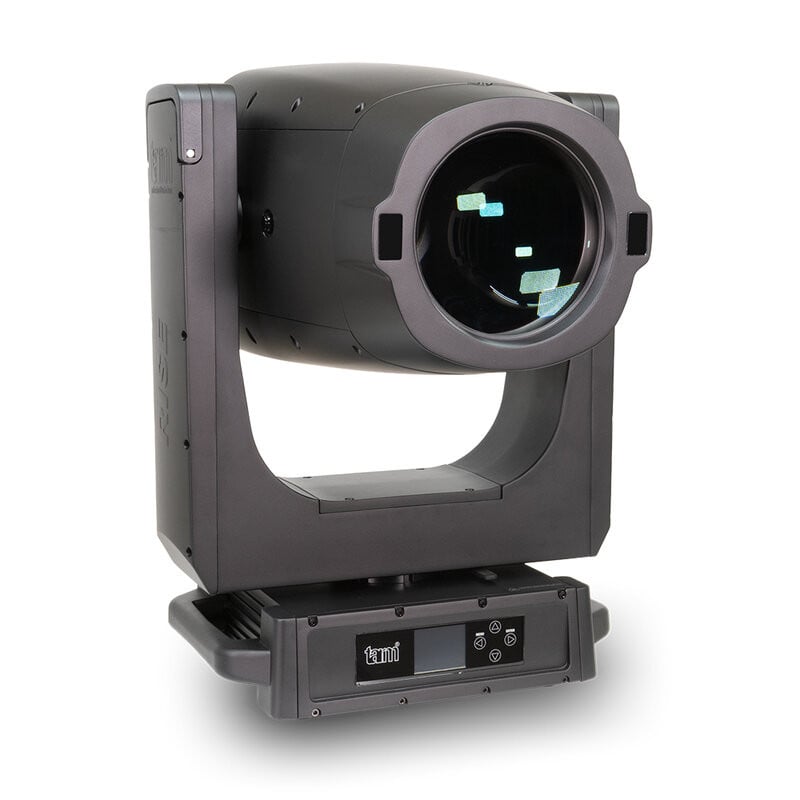

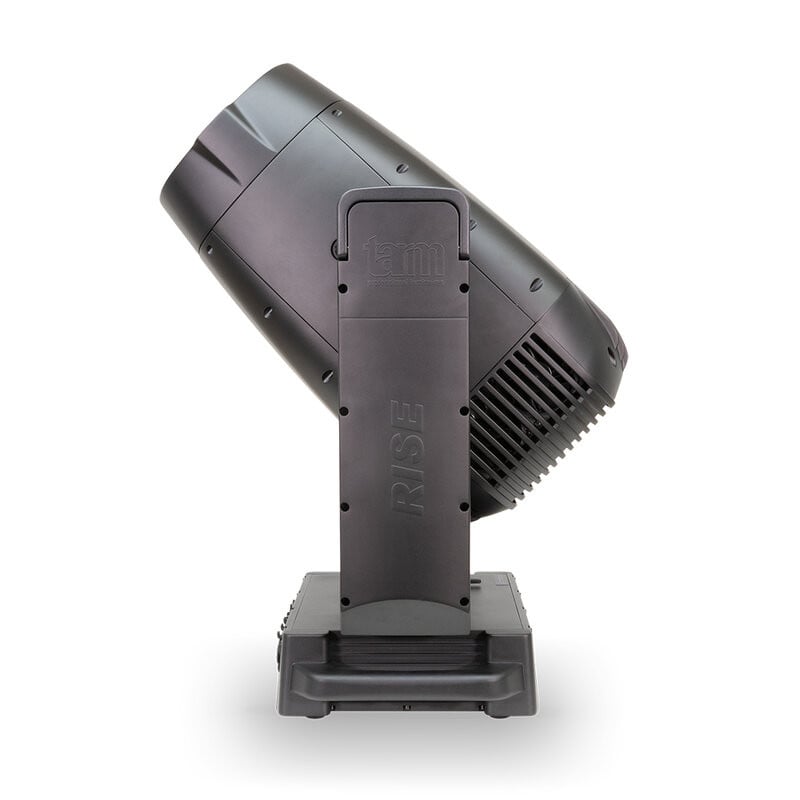

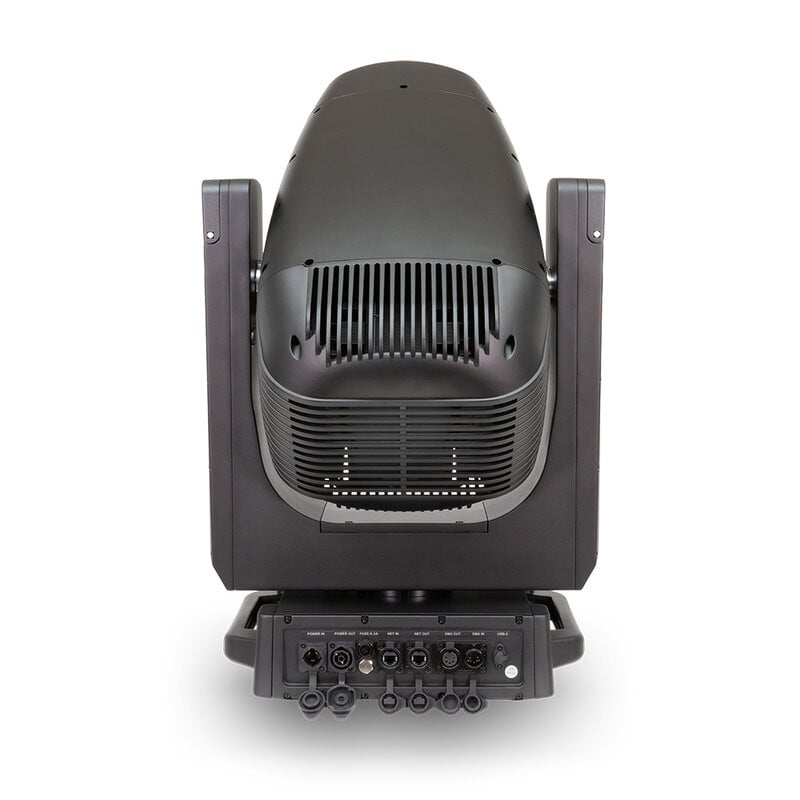

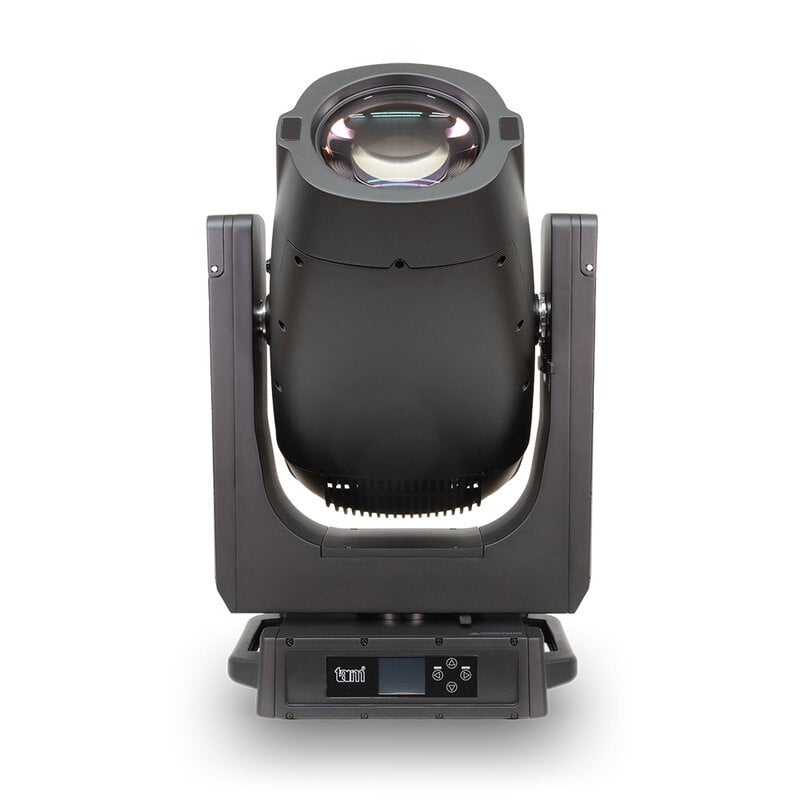

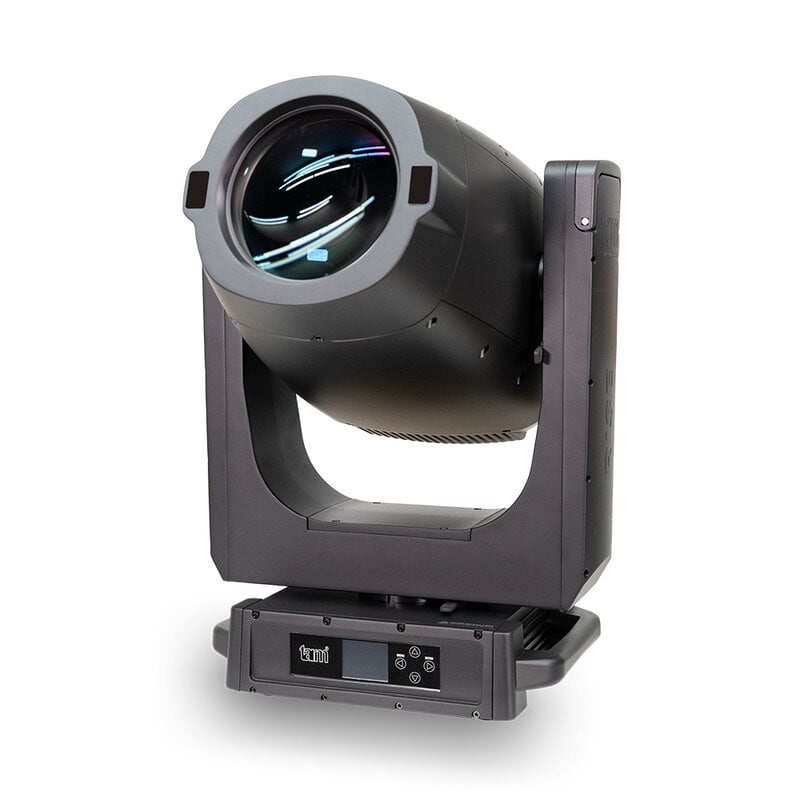

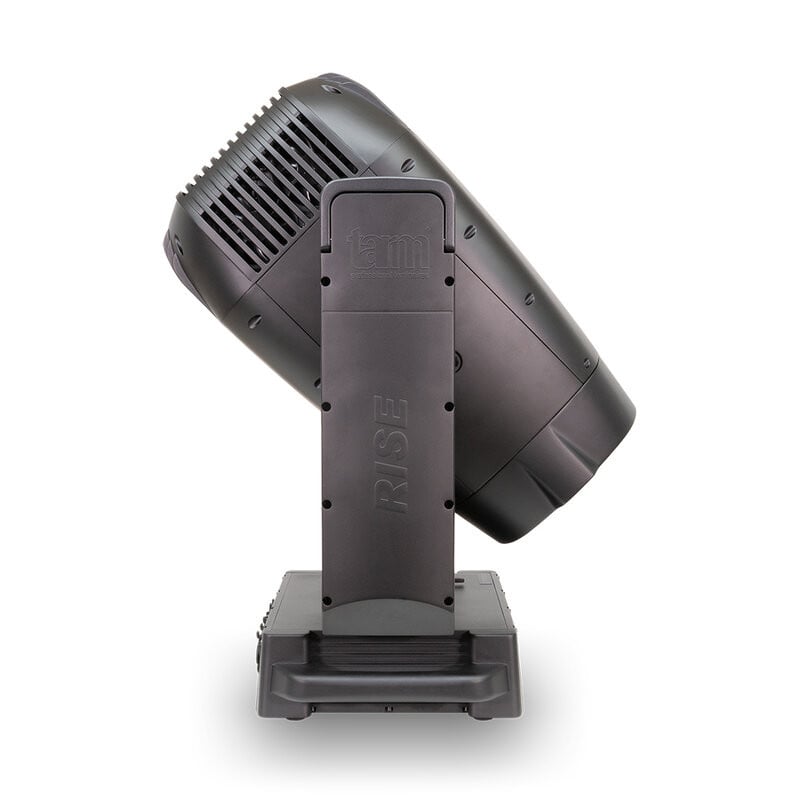

TARM Lasers - tarm RISE 500

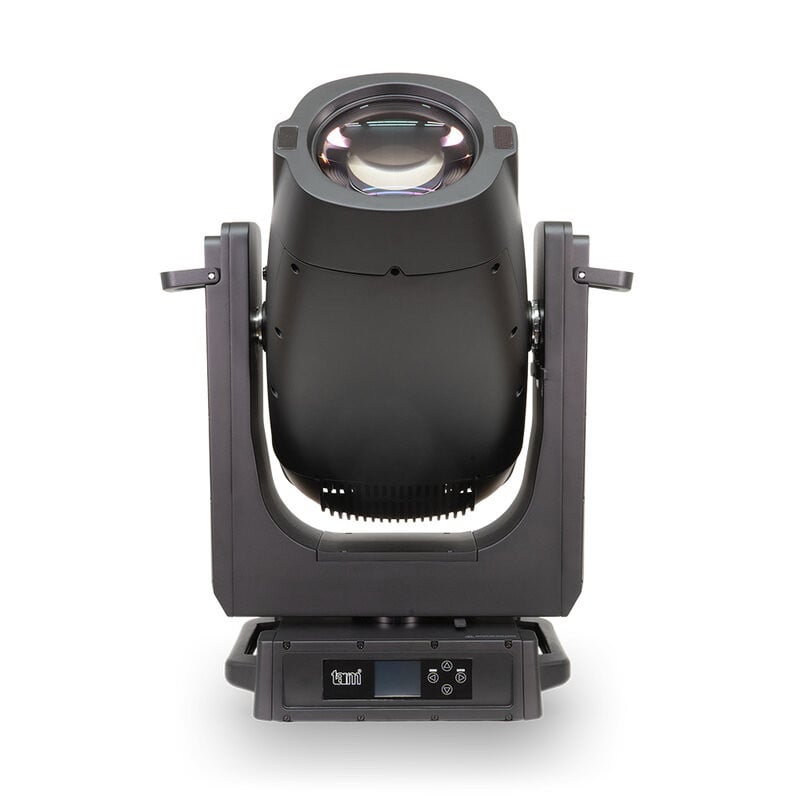

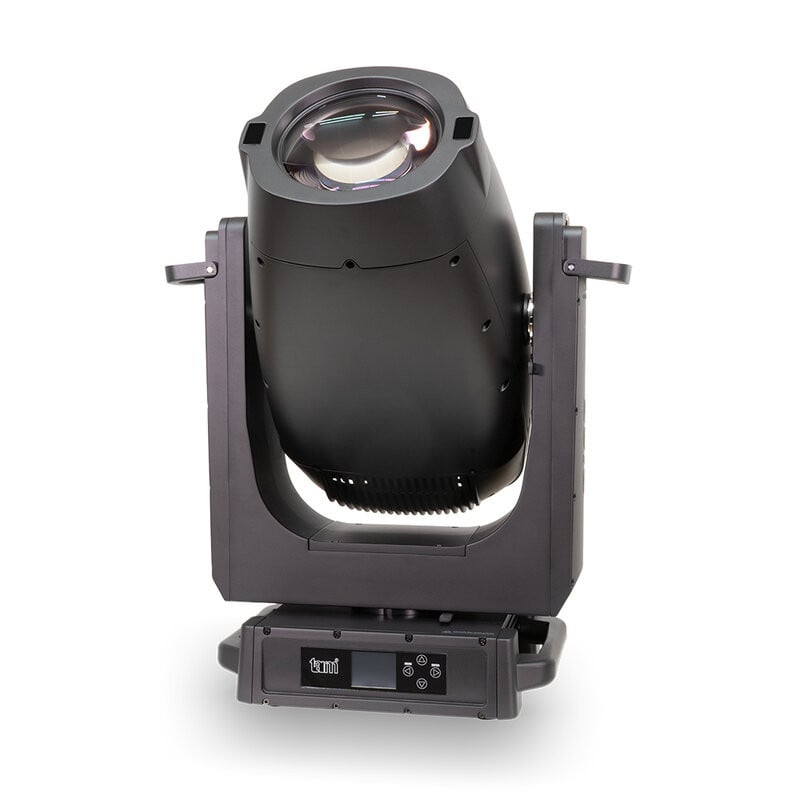

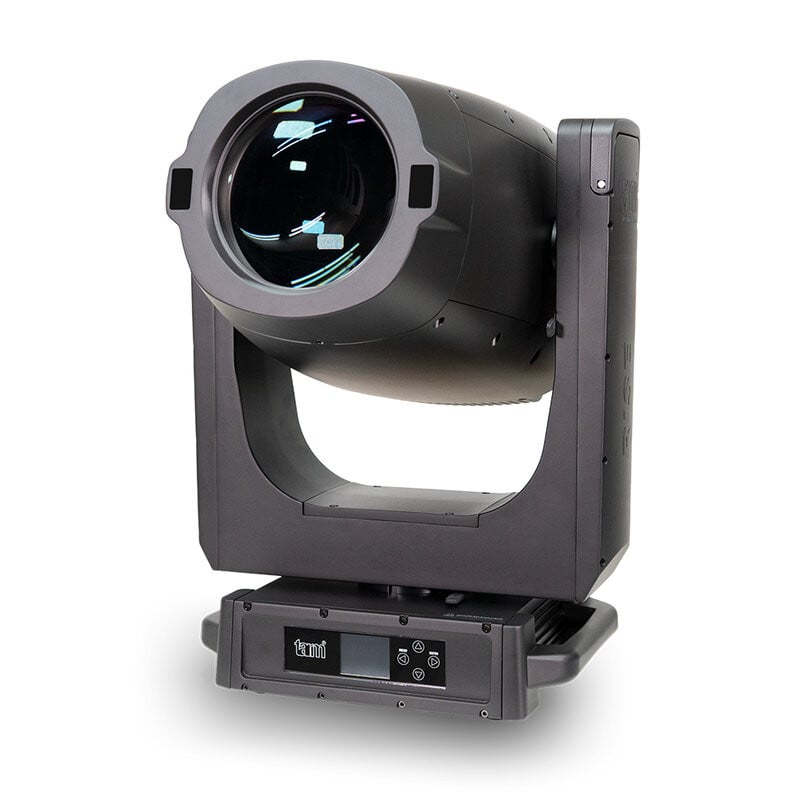

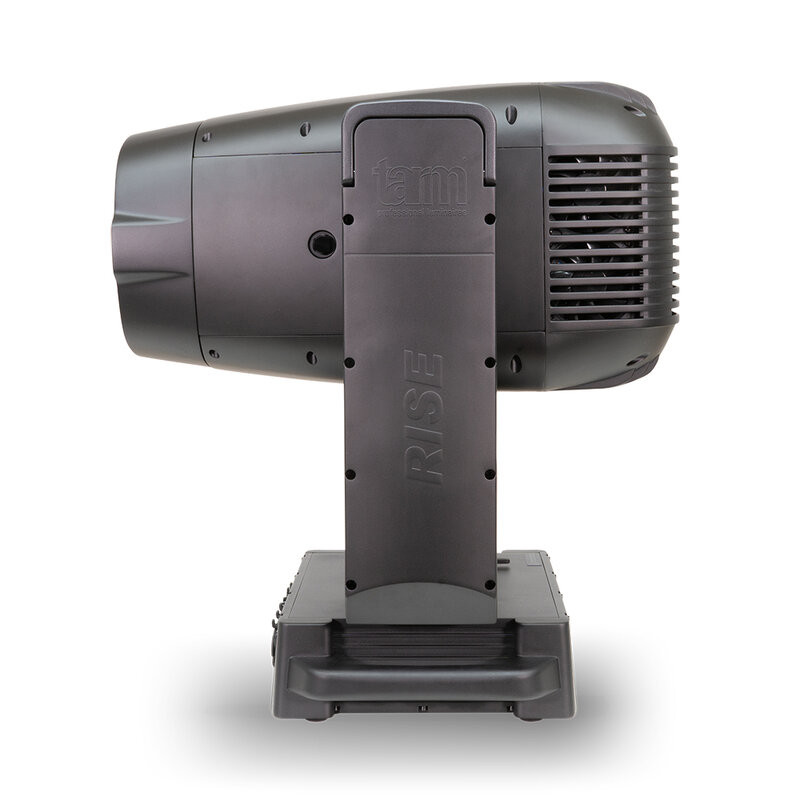

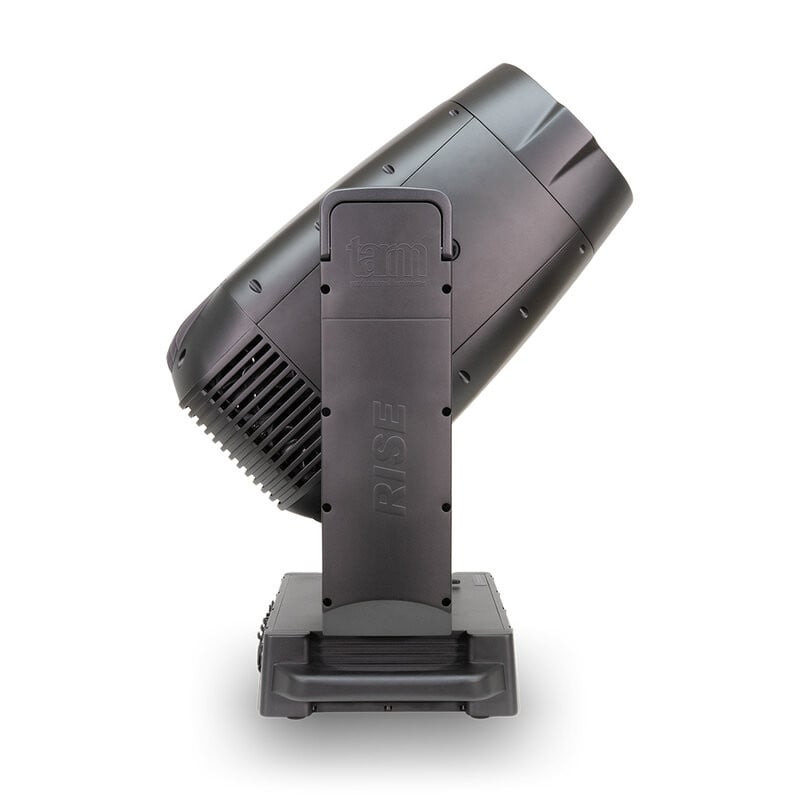

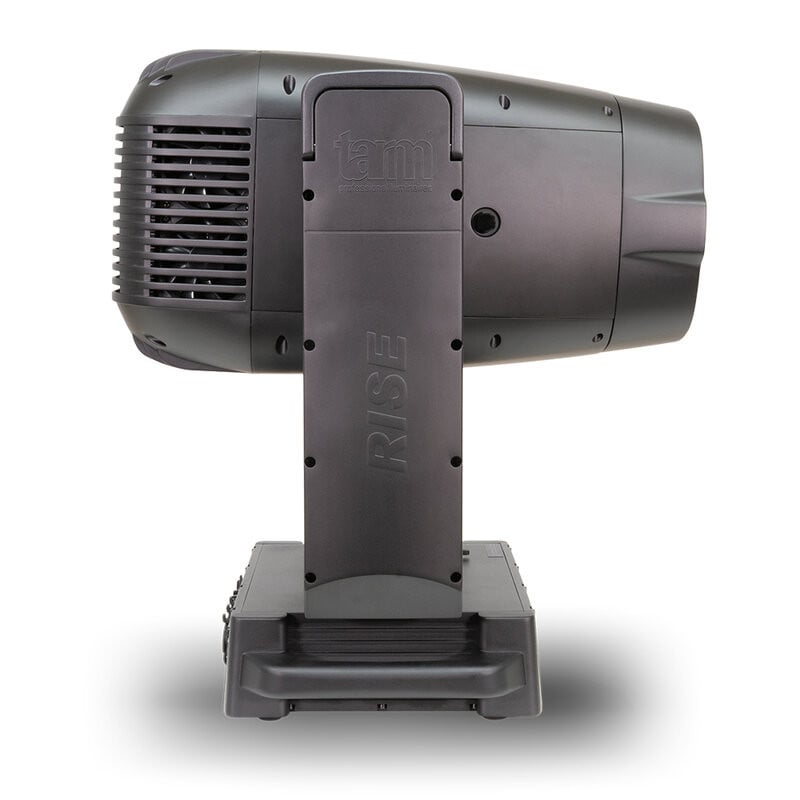

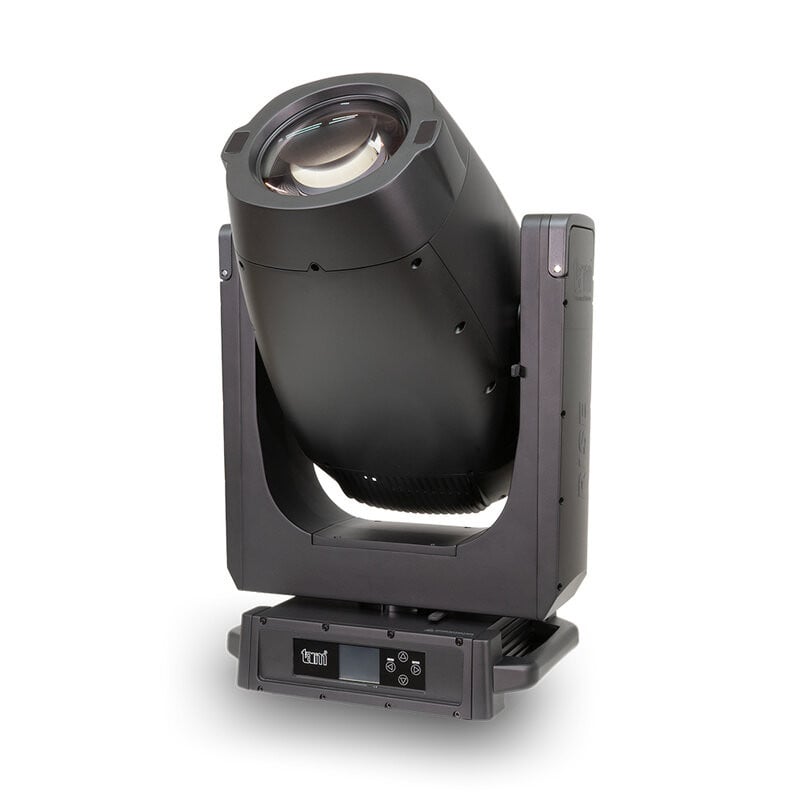

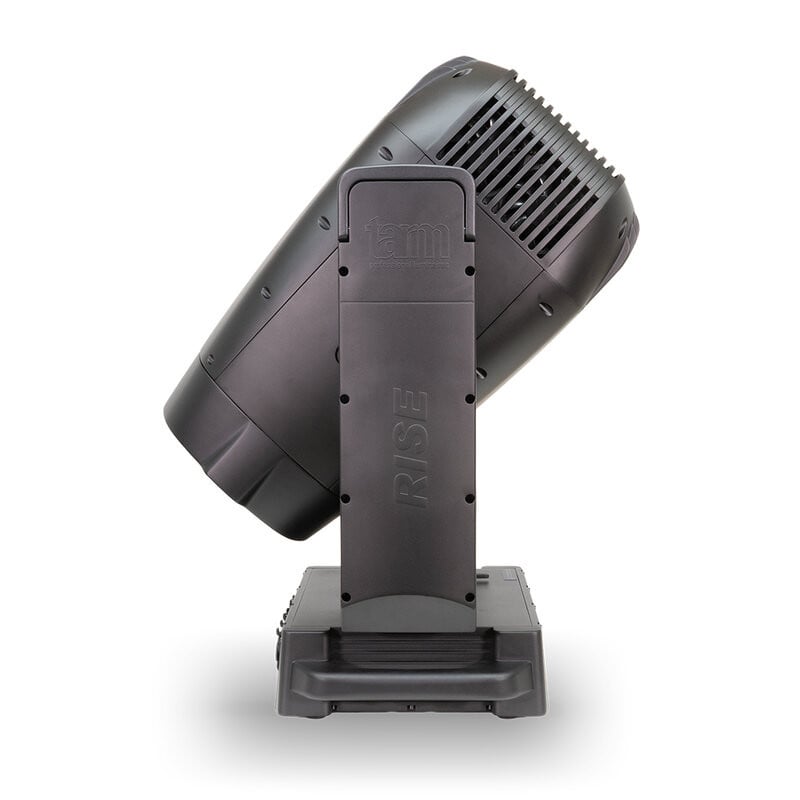

The RISE 500 is a hybrid motorized moving head with a 500 W laser source, designed to deliver an extremely bright beam thanks not only to the source but also to optimized optics that reduce the number of lenses and maximize the efficiency of the light emitted. The result is superior visual performance compared to other fixtures in the same power class.

The system offers a wide zoom range from 0.6° to 30°, allowing for both the generation of a very narrow, defined beam and wider projections for classic stage lighting applications. The moving head is extremely fast yet can maintain fluid movements when necessary.

The color section includes a CMY unit for continuous mixing and a 19-color + white wheel, including four CTO shades for accurate color selection. The system integrates beam-optimized Gobos, stackable and rotatable linear and radial prisms, as well as rotating glass Gobos for advanced visual effects.

The RISE 350 is designed for applications requiring silence: in theater mode, the noise remains below 40 dB. Control supports DMX512, Art-Net, RDM, and sACN, with three DMX profiles available to suit different operating needs.

The enclosure is made of magnalium and die-cast aluminum, robust and durable materials, with an IP66 rating, making the device suitable for outdoor use even in harsh environmental conditions. The operating temperature range is −20 to 45°C. Power consumption is 750 W, while dimensions are 43.5 × 29.4 × 71.6 cm and a weight of 35 kg.

The product comes with a high-density foam shell that can be used as an inlay for flight cases.

User benefits

• Superior brightness thanks to optimized optics and 500 W laser source
• Great versatility with a 0.6° – 30° zoom that allows for both sharp laser beams and wide projections
• Advanced colorimetry with continuous CMY and a color wheel with 19 shades + white, including four CTOs
• Ability to generate complex effects thanks to beam-optimized Gobos, stackable and rotatable linear and radial prisms, and rotating glass Gobos, ideal for sensitive environments
• Outdoor reliability (IP66) with a magnalium structure and die-cast aluminum components

Areas of use

• Large events and shows in very large venues
• Productions requiring both sharp laser beams and wide projections
• Concerts, festivals, and installations with complex effects
• Theatres and television studios requiring quiet operation
• Outdoor applications in harsh conditions
• Events in environments with extreme temperatures

Technical characteristics

• Light source: 500 W white laser engine
• Lens diameter: 180 mm
• Zoom: 0.6° – 30°
• Focus: adjustable
• Luminous flux: ≥ 10900 lm
• Lux @ 20 m: 410,000 lx
• Lux @ 100 m: > 16,400 lx
• CRI: 70
• CCT full white: 9100 K
• Rated life (LP70): 12,000 hrs
• Pan/Tilt: 540° infinite / 270° (8 – 16 bit)
• Dimmer: 0 - 100% 24 bit
• Static Gobo: 19 Gobos, Gobo shake
• Rotating gobo: 12 rotating Gobos, Gobo shake
• Colors: color wheel 19 colors + white, rainbow flow effect, including CTO
• Color mixture: CMY‑mixture
• Prism: 2 prism wheels with three radial prisms, 3 linear prisms and one elliptical prism, bi‑directional rotation, adjustable speed, stackable prism wheels
• Frost: 3 frost filters on the prism wheel, stackable
• Cooling: forced convection
• Temperature range: -20 to 45 °C
• IP rating: IP66
• Power supply: 100 – 240 V_AC 50/60 Hz
• Power consumption: 750 W

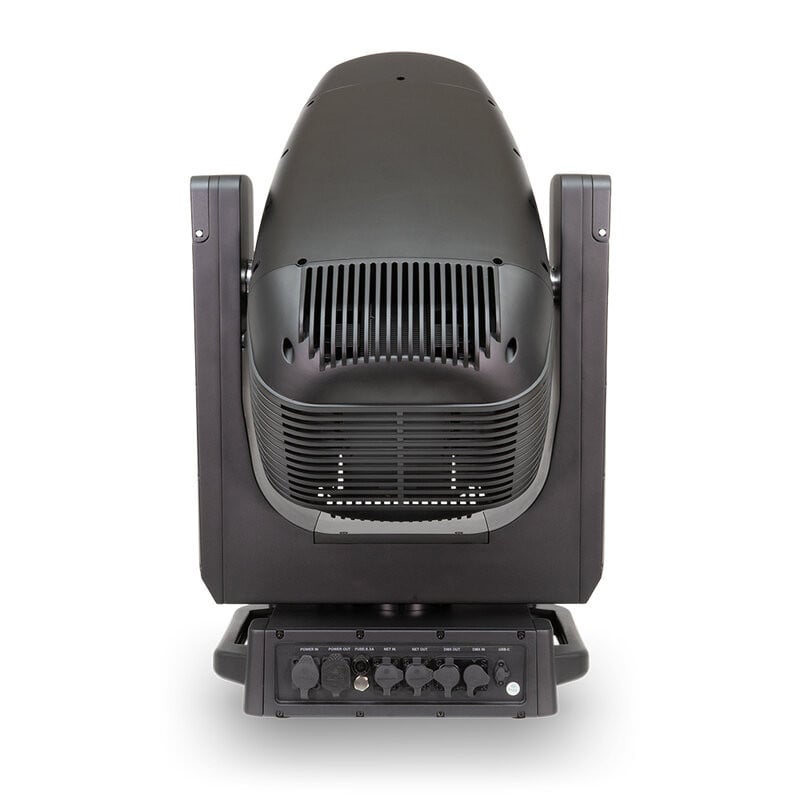

• Connectivity: 5‑pin DMX IN and through, RJ45 IN and through, USB‑C, TRUE1‑type in and through
• Material: magnalium and die‑cast
• Color: black
• Transportation: delivered in high density foam shell

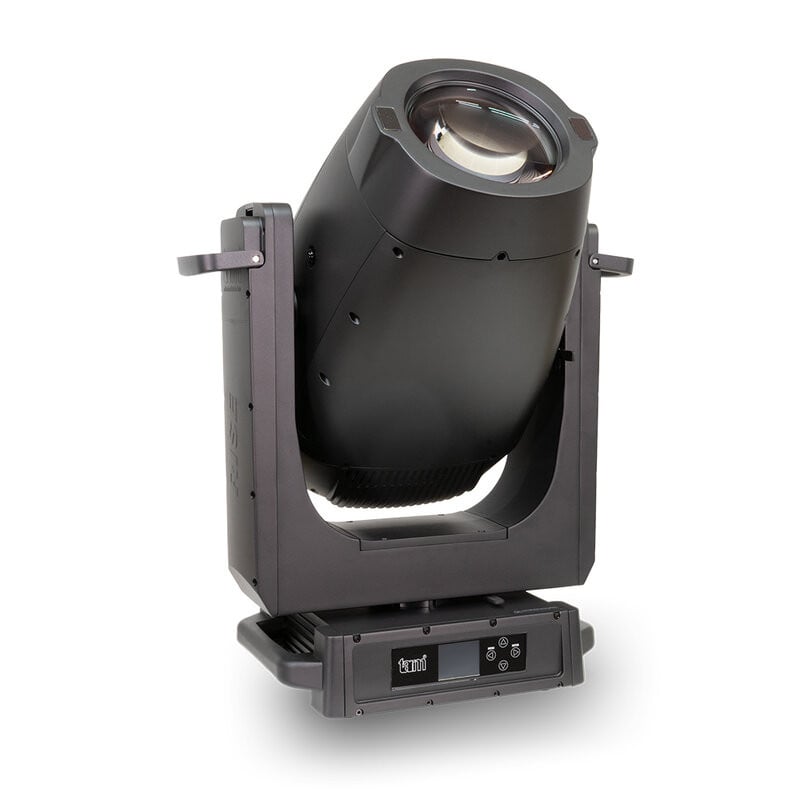

• Comfort features: battery powered mainboard for easy patching without power. Handles on top part of moving arms for convenient carrying of the fixture
• Dimensions: 43.5 × 29.4 × 71.6 cm
• Weight: 34 kg
