SKU: RUBIK2.6
Yes Tech - P2.6 RUBIK
Indoor, IC DP3265, SMD1515, black LEDs, 800 - 1000 nit, ≥ 3840 Hz, 500 x 500 mm, IP50, 7.6 kg
Not available.
delivery is not available for this product.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
420.00 €
Indoor, fixed installation only, IC DP3265, SMD1515, full black LED, copper wire, Nova A5S Plus, module flash function, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 6 kg
518.50 €
Small triangle display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000nit, ≤3840 Hz, 250 x 500 mm, 2.5 kg
120.50 €
Indoor, front service, SMD1515, 800 nit, 3840 Hz, 320 × 480 mm, 2.1 kg
81.00 €
Quarter display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 250 x 500 mm, 4.2 kg
257.50 €
Indoor, 3-in-1 SMD, 800 nit, 5000:1, ≥ 3840 Hz, 250 x 750 mm, 4.5 kg high-performance LED panel, flexible design, concave, convex, right angle splicing for option
Product Details

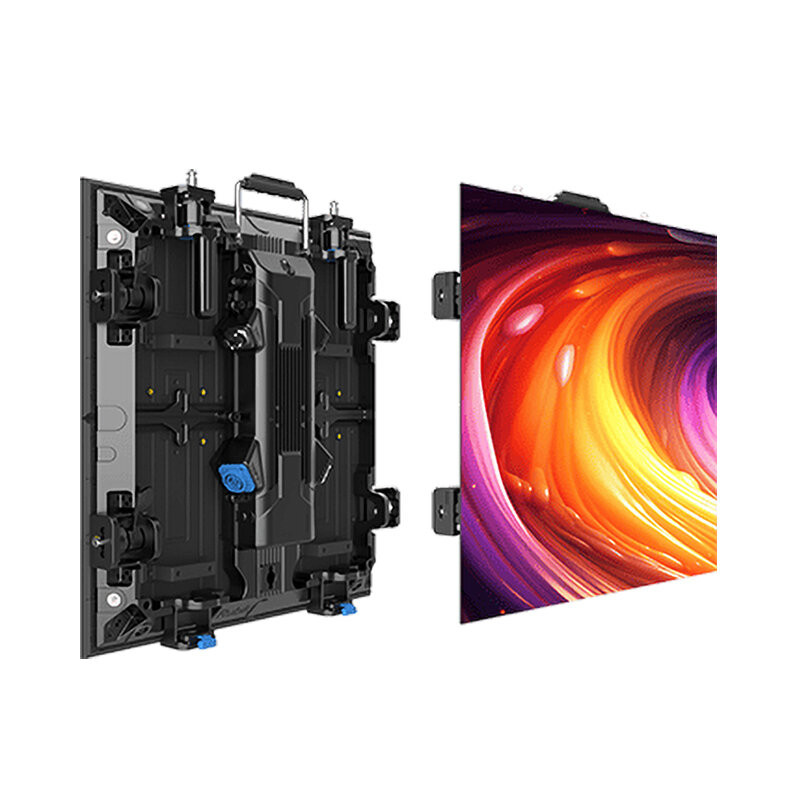

Yes Tech Rubik 2.6 is an innovative solution designed to create six-sided LED cubes.

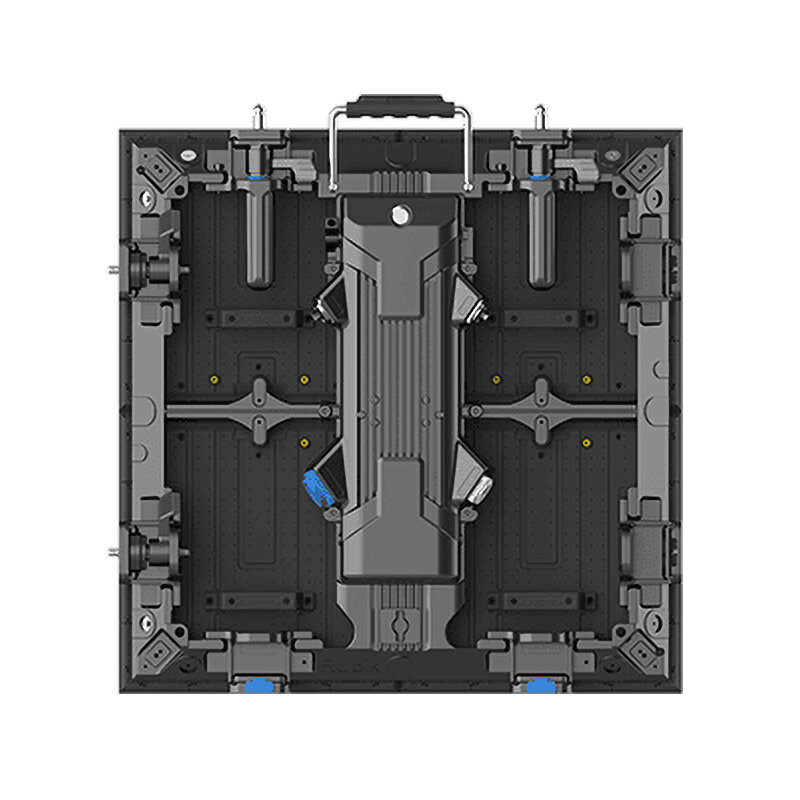

Thanks to the design of the cabinet and modules, featuring magnetic positioning with a retention cable for precise and rapid positioning during installation and easy maintenance, installation is simple and intuitive.
The modular design of the 500 x 500 x 74 mm cabinet, combined with a quick release lever on the control box, facilitates front and rear maintenance. The planned pixel pitches for Rubik are 1.9, 2.6, 3.9 and 4.8 mm for indoor applications, and 2.9 and 3.9 mm for outdoor applications.
The structure is compatible with horizontal installations and 90° splicing, allowing for the construction of perfect cubes and other creative configurations. In addition, the quick locking system allows for safe installation up to 10 meters in height.
The display offers a horizontal and vertical viewing angle of 160° / 120° and adjustable brightness, ensuring optimal visibility. With a refresh rate greater than 3840 Hz, it ensures smooth and flicker-free images. It is CE, FCC and ETL certified, respecting the highest safety and quality standards.
Finally, the Rubik series perfectly matches the MU and MG series of Yes Tech LED panels, both vertically and horizontally, using compatible connectors.
User benefits
- Quick and easy installation thanks to the modular design, magnetic positioning and quick locking system
- Maintenance from both the front and rear
- Creative flexibility: compatible with 90° splicing and custom configurations, such as LED cubes
- Great visual quality thanks to a refresh rate of over 3840 Hz and adjustable brightness
- Ability to make safe installations up to 10 meters high
- Perfectly matches Yes Tech's MU and MG series with compatible connectors
- The Rubik cabinet can accommodate Rubik and MU series modules with various pixel pitches, reducing procurement, management and storage costs
Areas of use
- Theatrical performances
- Events
- Advertising
- Art installations
- Theme parks
- Landscaping
- Exhibitions
- Educational and research institutions
- Entertainment venues
Technical characteristics
| Pixel pitch | 3.9 mm |
| Operating environment | Outdoor |
| Module size | 250 x 250 mm |
| Module quantity per cabinet (W×H) | 2 x 2 |
| Cabinet resolution (W x H) | 128 x 128 |
| Cabinet size | 500 x 500 x 74 mm |
| IP rating front / back | IP65 |
| Pixel confuguration | 1R1G1B |
| Weight | 7.6 kg/cabinet |
| IC | DP3265 |
| Physics density | 65,536 dot/m2 |
| Brightness | 4000 - 4500 nit |
| Brightness adjustment | Brightness of R,G,B 256 color can be adjustable by software |
| Driving method | 1/11 scan |
| LED encapsulation | SMD1515, black shell white face LEDs |
| Horizontal viewing angle | 160° |
| Vertical viewing angle | 160° |
| Power consumption max. / average | 700 / 235 W/m2 |
| Gray scale | 64G (under 4096 grade scale) |
| Refresh frequency | ≥ 3840 Hz |
| Control system | Nova |
| Display content | Text, graphics, logo, animation, live video, movie, etc. |
| Communication distance | UTP transmission distance is 100 m, the maximum is 130 m（multimode fiber 500 m, single mode fiber 150 km is optional） |
| Connection method | Synchronized with computer. If TV, DVD player, VCD player, VCR, etc. (need video processor) |
| Life-span | > 80,000 h |
| Average no failure time | > 10,000 h |
| Operating environment humidity(RH) | 10 - 90% RH |
| Operating environment temperature | -20 to 50 °C |
| Certification | CE FCC ETL |
