Yes Tech - P2.6 XTRA Indoor

The new Yes Tech Xtra Series P2.6 indoor rental LED panel is an innovative product designed to offer unmatched flexibility and creativity.

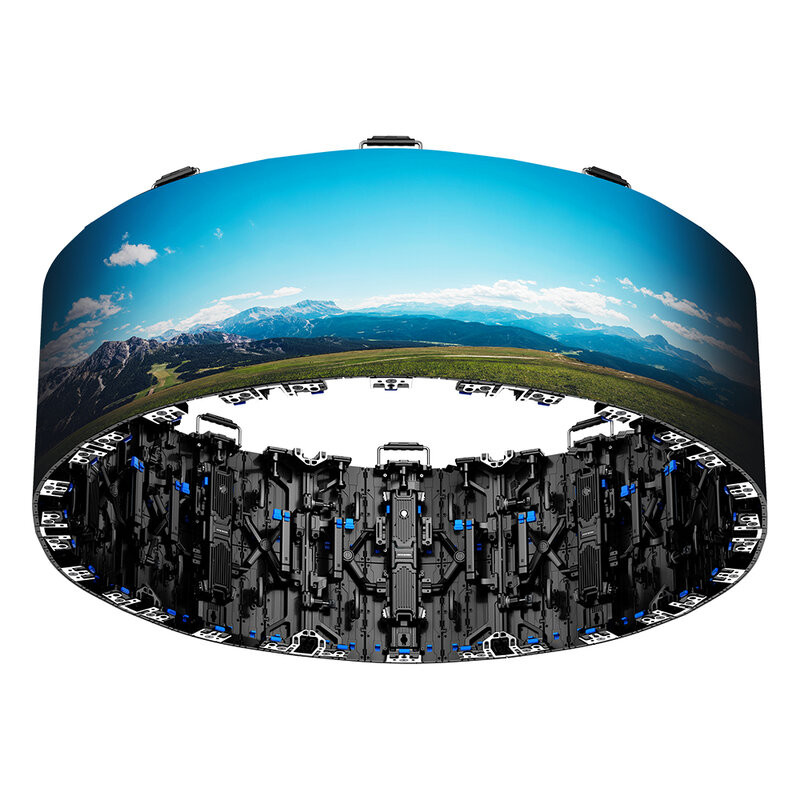

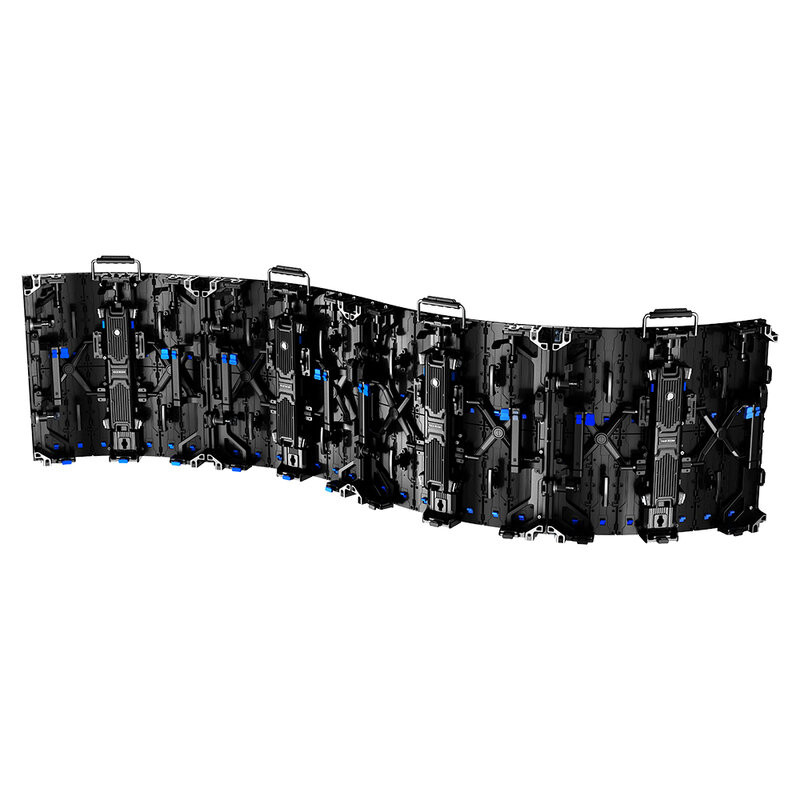

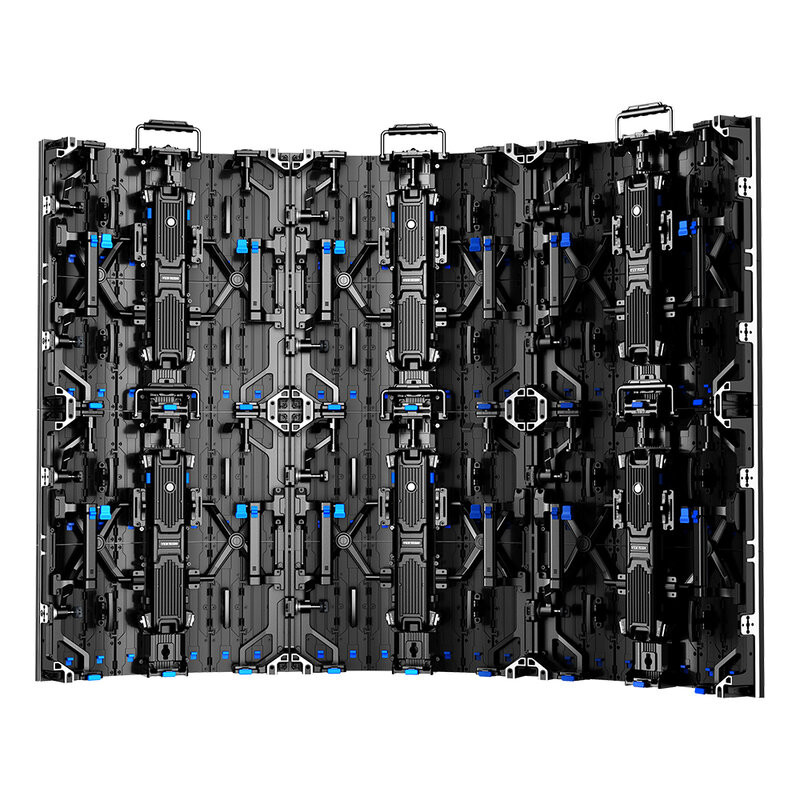

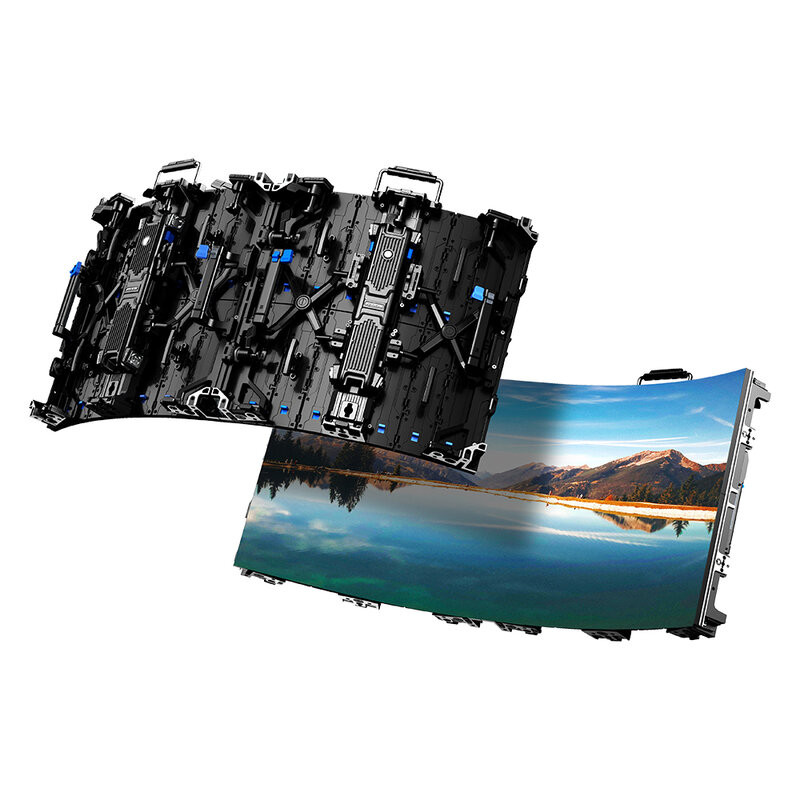

Its universal arc design allows you to create arcs up to ±45°, convex and concave, as well as S-shaped configurations with a single cabinet. Two cabinets can form a 90° circular arc and 8 cabinets allow you to create a cylinder, with a minimum diameter of 1.27 m. This makes it ideal for curved LED walls and creative configurations.

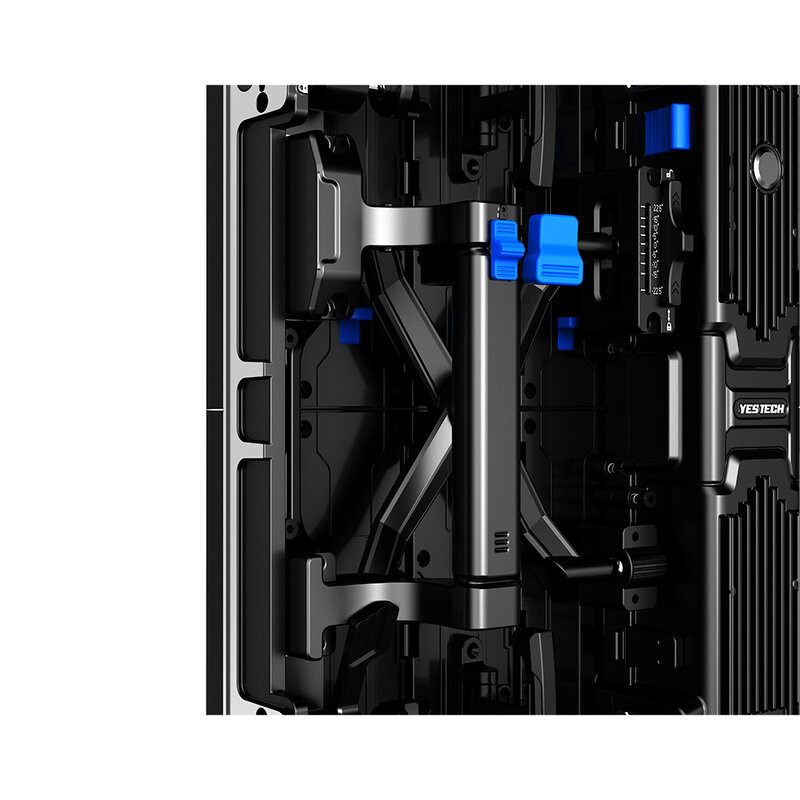

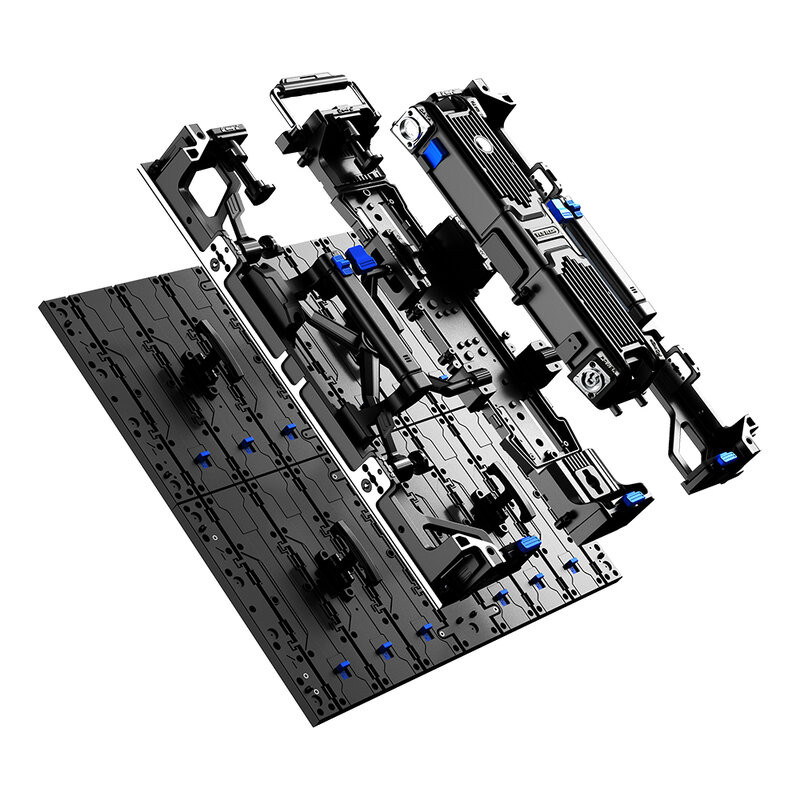

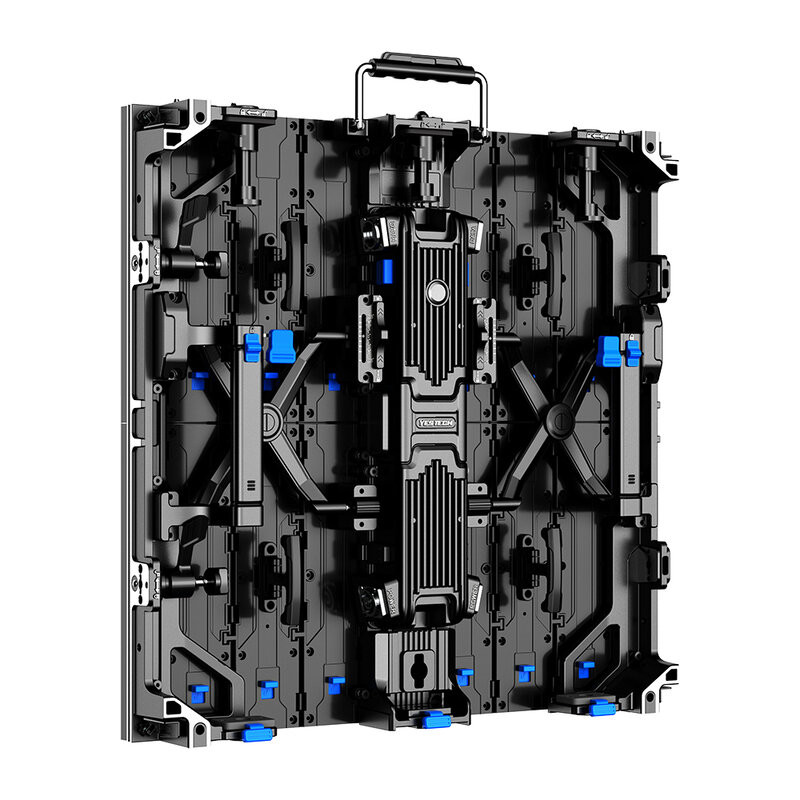

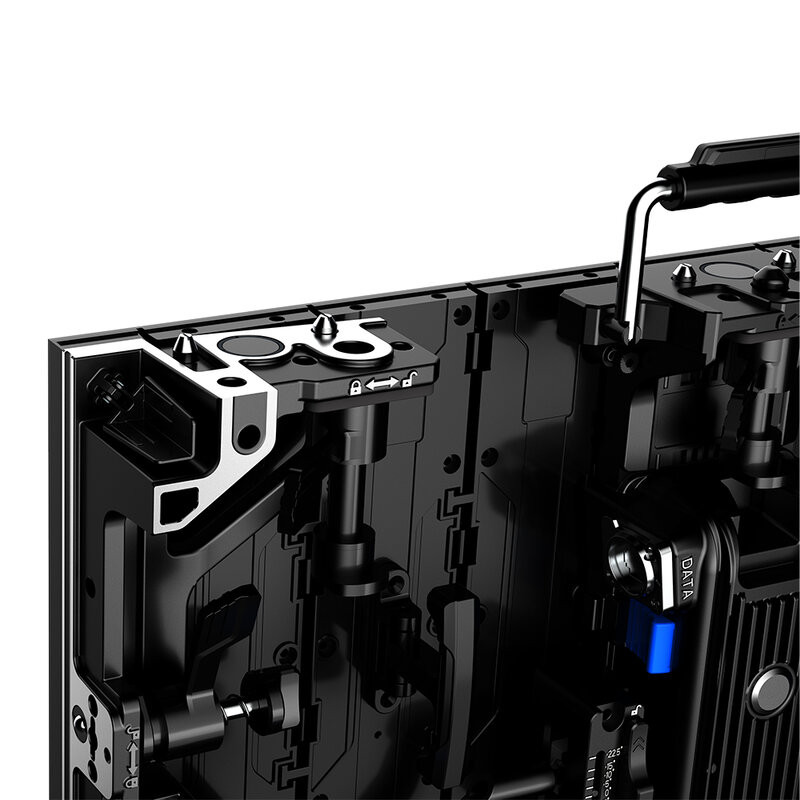

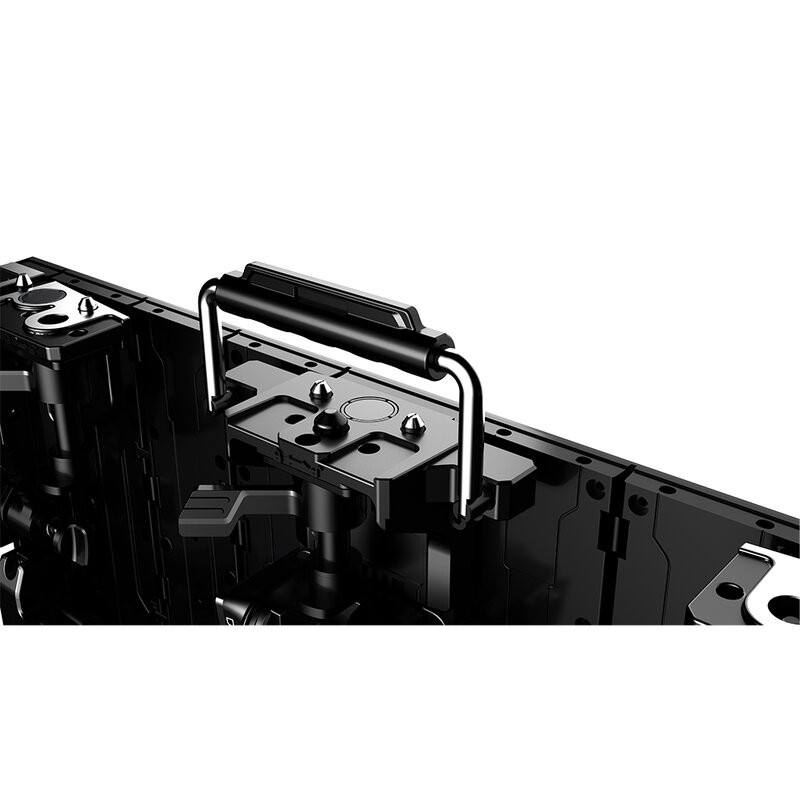

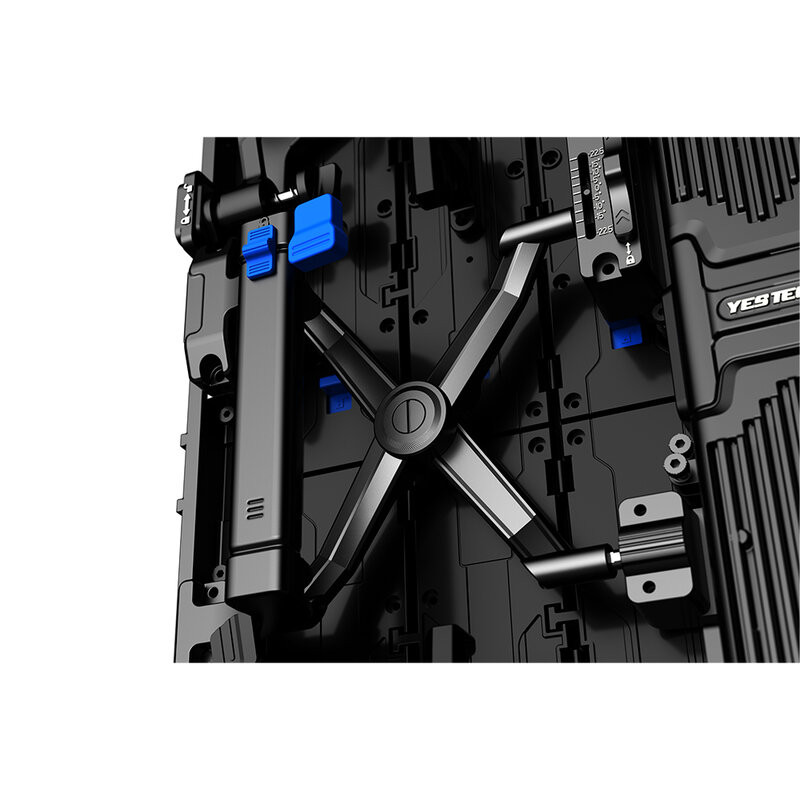

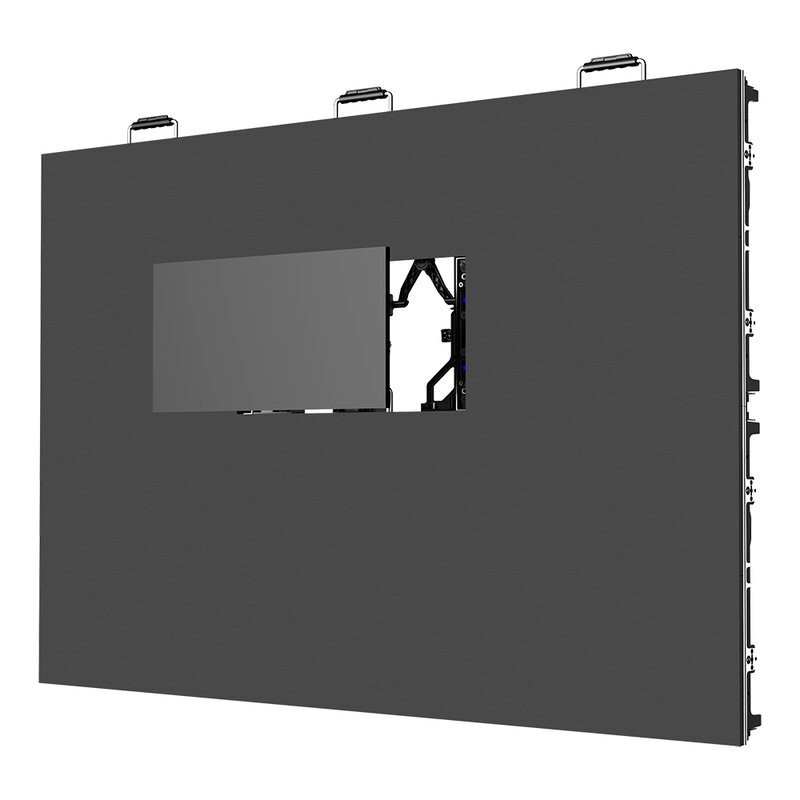

The integrated modular design with quick-release fasteners on all sides and the pre-hanging function allow for easy one-person installation. Thanks to the modular design of the control box, rear maintenance of a single module is possible without removing the cover of the power box.

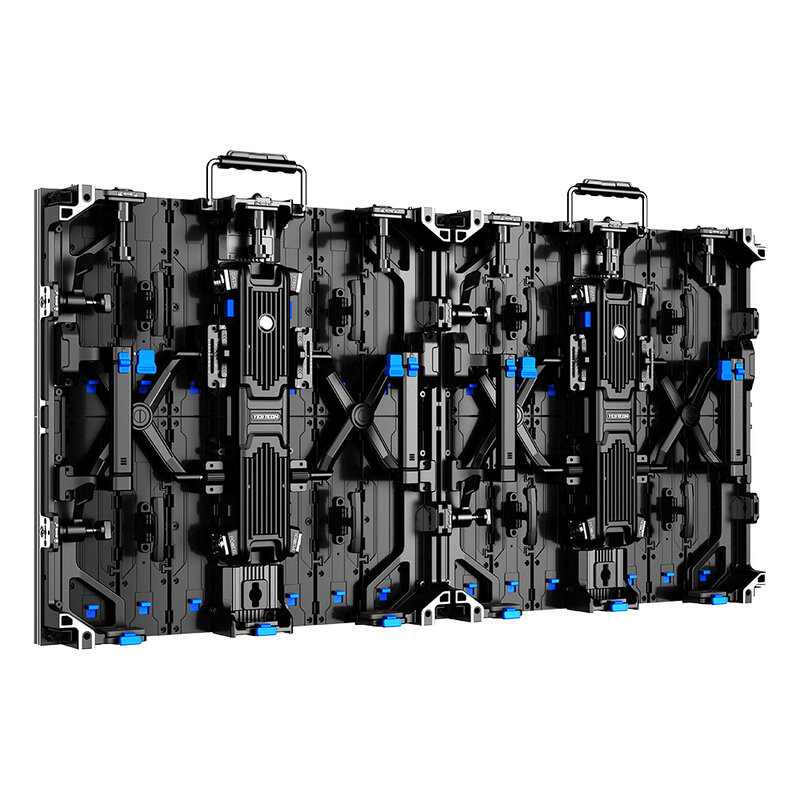

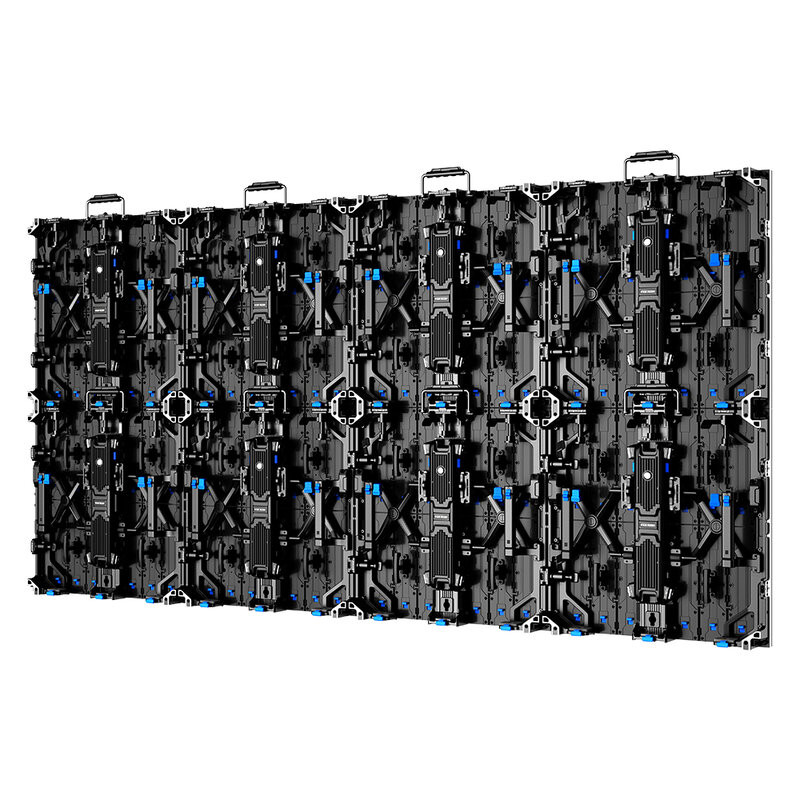

The Xtra series supports mix-and-match splicing with the MU, MG and Rubik series, offering strong expandability for even more creative shapes. Multiple modules with different pixel pitches can be used within the same series.

User benefits

• Flexibility and creativity: the arc design allows for arcs up to ±45°, as well as S-shaped configurations, with a single cabinet!
• Quick installation and easy maintenance with the integrated modular design with quick-release fasteners on all sides
• Lightweight and durable cabinet made of die-cast aluminum / magnesium alloy
• Compatibility and expandability: this revolutionary LED panel supports mix-and-match splicing with other Yes Tech LED display series, providing strong expandability for even more creative shapes
• Image quality ensured by SMD1515 LEDs
• Lightweight and durable cabinet for easy installation and long product life

Areas of use

• Indoor and outdoor concerts
• Sports events
• Award ceremonies
• Celebrations
• Conferences etc.

Technical characteristics

Module

• LED encapsulation: SMD1515, black LEDs
• Pixel Pitch: 2.6 mm
• Module resolution (W x H): 96 x 96
• Module size: 500 x 250 mm
• Pixel confuguration: 1R1G1B

Cabinet

• Module quantity percabinet (W x H): 1 x 2
• Cabinet resolution (W x H): 192 x 192
• Cabinet size: 500 x 500 x 73 mm
• Cabinet area: 0.25 m²
• Weight: 7.5 kg/cabinet
• Pixel density: 147,456 dot/m²
• IP grade: IP50
• IC: DP3365
• Brightness: 800 - 1000 nit
• Horizontal viewing angle: 160°
• Vertical viewing angle: 120°
• Gray scale: 64G (under 4096 grade scale)
• Brightness adjustment: brightness of R,G,B 256 color can be adjustable by software

Electrical parameters

• Power consumption max. / average: 450 / 150 W/m²
• Working voltage: 100 - 240 V_AC 50/60 Hz

Processing performance

• Driving method: constant drive
• Scanning method: 1/16 s
• Frame frequency: 50 & 60 Hz
• Refresh frequency: > 1920 Hz
• Control system: Nova Star

Usage parameter

• Life span: 80,000 h
• Working temperature: -20 to 50 °C
• Working humidity: 10 to 90% RH
• Communication mode: CAT5

Others

• Display content: text, graphics, logo, animation, live video, movie, etc.
• Communication distance: UTP transmission distance is 100 m, the maximum is 130 m,（multimode fiber 500 m，single mode fiber 150 km is optional）
• Connection method: synchronized with computer. If TV, DVD player, VCD player, VCR, etc. need video processor

Certification

• TUV, CE, CCC, ISO, ETL
