SKU: P3.9MG12I52

Yes Tech

Yes Tech - P3.9 MG12

Triangle display indoor, IC MBI5252, SMD2020, 800-1200 nit, ≤3840 Hz, 500x500 mm, 4 kg
star_border star_border star_border star_border star_border
(0)
941.50 €
- 40%

565.00 €

Pay in 4 interest-free payments of 141.25 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Used starting from 508.5€
Condition: New

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

EGO Display - P3.9SMD-I-U - Indoor

366.00 €

Indoor, 1R1G1B, 900 nit, 2400 Hz, 500 x 500 mm, 9 kg
Yes Tech - P3.9 Mwall

340.50 €

Indoor, fixed installation only, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 6 kg
Yes Tech - P3.9 MG14 Indoor

573.00 €

Small triangle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 250 x 500 mm, 2.5 kg
Yes Tech - P3.9 MG12 Indoor

735.50 €

Triangle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 4.2 kg
Yes Tech - P3.9 Mwall

378.50 €

Indoor, fixed installation only, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 6 kg

Watch it in action

Video Youtube
Close the video

Product Details

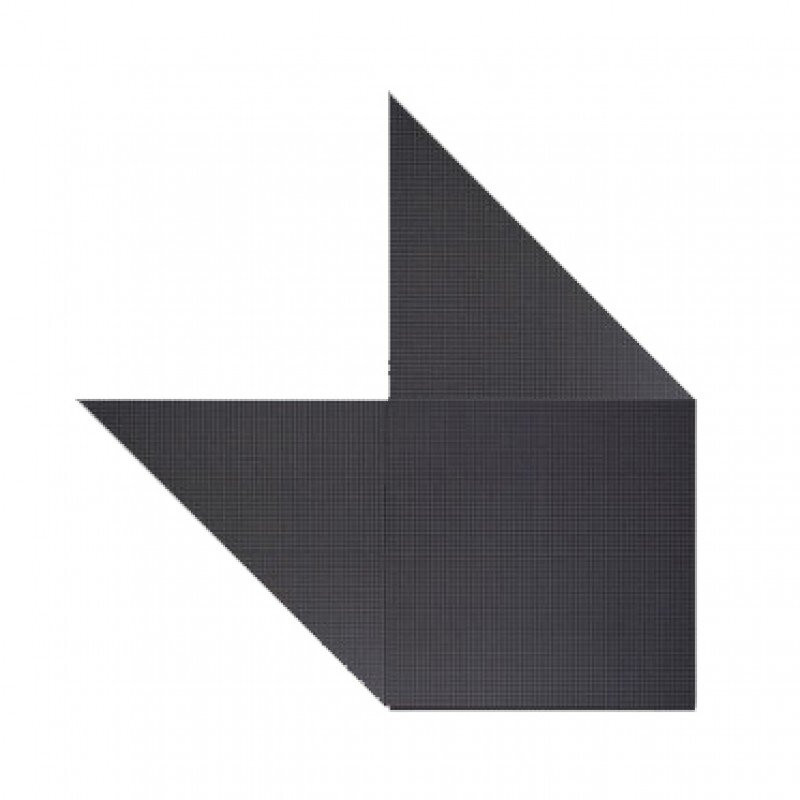

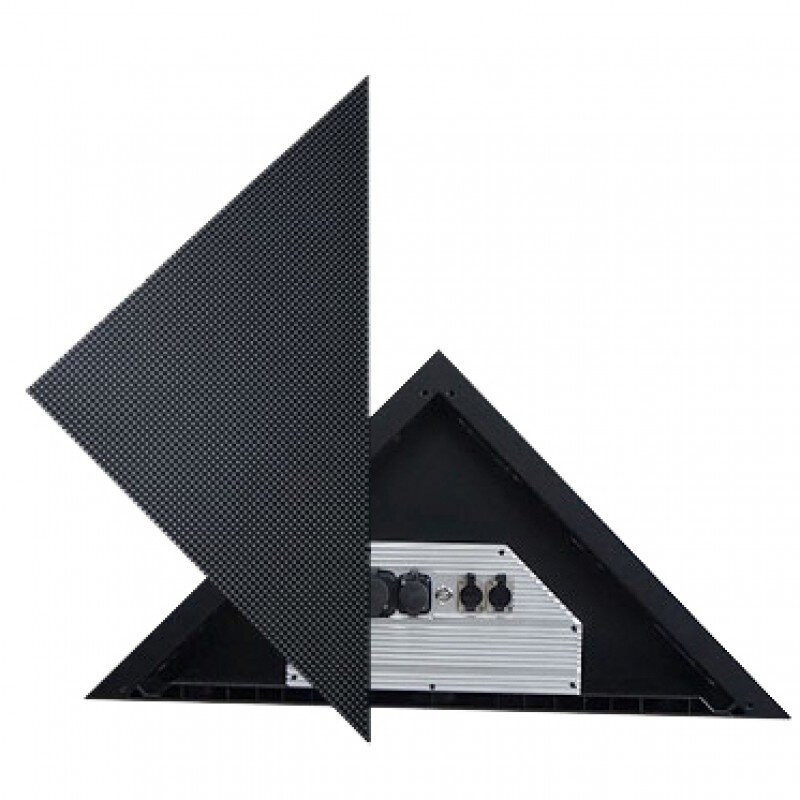

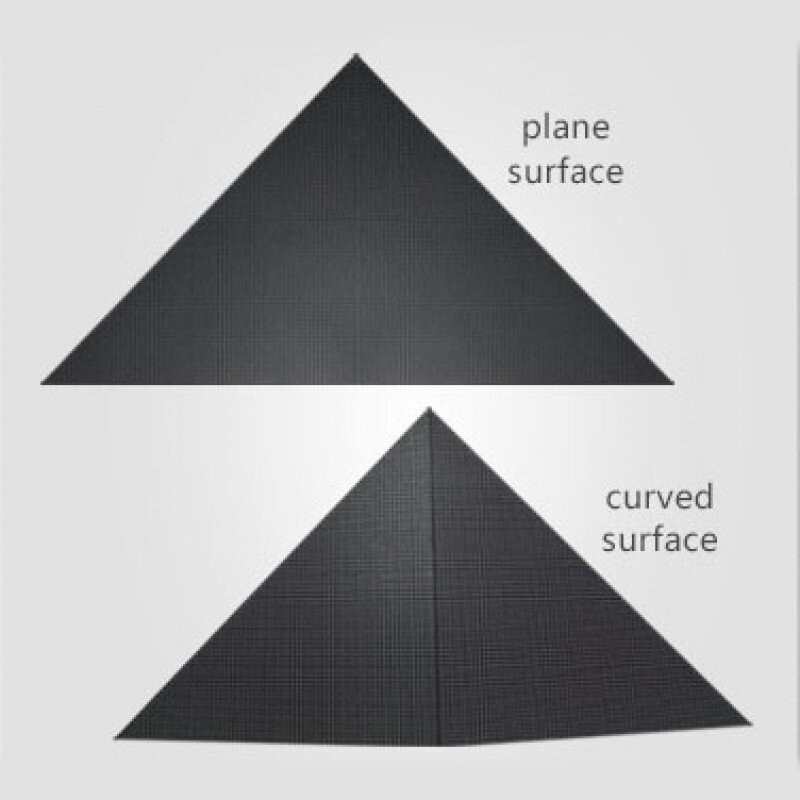

Indoor triangular display (P3.9 MG12), 500 x 500 mm, SMD2020 LED. This display can be used with the Magic Stage series to make a variety of creative shapes (e.g. numbers, letters, columns, diamonds, windmills, flowers, hearts, etc.) using the horizontal, vertical and curved connectors.
  • Price with IC MBI5252
  • Pixel configuration: SMD 3 in 1
  • Supply voltage: AC100~240V / 50Hz-60Hz
  • Brightness adjustment: Brightness of R,G,B 256 colours adjustable by software
  • Gray scale: 64G (under 4096 grade scale)
  • Refresh frequency (HZ): ≤1920Hz with MBI5252
  • Operating environmental temperature (C°): -20C°+50C°
  • Operating environmental humidity (HR): 10% -90%
  • Average no failure time (hours): >10,000
  • Life-span (hours): >100,000
  • Malfunction dot rate: <0.00003
  • Ingress Protection for front/back: IP50 (P2.84+P3.9 indoor), IP65 (P4.8+P5.9outdoor)
  • Integrated circuits (IC): MBI5252 (MBI5153on P2.84 indoor)
  • Encapsulation: Nationstar (P2.84+P3.9 indoor),Inteled (P4.8+P5.9outdoor)
  • Connector: Neutrik
  • Display content: Text, graphics, logo, animation, live video, movie, etc.
  • Communication distance: UTP transmission distance 100m, maximum 130m, (multimode fiber 500m, single mode fiber 150km optional)
  • Connection method: Synchronized with computer; If TV, DVD/VCD player, VCR, etc, a video processor is needed.
  • Certifications: CE, CCC, ISO, TUV, ETL

Cabinet

Size 500x500mm
Weight 4 kg

Screen

Pixel pitch 3.9mm
Maximum power consumption 480 W/m2
Average power consumption 160 W/m2
Brightness 800-1200 cd/m2
Driving method 1/16 scan
Viewing angle 160°/120°
Cabinet resolution 128x128 dot
LED SMD2020 full black LEDs
More.. Show less
