SKU: P3.9MG13I52-U
Yes Tech - P3.9 MG13
Sector Display indoor, IC MBI5252, SMD2020, 800-1200 nit, ≤3840 Hz, 500×500 mm, 4.6 kg
Prime
fast delivery is available for this product.
This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
863.00 €
Right-angle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1200 nit, ≤3840 Hz, 125 x 500 mm, 1.8 kg
340.50 €
Indoor, fixed installation only, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 6 kg
573.00 €
Small triangle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 250 x 500 mm, 2.5 kg
378.50 €
Indoor, fixed installation only, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 6 kg
773.50 €
Sector Display indoor, IC MBI5252, SMD2020, 800-1200 nit, ≤3840 Hz, 500×500 mm, 4.6 kg
Product Details

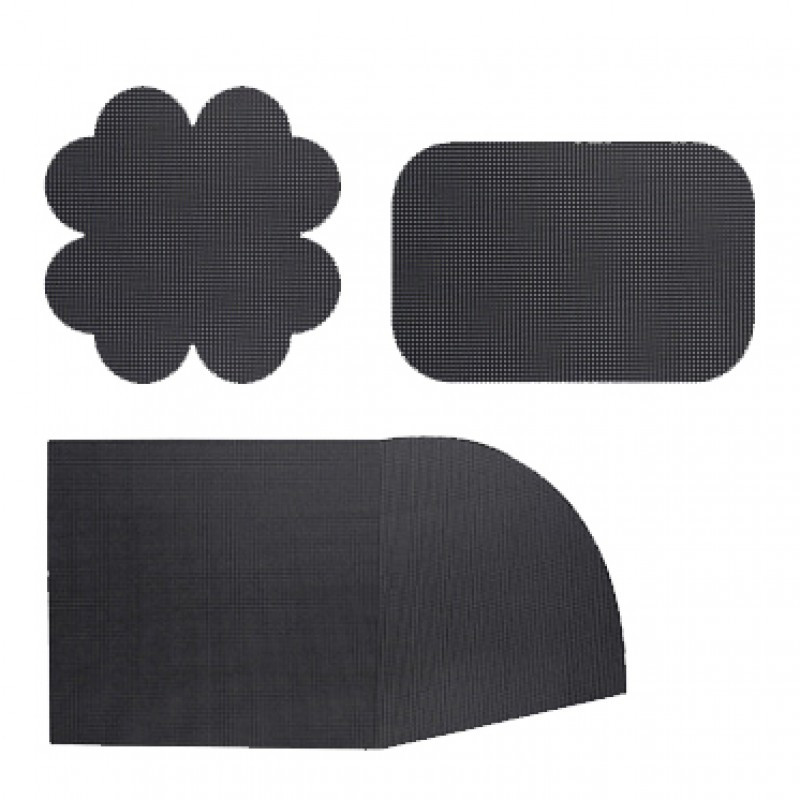

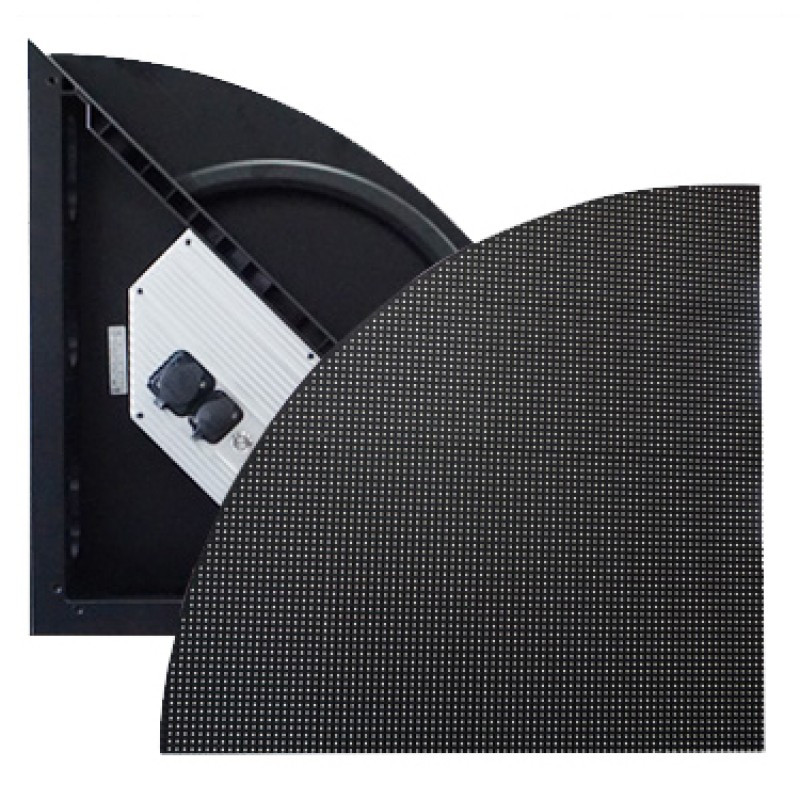

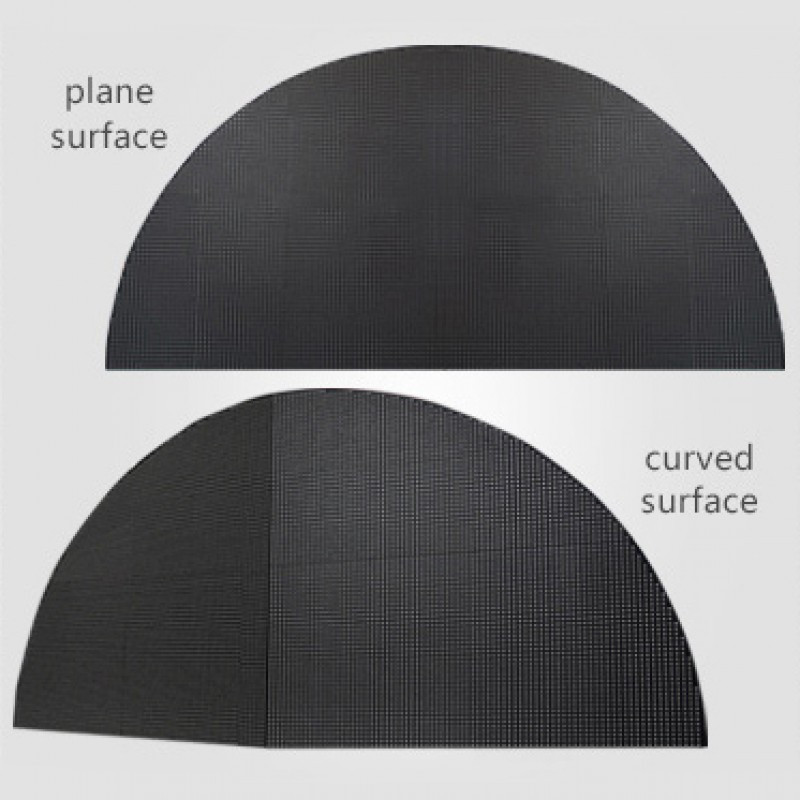

Indoor sector display (P3.9 MG13), 500 x 500 mm, SMD2020 LED. This display can be used with the Magic Stage series to make a variety of creative shapes (e.g. numbers, letters, columns, diamonds, windmills, flowers, hearts, etc.) using the horizontal, vertical and curved connectors.
-
Price with IC MBI5252
- Pixel configuration: SMD 3 in 1
- Supply voltage: AC100~240V / 50Hz-60Hz
- Brightness adjustment: Brightness of R,G,B 256 colours adjustable by software
- Gray scale: 64G (under 4096 grade scale)
- Refresh frequency (HZ): ≤3840Hz with MBI5252
- Operating environmental temperature (C°): -20C°+50C°
- Operating environmental humidity (HR): 10% -90%
- Average no failure time (hours): >10,000
- Life-span (hours): >100,000
- Malfunction dot rate: <0.00003
- Ingress Protection for front/back: IP50 (P2.84+P3.9 indoor), IP65 (P4.8+P5.9outdoor)
- Integrated circuits (IC): MBI5252 (MBI5153on P2.84 indoor)
- Encapsulation: Nationstar (P2.84+P3.9 indoor),Inteled (P4.8+P5.9outdoor)
- Connector: Neutrik
- Display content: Text, graphics, logo, animation, live video, movie, etc.
- Communication distance: UTP transmission distance 100m, maximum 130m, (multimode fiber 500m, single mode fiber 150km optional)
- Connection method: Synchronized with computer; If TV, DVD/VCD player, VCR, etc, a video processor is needed.
- Certifications: CE, CCC, ISO, TUV, ETL
Cabinet
| Size | 500×500mm/cabinet |
| Weight | 4.6 kg |
Screen
| Pixel pitch | 3.9mm |
| Maximum power consumption | 480 W/m2 |
| Average power consumption | 160 W/m2 |
| Brightness | 800-1200 cd/m2 |
| Driving method | 1/16 scan |
| Viewing angle | 160°/120° |
| Cabinet resolution | 32x128 dot |
| LED | SMD2020 full black LEDs |
