SKU: P3.9MG13I21

Yes Tech - P3.9 MG13 Indoor

Sector display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1200 nit, ≤3840 Hz, 500 x 500 mm, 5 kg
1,496.00 €
- 40%

897.50 €

Pay in 4 interest-free payments of 224.38 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition: New

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



EN Instruction Manual (6.54MB)

NO DESC

Documentation

NO NAME (1.06MB)

NO DESC

Documentation

Watch it in action

Video Youtube
Close the video

Product Details

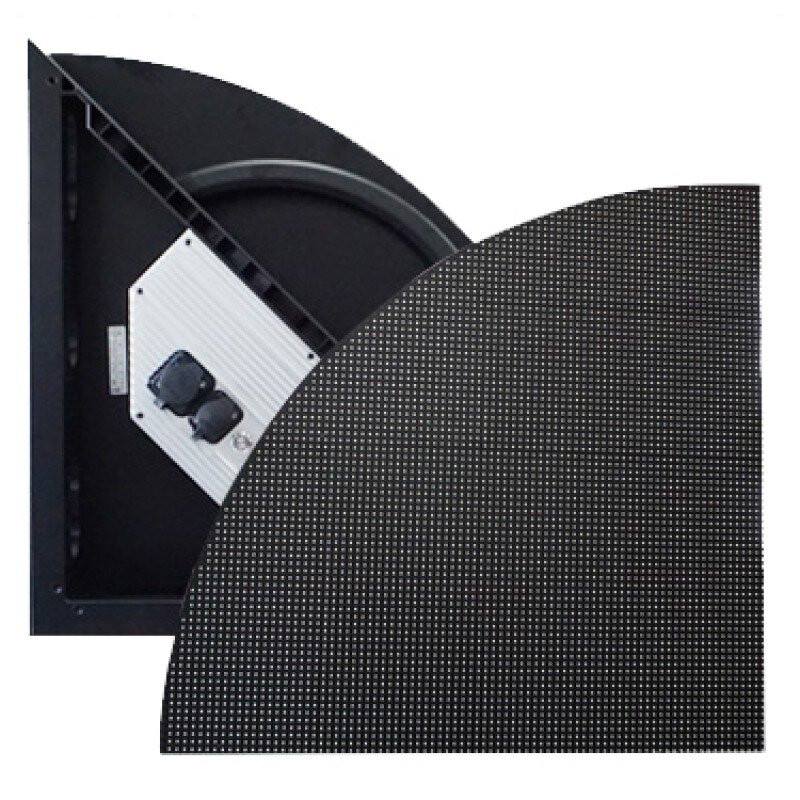

500 x 500 mm circular sector LED display (P3.9 MG13), SMD2020, indoor (800 - 1200 nit).

It is part of the MG Creative Extension series which includes triangular, rectangular, circular sector etc. displays. This newly updated series will allow you to think and design the stage even more creatively, not only with the arc layout and presentation, but also polygon, sector etc.

Combining the Magic Stage LED wall modules with the MG Creative Extension which includes right angle (MG11), triangle (MG12), circular sector (MG13) etc. LED displays, you can realize a variety of creative displays of the desired shape, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart etc.

User benefits

  • Allows you to create circular LED walls using a total of 4 pieces
  • In combination with other displays of the MG Creative-Extended series, it allows you to create various creative shapes

Areas of use

  • All those in which Yes Tech LED displays of the Rental & Staging series are used



Technical characteristics

Basic parameters
Operating environment indoor
LED encapsulation 2020 (black)
Pixel pitch   3.9 mm
Pixel density   65,536 dot/m2
Weight 4.9 kg/unit
Dimensions  500 x 500 x 79 mm
IP grade IP50
Performance parameters
White balance bightness 800 - 1200 cd/m2
Single LED brightness / chroma calibration yes / yes
Color temperature  7000 ±300 K
Pixel center distance deviation < 3%
Brightness uniformity < 97%
Color uniformity within ±0.003 Cx, Cy
Frame frequency 50 & 60 Hz
Refresh frequency ≤ 3840 Hz
Using parameters
Life span 80,000 h
Working voltage 100 - 240 VAC 50/60 Hz
Maximum / average power consumption (W/m2) 480 / 160
Scanning method 1/16
Communication mode CAT5
