SKU: P3.9MG14I21

Yes Tech - P3.9 MG14 Indoor

Small triangle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 250 x 500 mm, 2.5 kg
955.00 €
- 40%

573.00 €

Pay in 4 interest-free payments of 143.25 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition: New

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



EN Instruction Manual (6.84MB)

NO DESC

Documentation

NO NAME (1.06MB)

NO DESC

Documentation

Product Details

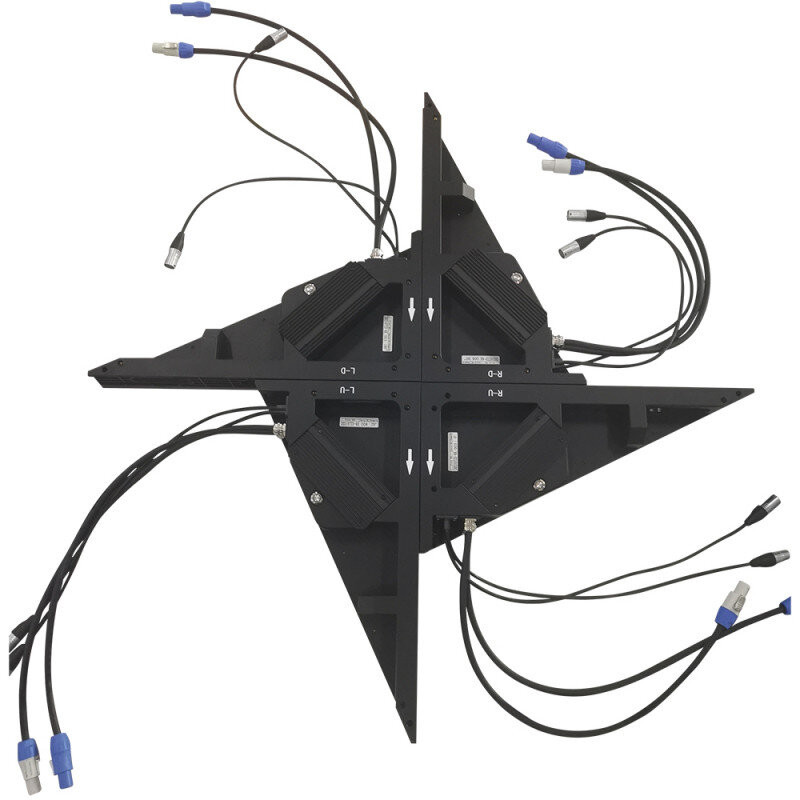

Right triangle shaped LED display (P3.9 MG14 Indoor), 3.9 mm pixel pitch, SMD2020, full black LED, ICN2153, for indoor use (800 - 1000 nits).

It is part of the MG Creative Extension series which includes triangle, rectangle, circular sector etc. This newly updated series will allow you to think and design the stage even more creatively, not only with the arc layout and presentation, but also polygon, sector, etc.

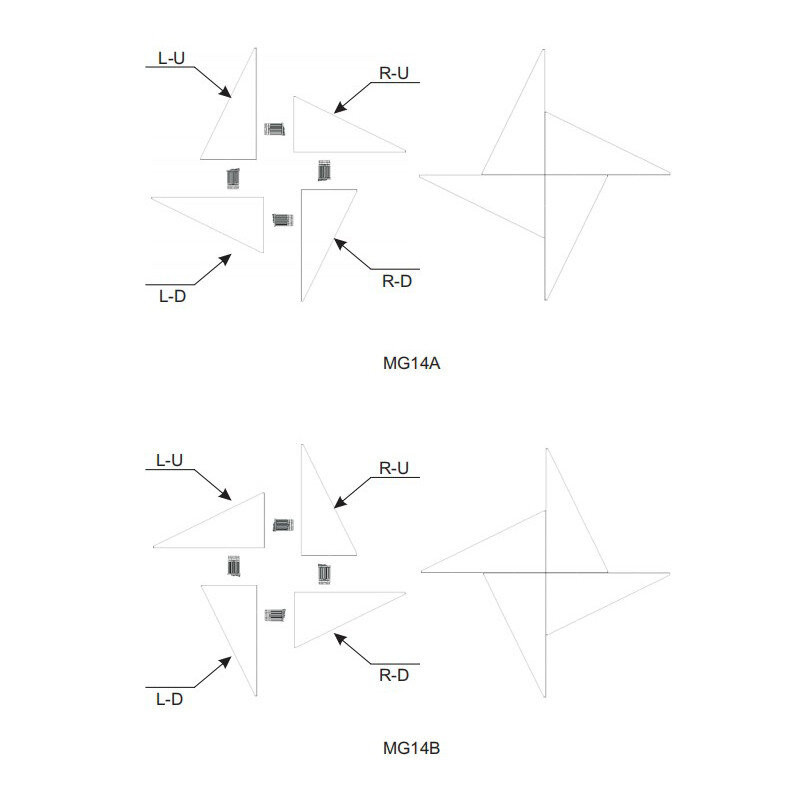

By combining the Magic Stage LED wall modules with the MG Creative Extension which includes right angle (MG11), triangle (MG12), circular sector (MG13) etc. LED displays, you can realize a variety of creative displays of the desired shape, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart, etc.

User benefits

  • Allows you to create LED walls of different shapes by combining the cabinets of the Magic Stage series

Areas of use

  • All those in which the Yes Tech LED displays of the Rental & Staging series are used

Technical characteristics

Module
LED encapsulation 2020
Pixel Pitch  3.9 mm
Cabinet
Cabinet size

250 x 500 x 73 mm

Cabinet area  0.0625 m2
Weight 2.5 kg/cabinet
Pixel density 65,536 dot/m2
IP grade IP50
White balance brightness before calibration  800 - 1000 nit
Color temperature  6500 - 10,000 K adjustable
Horizontal viewing angle  160°
Vertical viewing angle  120°
Electrical parameters
Power consumption 420 / 140 W/m2
Working voltage 100 - 264 VAC 50/60 Hz
Processing performance
Driving method constant drive
Scanning method 1/16 s
Driving IC ICN2153
Refresh frequency ≤ 3840 Hz
Control system Nova Star
Usage parameters
Life span 80,000 h
Working / storage temperature  -20 to 45 / -30 to 60 ℃
Working / storage humidity  10 - 90 / 10 - 90% RH (no condensation)
Communication mode CAT5
Certification CE FCC ETL
