Yes Tech - P6.25 MG5

Name: P6.25 MG5
Brand: Yes Tech
SKU: P6.25MG5I51
Price: 360 EUR
Availability: OutOfStock

P6.25 MG5 indoor with IC MBI5124, SMD3528 black LED, 800 nit, ≤ 1920 Hz, 500 x 500 mm, 5.5 kg

(0)

600.00 €

- 40%

360.00 €

Pay in 4 interest-free payments of 90.00 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Product Details

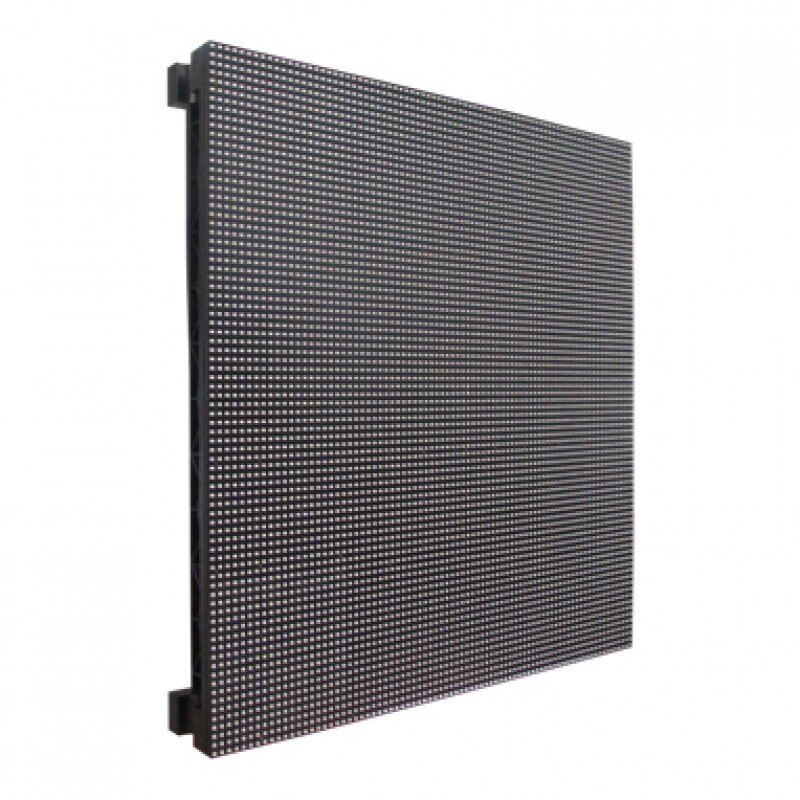

MG5 series 500 x 500 mm P6.25 LED display, SMD3528 black LED with 3-in-1 pixel configuration, Nationstar encapsulation, for indoor applications (800 nits).

It uses MBI5124 IC, software brightness adjustment and ghost image elimination function. The refresh rate is > 1920 Hz and the viewing angle is 160° / 120°.

The IP rating is 50 on both the front and rear side.

User benefits

Software brightness adjustment
Ghost elimination function
Lightweight cabinet

Application areas

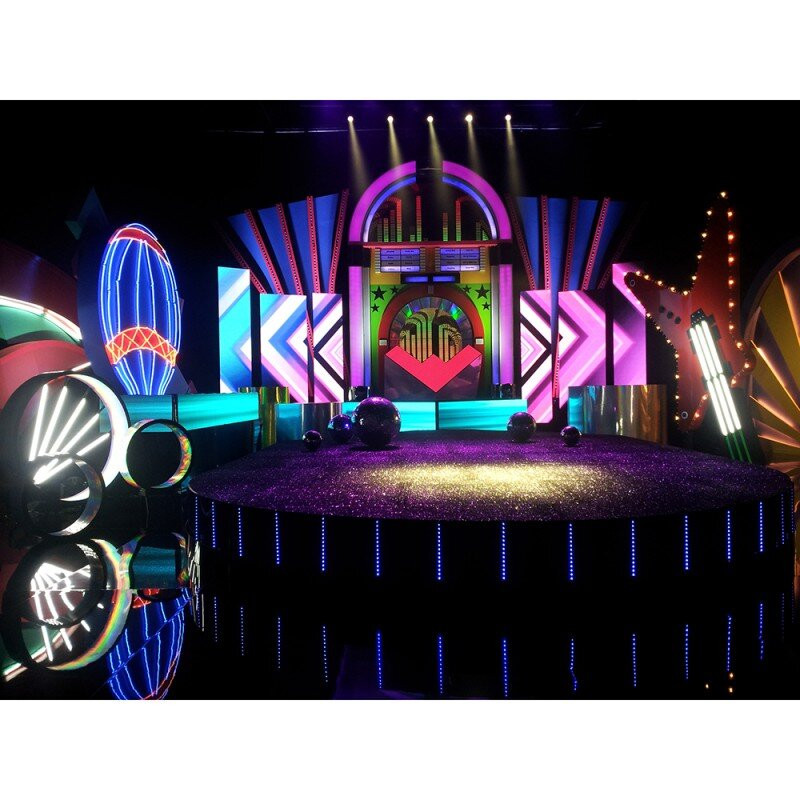

Large-scale events where viewing distance may be long (concerts, etc.)
Indoor sports events

Technical characteristics

Cabinet
Size	500 x 500 x 73 mm
Weight	5.5 kg
Screen
Pixel pitch	6.25 mm
Refresh frequency	> 1920 Hz
Maximum power consumption	480 W/m²
Average power consumption	160 W/m²
Brightness	800 cd/m²
Brightness adjustment	brightness of RGB 256 colors adjustable by software
Driving method	1/10 scan
Viewing angle	160° / 120°
Cabinet resolution	80 x 80 pixel
LED	SMD3528 black LEDs
Operating environmental temperature	-20 to 50 °C
Operating environmental humidity (HR)	10% - 90%
Average no failure time	> 10,000 hours
Life-span	> 100,000 hours
Malfunction dot rate	< 0.00003
Ingress Protection for front / back	IP50
Connector	Neutrik
Communication distance	UTP transmission distance 100 m, maximum 130 m (multi-mode fiber 500 m, single mode-fiber 150 km optional)
Connection method	synchronized with computer; if TV, DVD / VCD player, VCR, etc is used, a video processor is needed
Supply voltage	100 - 240 V_AC 50/60 Hz
Certifications	CE, CCC, ISO, TUV, ETL
