SKU: P6.25MG5I51-U

Yes Tech

Yes Tech - P6.25 MG5

P6.25 MG5 indoor with IC MBI5124, SMD3528 black LED, 800 nit, ≤ 1920 Hz, 500 x 500 mm, 5.5 kg
star_border star_border star_border star_border star_border
(0)

324.00 €

Pay in 4 interest-free payments of 81.00 € with Discover More

60 items available in our Italian warehouse

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
324.00 €
Condition: Used

Prime

fast delivery is available for this product.

This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

EGO Display - P6SMD-I-U - Indoor

142.50 €

Indoor, 1R1G1B, 900 nit, 2400 Hz, 500 x 500 mm, 9 kg
EGO Display - P6SMD-I-U - Indoor

142.50 €

Indoor, 1R1G1B, 900 nit, 2400 Hz, 500 x 500 mm, 9 kg
Yes Tech - P6.25 MG5

360.00 €

P6.25 MG5 indoor with IC MBI5124, SMD3528 black LED, 800 nit, ≤ 1920 Hz, 500 x 500 mm, 5.5 kg

Product Details

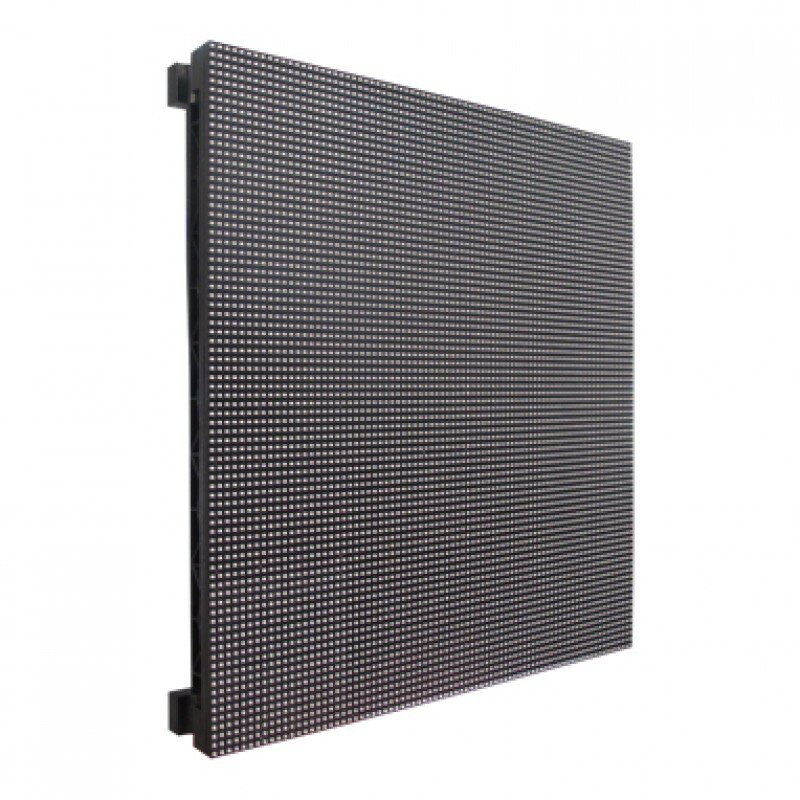

MG5 series 500 x 500 mm P6.25 LED display, SMD3528 black LED with 3-in-1 pixel configuration, Nationstar encapsulation, for indoor applications (800 nits).

It uses MBI5124 IC, software brightness adjustment and ghost image elimination function. The refresh rate is > 1920 Hz and the viewing angle is 160° / 120°.

The IP rating is 50 on both the front and rear side.

User benefits

  • Software brightness adjustment
  • Ghost elimination function
  • Lightweight cabinet

Application areas

  • Large-scale events where viewing distance may be long (concerts, etc.)
  • Indoor sports events

Technical characteristics

Cabinet
Size 500 x 500 x 73 mm
Weight 5.5 kg
Screen
Pixel pitch 6.25 mm
Refresh frequency > 1920 Hz
Maximum power consumption 480 W/m2
Average power consumption 160 W/m2
Brightness 800 cd/m2
Brightness adjustment brightness of RGB 256 colors adjustable by software
Driving method 1/10 scan
Viewing angle 160° / 120°
Cabinet resolution 80 x 80 pixel
LED SMD3528 black LEDs
Operating environmental temperature -20 to 50 °C
Operating environmental humidity (HR) 10% - 90%
Average no failure time > 10,000 hours
Life-span > 100,000 hours
Malfunction dot rate < 0.00003
Ingress Protection for front / back IP50
Connector Neutrik
Communication distance UTP transmission distance 100 m, maximum 130 m (multi-mode fiber 500 m, single mode-fiber 150 km optional)
Connection method synchronized with computer; if TV, DVD / VCD player, VCR, etc is used, a video processor is needed
Supply voltage 100 - 240 VAC 50/60 Hz
Certifications CE, CCC, ISO, TUV, ETL
More.. Show less
