Visual Productions - Kiosc Touch2

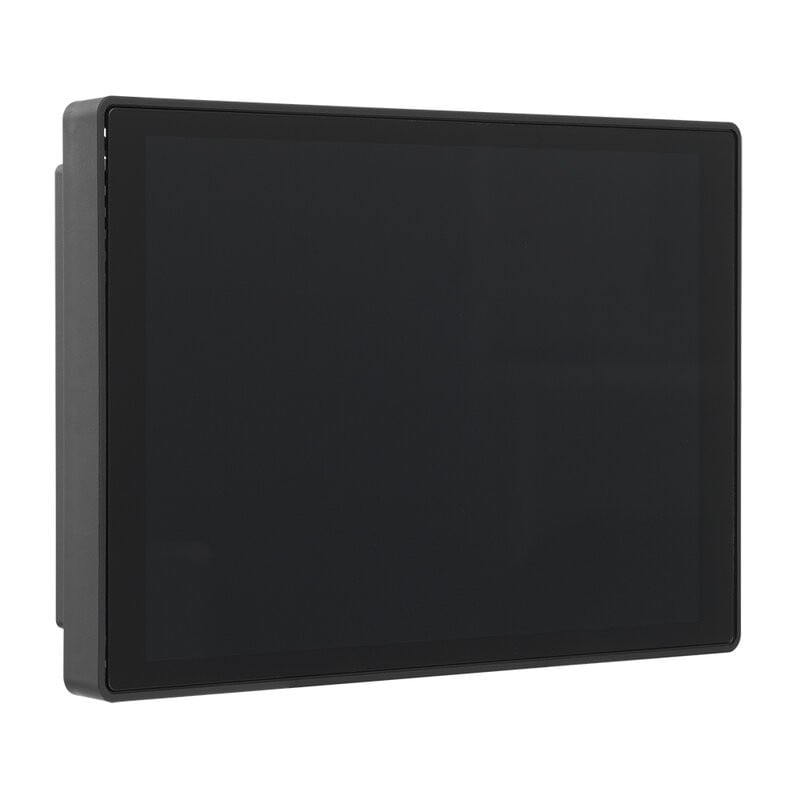

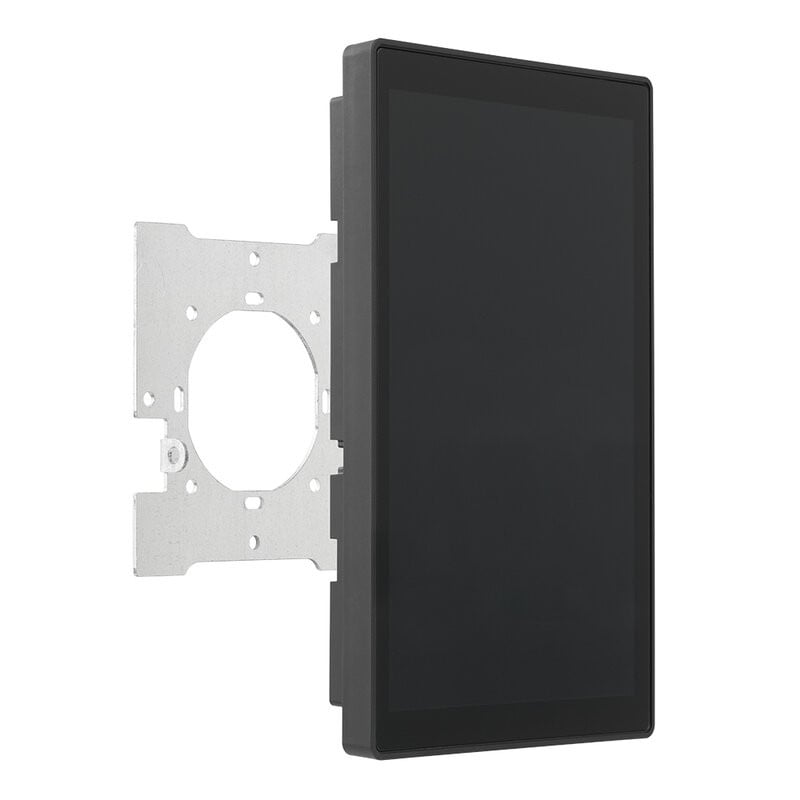

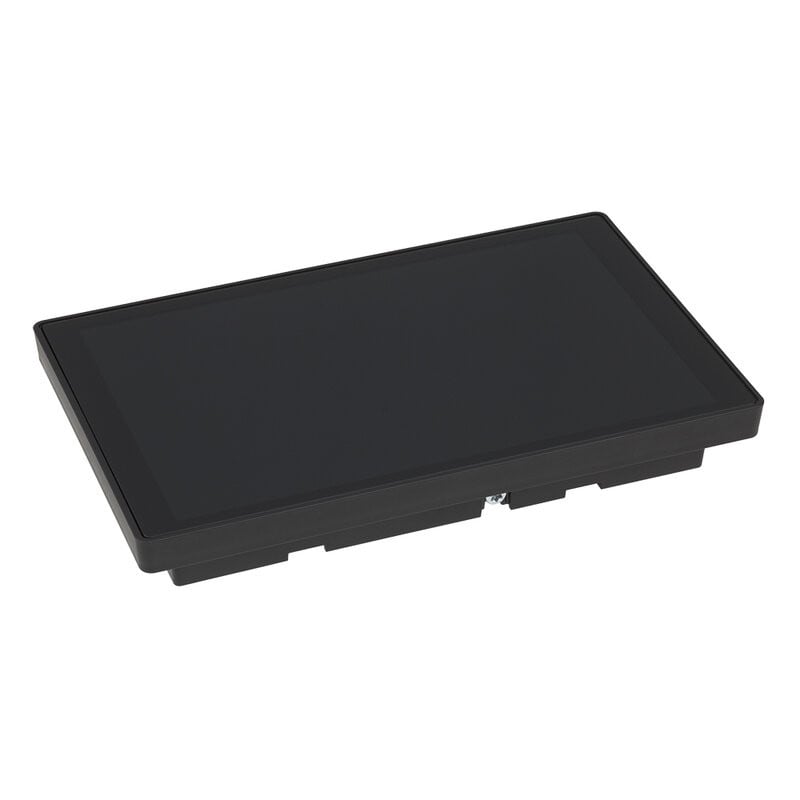

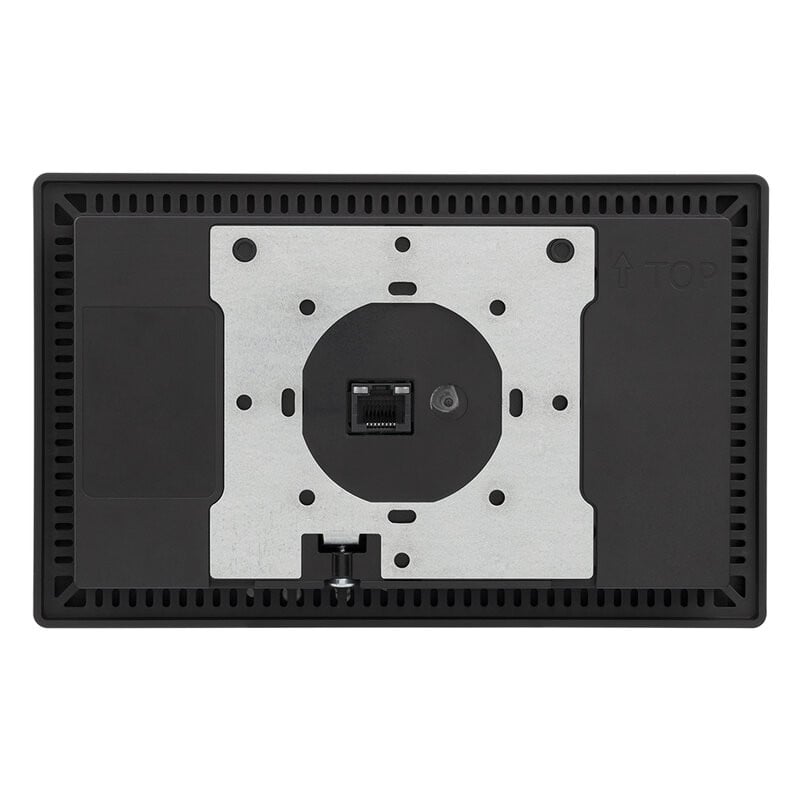

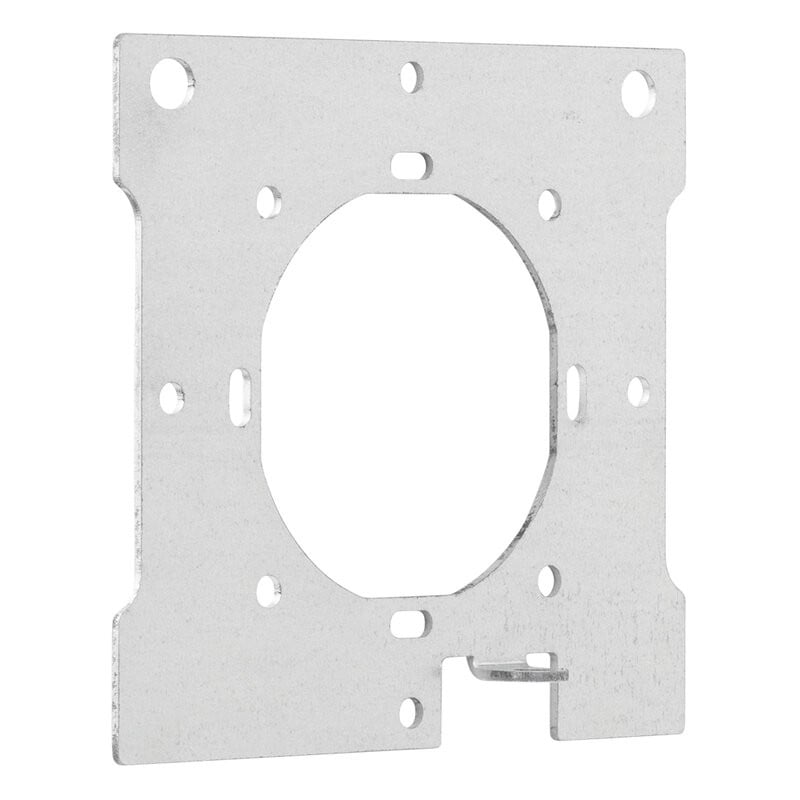

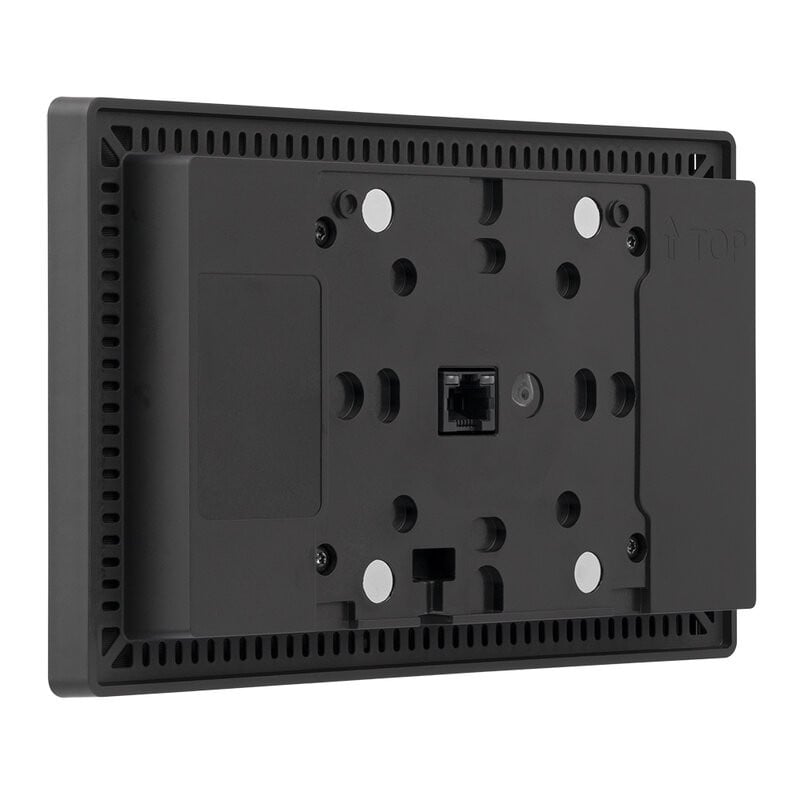

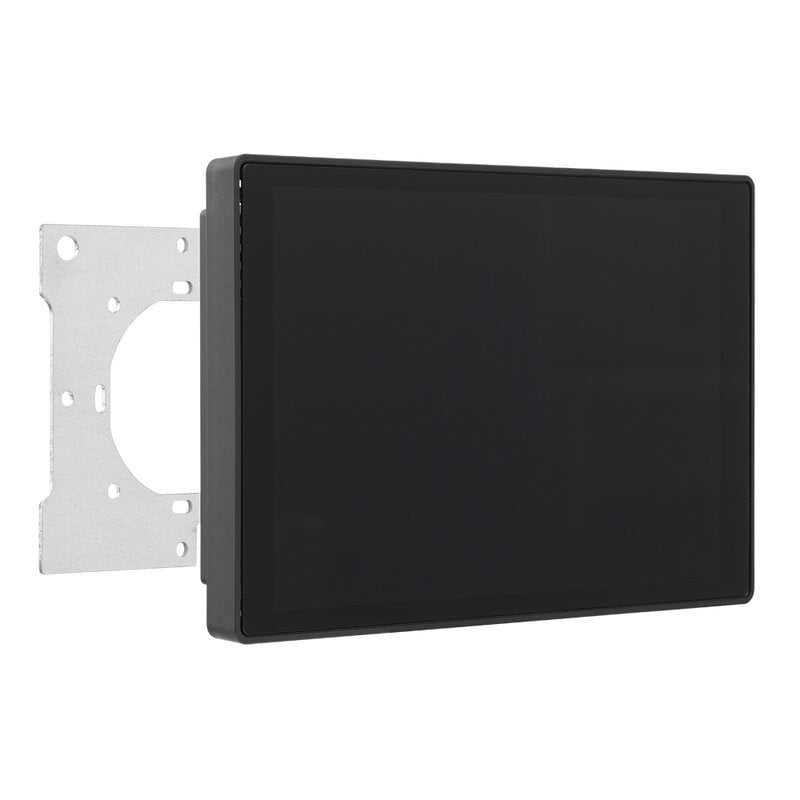

KioscTouch2 is an 8" touch panel designed to provide an intuitive and fully customizable user interface for controlling lighting systems and AV integration in professional settings. The device is designed for semi-permanent or mobile installations, such as in the touring sector, and is wall-mounted with a simple and robust magnetic system. Power is provided via PoE, requiring only one RJ-45 cable for data and power.

The KioscTouch2 allows you to create multi-page layouts using the free Kiosc Editor application, which allows you to insert graphic elements such as buttons, faders, color selectors, XY controls, images and text. Each element can be programmed to send and receive messages in OSC and UDP formats, making the device compatible with both Visual Productions controllers (such as CueCore, DaliCore and LPU-2) and third-party devices. It is also possible to display real-time feedback on the screen.

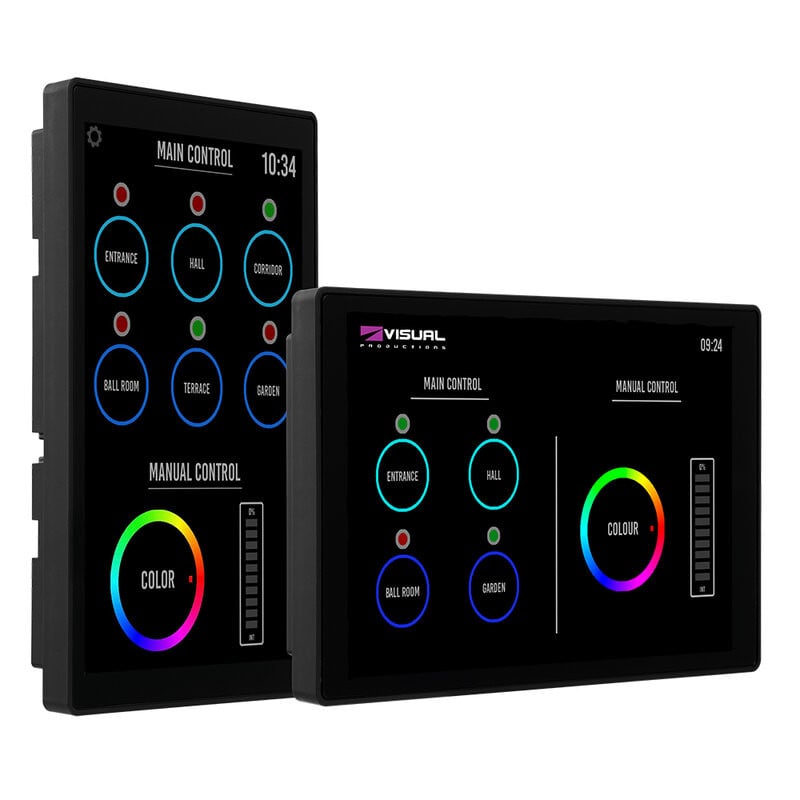

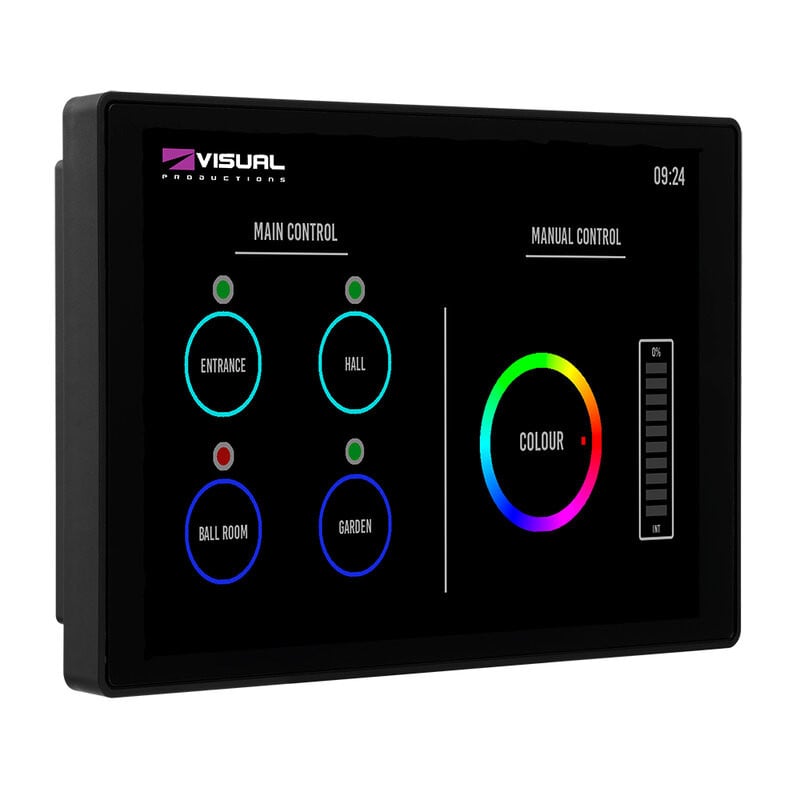

The high resolution display (1280 x 800) can be used in either vertical or horizontal orientation and supports transparent images, custom logos and graphic backgrounds. The buttons can be freely assigned to any function: cue recall, playback advance, dimmer adjustment and more. The system can be protected by a PIN code, making it suitable also for contexts where access must be limited to authorized personnel.

Multiple KioscTouch2 units can be networked to create distributed control systems. Compared to the previous version, it offers a larger screen, higher resolution, improved viewing angle and a slimmer design.

User benefits

• Intuitive and customizable interface to create customized graphic layouts
• 8” high-resolution touch display with support for portrait or landscape orientation
• PoE power supply
• Advanced network compatibility
• Expandability: multiple units can be networked to create distributed control systems
• PIN code protection
• Free editor (Kiosc Editor) for designing multi-page interfaces with dynamic and transparent graphics
• Freely assignable functions: each button can be programmed to recall cues, control dimmers, advance playback and more
• Support for custom logos and backgrounds
• Rugged and slim design

Areas of use

• Live events
• Architectural installations
• System integration projects
• Shows

Technical characteristics

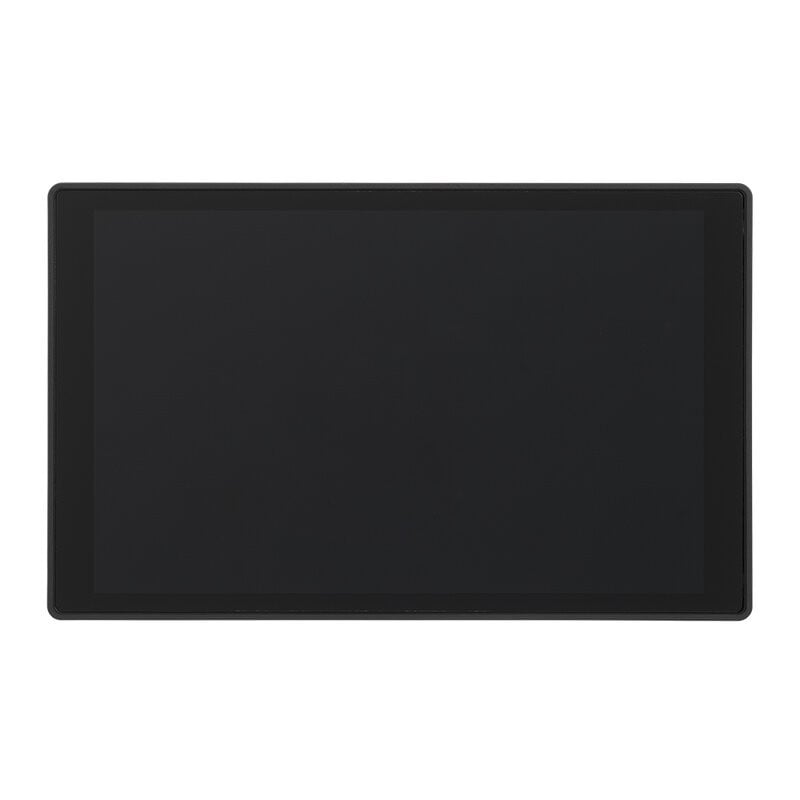

• 8” capacitive touch screen, 1280 x 800 pixels

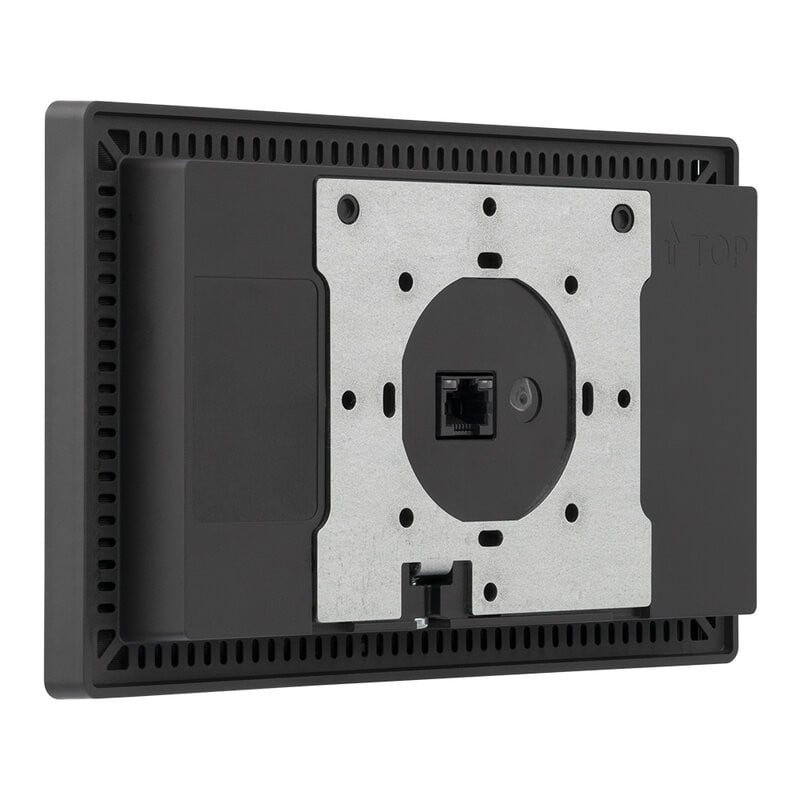

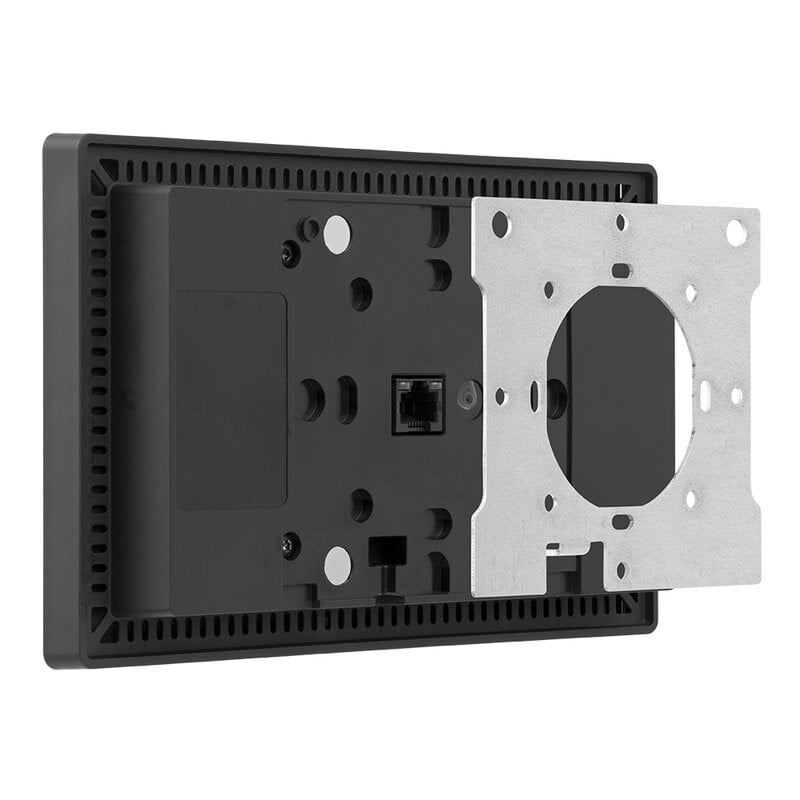

• Wall mount

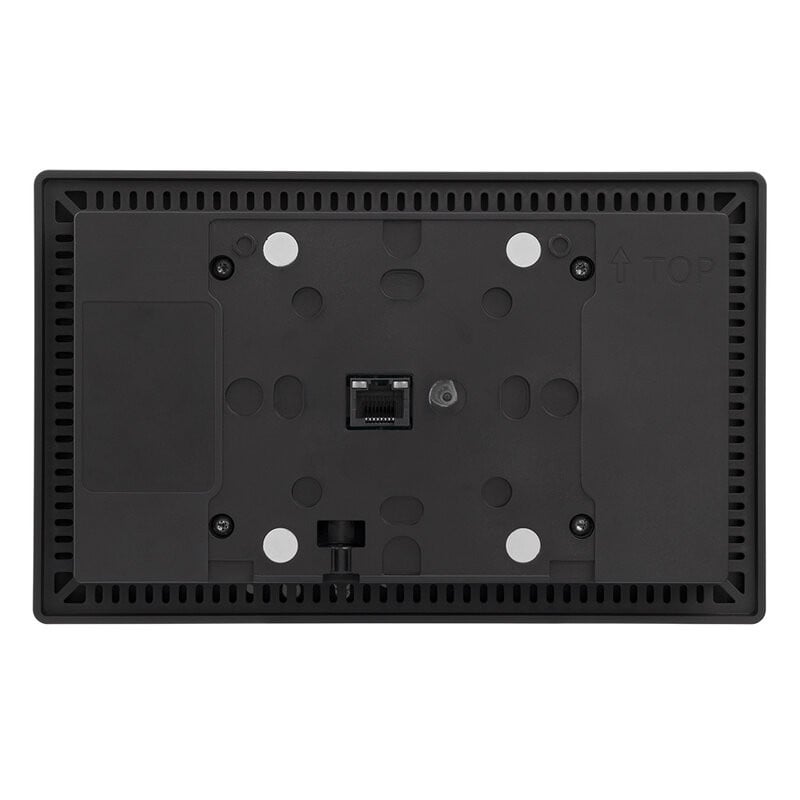

• VESA 50
• Power over Ethernet (PoE class 0)
• App pre-installed
• OSC
• UDP
• TCP
• IP40
• Operating temperature: -20 to 50 °C
• Compliance: EN55103-1 EN55103-2, EC, FCC
• Bundled with management and editing software

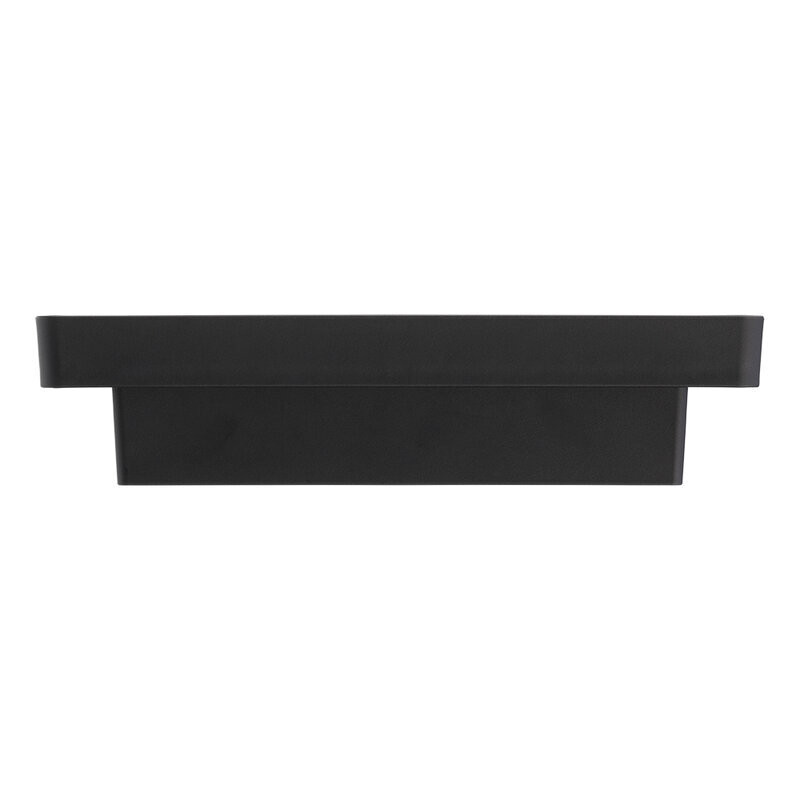

• Dimensions: 19.9 x 12.4 x 3 cm
• Weight: 580 g
