SKU: CONVNVIPR/SBB10X8P
EAN: 9338716010572

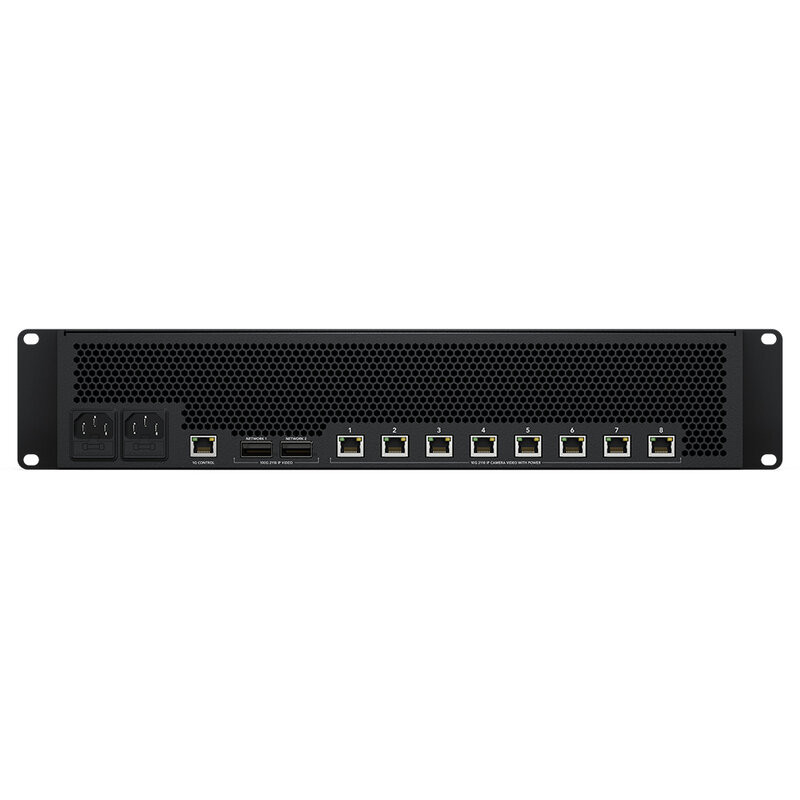

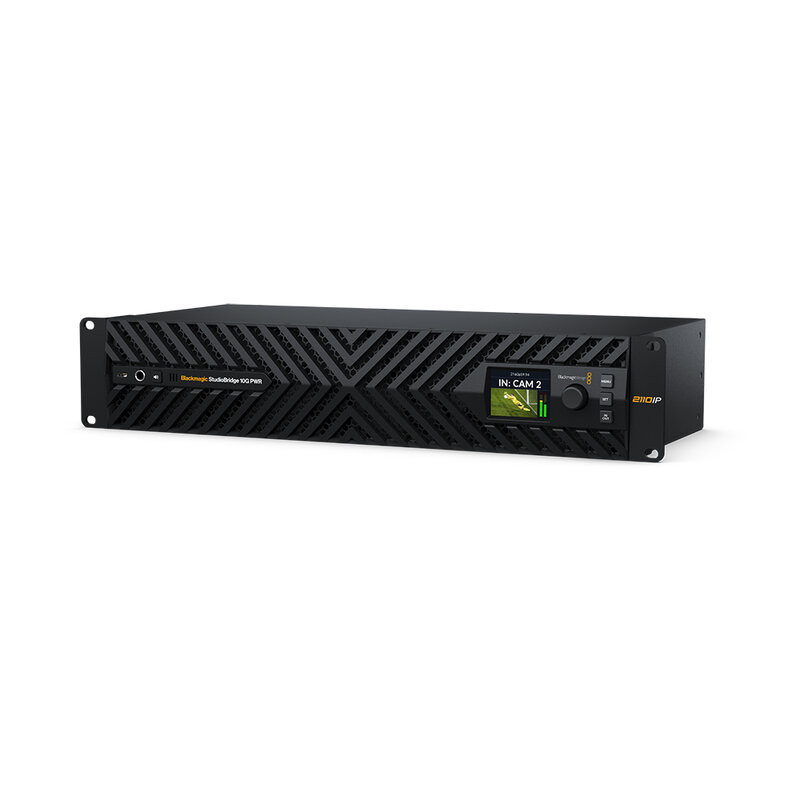

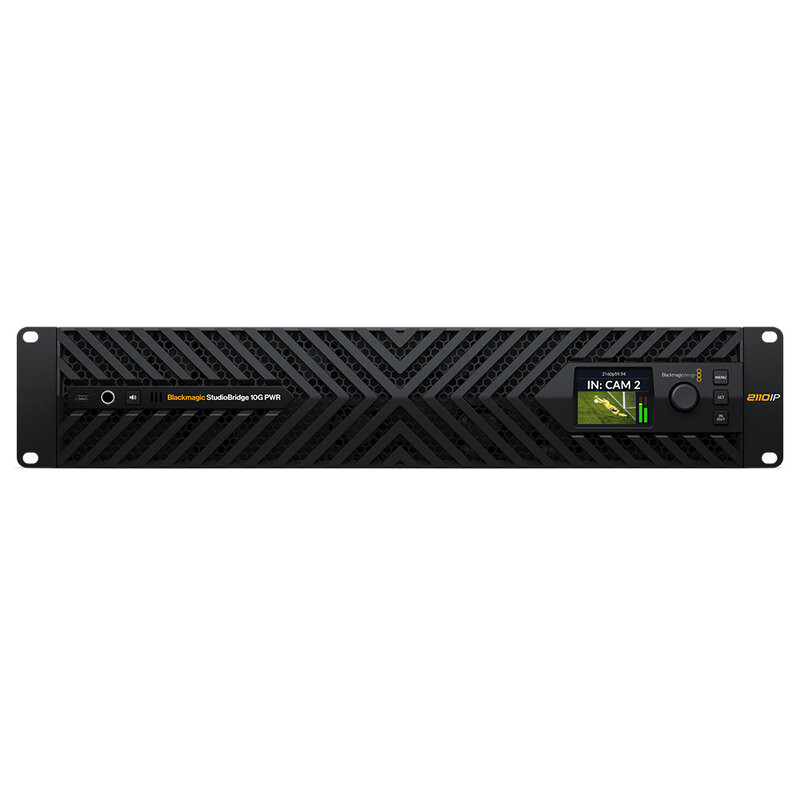

Blackmagic Design - Blackmagic StudioBridge 10G PWR
High‑power 8 channels 10G‑to‑100G SMPTE‑2110 bridge, full 2022‑7 redundancy, 90 W PoE++ per port, front‑panel monitoring,
NMOS control
Not available.
delivery is not available for this product.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
Bidirectional 16‑channel 12G‑SDI to SMPTE‑2110 converter, dual 100G Ethernet for full 2022‑7 redundancy, front‑panel monitoring, NMOS control
584.50 €
Dante AV to HDMI 2.0 decoder, 4K resolution, 8 ms latency, PoE
8‑channel SD/HD/Ultra HD up/down/cross converter, native 100G SMPTE‑2110 connectivity, full 2022‑7 redundancy, front‑panel monitoring for video and audio
8 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using SFP modules for compatibility with optical fiber Ethernet modules, 1 RU design, control panel with LCD and supports HD and Ultra HD standards up to 2160p60
2,424.00 €
High-performance dual-stream AVoIP processor that combines encoding, decoding and KVM control in one device, copper and fiber 1 Gb networks supported, ultra-low latency, decentralized management, advanced signal control, HDMI 2.0 IN/OUT
Product Details
StudioBridge 10G PWR is a converter designed to integrate up to eight SMPTE-2110 10G Ethernet connections into modern broadcast systems based on 100G Ethernet with SMPTE-2022-7 redundancy. It allows you to combine multiple 10G devices such as cameras, converters or Ultra HD equipment into a single 100G IP infrastructure, simplifying signal management and ensuring operational continuity even in the event of network failures.
Each 10G port provides up to 90 W of PoE++ power, allowing you to directly power cameras and converters without external power supplies. The device features four internal power supplies to ensure stability and reliability even in mission-critical installations.
The 2RU design with front-to-back cooling is optimized for professional racks, while the front panel includes an LCD display, speaker, and headphone jack for instant video and audio monitoring. The dedicated NMOS connection simplifies integration into IP routing systems, making StudioBridge 10G PWR an ideal solution for next-generation SMPTE-2110 infrastructures.
Main features
- Connects eight 10G Ethernet connections to redundant 100G Ethernet systems
- Supports full SMPTE-2022-7 redundancy
- Provides 90W of PoE++ power on each 10G port
- Includes a dedicated NMOS connection for routing IP sources
- 2RU design with front-to-back cooling
- Front-facing LCD for monitoring video inputs and outputs
- Front-facing speaker and headphone jack for audio monitoring
- Dual redundant AC power supplies
- 13 languages for international use
User benefits
- Easily integrate 10G devices into 100G SMPTE-2110 infrastructures
- Directly power cameras and converters via PoE++
- Full redundancy with SMPTE-2022-7 for business continuity
- Immediate video and audio monitoring from the front panel
- Multi-camera ultra HD workflow compatibility
- High reliability
Areas of use
- IP broadcast infrastructures based on SMPTE-2110
- Multi-camera systems with PoE++ power supply
- Control rooms and production centers with redundant 100G networks
- Integration of 10G devices into professional 100G systems
- Mission-critical installations with high reliability requirements
