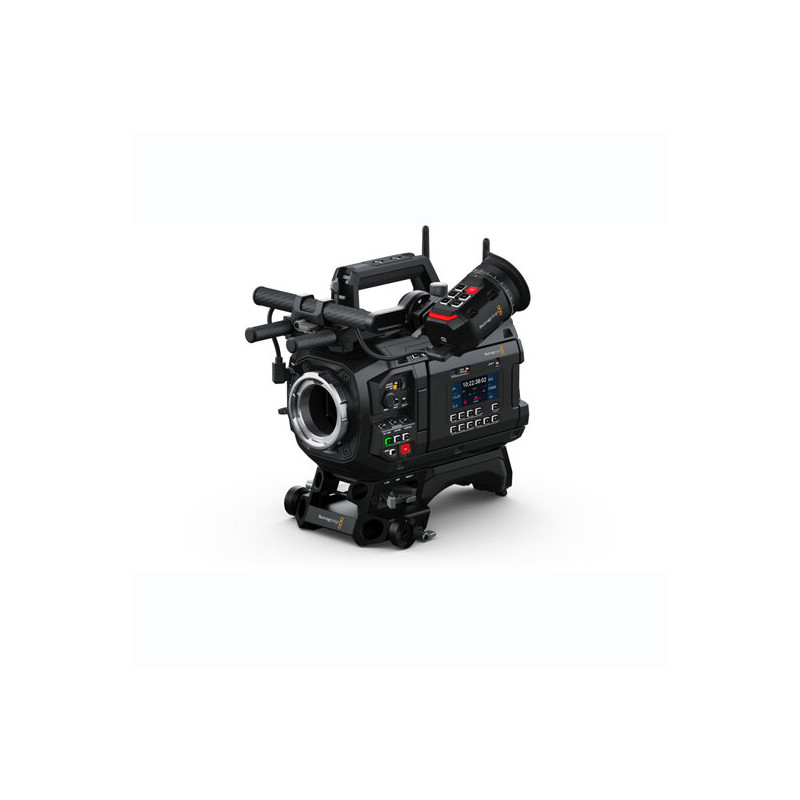

Blackmagic Design - Blackmagic URSA Cine 12K LF 100G + EVF

The Blackmagic URSA Cine 12K LF 100G + EVF is simply the Blackmagic URSA Cine 12K LF 100G with the Blackmagic URSA Cine EVF included.

It is a high-end digital video camera designed for film and live production. It's designed for professionals who want a complete, ready-to-use setup that can be expanded with existing accessories.

Featuring a 36 × 24 mm RGBW sensor with larger photosites, it offers a resolution of up to 12,288 × 8040 pixels and a dynamic range of 16 stops, ensuring exceptional image quality even in the most challenging lighting conditions. Unlike the Blackmagic URSA Cine 12K LF 100G Body, this configuration includes a handle, stand, power supply, battery plate, PL mount as standard and EVF (Electronic ViewFinder). It also features a second 5" HDR touchscreen display with dedicated controls, built-in IR ND filters, and professional Lemo and Fischer connections.

It features a Blackmagic Media Module 8 TB for recording, a 100G Ethernet port for SMPTE-2110 live video transmission, and Wi-Fi connectivity for fast syncing to the Blackmagic Cloud. It's compatible with a wide range of optional accessories for even more functionality.

Designed for those looking for uncompromising cinematic performance and high frame rate live production capabilities, it's a powerful and flexible solution for high-end productions.

User benefits

• 12K RGBW full-frame sensor
• Complete version includes handle, stand, power supply, battery plate, and PL mount as standard (EF mount optional, plus other dedicated mounts)
• Ability to reach 440 fps with the new B4 mount for broadcast lenses
• Secondary touchscreen display with dedicated controls for monitoring and intuitive on-set control
• EVF supplied
• Built-in IR ND filters
• Supports Blackmagic RAW up to 12K
• 100G Ethernet with SMPTE-2110 support for live workflows
• Advanced connectivity
• Professional audio with XLR inputs and phantom power
• Designed for integration with Blackmagic and third-party accessories
• Rugged construction

Areas of use

• Film production
• TV series
• Commercials
• VFX shooting
• Nature documentaries
• Live production, sporting events, and high frame rate replays

Technical characteristics

Camera features

• Effective sensor size: 35.64 × 23.32 mm
• Pixel pitch: 2.9 ­µm
• Lens mount: PL mount. Interchangeable with URSA Cine lockable EF mount included
• Lens control: lens control of compatible EF lenses, lens data from compatible PL lenses and control of some PL lenses
• Dynamic range: 16 stops
• Shooting formats: 12,288 × 8040p 3:2, 12,288 × 6912p 16:9, 12,288 × 6480p 17:9, 12,288 × 5112p 2.4:1, 9648 × 8040p 6:5, 9408 × 6264p 3:2, 8688 × 4896p 16:9, 9312 × 4896p 17:9, 9312 × 3864p 2.4:1, 7680 × 6408p 6:5, 8192 × 5360p 3:2, 8192 × 4608p 16:9, 8192 × 4320p 17:9, 8192 × 3408p 2.4:1, 6432 × 5360p 6:5, 4096 × 2680p 3:2, 4096 × 2304p 16:9, 4096 × 2160p 17:9, 4096 × 1704p 2.4:1, 3216 × 2680p 6:5
• Frame rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• High speed frame rates: 12K 3:2 up to 80 fps, 12K 17:9 up to 100 fps, 12K 2.4:1 up to 120 fps, 9K 3:2 up to 100 fps, 8K/4K 3:2 up to 144 fps, 8K/4K 2.4:1 up to 224 fps
• Built-in ND filters: clear, 2-stop, 4-stop, 6-stop IR ND
• Focus: peaking via focus button, auto focus with compatible lenses
• Iris control: manual via wheel and touchscreen slider, auto iris via button with compatible lenses
• Monitoring screens: 2 × 5" LCD capacitive touchscreen, 1920 × 1080 resolution, 1500 nit brightness + camera status screen + EVF (Electronic Viewfinder)
• EVF display resolution: Full 1920 × 1080, 6.22 Million dots
• EVF display type: OLED
• EVF diopter range: -5 to +5
• Metadata support: automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes
• Controls: touchscreen menus on 5" screen, push buttons, 7 assignable shortcut keys, 6 assignable EVF keys on optional URSA Cine EVF
• Time Code clock: Less than 1 frame drift every 8 hours

Connections

• Total video outputs: 2
• SDI rates: 1.5G, 3G, 6G, 12G
• Analog audio inputs: 2 × XLR MIC / line and AES audio, Phantom power
• Analog audio output: 1 × 3.5 mm headphone jack
• Reference inputs: Tri-Sync, Black Burst, Timecode
• Viewfinder: 1 × USB-C with video, power, control
• USB-C monitor outputs: 2 × side ports for URSA Cine EVF, PYXIS Monitor, DisplayPort
• Accessory ports: 1 × 7-pin Lemo EXT, 1 × 3-pin Fischer RS
• Computer interface: 2 × USB-C expansion ports
• Ethernet: 1 × RJ-45 100 Gb/s  for sending and receiving 2110 IP video or SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming

Audio

• Microphone: integrated stereo
• Speaker: 1 × mono

Video standards

• HD: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60
• UHD: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
• SDI compliance: SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
• SDI audio sampling: 48 kHz, 24 bit

Media

• Media: 1 × Blackmagic Media Module
• Media format: Blackmagic

Supported codecs

• Blackmagic RAW constant bitrate 3:1, 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, Q5, H.264 1920 × 1080 8-bit 4:2:0

Control

• External control: Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses

Cloud synchronization

• Blackmagic Cloud

Streaming

• Protocols: SRT, RTMP
• Local streaming: Ethernet, Wi-Fi
• Global streaming: Ethernet, Wi-Fi, USB-C cellular

Network management

• NTP: Network Time Protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice
• FTP: download files from any drive attached to your camera using FTP
• Web media manager: using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera
• SMB: file sharing using SMB

Storage features

• Storage type: 1 × Blackmagic Media Module 8 TB
• Storage rates: please see the user manual
• Recording formats:
  • Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 × 8040], [12,288 × 6912], [12,288 × 6480], [12,288 × 5112] and [9648 × 8040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 × 1080 Proxies
  • Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9408 × 6264], [8688 × 4896], [9312 × 4896], [9312 × 3864] and [7680 × 6408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 × 1080 Proxies
  • Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8192 × 5360], [8192 × 4608], [8192 × 4320], [8192 × 3408] and [6432 × 5360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 × 1080 Proxies
  • Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4096 × 2680], [4096 × 2304], [4096 × 2160], [4096 × 1704] and [3216 × 2680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 × 1080 Proxies

Software

• Software included: URSA Cine Blackmagic OS, DaVinci Resolve Studio for Mac and Windows including activation key, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK

Operating systems

• Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11

Accessories

• Optional accessories: PYXIS Monitor, PYXIS Monitor Kit, PYXIS Monitor EVF Kit, LPL, EF, Mount Shims, Battery Plates (B-Mount, Gold, VLock), Baseplates (15, 19), Handle, Grips, LCD Sunshade, Media Dock, Media Modules

Power requirements

• Power supply: +24 V_DC external power supply 100 - 240 V_AC 50/60 Hz compatible with IEC C14 socket. B-Mount battery plate
• Power input: 1 × 8-pin Lemo socket for 12 V to 34 V_DC
• Power output: 1 × 7-pin connector with +24 V_DC power output when camera is powered by +24 V_DC batteries or power supply. 1 × 3-pin Fischer with +24 V_DC power output when camera is powered by +24 V_DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12 V regulated output from camera

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0 to 90% non-condensing

Physical specifications

• Dimensions: 28 × 28.1 × 15.3 cm + EVF dimensions
• Weight: 6.2 kg

What’s included

• Blackmagic URSA Cine 12K LF 100G + EVF camera with PL lens mount
• Blackmagic Media Module 8TB
• Blackmagic Media Module case
• Blackmagic URSA Cine handle and bolts
• Blackmagic URSA Cine top rod mount
• Blackmagic URSA Cine baseplate 19
• Blackmagic URSA Cine battery plate B mount
• Blackmagic URSA Cine rubber caps for connectors
• Blackmagic URSA Cine Wi-Fi antennas
• Blackmagic URSA Cine mount EF and mount screws
• Blackmagic URSA Cine 24 V 250 W power supply
• Blackmagic EF body cap
• Blackmagic PL body cap
• Plastic folding screen hood for 5” LCD
• Blackmagic URSA Cine EVF
• Blackmagic URSA Cine EVF rotating bracket with 19 mm carbon fibre rod
• Blackmagic URSA Cine EVF bracket rod mount
• Blackmagic URSA Cine EVF extension
• 2 short carbon fibre 15mm rods
• 1 × long USB viewfinder cable. Right angle to straight
• 1 × short USB viewfinder cable. Right angle to straight
• 1 × short USB viewfinder cable. Right angle to right angle
• Rubber eyecup
• Fabric eye chamois
• DaVinci Resolve Studio with activation key
• Welcome wallet with QR code for software download
• Blackmagic Design Sticker
• Pelican 1560 Case with custom foam
