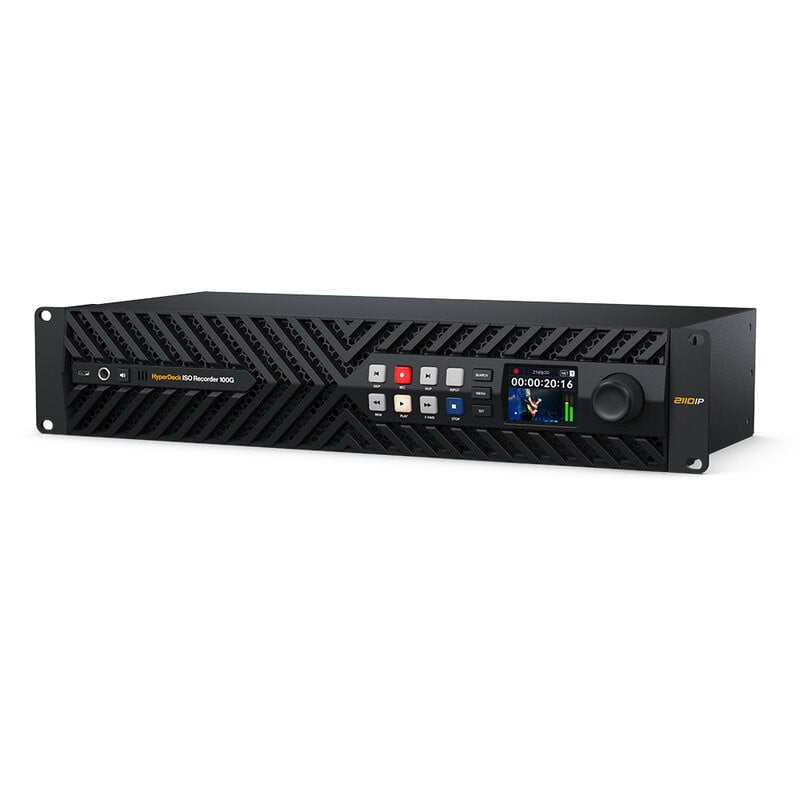

Blackmagic Design - HyperDeck ISO Recorder 100G

HyperDeck ISO Recorder 100G is designed for SMPTE-2110 based broadcast workflows. It can simultaneously record up to eight independent ProRes video streams directly to high speed network storage. 100G Ethernet allows all eight channels of video to be transported over a single IP link, allowing for seamless integration into professional IP infrastructures with full support for NMOS, PTP and SMPTE-2110 standards for stream synchronization, discovery and routing.

The system is optimized for complex multi-camera productions. Each stream is recorded as a separate ProRes file with full metadata and synchronized timecode, allowing for instant multi-camera editing in DaVinci Resolve. Integration with DaVinci Resolve Replay also allows the recorder to be used as a live replay engine, allowing you to review action, create clips and manage playlists quickly and easily, making it ideal for sports events and live productions.

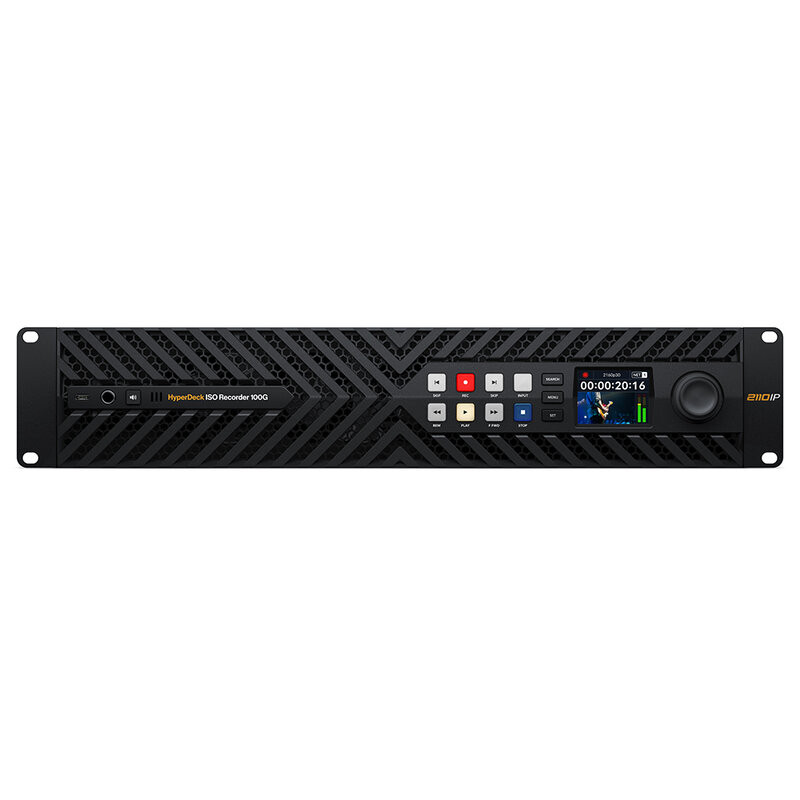

The front panel features a 2.2" LCD display that shows video, audio, standard, and Time Code, along with an electronic search dial for quickly scrolling through inputs and monitoring streams. There's a headphone jack and a built-in mono speaker for direct audio monitoring, with a multifunction button for muting or adjusting the volume using the search dial.

SDI and HDMI monitoring outputs allow you to view signals in real time, while the optional 8 × 12G SDI expansion port allows you to integrate traditional SDI sources into IP workflows. The built-in hardware encoder can encode eight Ultra HD streams simultaneously in ProRes with absolute stability, ensuring consistent quality and reliability even on long production runs. Recording directly to network storage eliminates the limitations of local media and allows you to work on NAS or shared servers, simplifying file management and speeding up the entire post-production process.

User benefits

• Record eight ISO streams simultaneously in ProRes with pristine quality Broadcast
• Native SMPTE-2110 integration with 100G Ethernet
• Compatibility with DaVinci Resolve Replay for quick clip management during sports events and live productions
• Immediate monitoring via front-facing LCD, headphone jack, built-in speaker, and dedicated SDI/HDMI outputs
• Built-in hardware encoder
• Optional 8x12G SDI expansion for integrating traditional SDI sources into hybrid IP workflows

Areas of use

• Multi-camera productions requiring simultaneous ISO recording
• Sports events and live shows
• SMPTE-2110-based broadcast control rooms
• TV studios and OB vans
• Network storage-based workflows

Technical characteristics

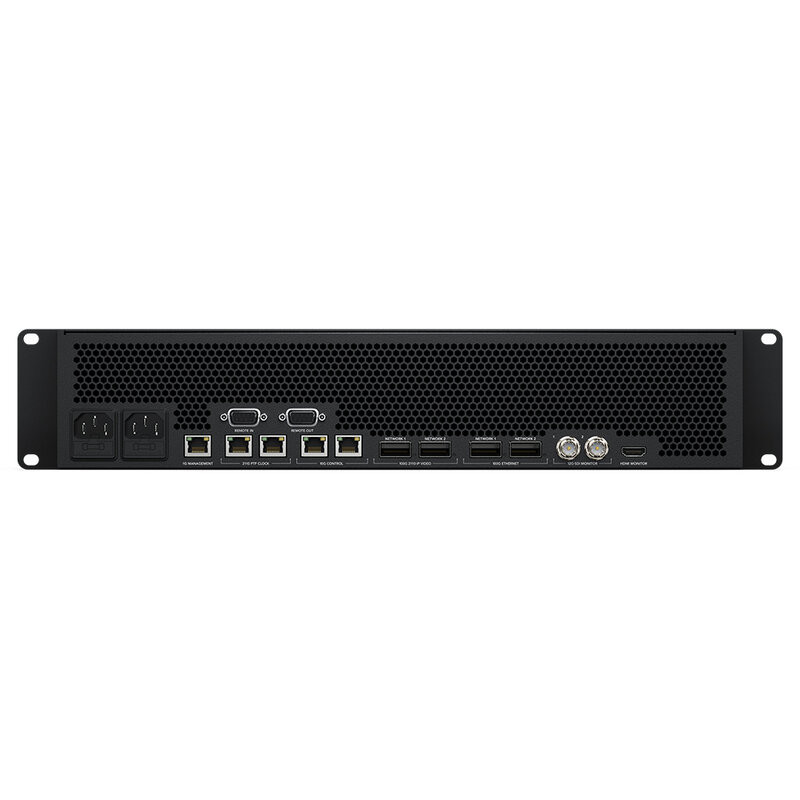

Connections

• 100G 2110 IP networks: 2 × 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks
• Senders and receivers per 100G pair: 8 × Ultra HD or 8 HD
• 100G Ethernet: 2 × 100G QSFP28 connections
• 10G control network: 2 × 10G RJ45 Ethernet for NMOS control
• Reference network: 2 × RJ45 Ethernet for 2110 PTP clock
• 1G management: 1 × RJ45 Ethernet. Supports 10/100/1000 BASE-T. For HyperDeck Setup utility and software updates
• SDI monitor outputs: 2
• HDMI monitor outputs: 1
• SDI rates: 1.5G, 3G, 6G, 12G
• Analog audio outputs: 1 × 6.35 mm headphone jack
• SMPTE ST 2110 IP audio inputs: up to 64 CH embedded audio on each 2110 IP video stream over 100G Ethernet
• SMPTE ST 2110 IP audio outputs: up to 64 CH embedded audio on each 2110 IP video stream over 100G Ethernet
• SDI audio outputs: 16 channels embedded audio
• HDMI audio outputs: 8 channels embedded audio
• Computer interface: 1 × USB-C for HyperDeck Setup utility and software updates
• Power: 2 x IEC C14 power inputs

Standards

• HD video standards: 1280 × 720p 50, 1280 × 720p 59.94, 1280 × 720p 60, 1920 × 1080i 50, 1920 × 1080i 59.94, 1920 × 1080i 60, 1920 × 1080p 23.98, 1920 × 1080p 24, 1920 × 1080p 25, 1920 × 1080p 29.97, 1920 × 1080p 30, 1920 × 1080p 50, 1920 × 1080p 59.94, 1920 × 1080p 60
• Ultra HD video standards: 3840 × 2160p 23.98, 3840 × 2160p 24, 3840 × 2160p 25, 3840 × 2160p 29.97, 3840 × 2160p 30, 3840 × 2160p 50, 3840 × 2160p 59.94, 3840 × 2160p 60
• 4K DCI video standards: 4096 × 2160p 23.98 DCI, 4096 × 2160p 24 DCI, 4096 × 2160p 25 DCI, 4096 × 2160p 29.97 DCI, 4096 × 2160p 30 DCI
• SMPTE compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1
• Supported HDMI formats: 1280 × 720p 50, 1280 × 720p 59.94, 1280 × 720p 60, 1920 × 1080i 50, 1920 × 1080i 59.94, 1920 × 1080i 60, 1920 × 1080p 23.98, 1920 × 1080p 24, 1920 × 1080p 25, 1920 × 1080p 29.97, 1920 × 1080p 30, 1920 × 1080p 50, 1920 × 1080p 59.94, 1920 × 1080p 60, 3840 × 2160p 23.98, 3840 × 2160p 24, 3840 × 2160p 25, 3840 × 2160p 29.97, 3840 × 2160p 30, 3840 × 2160p 50, 3840 × 2160p 59.94, 3840 × 2160p 60
• Audio sampling: 24‑bit 48 kHz sample rate
• Video sampling: 4:2:2 YUV
• Color precision: 10‑bit
• Color space: Rec. 709, Rec. 2020
• HDR support: Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084

IP video compliance

• SMPTE 2110‑20 (uncompressed video), IGMP v2
• SMPTE 2110‑21 (traffic shaping):
  • Sender: narrow
  • Receiver: narrow, wide synchronous, asynchronous
• SMPTE 2110‑30 (PCM): audio conformance Level C
• SMPTE 2110‑40 (Ancillary Data): full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M‑2, closed captioning and HDR static metadata
• Codec: Blackmagic IP10 codec optional for 2160 × 3840p 59.94 and 2160 × 3840p 60 as 2110 IP video
• Precision Time Protocol: IEEE 1588‑2008 (PTP v2), ST 2059‑1, ST 2059‑2
• NMOS: IS‑04 discovery and registration: v1.3.2, peer‑to‑peer via mDNS/DNS‑SD
• NOMS IS‑05 connection management: v1.1.2
• NMOS BCP‑002‑01: natural grouping
• NMOS BCP‑004‑01: receiver capabilities

Audio

• Headphones: front panel headphone outputs active monitor
• Built in speaker: front panel mono speaker outputs active monitor
• Audio controls: front panel button functions as single press for momentary speaker ON, double press for speaker ON/OFF plus press and hold for volume control using search dial

Processing

• ProRes encoder: built‑in hardware encoder supports up to 8 × Ultra HD simultaneous real‑time ProRes encoding

Media

• Media: records over 100G Ethernet to network storage

Supported codecs

• Video codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 3840 × 2160p 60
• Audio codecs: PCM 2, 4, 8 or 16 channels

Control

• Built in control panel: 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2" color display
• External control: RS‑422 deck control, 2110 IP video start/stop, Time Code run. Includes Blackmagic HyperDeck Ethernet Protocol and REST API for HyperDeck. Supports remote FTP and HTTP Web Media Manager

Displays

• Built in 2.2" LCD for monitoring video, audio, video standard and Time Code plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel

Software included

• Software included: Blackmagic OS, Blackmagic HyperDeck Setup
• Internal software upgrade: loaded at system start, or via Blackmagic HyperDeck Setup using USB port

Operating systems

• Mac: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later
• Windows: Windows 11

Power requirements

• Power supply: 2 × 100 ‑ 240 V_AC 50/60 Hz internal power supplies
• Power input: 2 × IEC C14 sockets

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0% to 90% non‑condensing

Accessories

• Optional accessories: HyperDeck Extreme Control, Blackmagic Cloud Store Ultra

Physical specifications

• Dimensions: 48.2 × 8.8 × 28 cm
• Weight: 3.20 kg

What’s in the box

• HyperDeck ISO Recorder 100G
• Welcome wallet with QR code for software download
