SKU: CONVNTRM/MA/OPTH
EAN: 9338716003307

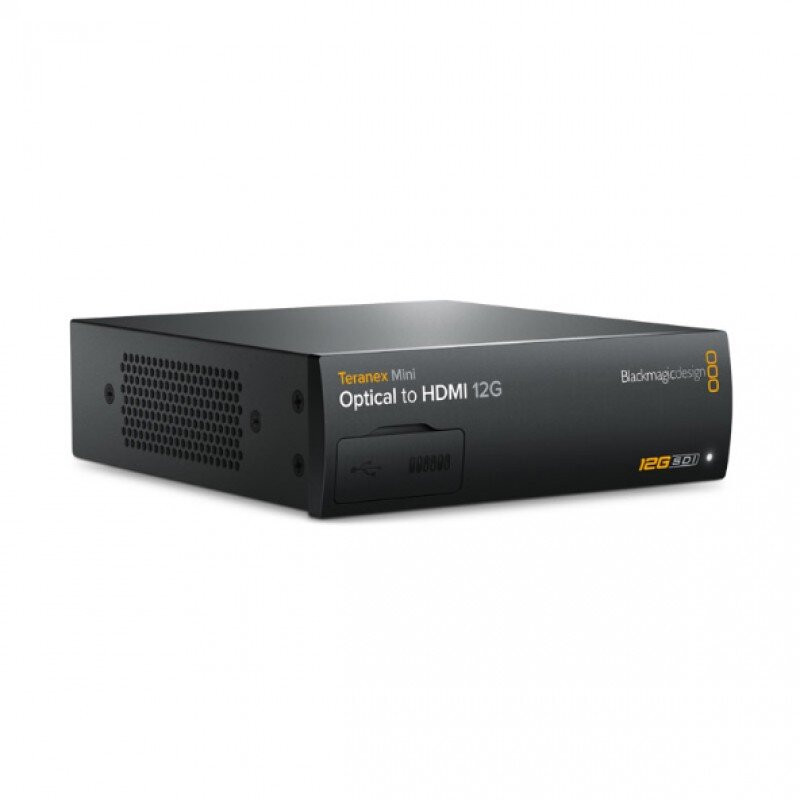

Blackmagic Design - Teranex Mini - Optical to HDMI 12G
Optical SDI to HDMI converter up to Ultra HD
Not available.
delivery is not available for this product.
Free shipping for orders over € 199 (within Europe)
Variants of this product
SDI audio de- embedder to 8 CH AES/EBU or 4 CH analog audio
12V 10W power supply designed for Mini converters
542.00 €
UHD/HD/SD-SDI to HDMI converter
5 V 2 A USB power supply designed for Micro converters
77.00 €
SDI to HDMI converter without audio
Product Details
Teranex Mini Optical to HDMI 12G by Blackmagic Design allows you to convert from SDI and SMPTE optical fiber to HDMI. Every SMPTE optical fiber module can be inserted to obtain video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber. It features professional 12G-SDI and XLR connections, ethernet for remote admin control and a down converter to view Ultra HD sources on HD displays. The optical fiber SFP module is sold separately: to better fit your needs you will be able to purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP module at your own choice. Plus, an optional Smart Panel can be added, to complete your Teranex Mini with LCD monitoring and push button controls.
- SDI transmission: 270Mb, 1.5G, 3G, 6G, 12G.
- SD Video Standard: 525i59.94 NTSC, 625i50 PAL.
- HD Video Standard: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60.
- Ultra HD video standard: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60.
- 4K video standard: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
- Features: conversion to lower resolution, optional front control panel, control software via USB.
Connections
SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching.
Optical Fiber Connection (optional) Optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector.
Optical Fiber Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching.
Optical Fiber Video Loop Through 1 x 12G-SDI loop output.
HDMI Video Outputs 1 x HDMI 2.0 type A connector with support for 2160p60.
Analog Audio Outputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be con gured for Time Code output.
Digital Audio Outputs 4 channels professional 110?balanced digital audio via XLR connectors. Right XLR can be con gured for Time Code output.
Embedded Audio Support 8 channels.
Multi Rate Support Auto detection of SD, HD or 12G-SDI.
Updates and Configuration USB and Ethernet.
Reclocking Yes
