SKU: CONVNTRM/MB/HOPT
EAN: 9338716003314

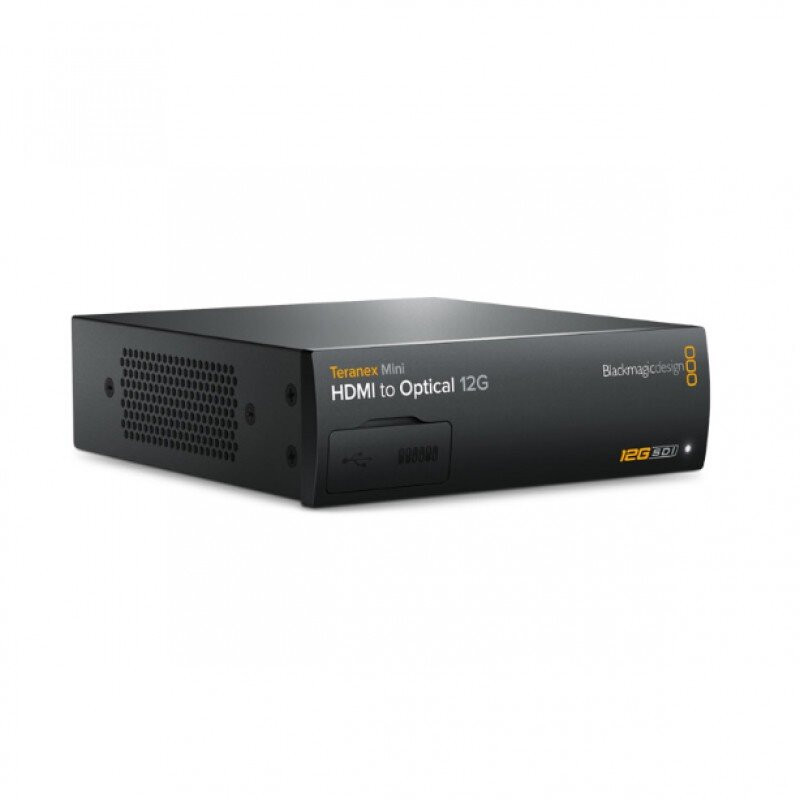

Blackmagic Design - Teranex Mini - HDMI to Optical 12G
HDMI to Optical SDI converter up to Ultra HD
Not available.
delivery is not available for this product.
Free shipping for orders over € 199 (within Europe)
Variants of this product
Power the camera via the Ethernet cable and convert the camera and program return feeds to SDI
319.50 €
SDI Audio De-embedder
223.00 €
HDCP Killer DVI Cross Converter supports AV/YPbPr/VGA/HDMI/DVI
SDI audio embedder from 8 CH AES/EBU or 4 CH analog audio
1,469.50 €
Standards converter designed for professional AV with 12G-SDI, HDMI 2.0a, XLR
Product Details
Teranex Mini HDMI to Optical 12G by Blackmagic Design allows you to convert from HDMI to SDI and SMPTE optical fiber. Every SMPTE optical fiber module can be inserted to send video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber. It features professional 12G-SDI and XLR connections, ethernet for remote admin control and a down converter to view SD and HD sources on Ultra HD displays. The optical fiber SFP module is sold separately: to better fit your needs you will be able to purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP module at your own choice. Plus, an optional Smart Panel can be added, to complete your Teranex Mini with LCD monitoring and push button controls.
- SDI transmission: 270Mb, 1.5G, 3G, 6G, 12G
- SD Video Standard: 525i59.94 NTSC, 625i50 PAL.
- HD Video Standard: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,1080p50, 1080p59.94, 1080p60, 1080i50,1080i59.94, 1080i60.
- Ultra HD video standard: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60.
- 4K video standard: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
- Features: Optional front control panel, control software via USB.
Connections
SDI Video Inputs Optional 3G/6G/12G Optical SFP input.
SDI Video Outputs 1 x 12G-SDI.
HDMI Video Inputs 1 x HDMI 2.0 type A connector with support for 2160p60.
Optical Fiber Connection (optional) Optional 3G/6G/12G optical SFP output.
Optical Fiber Video Outputs Automatically matches the SD, HD and 12G-SDI HDMI video input.
Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be con gured for Time Code input.
Digital Audio Inputs 4 channels professional 110?balanced digital audio via XLR connectors. Right XLR can be con gured for Time Code input.
Embedded Audio Support 16 channels.
Multi Rate Support Automatic switching between SD/HD/ 2K and 4K.
Updates and Configuration USB and Ethernet.
Reclocking Yes
