SKU: PU-232
EAN: 5060067150587
CYP - PU-232
RS‑232 extender set over CAT5/6, full‑duplex transmission, hardware handshake, distances up to 250 m, simple hardware‑based operation with no configuration required
Not available.
delivery is not available for this product.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
749.00 €
8K HDMI pattern generator and analyser with 40 Gbps I/O, EDID management, HDR functions, HDCP/SCDC monitoring, OLED display
1,237.00 €
Compact first‑aid kit for AV installers, a curated selection of essential CYP tools to quickly resolve common on‑site signal, cabling and EDID issues, preventing delays and keeping installations on track
289.00 €
100 m SDI Repeater (Unpowered)
174.00 €
Compact 4K HDMI repeater with EDID management, 18 Gbps signals support, custom EDID creation, stable 4K @ 60 4:4:4 extension up to 5 m
159.00 €
Infrared extender and repeater kit for long‑distance IR control over CAT5/6 up to 250 m
Product Details

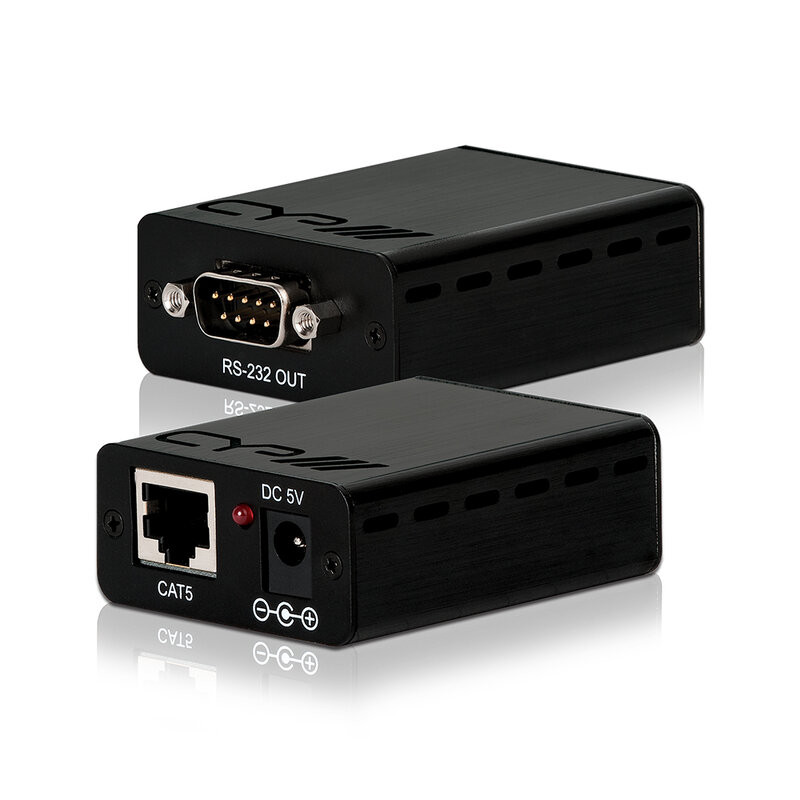

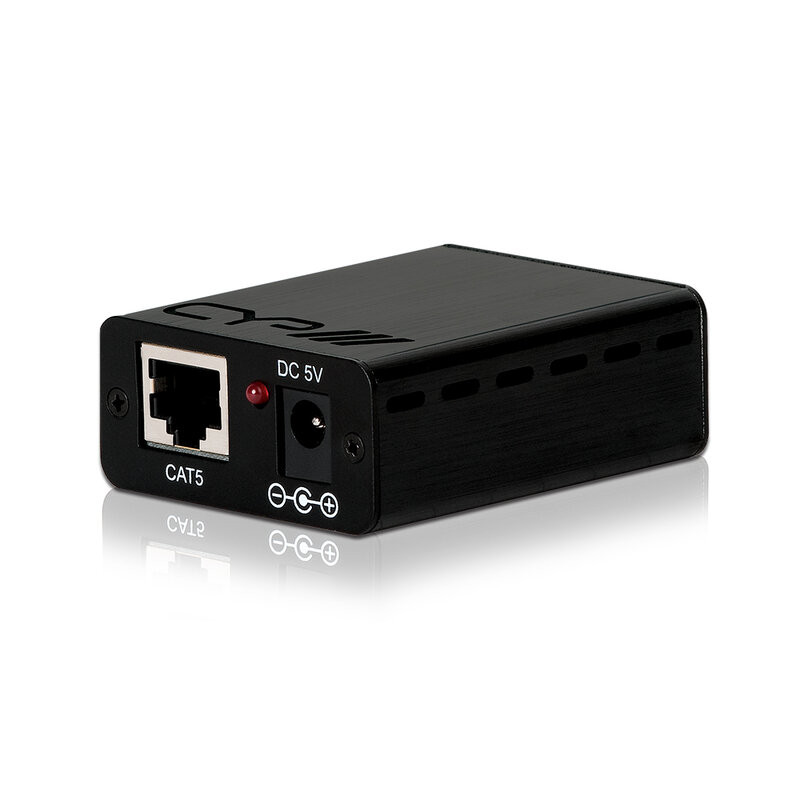

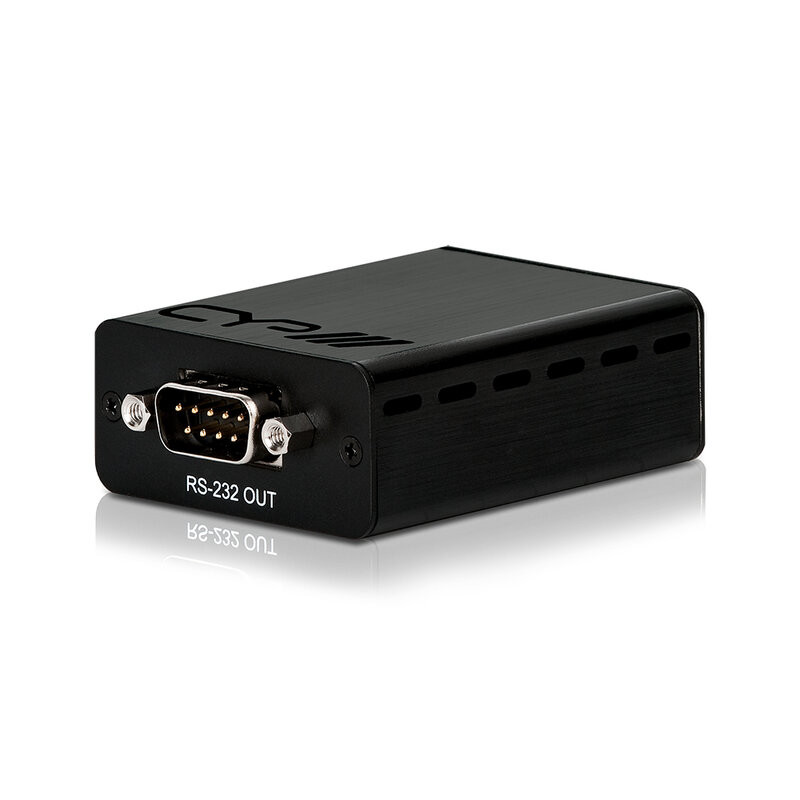

PU-232 is an RS-232 extender designed to transmit serial control signals over a single Cat.5e/6 cable up to 250 m.

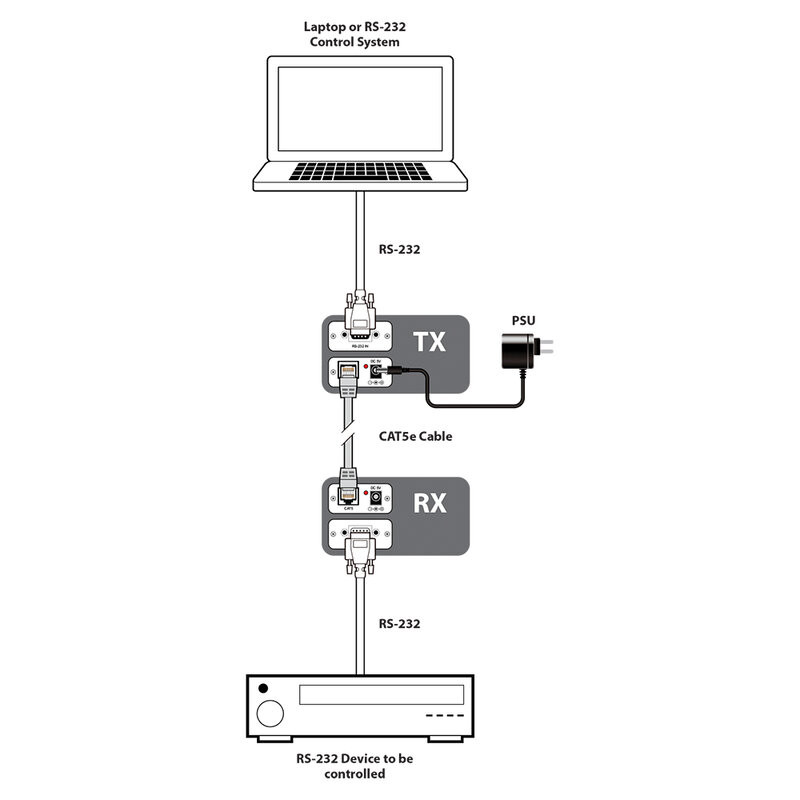

The system includes a transmitter and receiver that require no configuration and support full-duplex transmission with hardware handshake.
Main features
- Extends any RS-232-compatible device up to 250 meters from the source to the display
- Requires a single Cat. 5e/6 cable
- Baud Rate: 110 - 921,600
- Data bits: 8 bits
User benefits
- Easy installation and operation
- No signal loss
- Compatibility with a wide range of RS-232 devices
- Reduced cabling thanks to the use of a single Cat. 6 cable
- Full-duplex transmission with hardware handshake for maximum reliability
Areas of use
- Digital Signage
- Conference rooms and meeting rooms
- Serial control of projectors, professional monitors, and industrial devices
- Integration into RS-232-based building automation systems
Technical characteristics
TX
- Inputs:

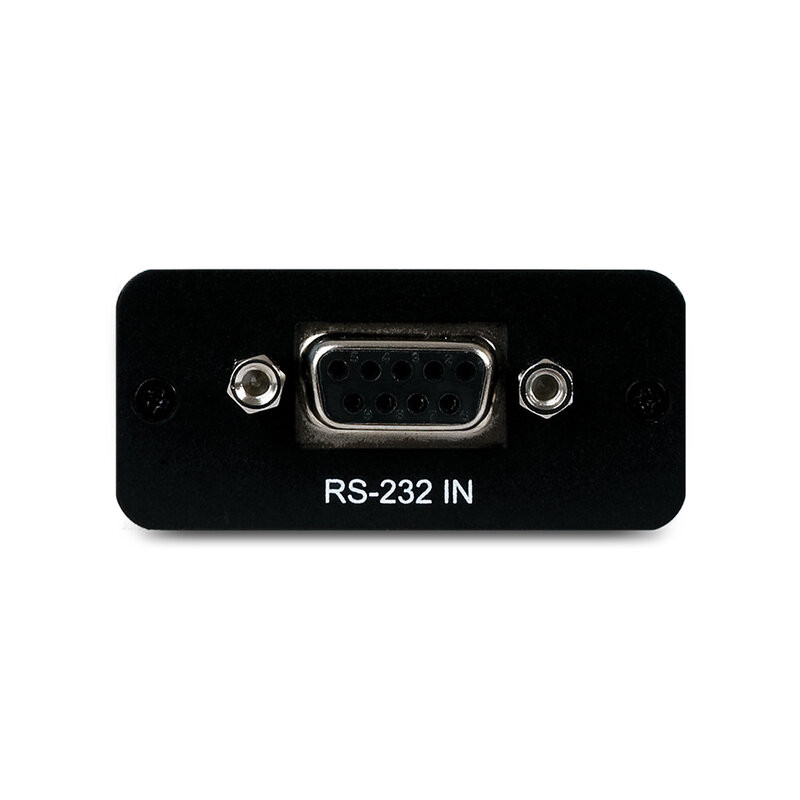

- 1 × 9-pin Dsub (1 × RS-232 Data)
- Outputs:

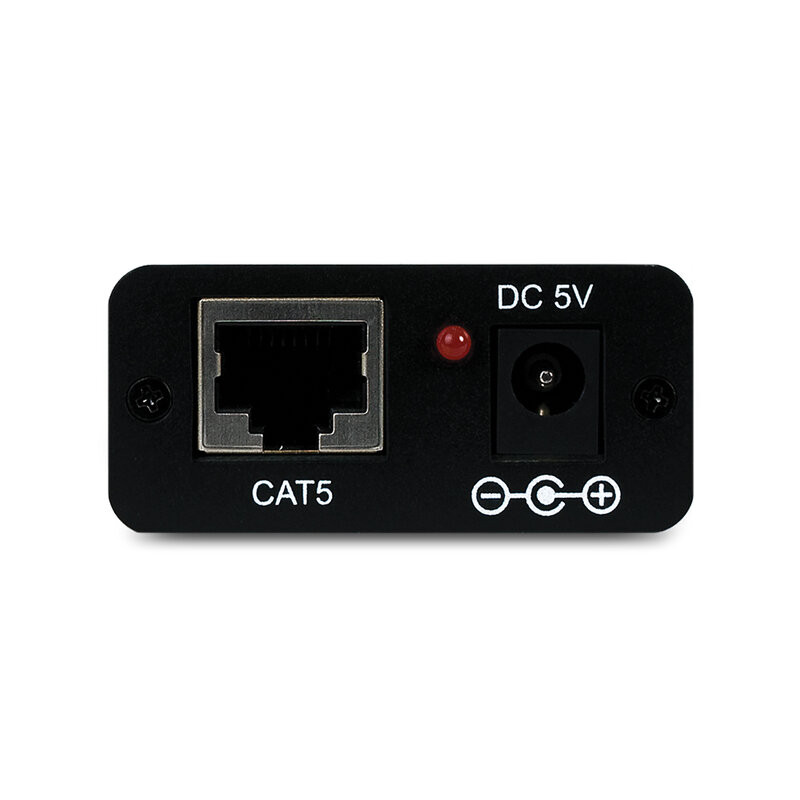

- 1 × RJ45 (1 × RS-232 propriety data)
- PSU: 5 VDC 1.2 A
- Dimensions (W × H × D): 50 × 23 × 67 mm
- Weight: 160 g
RX
- Inputs:

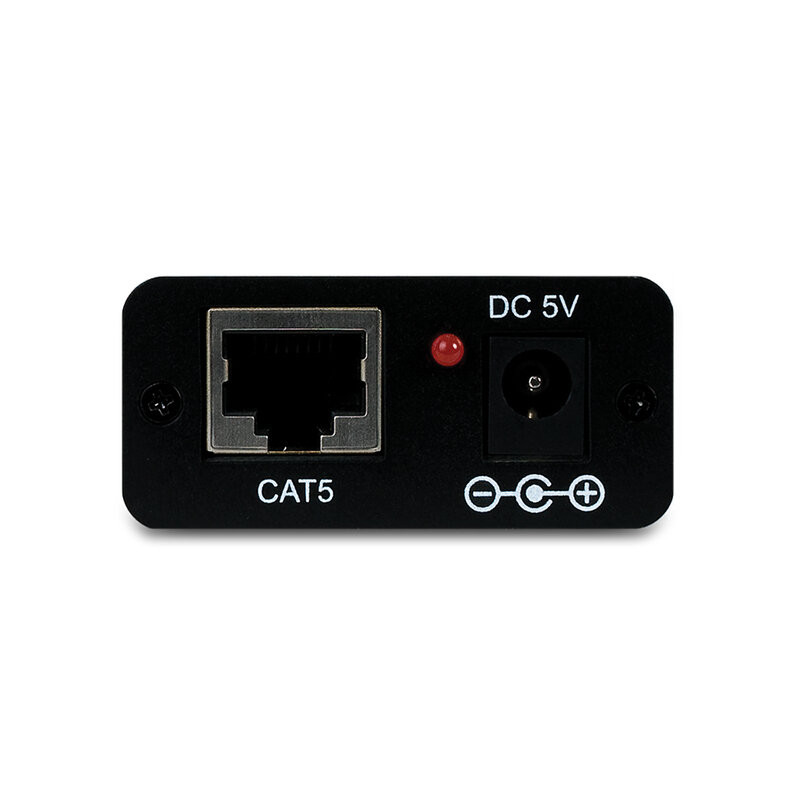

- 1 × RJ45 (1 × RS-232 propriety data)
- Outputs:

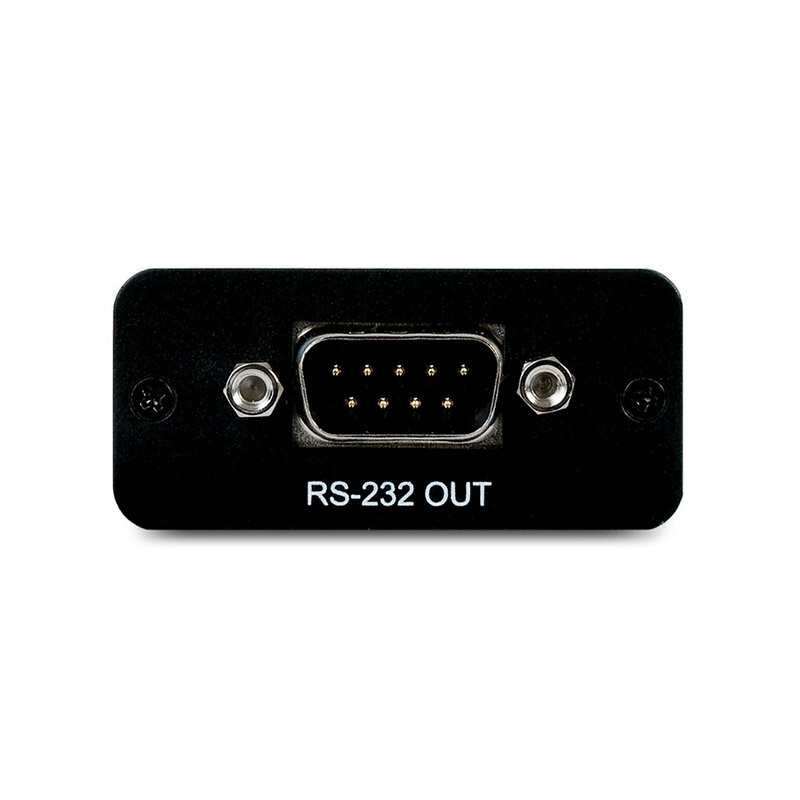

- 1 × 9-pin Dsub (1 × RS-232 Data)
- PSU: 5 VDC 1.2 A
- Dimensions (W × H × D): 50 × 23 × 67 mm
- Weight: 160 g
