SKU: QU-10-4K22

EAN: 5060067154783

CYP - QU-10-4K22

Name: QU-10-4K22
Brand: CYP
SKU: QU-10-4K22
Price: 569.5 EUR
Availability: OutOfStock

1 × 10 full 4K HDMI distribution amplifier with HDMI 2.0, HDCP 2.2, UHD support, HD audio formats, buffered outputs

(0)

834.00 €

- 32%

569.50 €

Pay in 4 interest-free payments of 142.38 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

Datavideo - VP-840

243.00 €

(0)

4K HDMI Distribution Amplifier 1x4

CYP - PU-1H3HBTE

709.00 €

(0)

1 HDMI input to 3 HDBaseT outputs (100 m) splitter, HDMI bypass, supporting 4K UHD, LAN, PoC, IR and cascading up to 5 layers

CYP - QU-4-4K22

289.50 €

(0)

1 × 4 4K @ 60 4:4:4 HDR HDMI distribution amplifier with HDCP engine, EDID tools, down‑scaling, CEC system reset

CYP - QU-2-8K23

337.50 €

(0)

1 × 2 HDMI 2.1 8K distribution amplifier with HDR support, HD audio formats, EDID management, stereo audio breakout

CYP - PU-1H3HBTPL

509.50 €

(0)

1 HDMI input to 3 HDBaseT Lite outputs (60 m) + HDMI bypass, supporting 4K UHD, PoC, IR and cascading up to 5 layers

Product Details

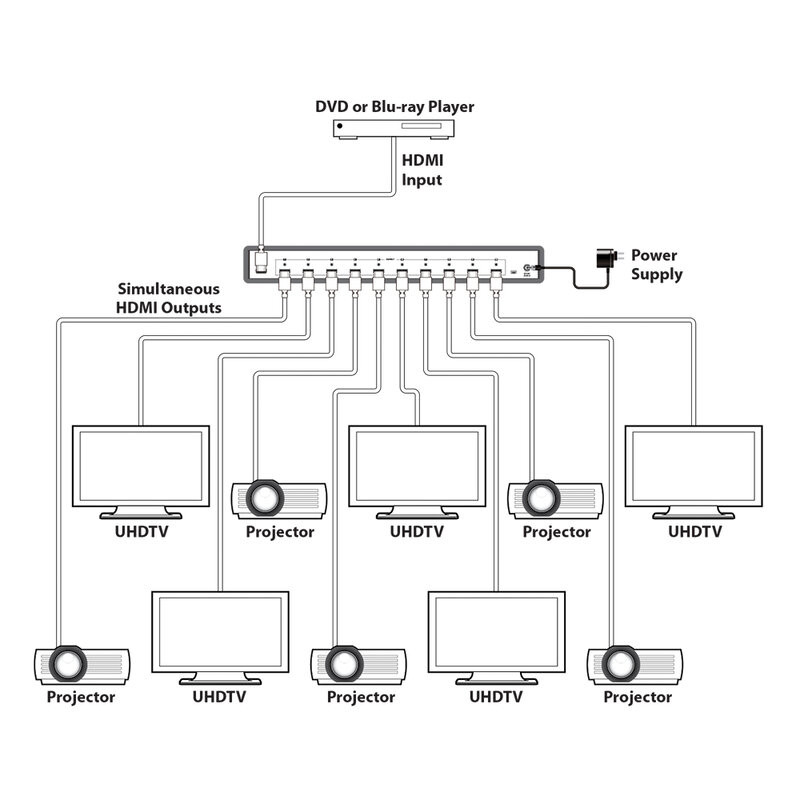

The QU‑10‑4K22 is a 1 × 10 HDMI splitter designed to split a single HDMI signal into ten identical outputs, while maintaining full compatibility with 4K @ 60 4:4:4, HDMI 2.0, and HDCP 2.2 signals.

It supports high-definition audio formats, 3D signals, and distances of up to 20 meters for 1080p thanks to buffered outputs, with the option of cascading up to three levels. It includes EDID functions, Standard/TV mode, and System Reset via CEC for automatic display input management, with front-panel indicators to monitor input and output status.

Main features

HDMI 2.0, HDCP 2.2 and DVI compliant
HDMI splitter 1 to 10
Supports UHDTV resolutions up to 4K2K: 3840 × 2160 @ 24/25/30/50/60 Hz and 4096 × 2160 @ 24/25/30/60 Hz
High-definition audio passthrough: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos
System Reset function (CEC active source command) that allows the unit to automatically reset the TV to its default HDMI input
The HDMI input supports "Standard" mode and "TV" mode
EDID settings

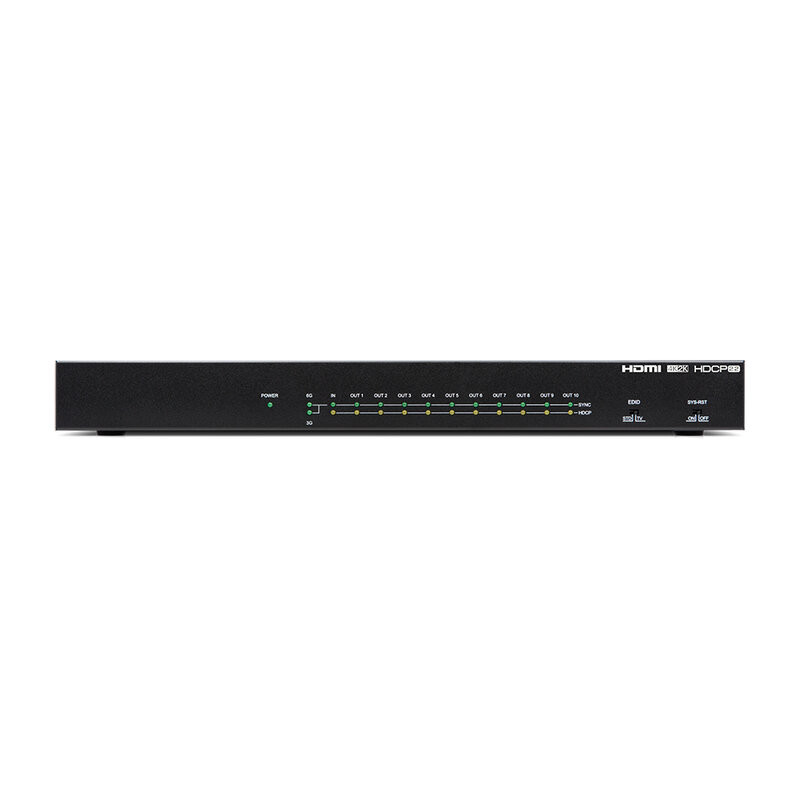

Input and output status is indicated on the front panel

Users benefits

Reliable signal distribution thanks to buffered outputs
Reduces video and audio compatibility issues with integrated EDID management
Immediate indication of input and output status
Full support for 4K formats and HD audio for modern and future-proof installations
Simplified display automation thanks to the System Reset function via CEC
Easily expand the system thanks to cascading up to three levels

Areas of use

HDMI distribution in professional installations
Digital Signage
Conference rooms and meeting rooms
Classrooms and educational environments
Corporate multi-display installations

Technical characteristics

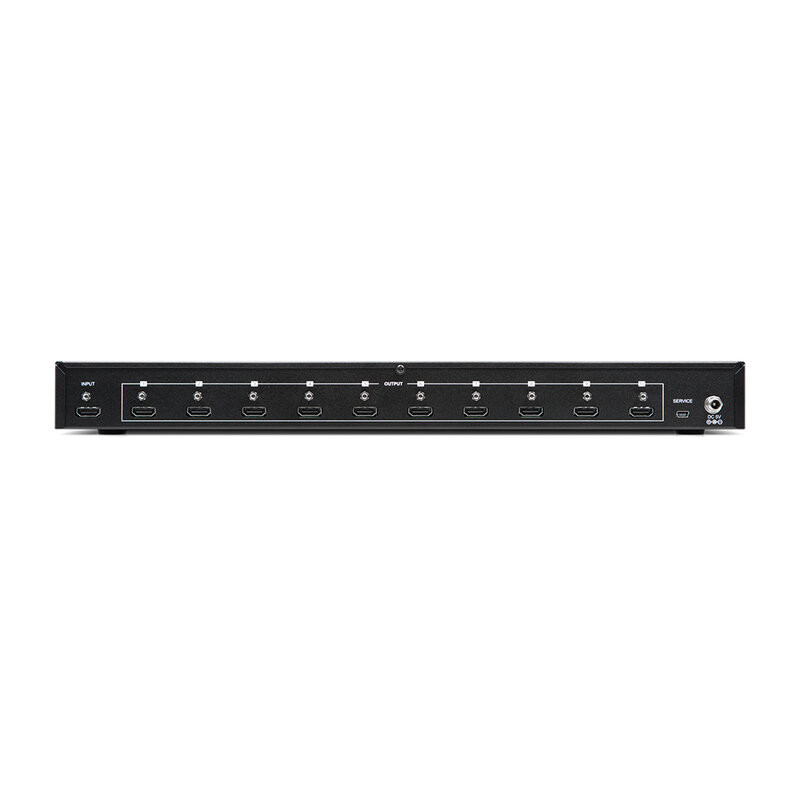

Inputs:
- 1 × HDMI (HDMI 2.0 uncompressed AV and data)
- 1 × USB 3 Type‑B (service – power & data)
Outputs:
- 10 × HDMI (HDMI 2.0 uncompressed AV and data)
PSU: 5 V_DC 2.6 A
Dimensions (W × H × D): 43.6 × 4.4 × 16.0 cm
Net weight: 2 kg
