SKU: P2.6MG12I20

Yes Tech - P2.6 MG12

Triangle display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 4.2 kg
1,250.50 €
- 40%

750.50 €

Pay in 4 interest-free payments of 187.63 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition: New

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



EN Instruction Manual (6.46MB)

NO DESC

Documentation

NO NAME (1.06MB)

NO DESC

Documentation

Product Details

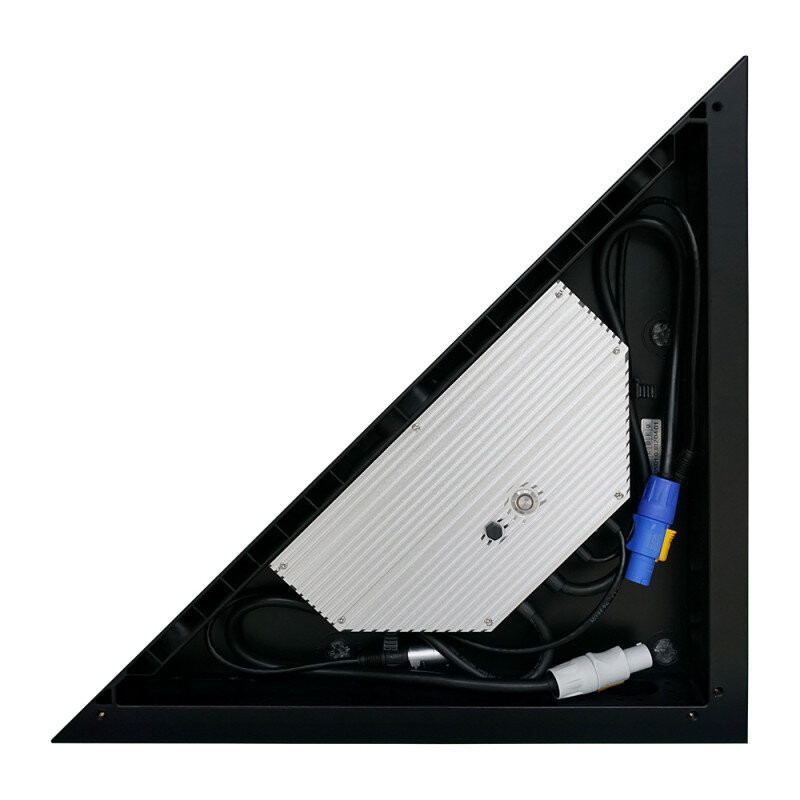

Triangular LED display (P2.6 MG12), SMD1515, copper wire, full black LED, for indoor use (800 - 1200 nits).

It is part of the MG Creative Extension series, which includes triangle, circular sector, etc. to make "Magic Stage" more creative. This newly updated series will allow you to think and design the stage more creatively, not only with the arc layout and presentation, but also polygon, sector, etc.

By combining Magic Stage LED wall modules with MG Creative Extensions which include right angle (MG11), triangle (MG12), circular sector (MG13) LED displays etc., you can make a variety of creative displays of any shape you want, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart etc.

User benefits

  • Allows you to create LED walls of different shapes by combining the cabinets of the Magic Stage series

Areas of use

  • All those in which the Yes Tech LED displays of the Rental & Staging series are used

Technical characteristics

Basic parameters
Operating environment indoor
LED encapsulation 1515
Pixel pitch   2.6 mm
Pixel density   147,456 dot/m2
Weight 4.2 kg/unit
Dimensions  500 x 500 x 73 mm
IP grade IP50
Performance parameters
White balance bightness 800 - 1200 cd/m2
Single LED brightness / chroma calibration yes / yes
Color temperature  6500 - 10,000 adjustable
Frame frequency 50 & 60 Hz
Refresh frequency ≤ 3840 Hz
Using parameters
Life span 80,000 h
Working voltage 100 - 240 VAC 50/60 Hz
Maximum / average power consumption (W/m2) 520 / 180
Scanning method 1/24 s
Communication mode CAT5
Certification CE FCC ETL
