SKU: EASYPLUS-2.5

EGO Display - EasyPLUS-2.5

Name: EasyPLUS-2.5
Brand: EGO Display
SKU: EASYPLUS-2.5
Price: 340.5 EUR
Availability: InStock

Indoor, front service, SMD 1515, 1000 nit, 3840 Hz, 640 x 480 mm, 6.7 kg

(0)

674.00 €

- 49%

340.50 €

Pay in 4 interest-free payments of 85.13 € with Discover More

57 items available in our Italian warehouse

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

340.50 €

Condition: New

Prime

fast delivery is available for this product.

This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

EGO Display - EASYHP-P2.5

221.50 €

(0)

Indoor, SMD2121, 600 nit, 5000:1, 4200 Hz, 640 x 480 mm, 7.8 kg high-performance LED panel, exceptional stability, energy-efficient design, adjustments for optimal flatness

Yes Tech - P2.6 MG13

932.50 €

(0)

Sector display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 5 kg

Yes Tech - P2.6 XTRA Indoor

707.50 €

(0)

Indoor, IC DP3365, SMD1515 black LEDs, 800 - 1000 nit, > 1920Hz, 500 x 500 mm, 7.5 kg

Yes Tech - P2.6 MG15 Indoor

81.00 €

(0)

Quarter display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 250 x 500 mm, 4.2 kg

Yes Tech - P2.6 MG11

725.50 €

(0)

Right-angle display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 125 x 500 mm, 1.8 kg

EN brochure (3.84MB)

NO DESC

Documentation

Technical drawing (1.78MB)

NO DESC

Documentation

Certification (311.68KB)

NO DESC

Documentation

Certification (981.47KB)

NO DESC

Documentation

EN Product manual (3.37MB)

NO DESC

Documentation

Product Details

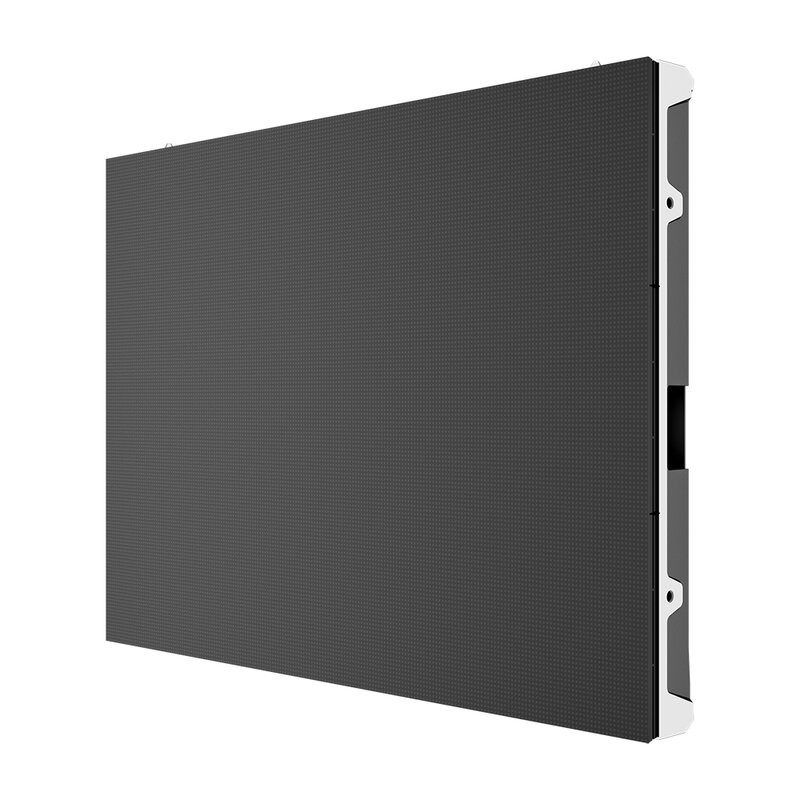

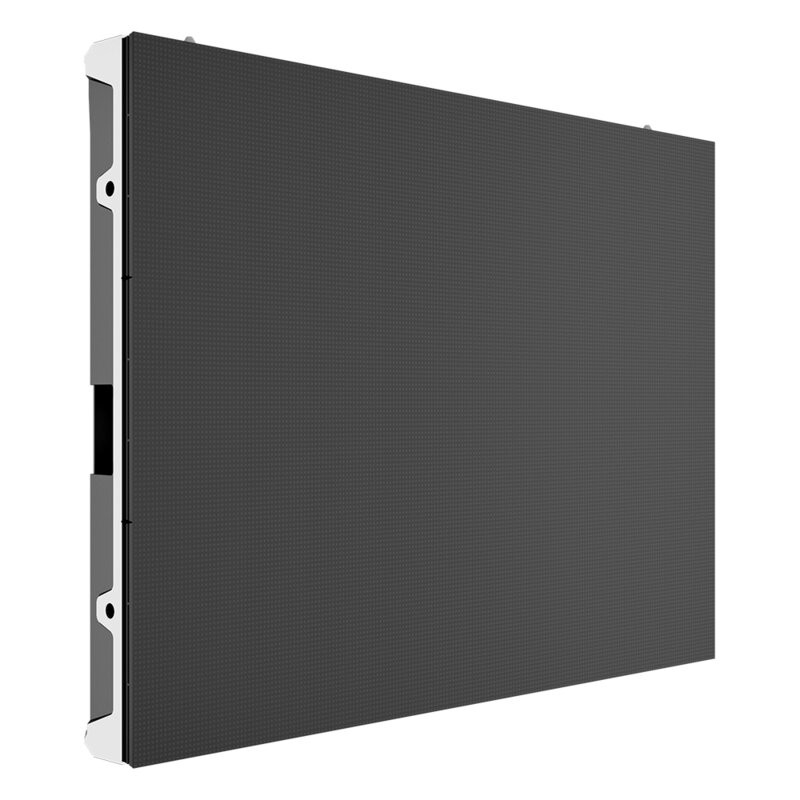

P2.5 LED panel with 640 x 480 mm die-cast aluminum cabinet weighing only 6.7 kg, ideal mix of quality, exceptional visual performance even at short distances and price. It features a refresh rate of 3840 Hz, 13 / 14 bit gray scale and ultra-wide viewing angle of 160° horizontally.

Cabinet with steel pins for alignment, front maintenance for modules, power supply, receiving card and the possibility of suspended or hanging installation, stacked or fixed on a surface, such as a wall or a structure.

User benefits

Superior video quality
160° wide horizontal viewing angle
Quick and flexible installation: suspended, hanging, stacked or fixed to a surface

Areas of use

Indoor installations in shopping malls, retail stores and showrooms
Corporate (offices, conference rooms)
Hospitality (hotels ecc.)
Art and interactive installations

Technical characteristics

Physical parameters
LED type	SMD 3-in-1 1515
Pixel Pitch	2.5 mm
Panel dimensions (W x H x D)	640 x 480 x 60 mm
Module dimensions (W x H)	320 x 160 mm
Pixel per panel	256 x 192
Panel weight	6.7 kg
Panel material	die casting aluminum
Optoelectronic parameters
Brightness	1000 nit
Refresh rate	3840 Hz
Gray scale	13 / 14 bit
Contrast ratio	4000:1
Color temperature	6500 K
Viewing angle (H/V)	160° / 160°
Driving type	1/32
Operating voltage	200 - 240 V_AC
Power consumption (max. / avg.)	516 / 172 W/m²
Application parameters
Storage temperature	-40 to 60 °C
Operating temperature	-10 to 40 °C
Storage humidity	10 - 85% RH
Operating humidity	10 - 80% RH
IP rating (front / rear)	IP40 / IP21
LED lifetime	100,000 h
Module maintenance	front
PSU & others maintenance	front
Panel installation type	hanging / stacking / fixed
Max. rigging QTY	12

More.. Show less
