SKU: AR2.5

EGO Display - EasyPRO-P2.5

Indoor, front service, SMD1515, 800 nit, 3840 Hz, 320 × 480 mm, 2.1 kg
258.00 €
- 48%

134.00 €

Pay in 4 interest-free payments of 33.50 € with Discover More

9 items available in our Italian warehouse

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
134.00 €

Prime

fast delivery is available for this product.

This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



EN brochure (4.77MB)

Documentation

IT brochure (4.77MB)

Documentation

Certification (794.51KB)

Documentation

EN Instruction manual (5.64MB)

Documentation

Product Details

P2.5 LED panel with 320 x 480 mm cabinet, SMD1515, for indoor fixed installations (800 nits) with 3000:1 contrast.

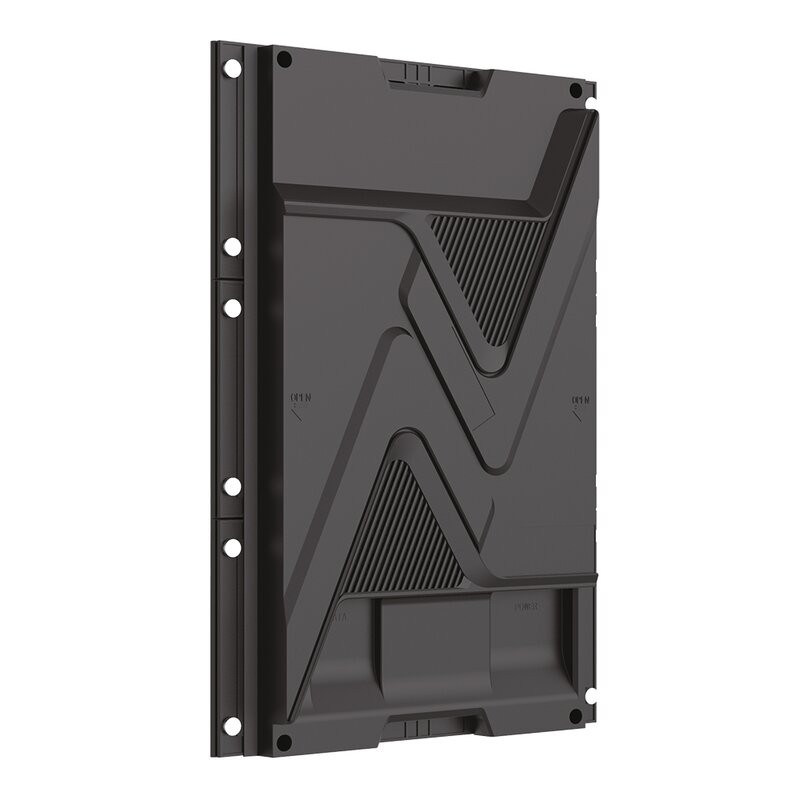

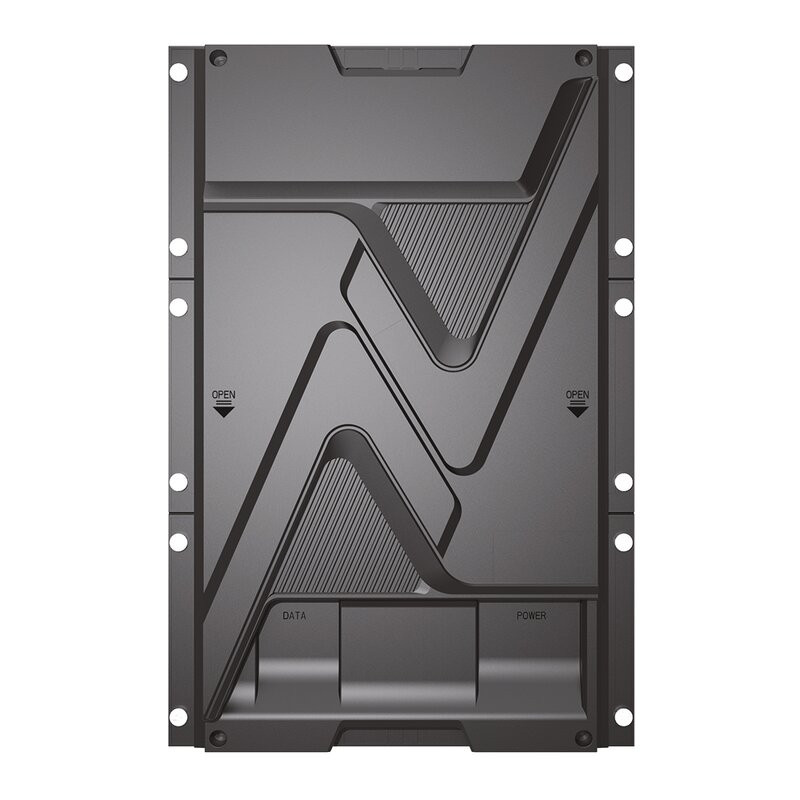

The very light cabinet, weighs only 2.1 kg, houses 3 modules of 320 x 160 mm each. and is only 55 mm thick. Its sandwich structure features an easily removable rear cover for quick maintenance, an integrated design for power supply and receiving cards, 8-screw fixing system between two modules.
The cabinets and magnetic modules allow for quick installation and assembly, reducing installation time and labor by 30%. A safety rope (optional) is also available to hook the cabinets together.

The high refresh rate of 3840 Hz ensures an excellent viewing experience, allowing you to take pictures and record displays with cameras without viewing scan lines. Also, the grayscale is 14-bit. The wide viewing angle of 160° horizontally and 140° vertically and the small pixel pitch optimize close observation of the LED wall.

Finally, EasyPro-P2.5 allows frontal maintenance: the modules can be easily removed with the special dedicated vacuum tool.

N.B. It does not have a self-supporting structure; for its use it is necessary to build a support structure / frame.

User benefits

  • Extremely lightweight cabinet, only 2.1 kg, ideal for quick and flexible installations
  • High viewing quality
  • Front maintenance
  • Very favorable price / performance ratio

Areas of use

  • Shops, shopping malls and showrooms
  • Museums and art galleries
  • Corporate
  • Conferencing
  • Public entertainment spaces

Technical characteristics

 LED type  black SMD 1515
 Pixel Pitch  2.5 mm
 Pixel per cabinet  128 x 192
 Cabinet material  plastic
 Module dimensions (W x H)  320 x 160 mm
 Modules x cabinet  3
 Brightness  800 nit
 Panel weight  2.1 kg
 Refresh rate  3840 Hz
 Gray scale  14 bit
 Contrast ratio  3000:1
 Color temperature  8300 K
 Viewing angle (H / V)  160 / 140°
 AC operating voltage  100 - 240 VAC
 Power consumption (max. / avg.)  330 / 110 W/m²
 Storage temperature  -40 to 60 °C
 Operating temperature  -10 to 40 °C
 IP rating (front / rear)  IP40 / IP21
 Module maintenance  front
 PSU & others maintenance  front
 Panel installation type  front
 Certificate  CCC / CE

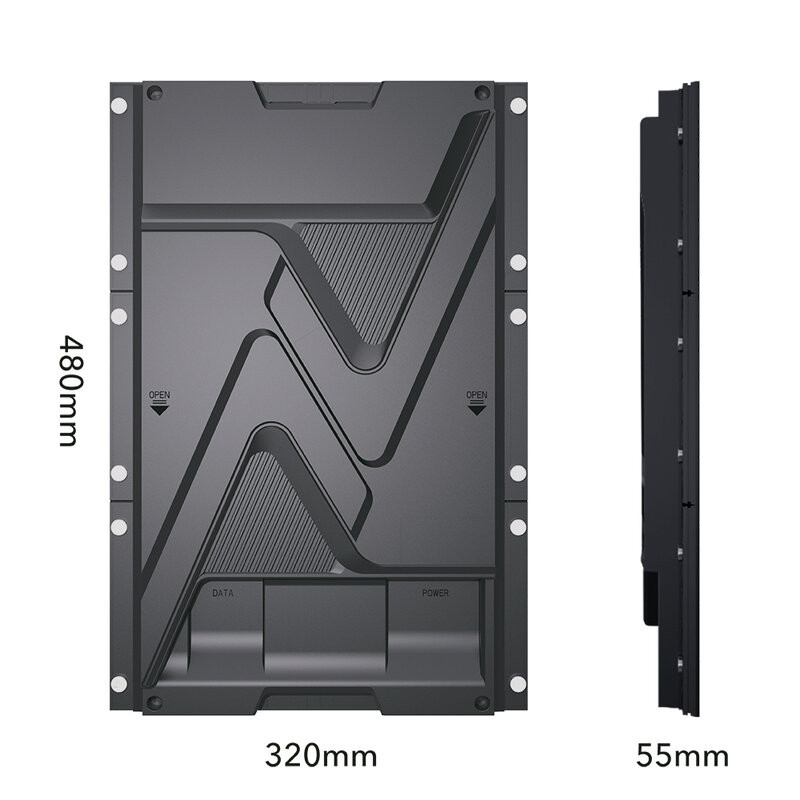

 Cabinet dimensions (W x H x D)  320 x 480 x 55 mm
 Cabinet weight  2.1 kg
