PIXELHUE - EP2-M

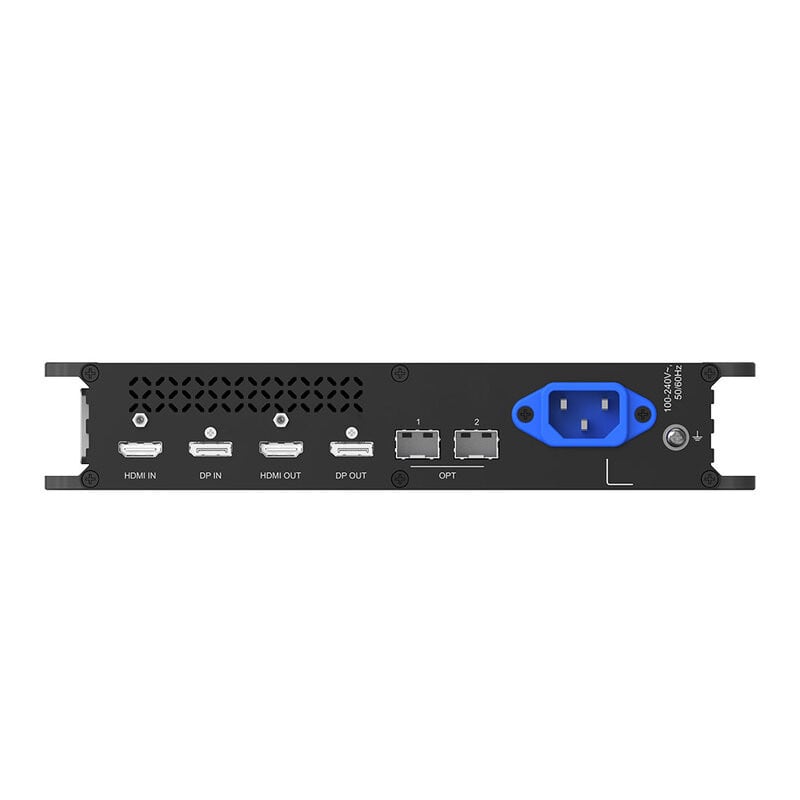

Pixelhue EP2-S is a fiber optic transceiver designed for transmitting / receiving video and audio signals over long distances (fIber optic extender), overcoming the limitations of traditional cables. A switch selects operation as TX or RX. It has an HDMI and DP input port, an HDMI and DP output port + 2 optical ports with multi-mode modules (maximum transmission distance of 300 km).

It uses advanced technology to ensure lossless transmission, supporting resolutions up to 4K @ 60 Hz. Thanks to its 8 / 10-bit lossless compression, it offers clear and detailed images, ideal for professional applications.

Its compact and Plug & Play design simplifies installation.

User benefits

• Can function as both a transmitter and receiver, offering flexibility in installations
• Features HDMI and DisplayPort inputs, with HDMI and OPT outputs for fiber transmission
• Includes direct output, copy, mosaic and conversion modes, for advanced signal management
• Compatible with BCTools software, which allows you to update the device and manage settings
• Supports USB and RS232 connections for computer management
• 24/7 operation

Areas of use

• Broadcast
• Live events
• Conference rooms
• Monitoring centers
• Digital Signage

Technical characteristics

• Inputs: 1 x HDMI, 1 x DisplayPort
• Output: 1 x HDMI, 1 x DisplayPort
• 2 x multi-mode fiber optic modules
• Ultra-HD lossless transmission at 8-bit / 10-bit:
  • 8-bit 4:4:4, max. 4096 x 2160 @ 60 Hz
  • 10-bit 4:4:4, max. 4096 x 2160 @ 30 Hz
• Clear signal indicators for easy device status monitoring
• EDID passthrough support for compatibility with various devices
• Support for input copy, passthrough 3D, and HDR
