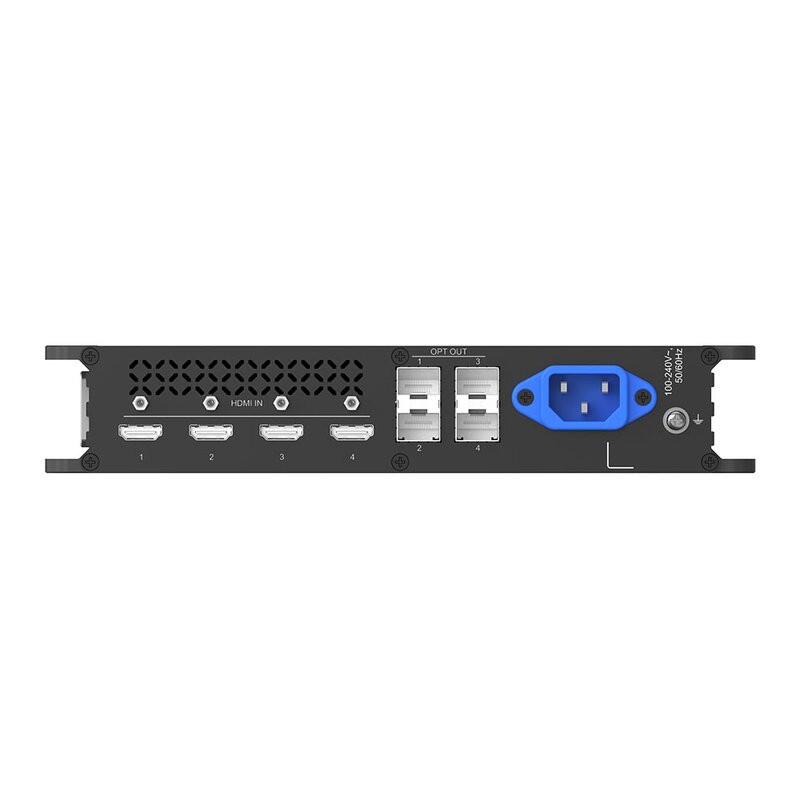

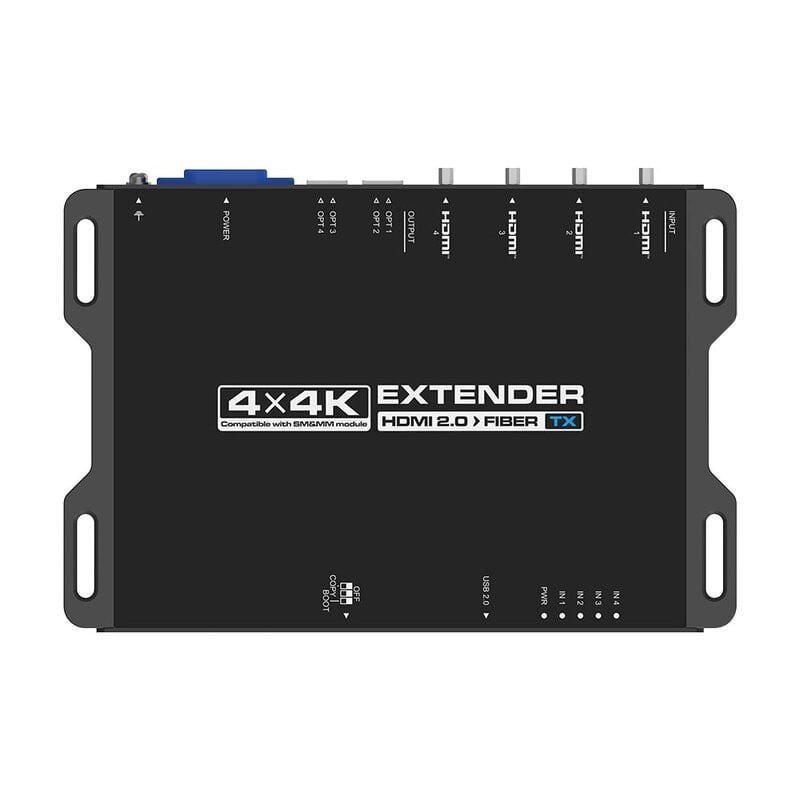

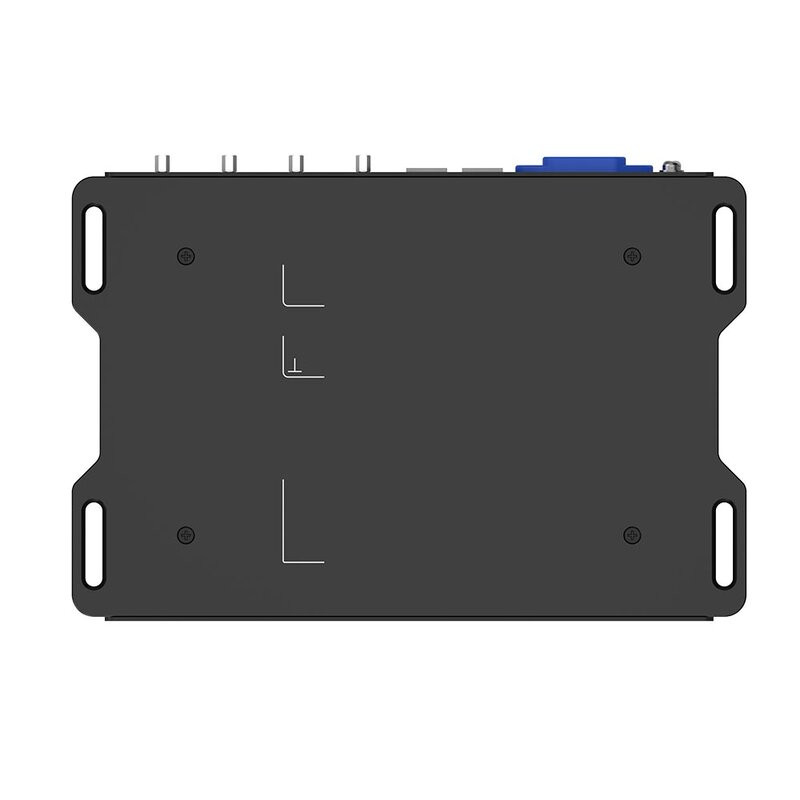

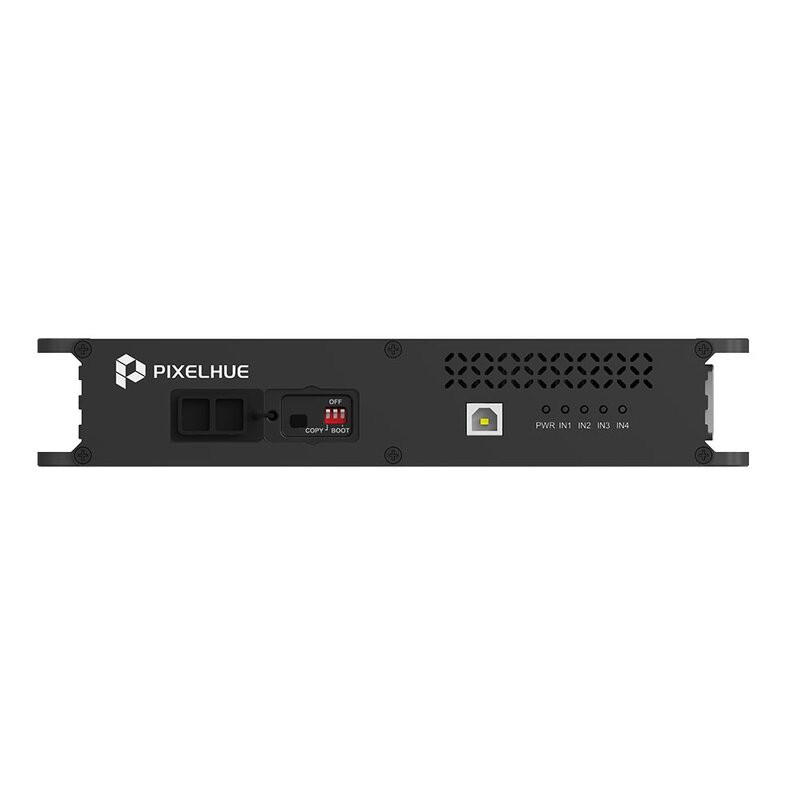

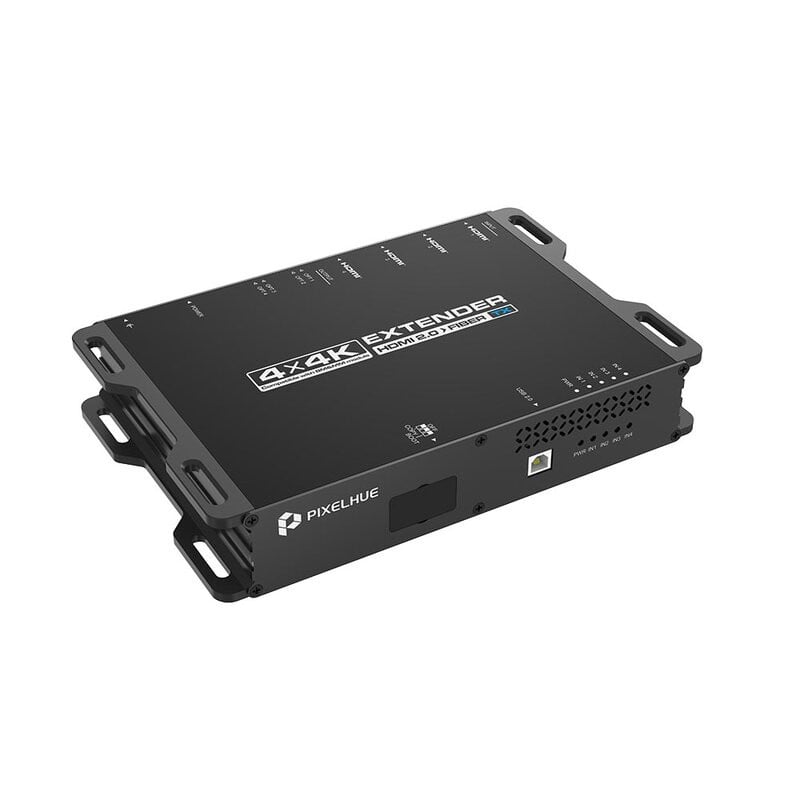

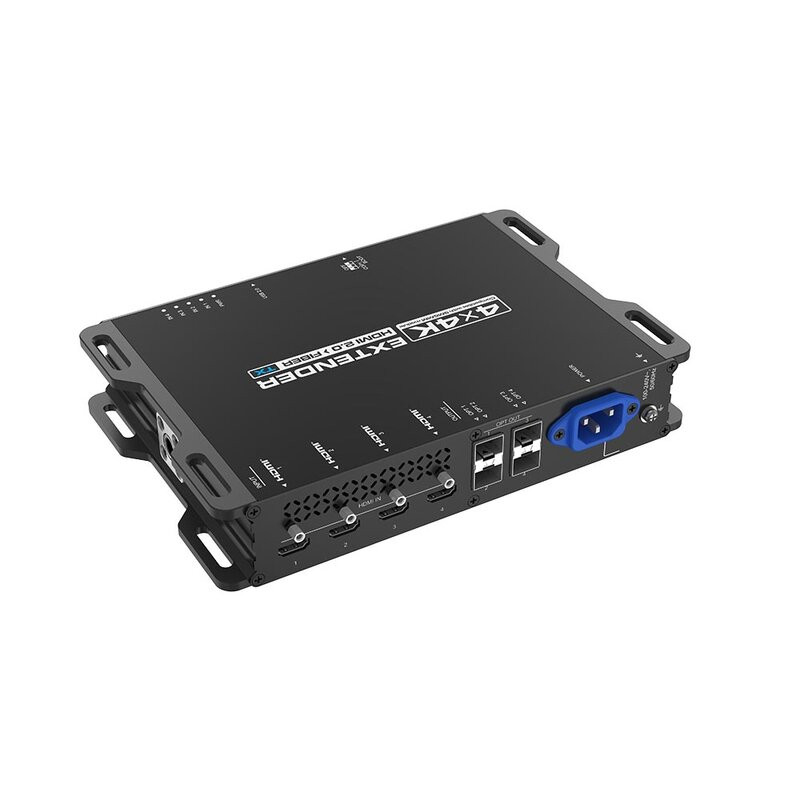

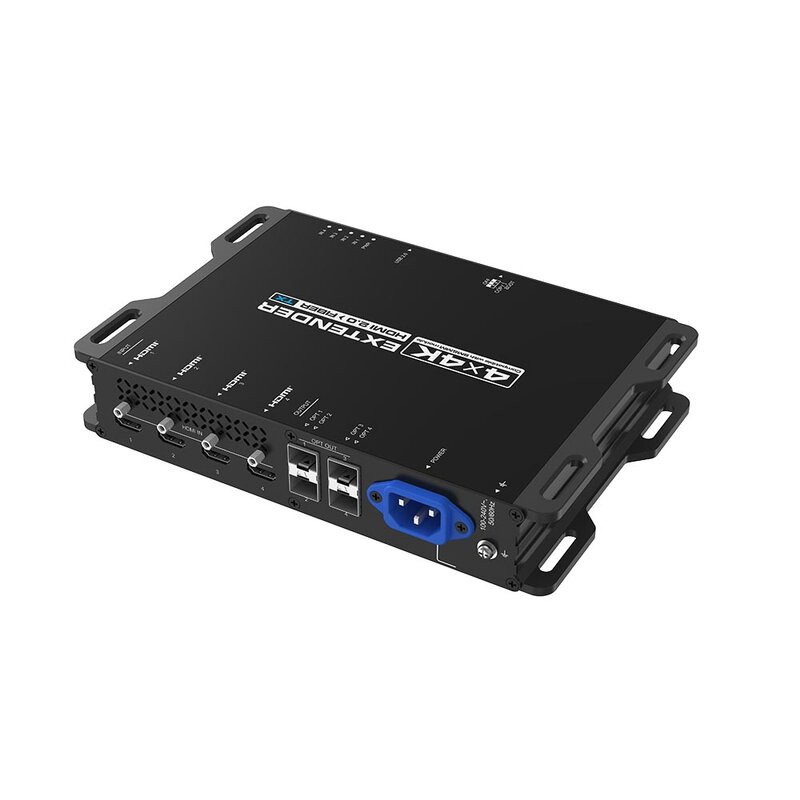

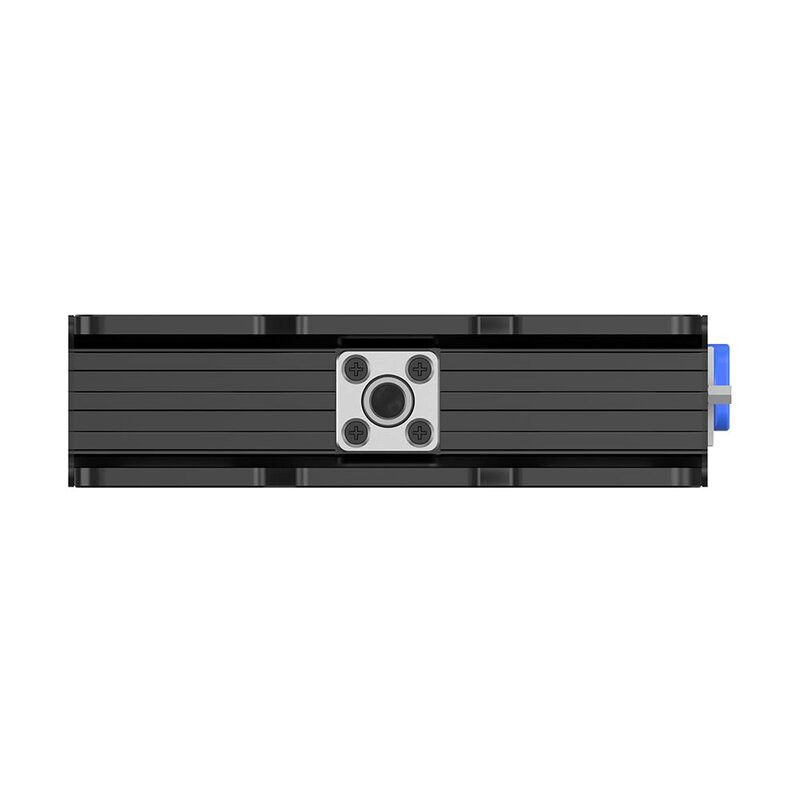

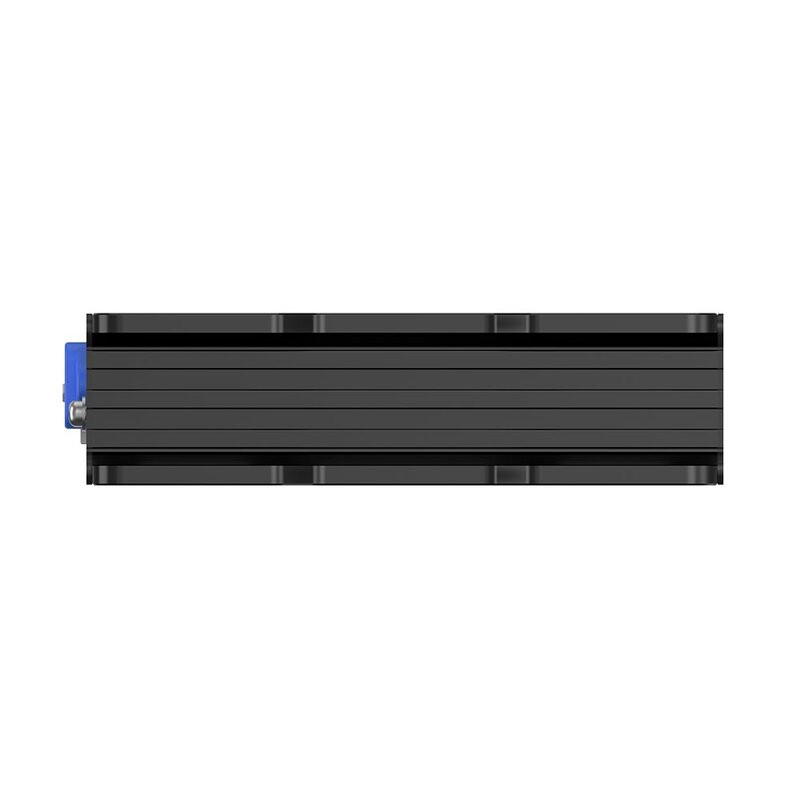

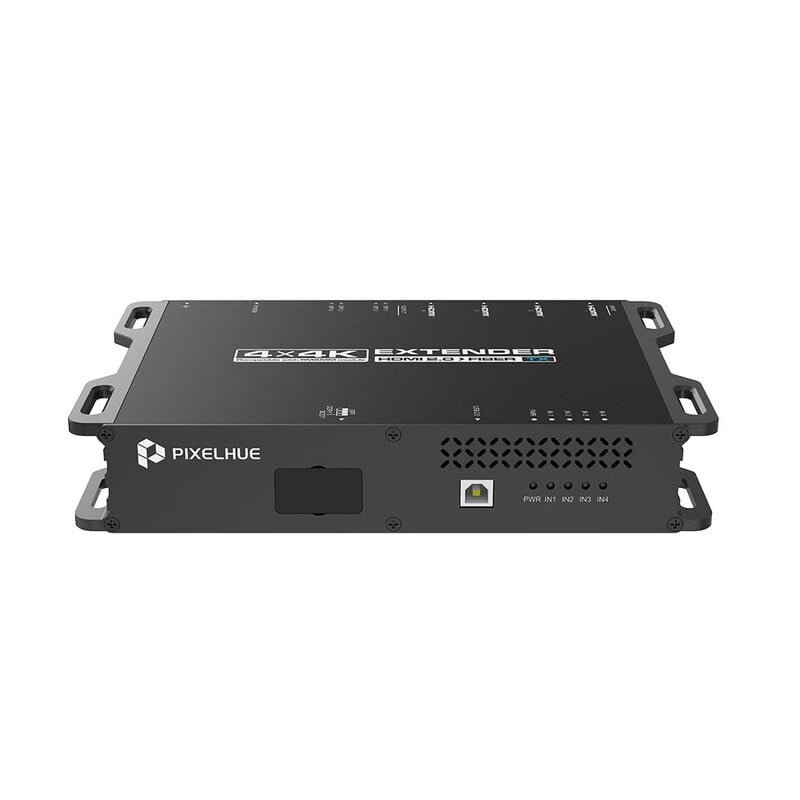

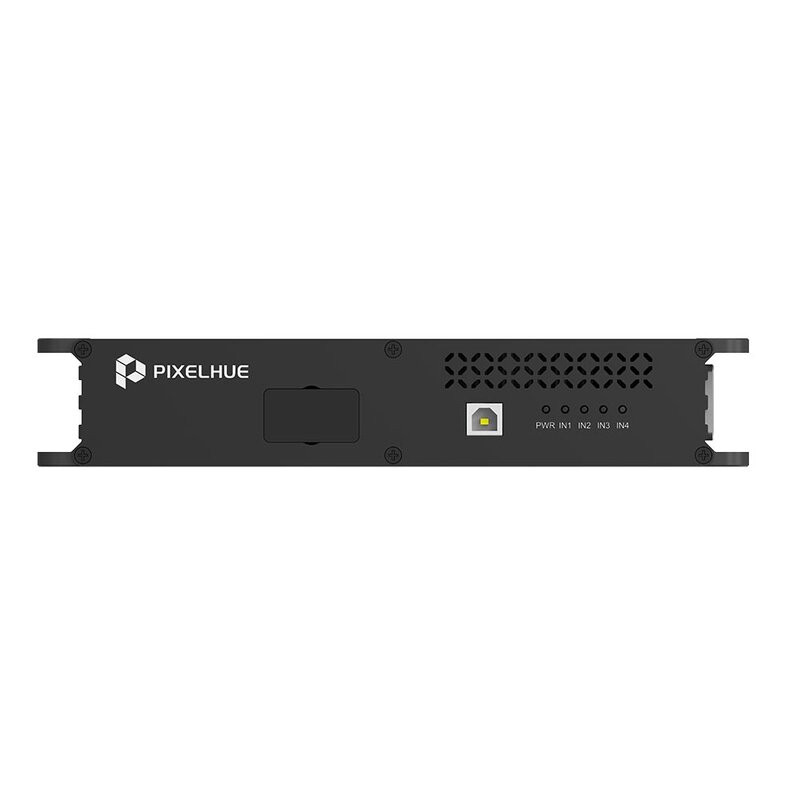

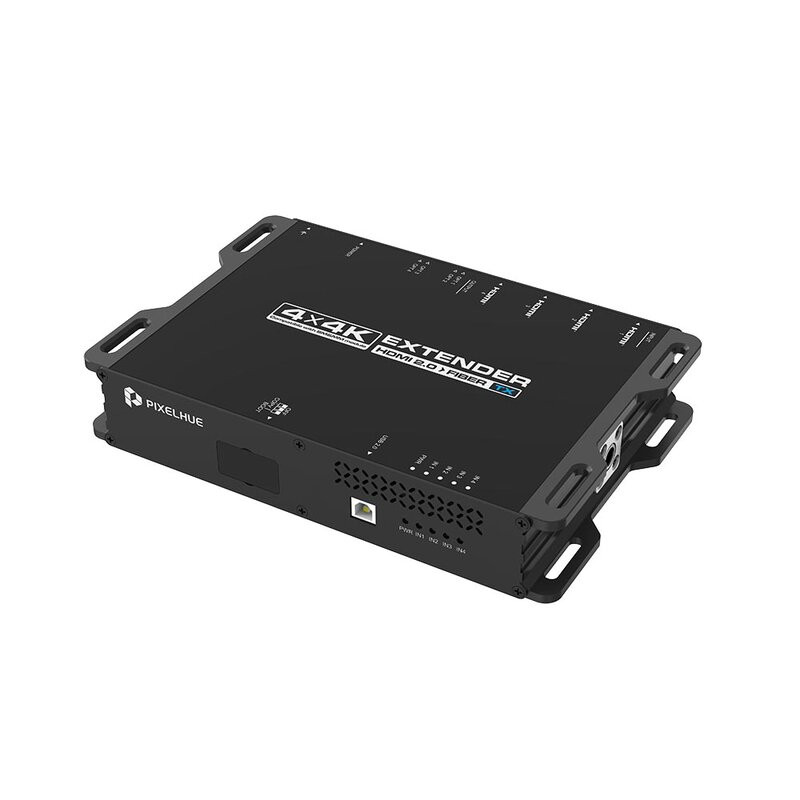

PIXELHUE - EP4T-S

EP4T fiber extender is a fiber optic transmitter that uses advanced technology to transmit audio and video signals over long distances without loss of quality, overcoming the limitations of length and signal degradation. Fiber optic transmission, in fact, is resistant to electromagnetic interference, ensuring stable signal transmission even in difficult electromagnetic environments.

It can operate in stand-alone mode, i.e. alone in combination, for example, with a NovaStar LED processor, or in combination with the homologous EP4R receiver.

Thanks to 8 / 10-bit lossless compression, it guarantees optimal video quality, offering clear and detailed images. The compact design and Plug & Play installation simplify configuration, allowing easy and immediate extension of signals.

The transmitter includes 4 EOLP-1396-10-I single-mode modules, with a maximum transmission distance of 3 km.

Main features

• Supports 8-bit / 10-bit lossless Ultra-HD transmission:
  • 8-bit 4:4:4, max. 4096 x 2160 @ 60 Hz
  • 10-bit 4:4:4, max. 4096 x 2160 @ 30 Hz
• Clear signal indicators for easy monitoring of device status
• EDID passthrough for compatibility with various devices
• Support for input copy
• 3D and HDR passthrough
• Supports remote control of multi-platform PC hosts via KVM roaming
• HDCP encrypted video transmission

User benefits

• No loss of details during video signal transmission, high quality in ultra-high definition
• Strong anti-interference ability
• Zero latency video transmission
• Easy operation, Plug & Play
• 24/7 operation

Application areas

• Broadcast
• Live Events
• Conference Rooms
• Monitoring Centers
• Digital Signage

Technical characteristics

Input specifications

Electrical specifications
