SWIFF AUDIO - WT-09B

The WT‑09B is a next-generation wireless transmission system designed for musicians who want to move freely on stage or in the rehearsal room without sacrificing the tonal quality of their instrument. It's part of the Master Series and is an evolution of the WT‑09A model, designed to offer an immediate user experience for guitarists, bassists, and instrumentalists seeking transparent and natural sound, rapid response, and total reliability. It's particularly suitable for soloists, small ensembles, and live situations where tonal fidelity and connection stability are crucial.

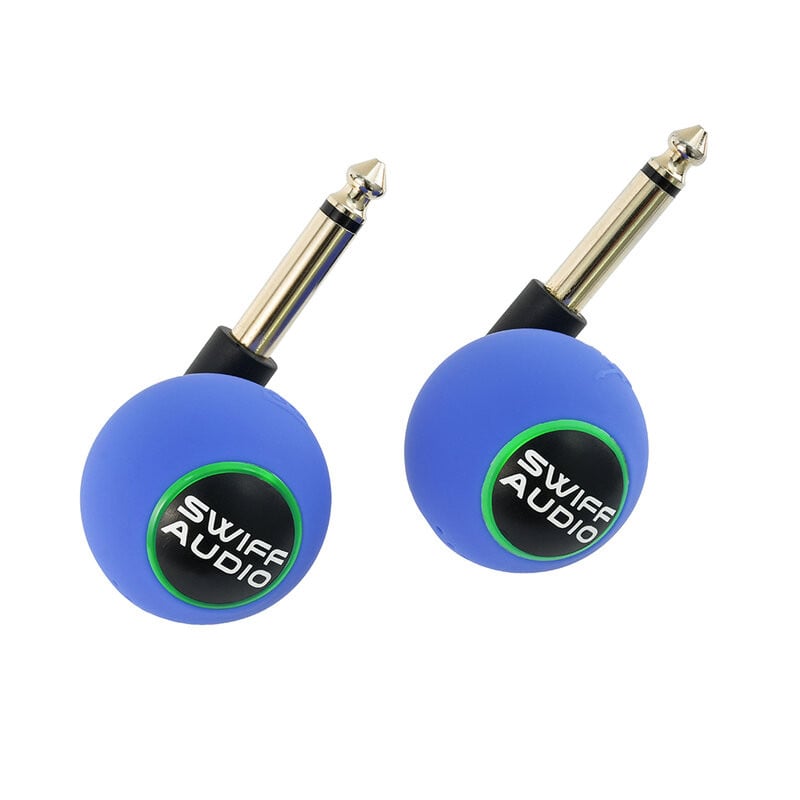

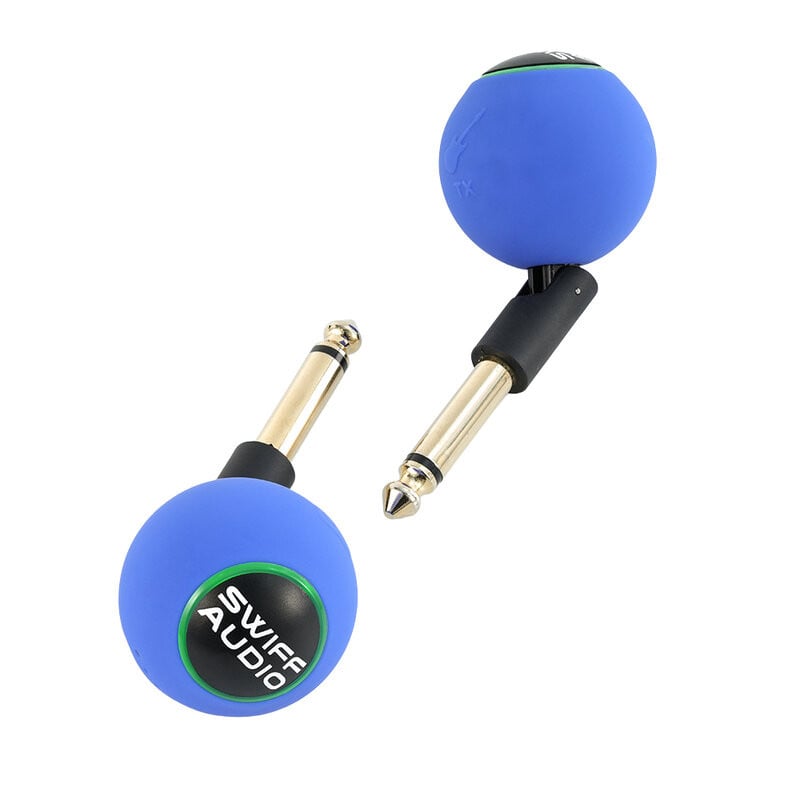

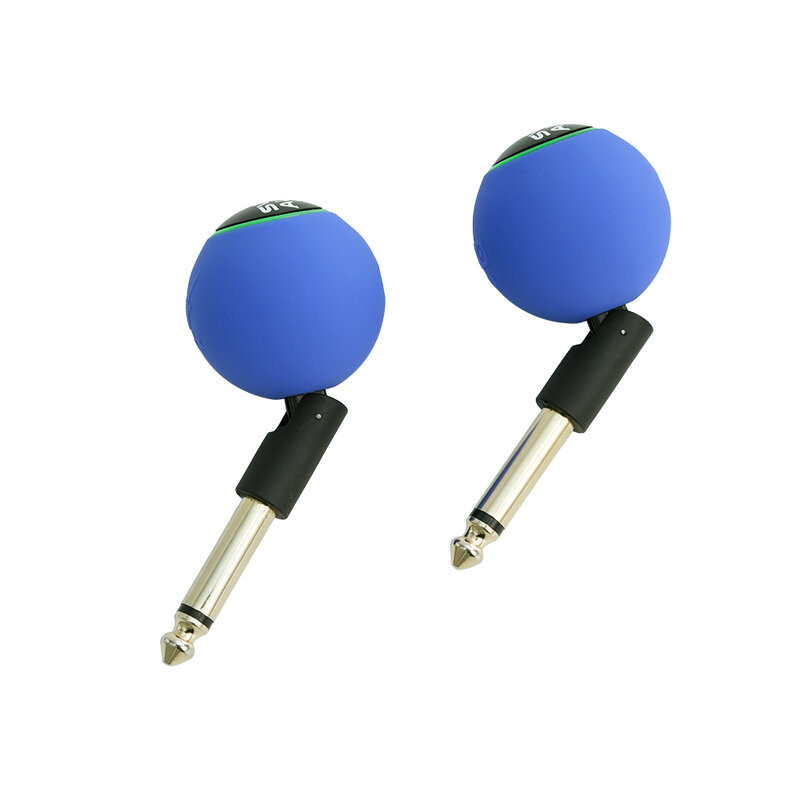

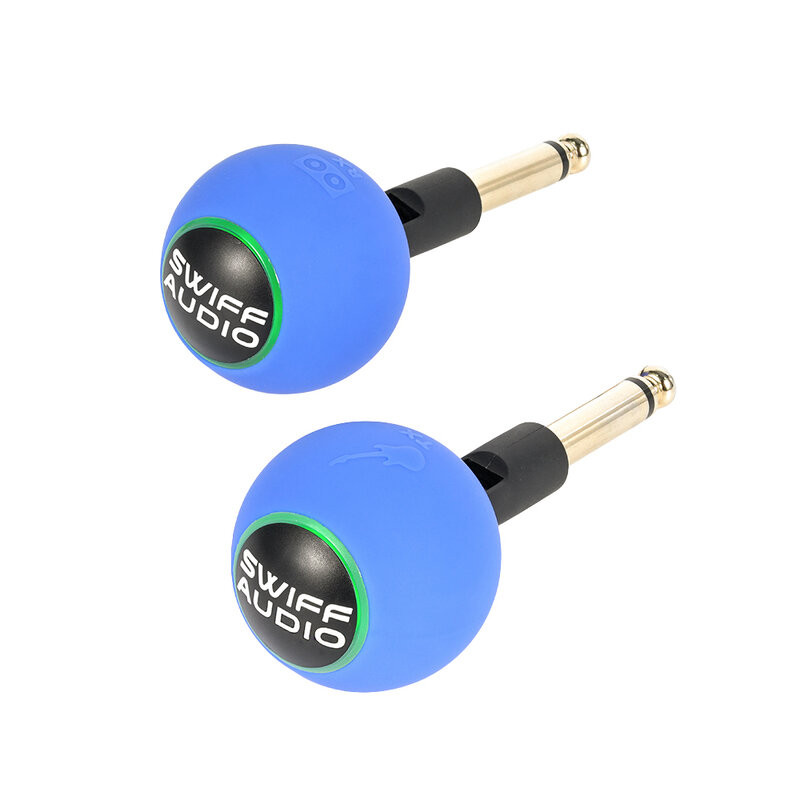

The system consists of a compact, lightweight, and easy-to-use transmitter and receiver. Lossless transmission preserves the instrument's original character, while latency of less than 5.5 ms ensures an immediate response that doesn't alter the playing feel. Operation in the 5.8 GHz band with intelligent frequency selection ensures a stable connection even in crowded environments, automatically choosing the clearest of six available channels. The transmission range is 60 meters, while in open environments free of interference or obstructions, the transmission distance can reach up to 120 meters! The compact body is designed to withstand daily use, with an ergonomic design that easily adapts to any instrument and ensures stability even during dynamic performances.

Automatic power-on and pairing make use extremely simple, with optimized compatibility for instruments with passive pickups and the ability to use up to four systems simultaneously without interference. Built-in RGB indicators allow you to quickly check the device's status even in low-light conditions, making the WT-09 a reliable companion for any situation.

User benefits

• Freedom of movement on stage and in the rehearsal room
• No compromise on sound quality
• Lossless transmission that preserves the natural character of the instrument
• Latency of less than 5.5 ms for immediate response and authentic playing feel
• Stable connection thanks to intelligent frequency selection in the 5.8 GHz band
• Operating range of 60 m, with the option of extending to 120 m
• Immediate use thanks to automatic power-on and pairing
• Optimized compatibility with instruments equipped with passive pickups
• Ability to use up to four systems simultaneously without interference

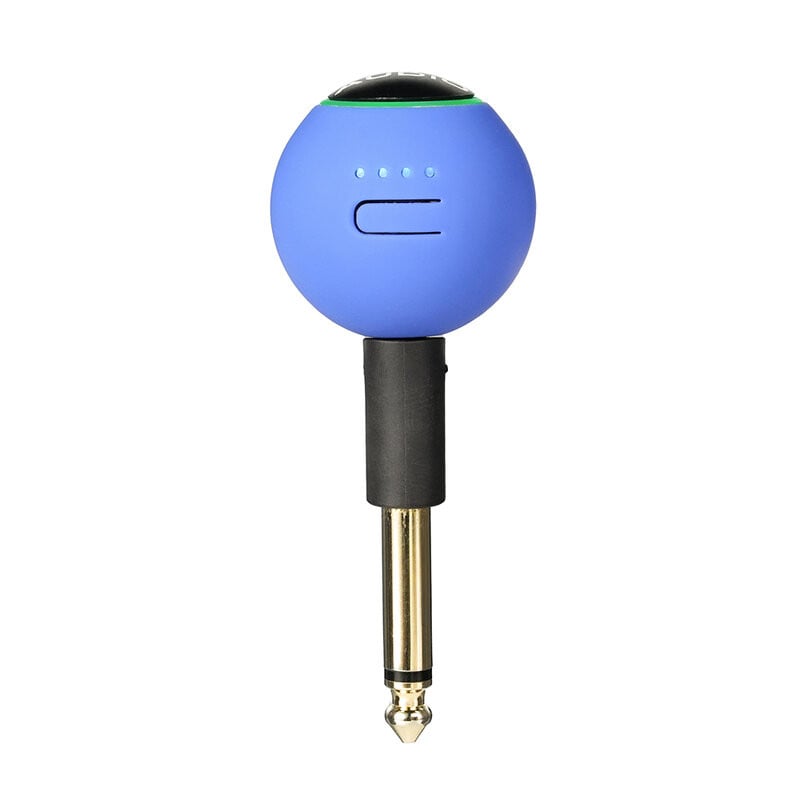

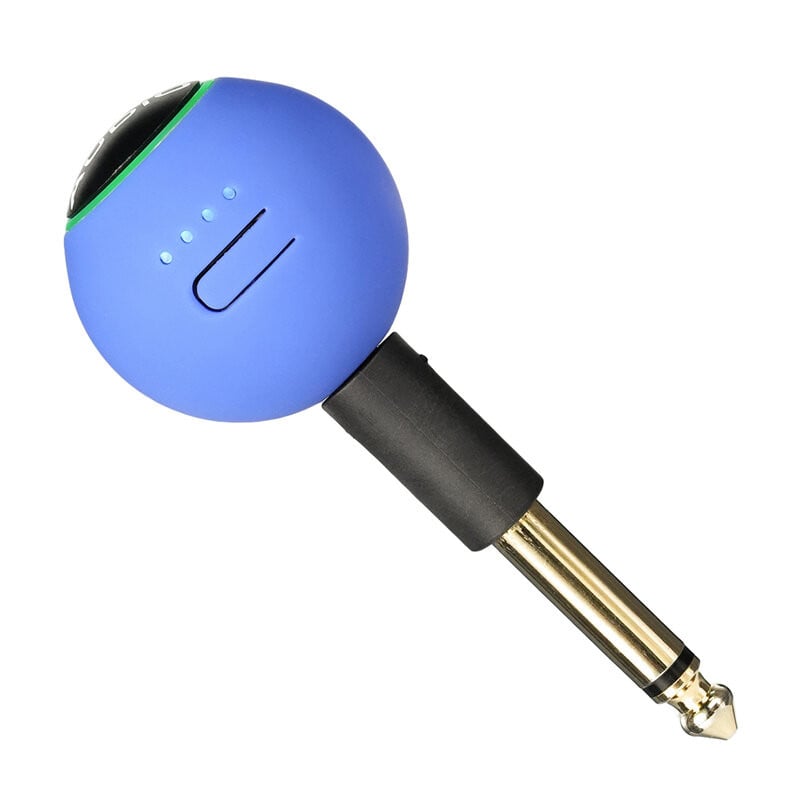

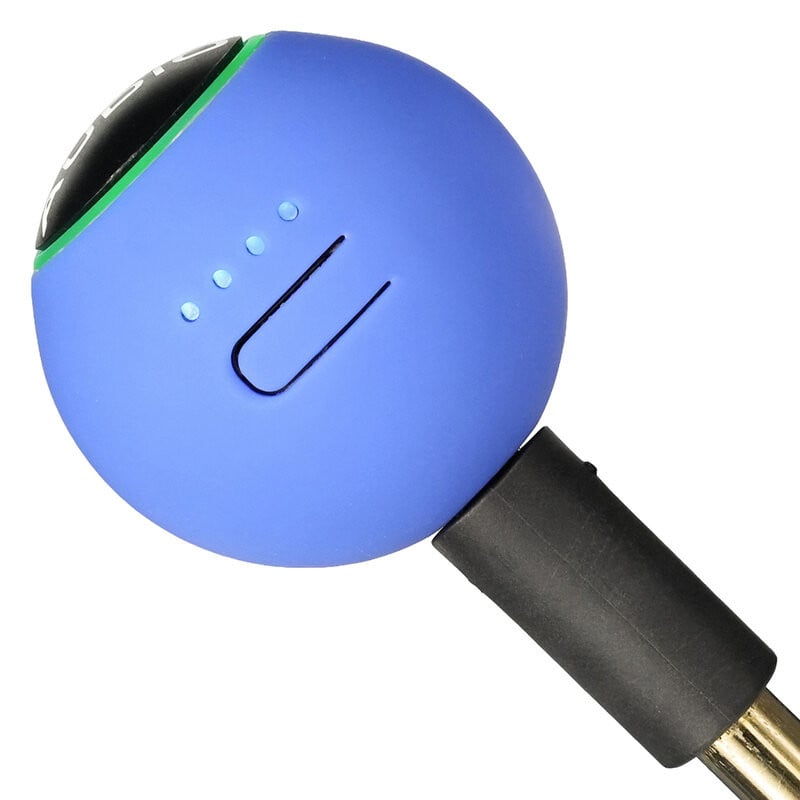

• Clear RGB indicators visible even in low-light conditions
• Compact and lightweight design, designed to withstand daily use

Areas of use

• Live performances on small and medium-sized stages
• Small ensembles requiring precise tonal quality
• Rehearsal rooms, project studios, and informal recording sessions

Technical characteristics

• Channels: 6 independent channels with automatic frequency selection for stable performance
• Operating frequency band: 5.8 GHz
• Frequency response: 20 Hz – 20 kHz (-3 dB)
• Audio specifications: 24-bit/48 kHz high-resolution audio Hi-Fi lossless wireless transmission
• Latency: < 5.5 ms
• Multi-system simultaneous operation supported: 4 systems running at the same time with no signal crosstalk or interference
• Transmission range: 60 m（in open environments with no interference or obstructions, the transmission distance can
  reach up to 120 m）
• THD + noise: < 0.04%
• Input connector type: jack 6.35 mm (1/4") TS
• Input impedance: 1 Mohm
• Output connector type: jack 6.35 mm (1/4") TS
• Input impedance: 1 kohm
• Instrument compatibility with 6.35 mm instruments, supporting both active and passive pickups
• Battery capacity: 3.85 V_DC 425 mAh
• Charging port: Type-C
• Charging time: fully charges in approximately 2 hours
• Battery running time: 4 hours in transmitter, 5 hours in receiver
• Size: 85 × 33 × 33 mm
• Weight: 24 g (each)
• Case size: 127 × 40 × 37 mm
• Total weight (case included): 76 g
• What's in the box:

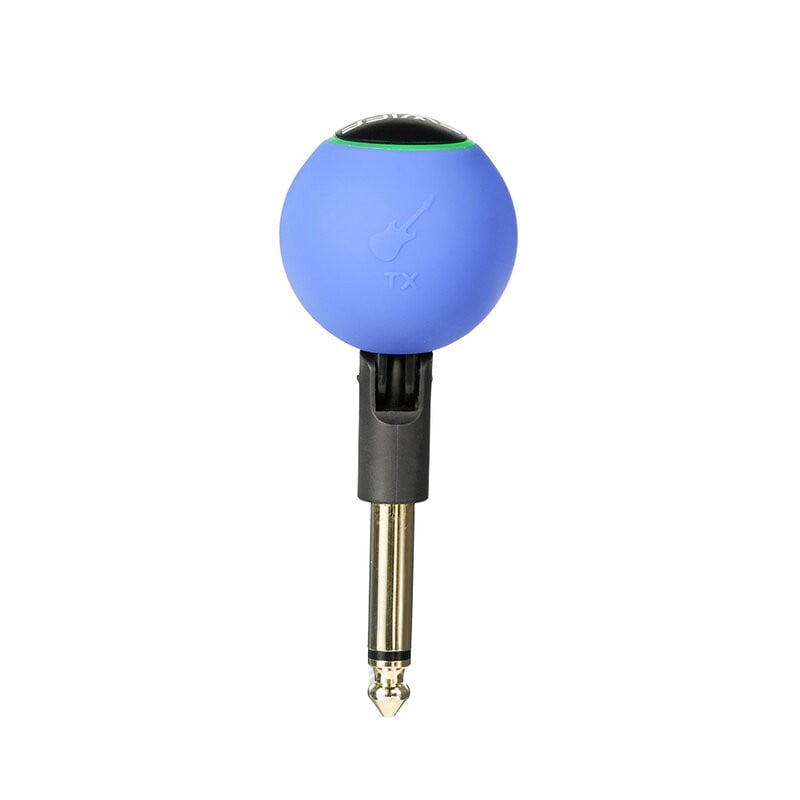

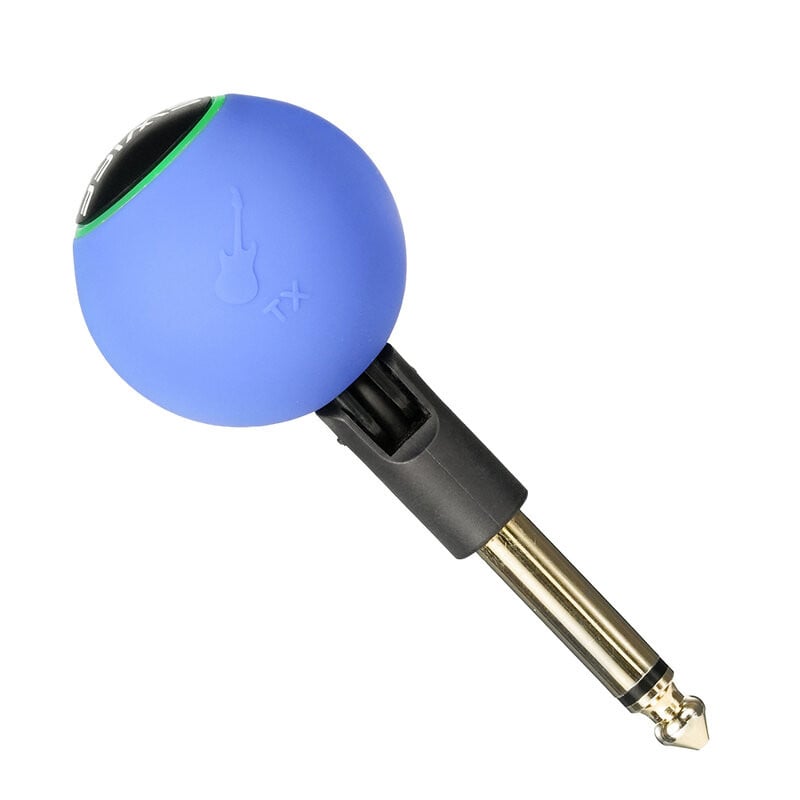

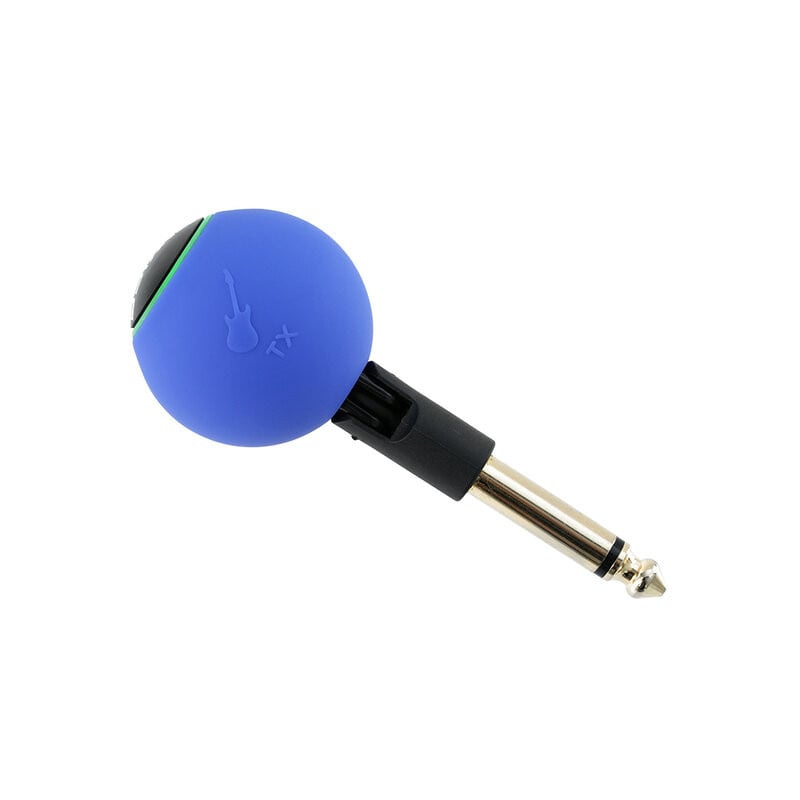

  • 1 × WT09 transmitter（TX)

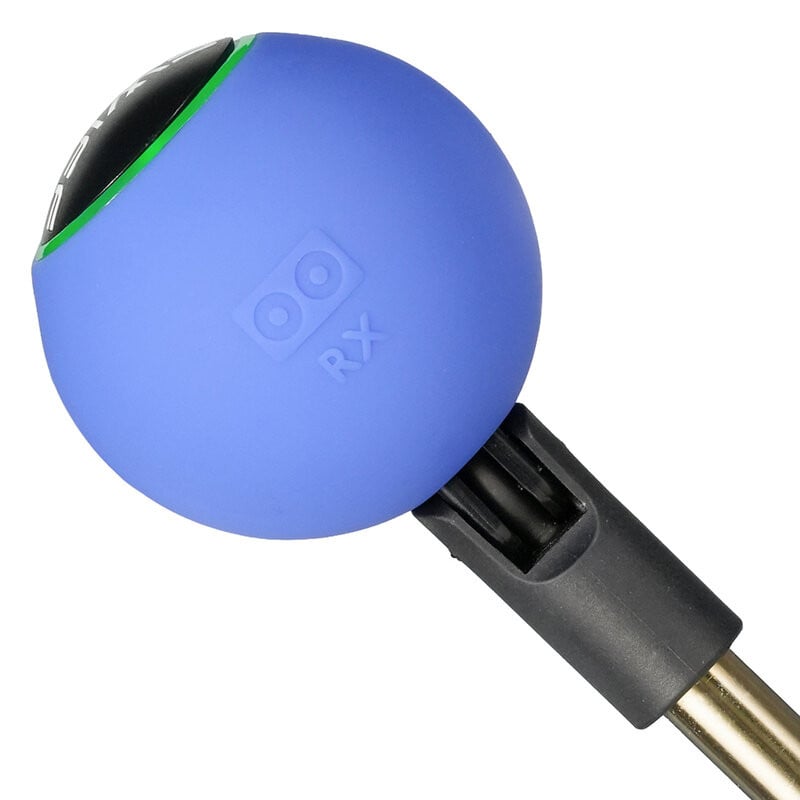

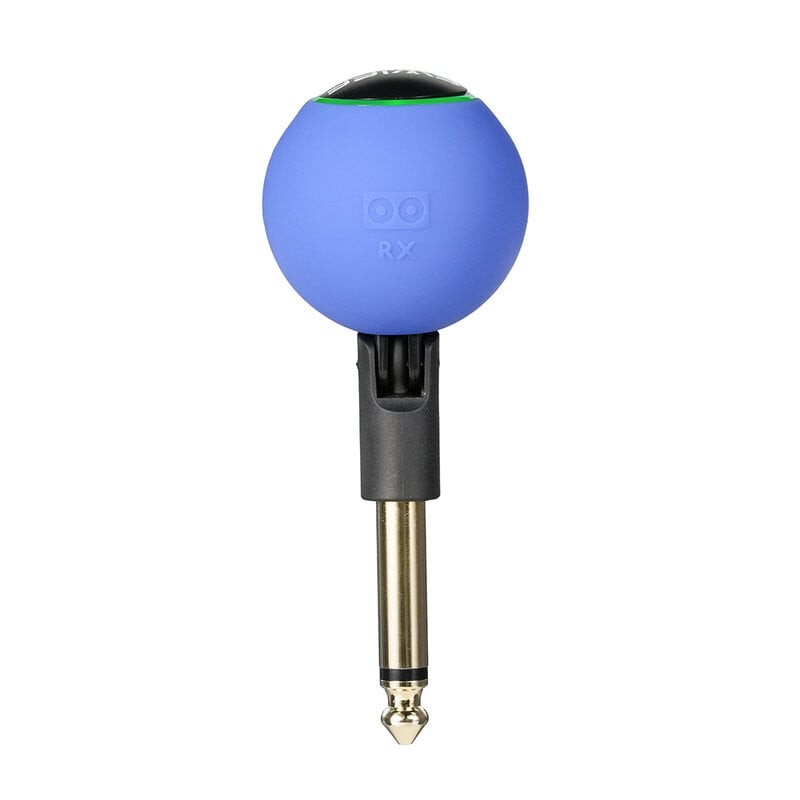

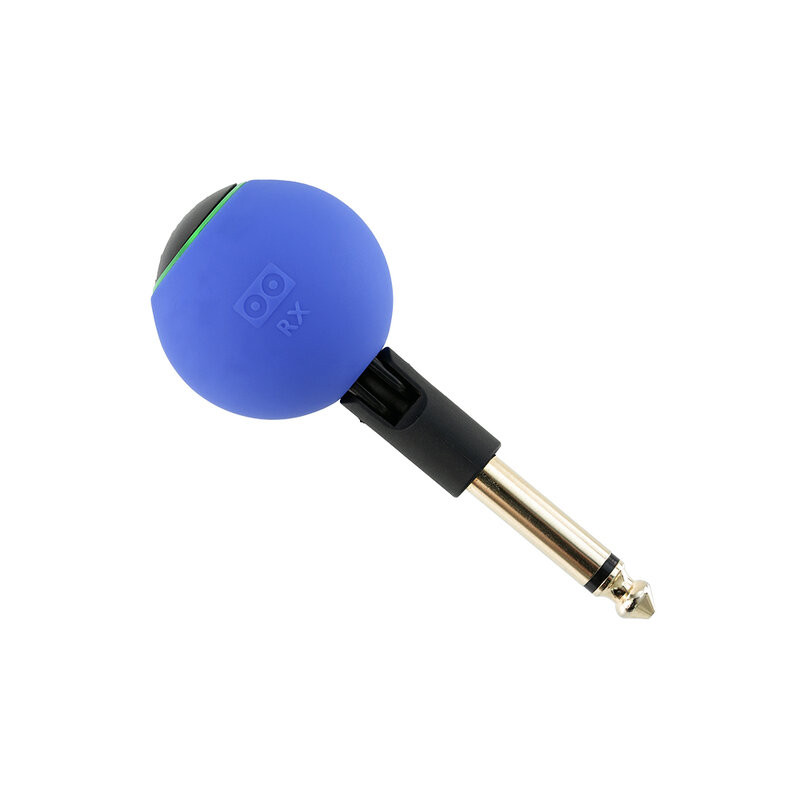

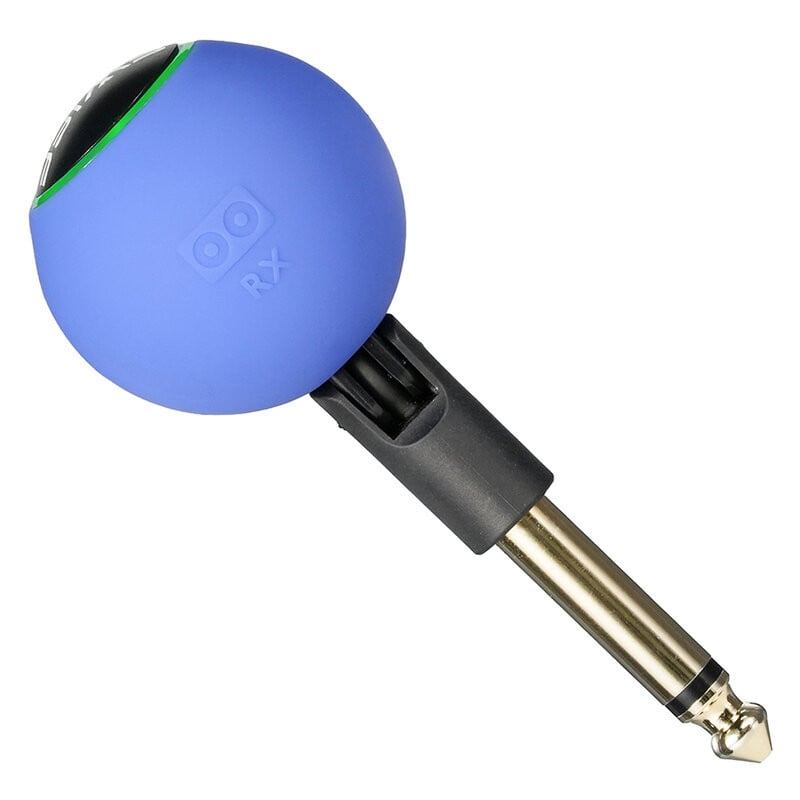

  • 1 × WT09 receiver（RX）

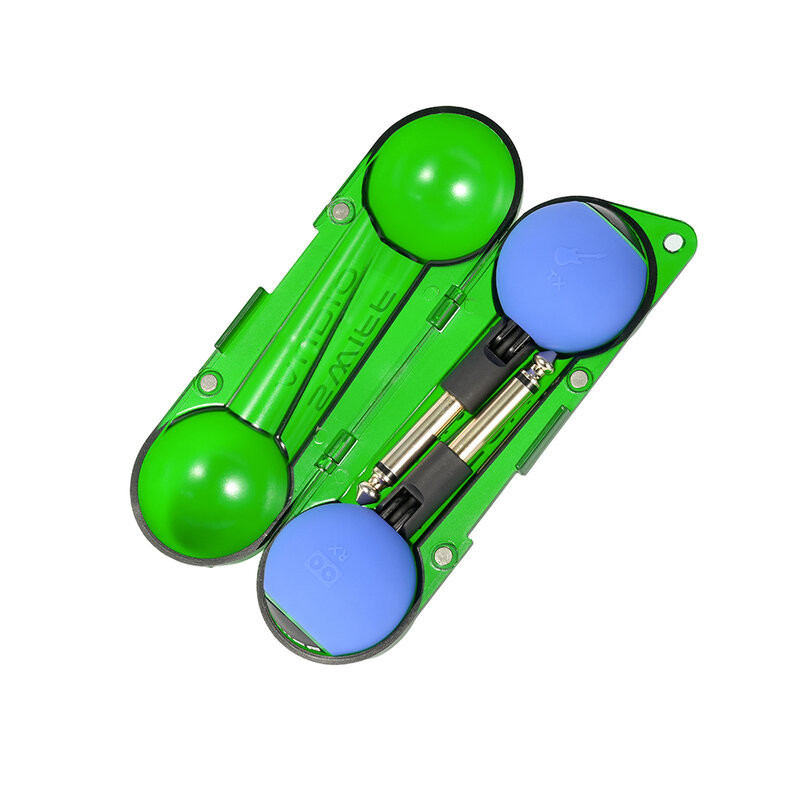

  • 1 × custom magnetic carrying case
  • 1 × Dual USB-C charging cable
  • 1 × carrying lanyard
  • User manual
