Avolites - D3 CORE

D3 Core is a 1U rack-mount processor designed to deliver the power of the Titan system while operating as a stand-alone controller. Designed for fixed installations, embedded applications, remote configurations, or environments where space is limited, this device enables reliable and professional lighting control without the need for a connected physical surface.

This processor natively supports up to 16 DMX universes, equivalent to 8192 channels, and can manage an unlimited number of fixtures. It is compatible with advanced protocols such as Streaming ACN, Art-Net, Art-RDM, CITP, and SMPTE LTC, ensuring optimal integration with lighting and media control systems. Furthermore, thanks to TitanNet, it is possible to create multi-console sessions for shared and scalable management.

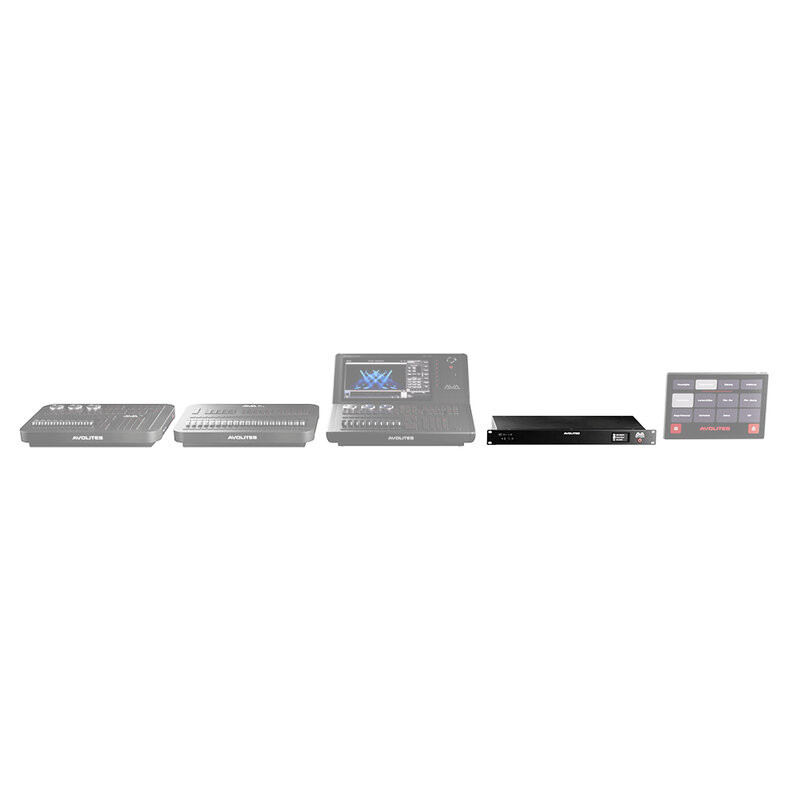

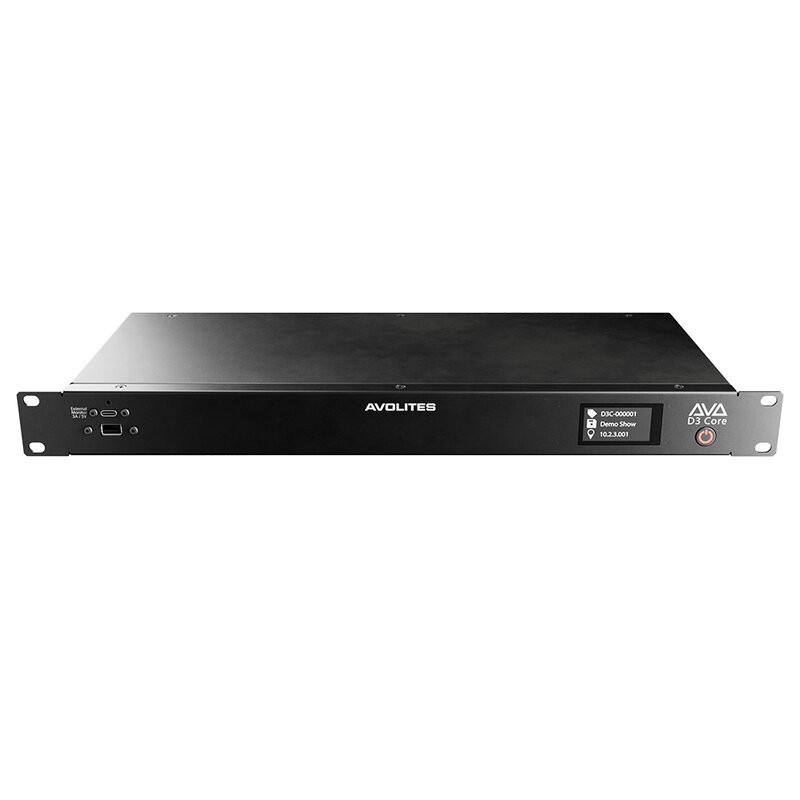

As mentioned, this processor can operate as a stand-alone controller, running the entire Titan operating system, but it can also be integrated with an external control surface, such as the T3. The front panel features a 1.9" display for essential information such as the console ID, showfile and IP address, as well as the ability to connect an external monitor with up to 4K resolution via USB-C or DisplayPort.

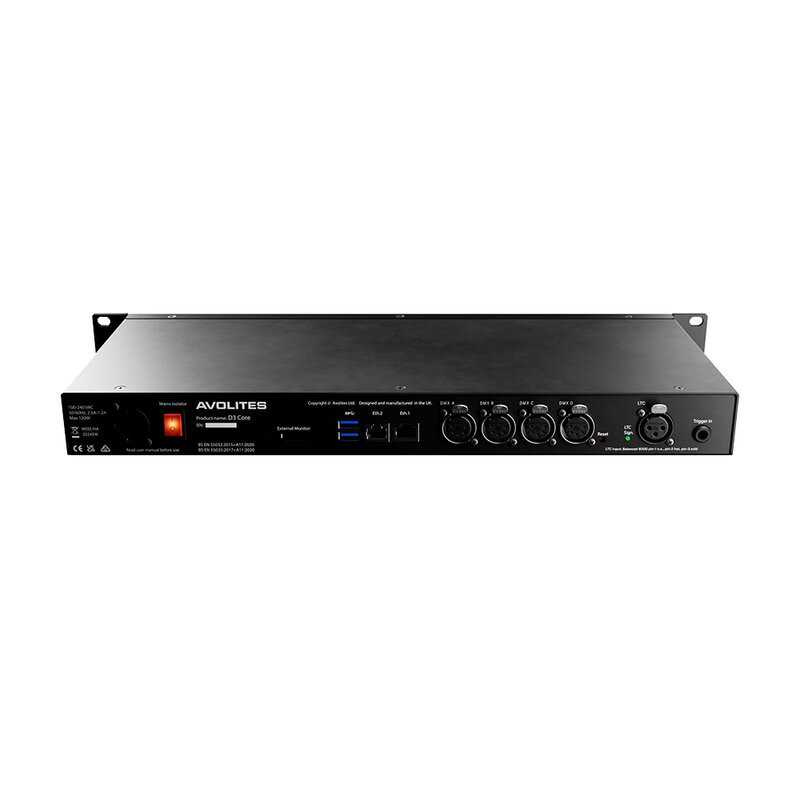

In addition to the 4 DMX ports (IN/OUT), the rear panel features 2 RJ45 connectors and 2 USB-A ports (a third is on the front).

User benefits

• 1U rack format ideal for limited spaces or fixed installations
• Wide protocol compatibility
• 16 DMX universes and an unlimited number of lighting fixtures
• Scalability
• Great connection flexibility thanks to numerous ports

Areas of use

• Theaters and performance halls
• Television studios
• Permanent installations in conference centers and exhibition spaces
• Centralized or distributed lighting control (remote control)
• Embedded applications, integrated into custom systems or OEM solutions

Technical characteristics

Control surface

• Internal screen: 1.9" (displays Console ID, showfile name, IP address)
• External screen: 1 x up to 4K (UHD)
• USB console support: 1 x T3 console
• USB wing support: 1 x D3 Wing, T3 Wing, or Titan Mobile Wing
• D3 touch support: yes (unlimited)
• Mobile App: yes – iOS & Android ("Titan Remote")

Software

• Platform: Avolites Titan
• Built-in 3D visualisation: capture engine
• DMX universes per device: 16 universes (8192 channels)
• DMX universes per system: 16 universes (8192 channels)
• Max fixtures: unlimited
• Supported protocols: DMX512 (E1.11), Streaming ACN (E1.31), Art-Net & Art-RDM, CITP, GDTF (via Capture), SMPTE LTC, MIDI over USB (MIDI notes & MTC), Web API

TitanNet

• Expand processing: no
• Offload processing: yes
• Multi-console session: yes

Connectivity

• External monitor: 1 x USB-C or DisplayPort
• Gigabit Ethernet: 2 x RJ45
• DMX IN/OUT: 4 x Neutrik 5-pin XLR
• Trigger input: 1 x 1/4" jack (isolated)
• USB 3.2 Gen1 (DP Alt Mode): 1 x USB-C (front)
• USB 3.2 Gen1: 3 x USB-A (1 x front, 2 x rear)
• SMPTE LTC input (balanced): 1 x Neutrik 3-pin XLR (with signal indicator)

Hardware

• Operating voltage: 100 – 240 V_AC 50/60 Hz
• Power consumption: 80 W max.
• Current: 1 - 2 A
• Power connector: Neutrik powerCON TRUE1
• IP rating: IP20 (indoor use only)
• Power switch: yes
• Operating temperature: 0 – 40 °C
• Soft power button: yes
• Humidity: 95% non-condensing

Certification and safety

• Conformity: CE, WEEE, RoHS

Physical

• Dimensions (W x D x H): 48.3 × 4.4 × 19.4 cm
• Packaging: cardboard
