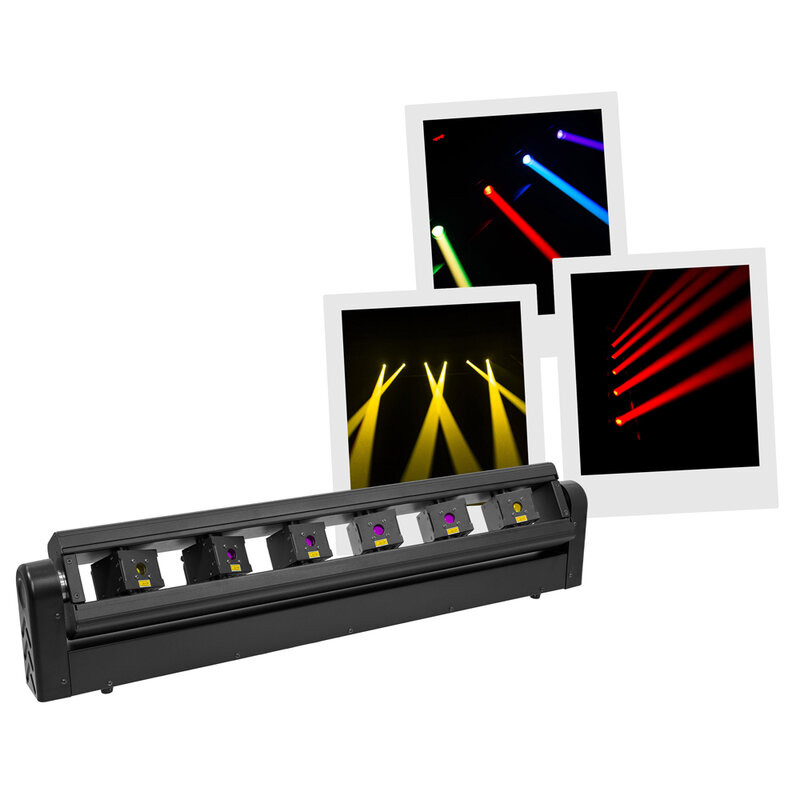

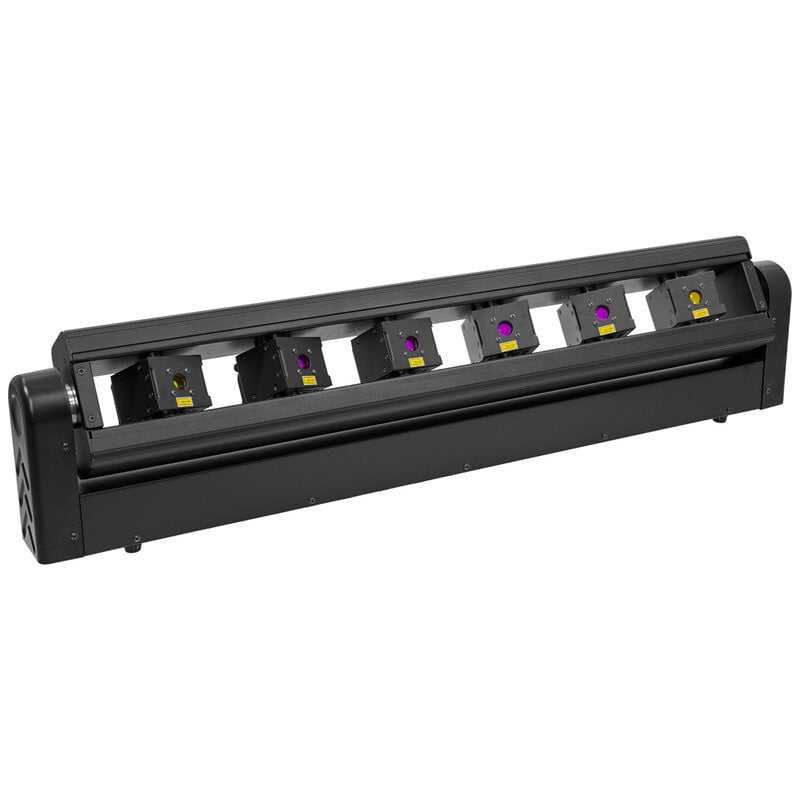

Evolite - LASER Bar 6X1000RGB

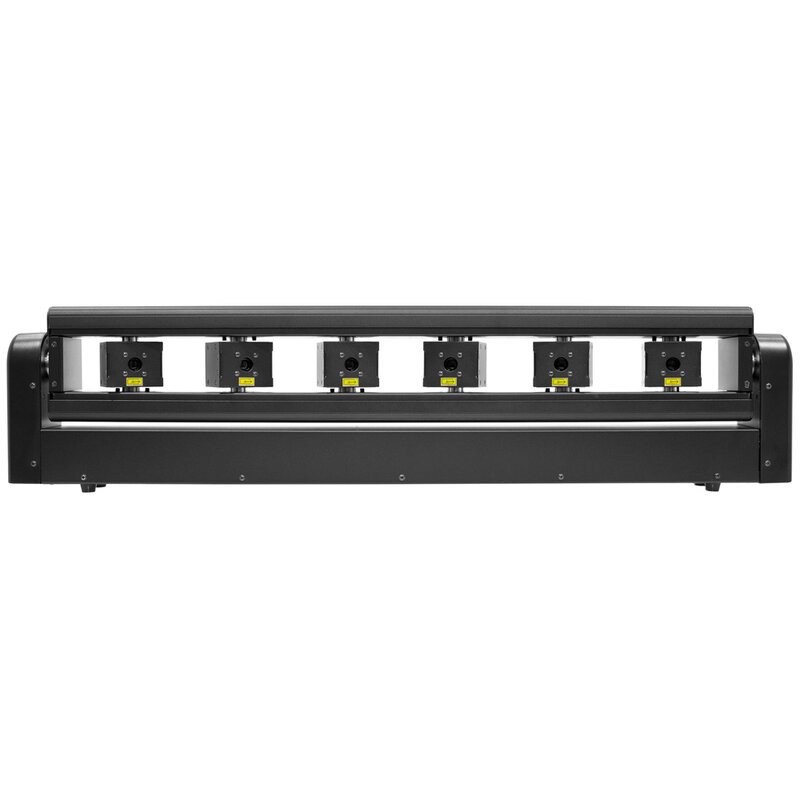

The Evolite LASER Bar 6X1000RGB is a 7.2 W RGB laser bar with six motorized beams designed to deliver an extraordinary visual impact.

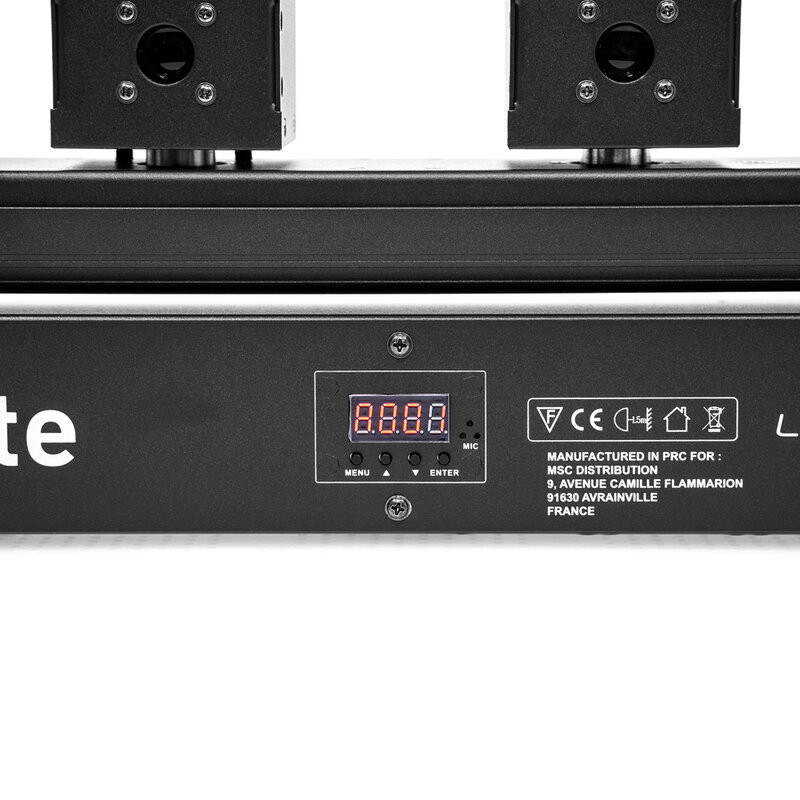

Thanks to its movement capacity, with a 240° excursion in Tilt and 90° in Pan, it allows you to create dynamic effects capable of transforming a dance floor or a visual set. Equipped with different operating modes, including automatic, musical and DMX with 9, 19 or 32 channels, it allows advanced programming and perfect synchronization with other devices via Master/Slave configuration.

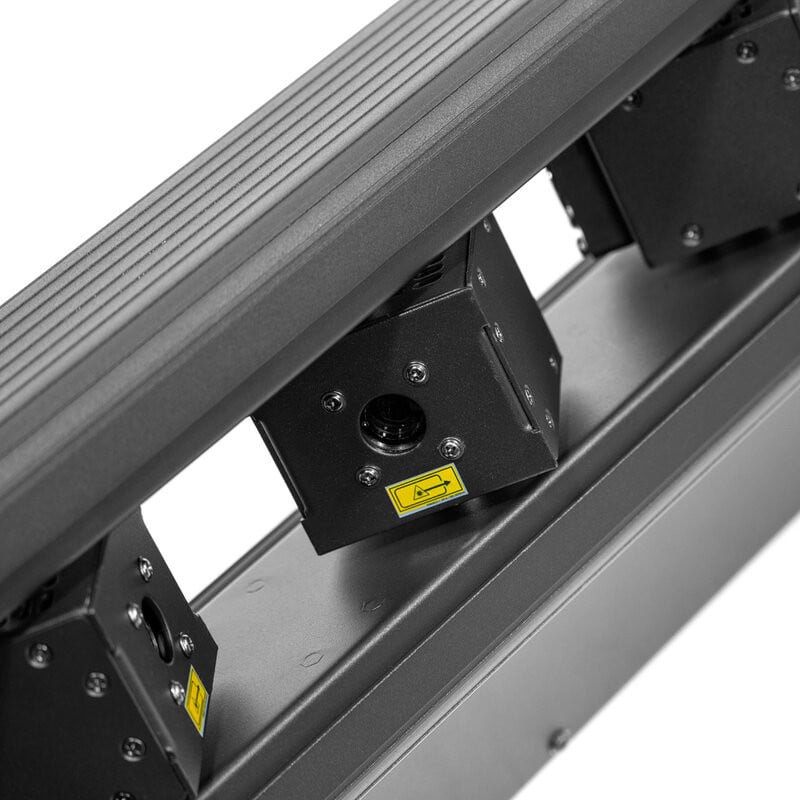

The device integrates class 3B lasers with RGB sources of 1000 mW each, combining red at 638 nm, green at 520 nm and blue at 445 nm for a wide color range.

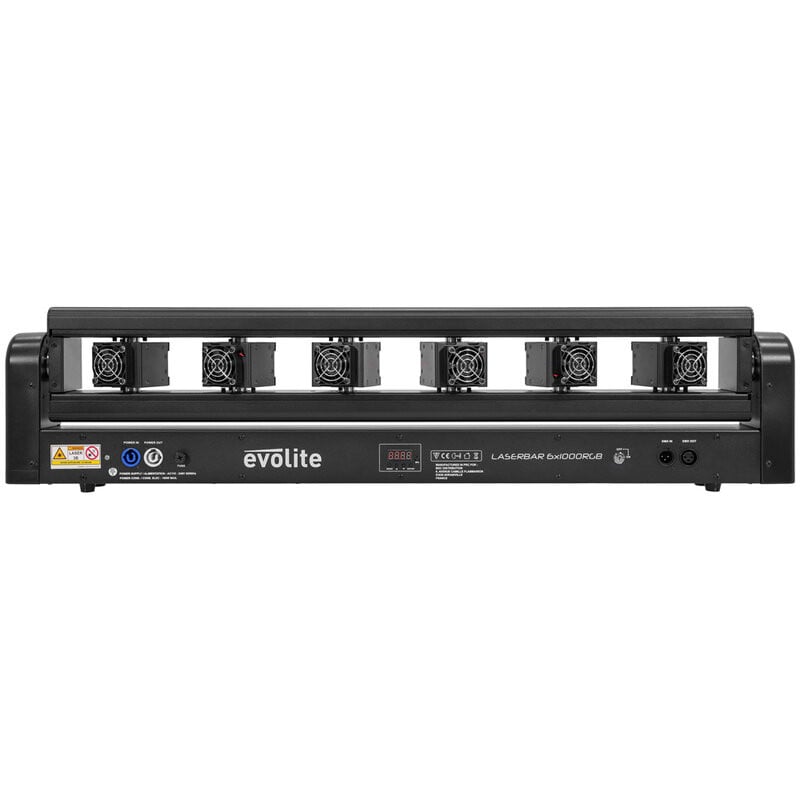

This laser bar is compatible with standard lighting installations thanks to its horizontal format and the possibility of mounting on truss, offering great versatility in mobile or fixed installations. With a consumption of 150 W, it guarantees high energy efficiency without sacrificing light output. The weight of 18.2 kg and compact dimensions facilitate transport and installation.

Users benefits

• Dynamic visual effects thanks to 6 motorized laser beams

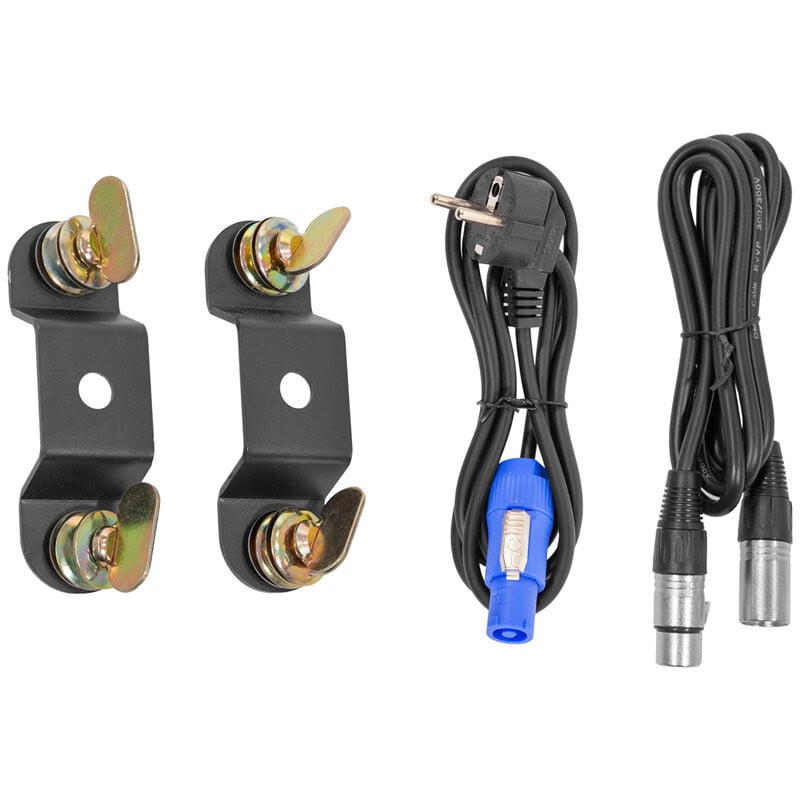

• Compatibility with lighting systems thanks to the horizontal design and the possibility of mounting on truss for mobile or fixed installations
• Energy efficiency (consumption of only 150 W)
• Various operation and control options

Areas of use

• Live events
• DJ sets
• Discos and dance halls

Technical characteristics

• Laser sources: 6 x 1000 mW RGB
• Red: 300 mW 638 nm
• Green: 300 mW 520 nm
• Blue: 600 mW 445 nm
• Total laser power: 7.2 W
• Laser Class: 3B
• Tilt movement: 240°
• Pan movement: 90°
• Modulation: TTL
• Modes: musical, stand-alone, DMX, Master/Slave

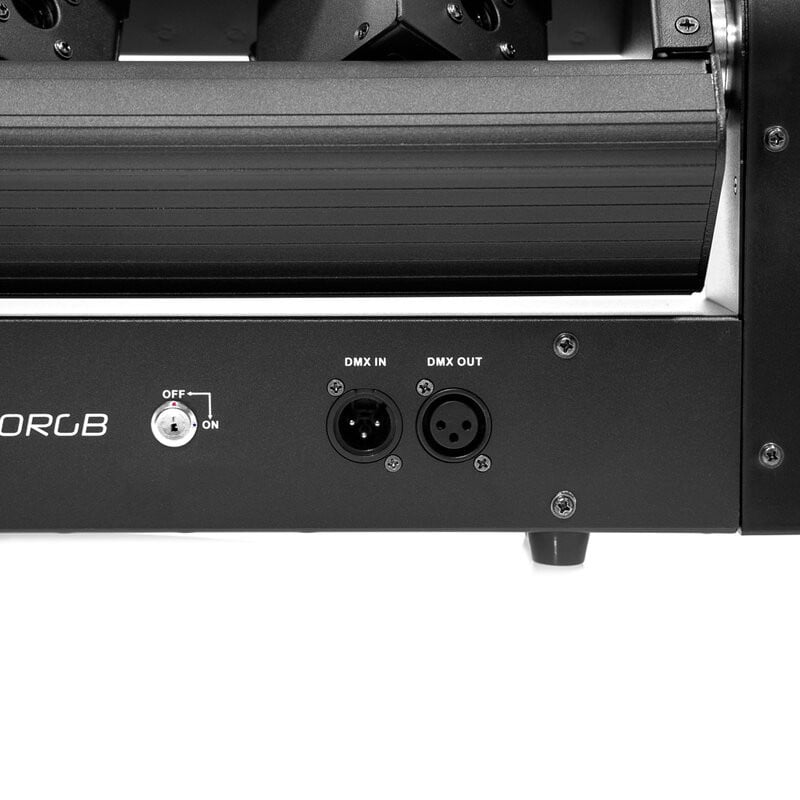

• DMX channels: 9 / 19 / 32

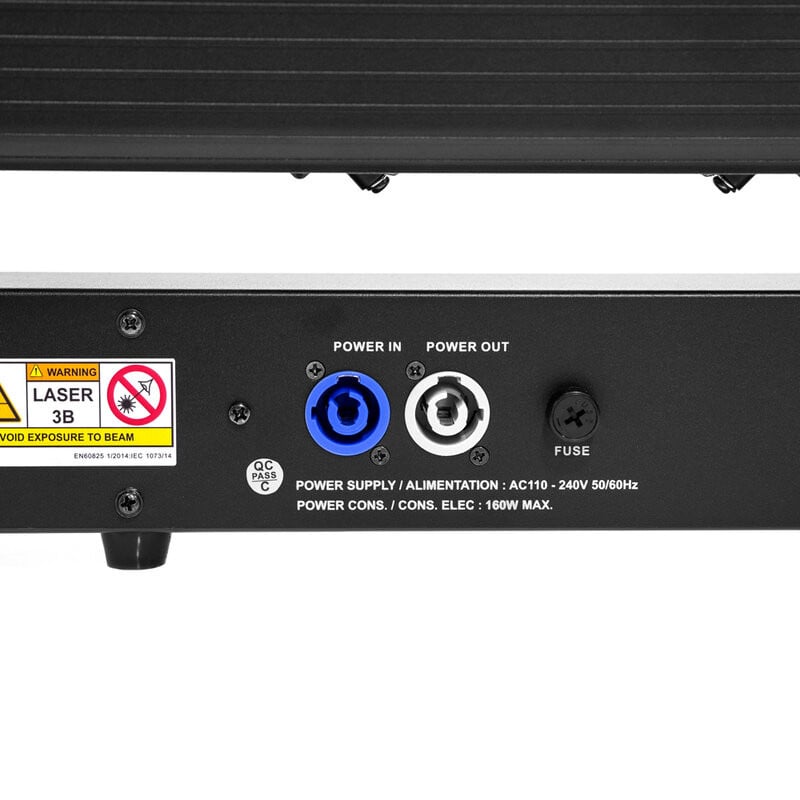

• Power supply: 220 V_AC 50 Hz
• Power consumption: 150 W
• Dimensions: 100 x 22.3 x 14.7 cm
• Weight: 18.2 kg
