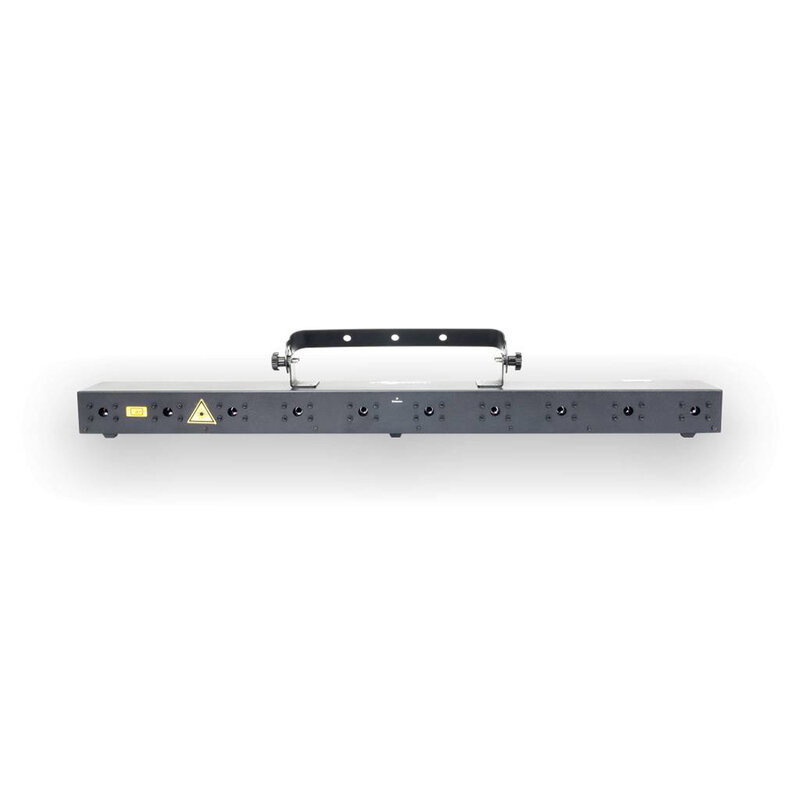

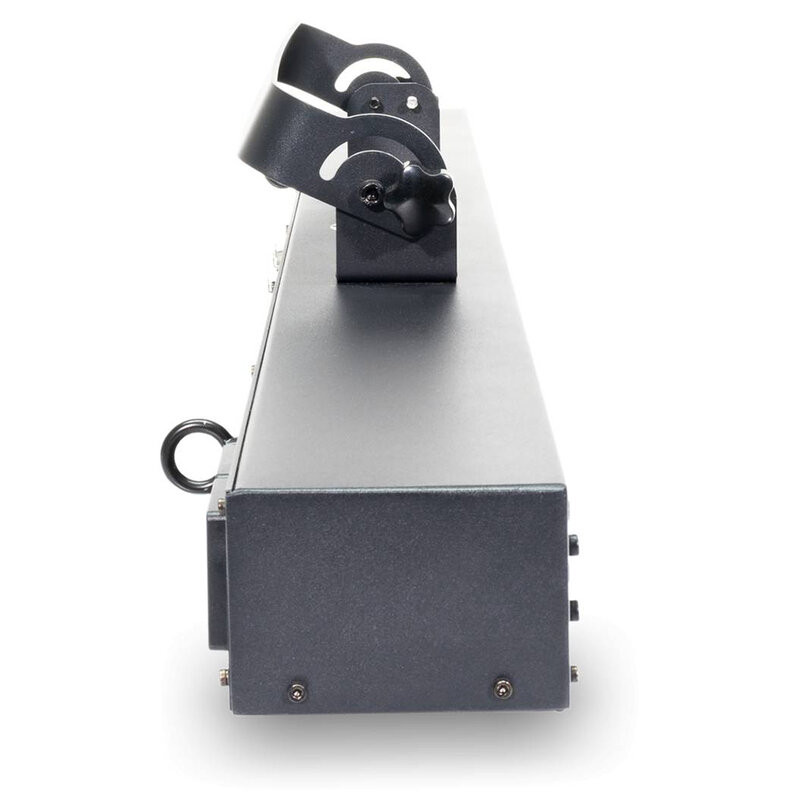

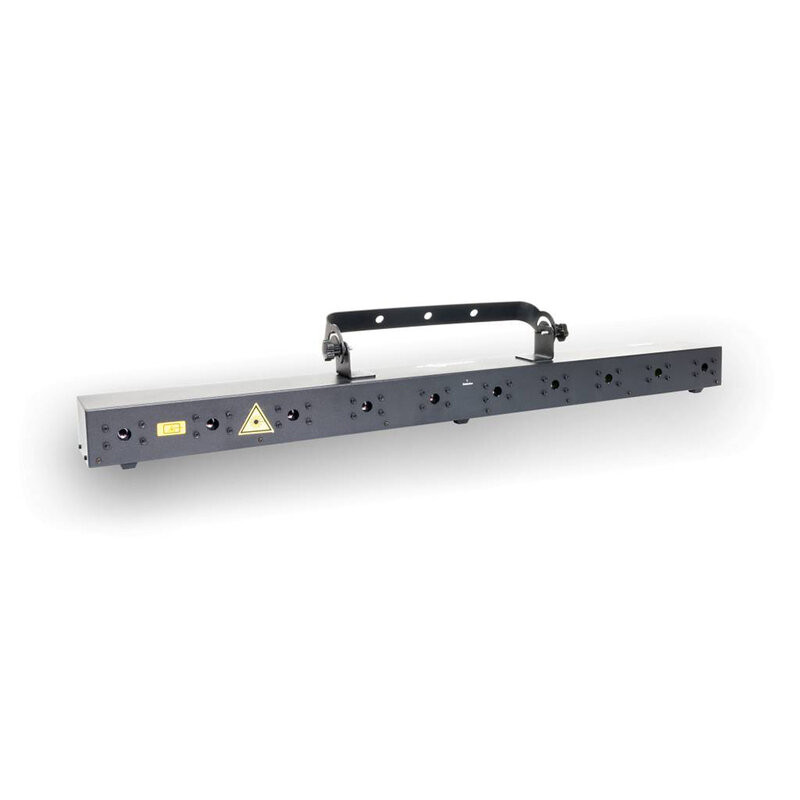

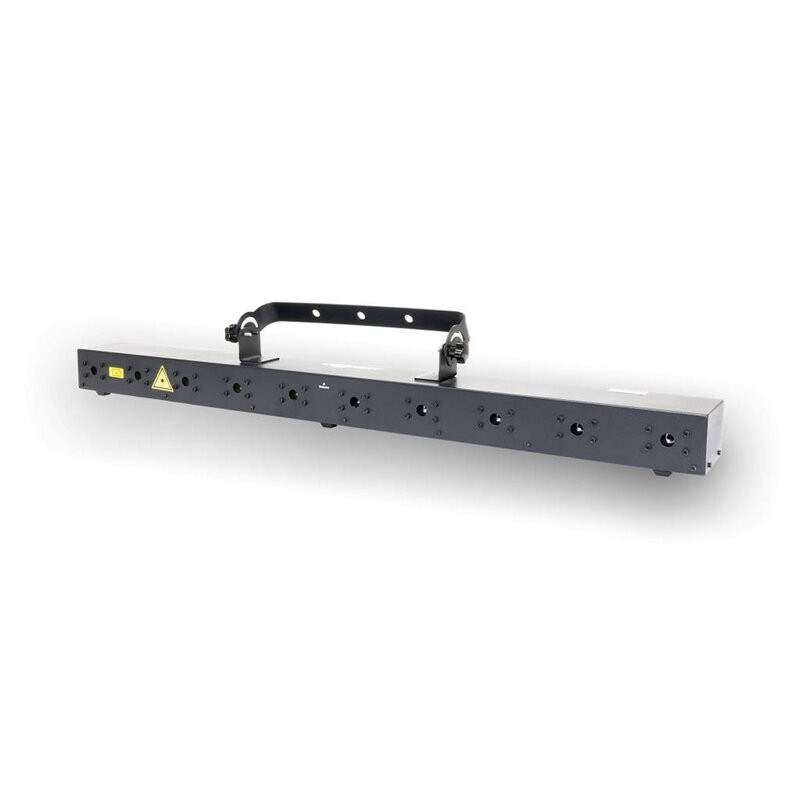

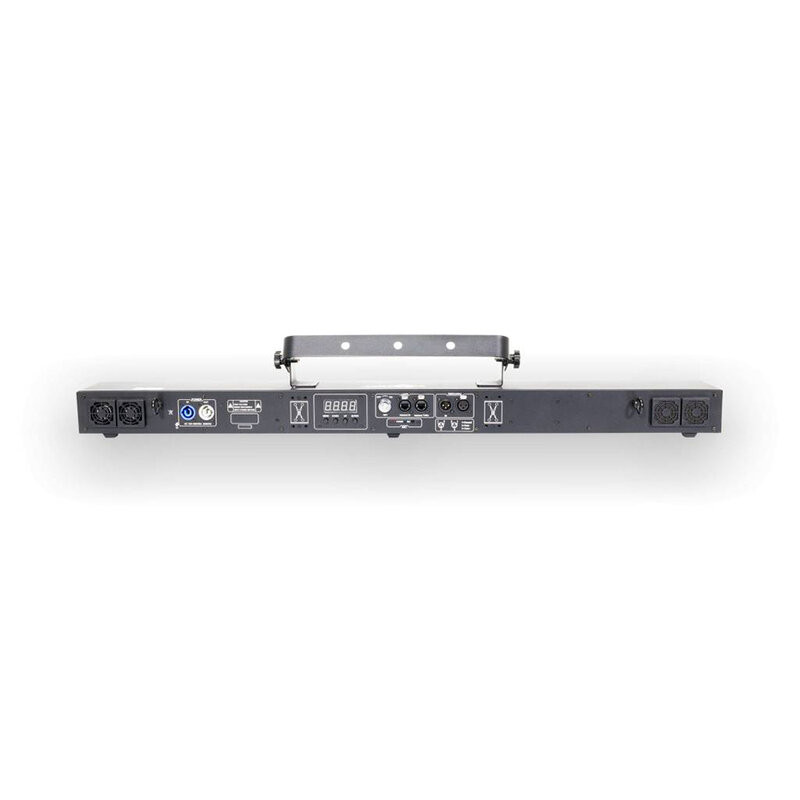

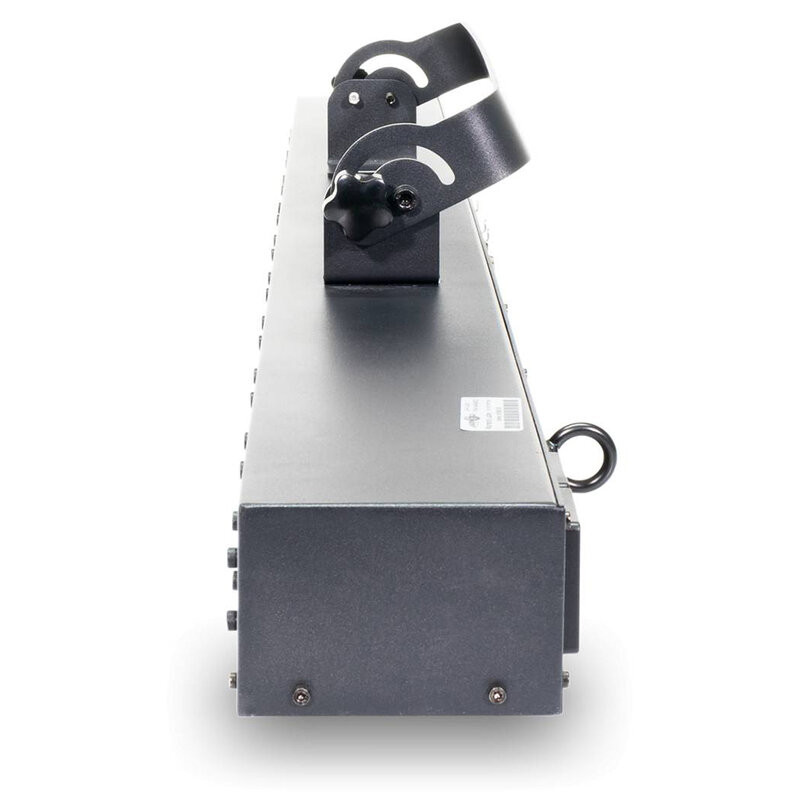

Laserworld - BEAMBAR 10G MK3

Laser bar with 10 single beam laser outlets, analog modulation, extra-bright green beams, designed for use on stages in shows, live concerts and discos, as well as for television programs and productions. Analog modulation results in better color fading and a much broader color hue.

BeamBar 10G MK3 offers a great beam profile and is very affordable.

Each output is equipped with a bright green diode laser source, 75 mW at 520 nm wavelength for a total of 10 x 75 mW of power.

Each laser beam can be individually aligned via a 4-point alignment system, easily accessible from the front, so no opening of the housing is necessary. The bar can be controlled via 13 DMX channels, thus each laser source individually. In this way it is possible to create many different chaser, beam or fan effects. Thanks to standard DMX compatibility, the Laserworld BeamBar 10G MK3 can be easily integrated into an existing lighting setup.

This laser projector works in Master/Slave mode. The show lasers of the same series (Slave projectors), connected via DMX to a main projector (Master), project the same models as the latter.

Technical characteristics

• Guaranteed power at aperture: 750 mW
• Power green: 10 x 75 mW / 520 nm
• Beam specificationsca. 3.0 mm / 1.1 mrad
• Laser source: diode
• Laser class: 3B
• Operation modes: DMX, stand-alone, sound-to-light, Master/Slave
• Accessories: interlock connector, manual, key
• IP rating: IP4X
• Power supply: 100 - 250 V_AC 50/60 Hz
• Power consumption: 50 W
• Dimensions: 1000 x 160 x 80 mm
• Weight: 9.0 kg
