SKU: 7640144994846
Laserworld - BeamBar 10B MK3
1200 mW linear laser bar, 10 individually controllable blue beam outputs, analog modulation, 13‑channel DMX control, front‑accessible 4‑point alignment system
Not available.
delivery is not available for this product.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
398.50 €
8 X 500 mW red laser + 7 x 4-in-1 4 W RGBW LED bar
611.50 €
900 mW linear laser bar, 10 individually controllable green beam outputs, analog modulation, 13 channels DMX control, front‑accessible 4‑point alignment system
1,191.50 €
2500 mW, 10 head aperture RGB laser bar with DMX control
449.00 €
1200 mW beambar red laser bar, 10 single beam outputs, analogue modulation
832.00 €
6 × 1000 mW RGB laser bar, motorised scanning, TTL, DMX, stand-alone or music modes
Watch it in action
Close the video
Product Details

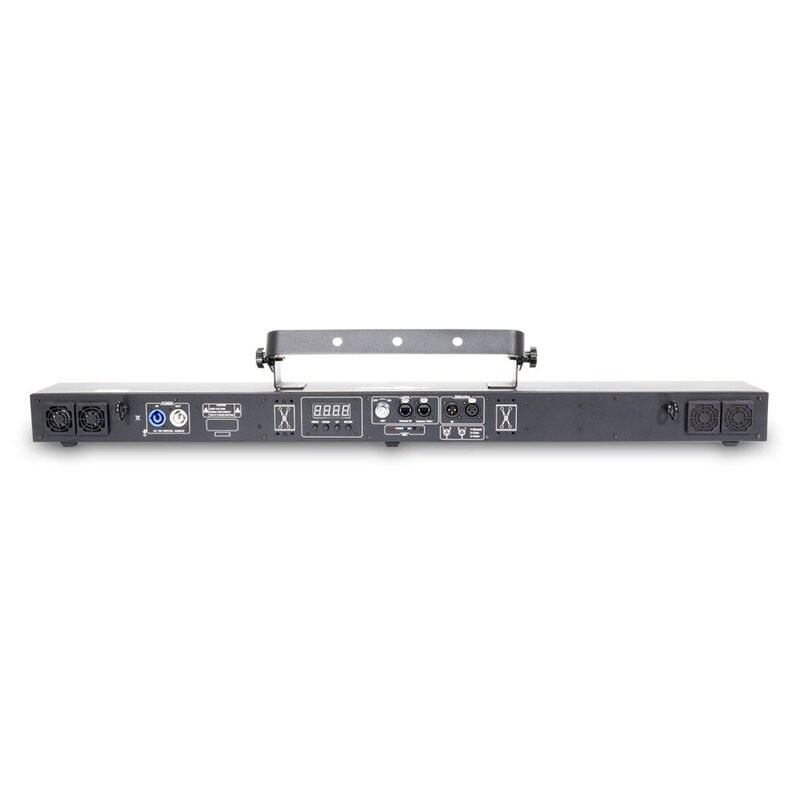

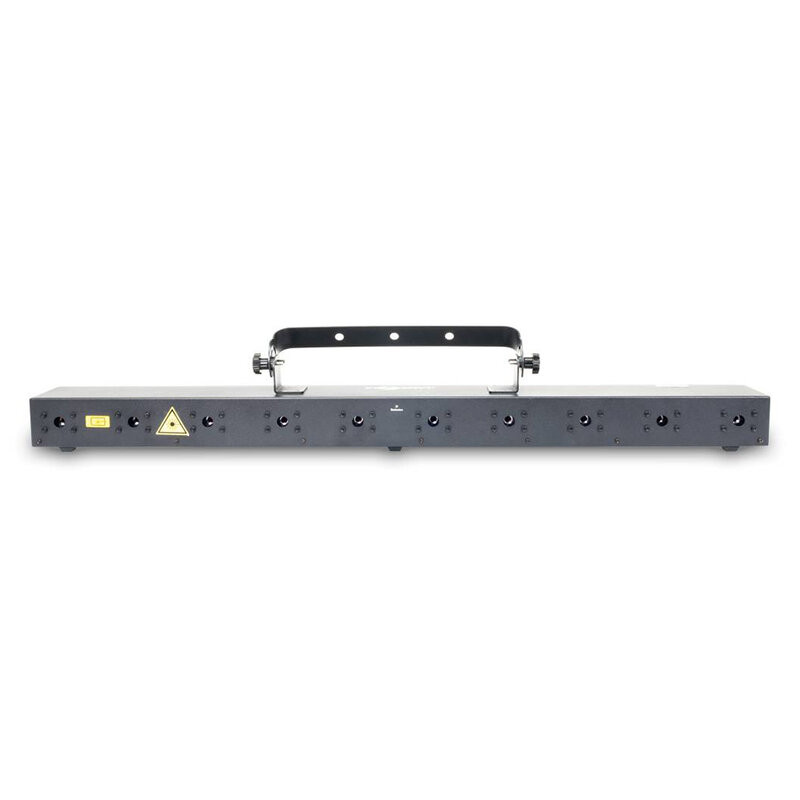

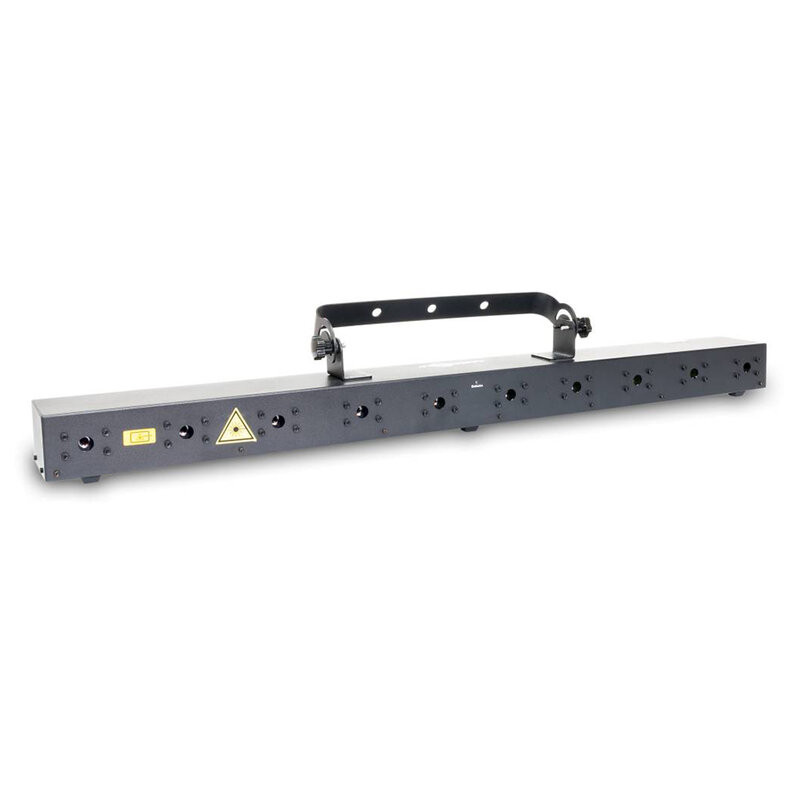

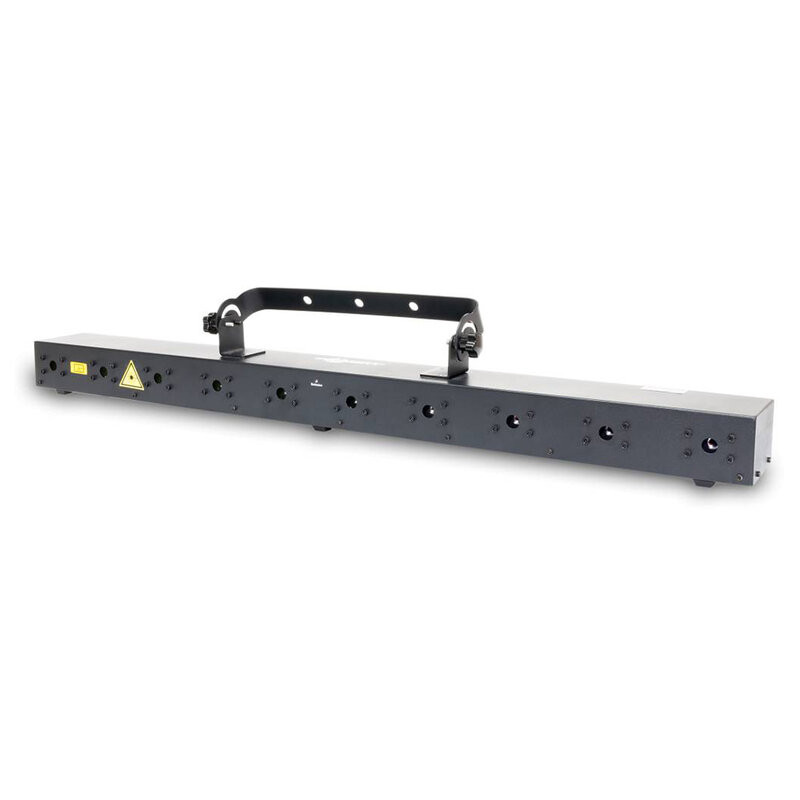

The BeamBar 10B MK3 is a laser bar composed of 10 independent apertures, each equipped with a 120 mW / 450 nm blue laser module, designed to create spectacular fan, chase, and parallel beam effects. Each source can be controlled individually via 13 DMX channels, allowing for high precision and seamless integration into professional lighting setups.
The lasers operate using analog modulation, which ensures smoother output and more accurate light intensity control. Beam alignment is simplified thanks to the front‑accessible 4‑point adjustment system, which eliminates the need to open the case and speeds up setup.
The BeamBar 10B MK3 can operate in DMX, stand‑alone, sound‑to‑light and Master/Slave modes, making it versatile for both fixed installations and live events. Its solid construction and high‑quality optical profile make it an effective solution for creating linear and dynamic effects wherever it is used.
Technical characteristics
- Guaranteed power: 1200 mW
- Blue output: 10 × 120 mW / 450 nm
- Laser source: diode
- Laser Class: 3B
- Beam specifications: approx. 3.0 mm / 0.8 mrad
- Modulation: analog
- Operation modes: DMX, stand‑alone, sound‑to‑light, Master/Slave
- DMX channels: 13
- Individual beam alignment: 4‑point front‑access system
- Power supply: 100 – 250 VAC 50/60 Hz
- Power consumption: 50 W
- Dimensions: 100 × 16 × 8 cm
- Weight: 9 kg
- What's in the box:
- BeamBar 10B MK3
- Interlock connector
- Manual
- Key
