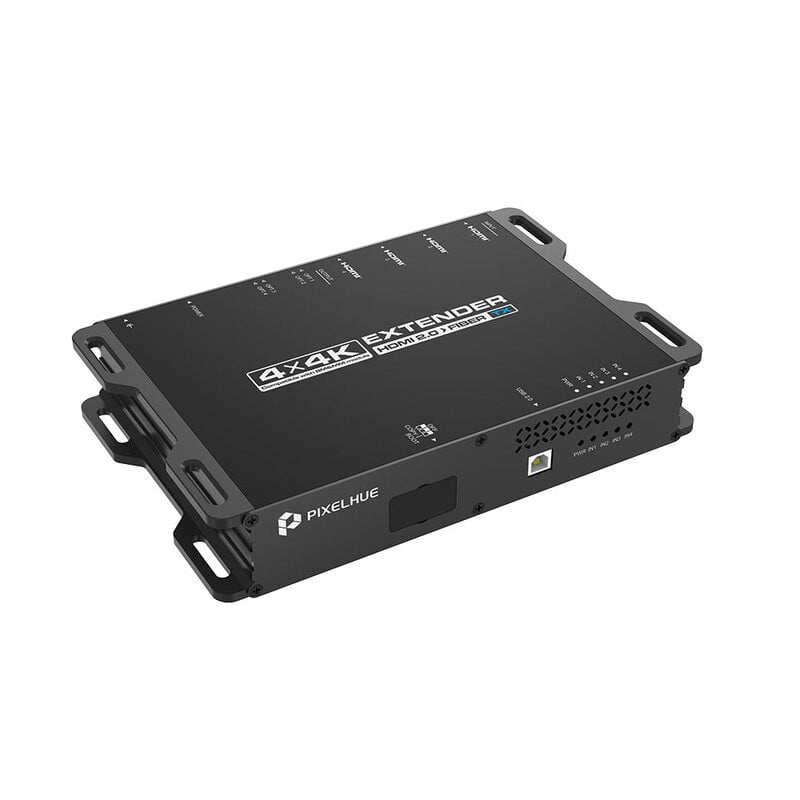

PIXELHUE - EP4T-M

EP4T fiber extender is a fiber optic transmitter that uses advanced technology to transmit audio and video signals over long distances without loss of quality, overcoming the limitations of length and signal degradation. Fiber optic transmission, in fact, is resistant to electromagnetic interference, ensuring stable signal transmission even in difficult electromagnetic environments.

The EP4T transmitter can operate in stand-alone mode, i.e., alone, combined with, for example, a NovaStar LED processor. Alternatively, it can be used in conjunction with the EP4R receiver or integrated with all Novastar devices equipped with fiber optic input and output.

This product series has a wide range of typical applications:

• Architectural installations: consider the facade of a building illuminated by a pair of video projectors. In this scenario, two uncompressed 4K video signals need to be sent to the projectors, with the source located a long distance from the destination. Fiber transmission guarantees quality and reliability

• University campuses: when a pair of uncompressed 4K signals needs to be transferred from one point on campus to another, EP4 extenders are an ideal solution for overcoming the limitations of traditional connections

• Live events and video control rooms: in situations where the control room is located far from the stage, fiber allows the signal to be sent directly to the stage monitors or other devices, maintaining maximum quality and stability

Thanks to 8 / 10-bit lossless compression, it guarantees optimal video quality, offering clear and detailed images. The compact design and Plug & Play installation simplify configuration, allowing easy and immediate extension of signals.

The transmitter includes 4 EOLP-8596-02-I multi-mode modules, with a maximum transmission distance of 300 km.

Main features

• Supports 8-bit / 10-bit lossless Ultra-HD transmission:
  • 8-bit 4:4:4, max. 4096 x 2160 @ 60 Hz
  • 10-bit 4:4:4, max. 4096 x 2160 @ 30 Hz
• Clear signal indicators for easy monitoring of device status
• EDID passthrough for compatibility with various devices
• Support for input copy
• 3D and HDR passthrough
• Supports remote control of multi-platform PC hosts via KVM roaming
• HDCP encrypted video transmission

User benefits

• No loss of details during video signal transmission, high quality in ultra-high definition
• Strong anti-interference ability
• Zero latency video transmission
• Easy operation, Plug & Play
• 24/7 operation

Application areas

• Broadcast
• Live Events
• Conference Rooms
• University campuses
• Monitoring Centers
• Digital Signage

Technical characteristics

Input specifications

Electrical specifications
