Beetek - M1-H20-Lite

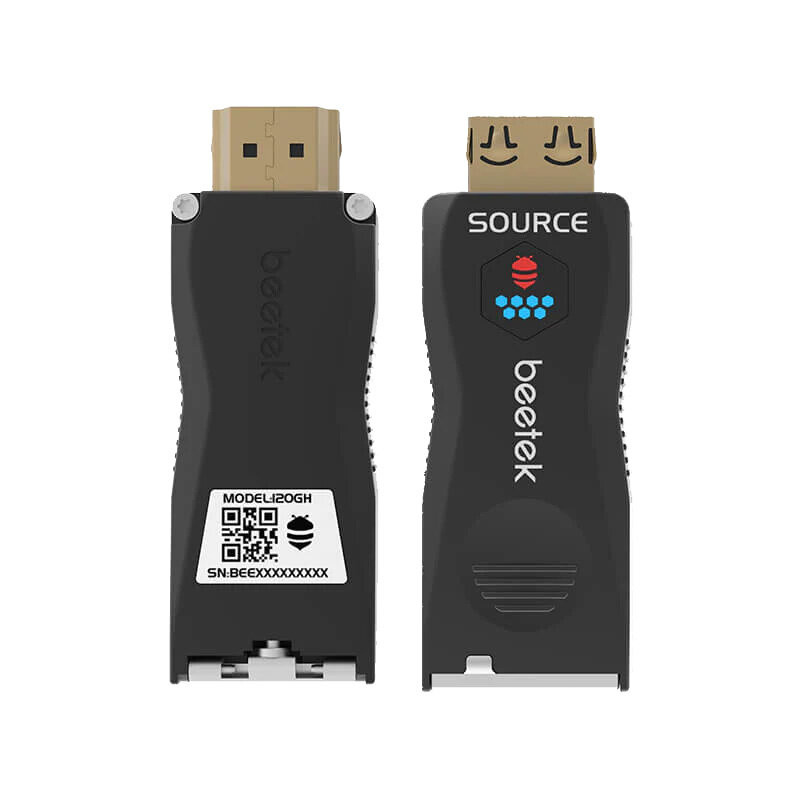

The M1-H20-Lite is an extremely compact HDMI 2.0 fiber optic extender that delivers uncompressed, zero-latency 4K @ 60 video up to 300 m over a multi-mode LC fiber.

With Beetek's Plug-Sure HDMI connector, which provides a firm grip on connected devices, power lockout and automatic equalization of input signals, it is ready to become the ideal solution as a 4K video extender.

Main features

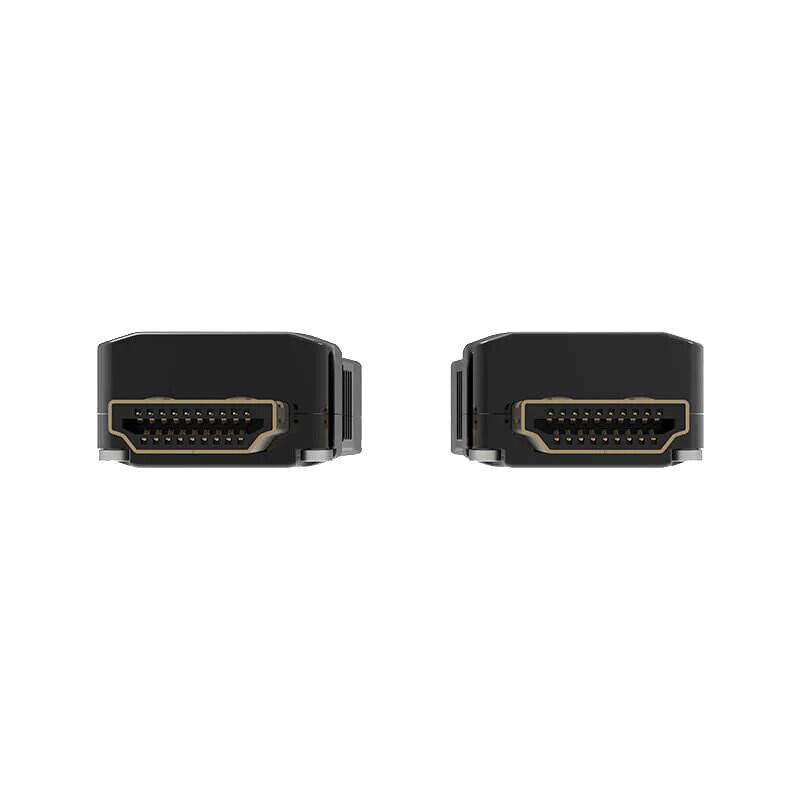

• Slim, compact design with robust gold-plated HDMI Plug-Sure connectors
• Automatic input signal equalization improves signal stability
• Full HDMI 2.0 with HDCP, HDR, ARC and CEC support
• Locking power supplies and dust-proof fiber interface locks
• Transmitter can be powered from the source or a USB power supply

User benefits

• High-speed, uncompressed, delay-free 4K signal transmission
• Transmission distance up to 300 m over multi-mode fiber using a single LC core
• Extremely compact size

Areas of use

• Live events
• Rental
• Fixed installations
• Professional AV broadcasting

Technical characteristics

• Input connector:
  • TX: HDMI
  • RX: LC
• Output connector:
  • TX: LC
  • RX: HDMI
• Fiber interface dust prevention: yes
• Fiber type: multi-mode OM3 / OM4
• Indicator LED: signal, power 2-in-1 indicator
• USB power: yes
• Power from connector (TX): yes
• Locking power connector: yes
• Power consumption: 5 V_DC 1.2 A
• Ambient temp: -40 to 70 ℃
• Material: metal mold shell
• Product size: TX / RX: 62 x 22 x 12.5 mm
• DDC: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• XvYCC color space: yes
• Resolution: 3840 x 2160 @ 60 Hz
• Transmission distance: 300 m
• Clock bandwidth: 600 MHz x 3
• Transmission rate: 18 Gbps
• Balancing chip: automatic equalization
• Reclocking: yes
• ESD protection: yes
• Hot plug: yes
• Delay: zero-frame
• Compression: none
• Sampling rate: bandwidth range 8 - 12 bit
• Sampling ratio: RGB 4:4:4, YUV 4:4:4
