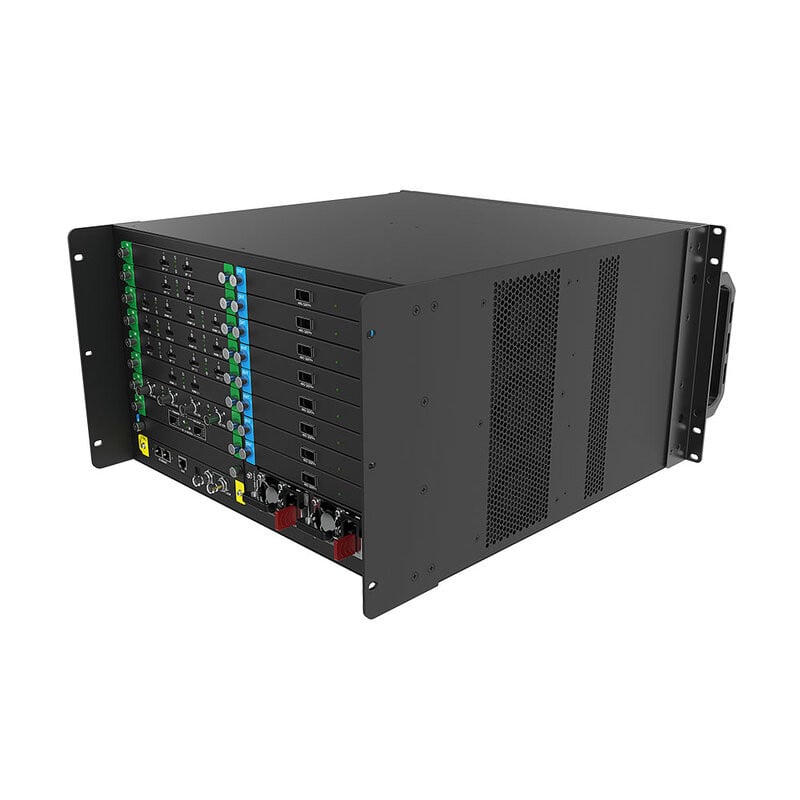

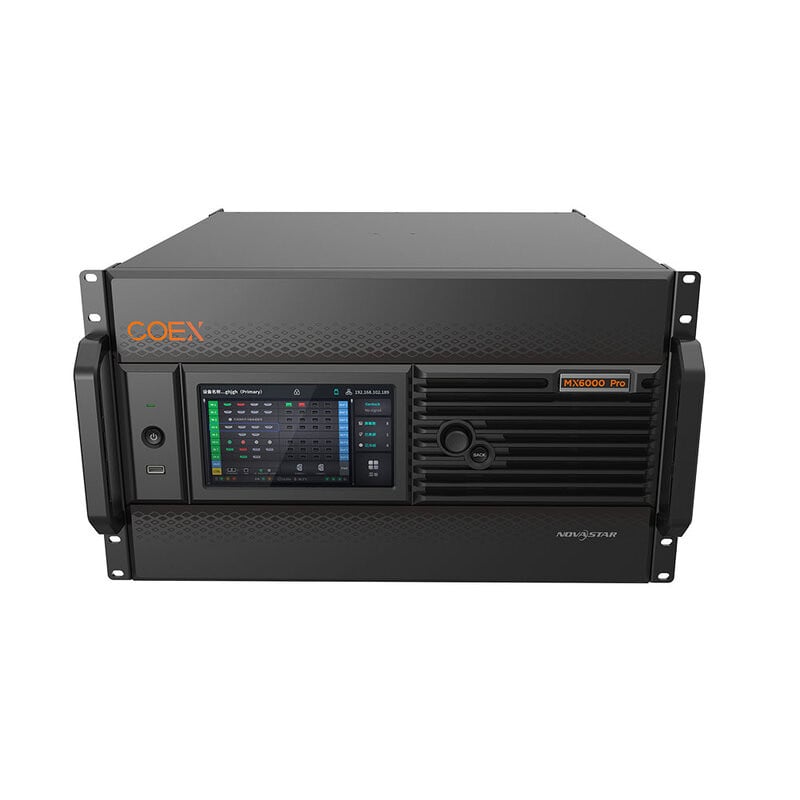

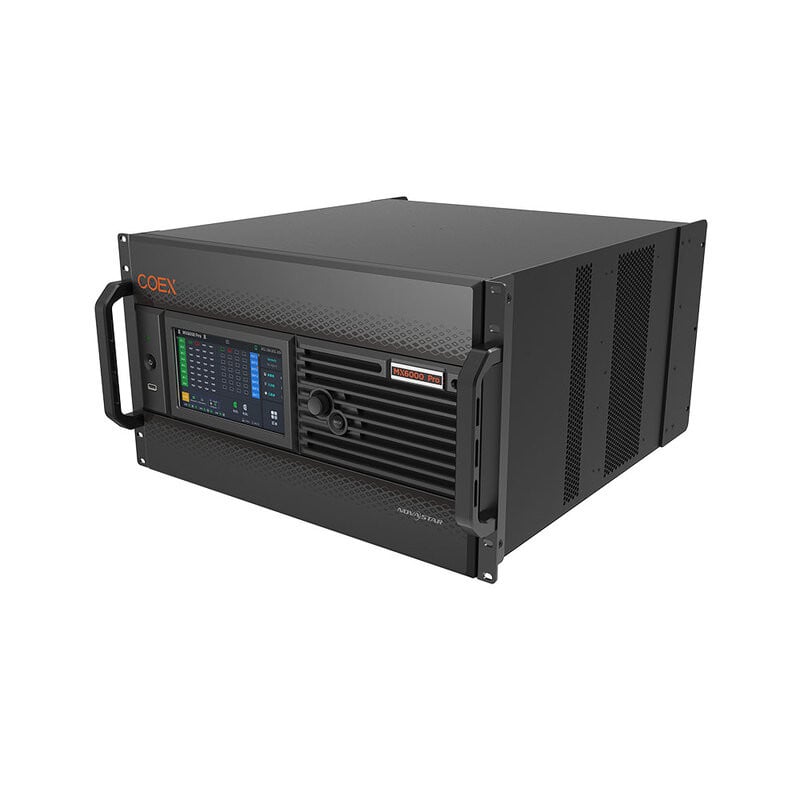

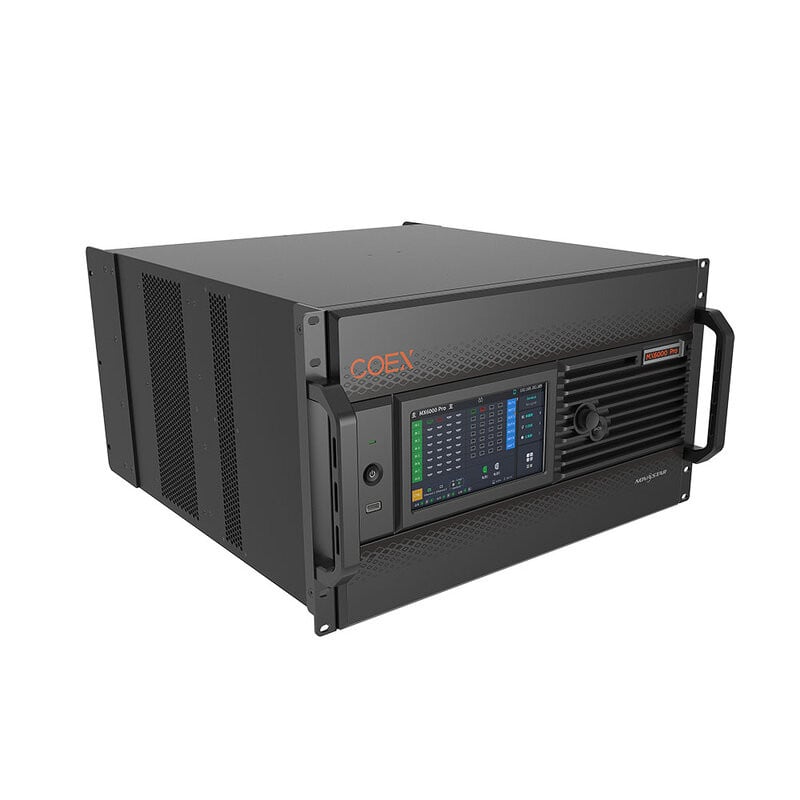

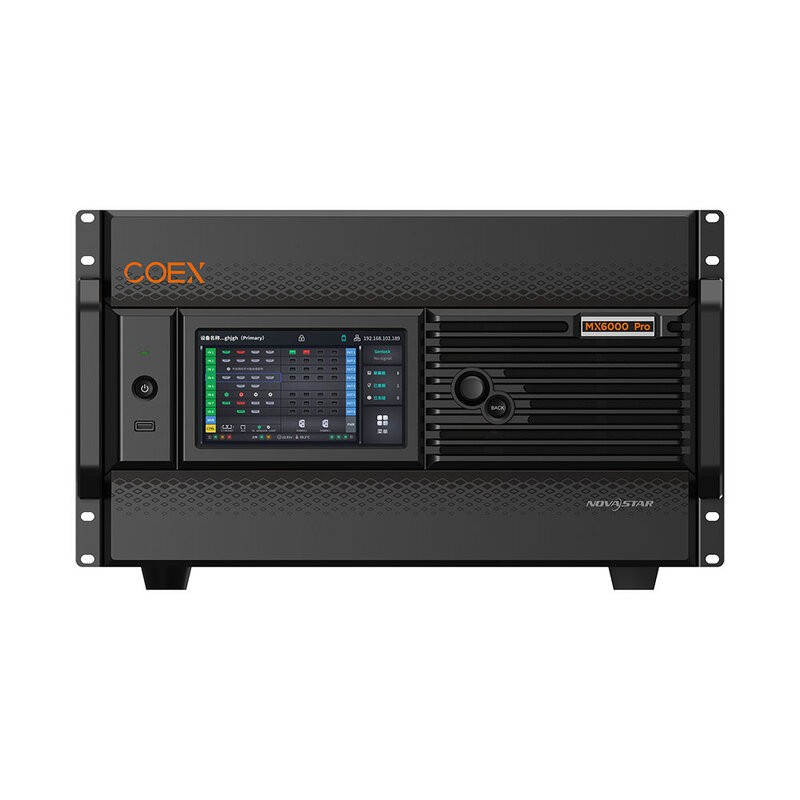

NovaStar - MX6000 PRO

The MX6000 Pro is an advanced controller for large-scale 8K LED displays developed by NovaStar.

It is part of the COEX control system series and features outstanding performance. Its key features include 12-bit color depth, up to 480 Hz frame rate, real-time multi-screen scaling, zero-frame latency, and HDR support. These features ensure precise brightness control, true-to-life color fidelity, and superior image quality.

With its modular card-based design, the MX6000 Pro is specifically designed for next-generation LED displays, allowing flexible input and output card configurations that are reliable and easy to maintain. The 6U device can handle up to 24 x 4K or 12 x 8K video inputs, with a maximum load capacity of 141 Mpixels, making it ideal for large-scale display configurations.

MX6000 Pro is compatible with various types of 8K / 4K input cards and one output card and can accept 8 + 8 cards in total. In the event of a failure, the system will immediately perform switching and generate automatic warnings, ensuring stable output on the spot. The device is also compatible with the new VMP (Vision Management Platform) software, enhancing the management and control experience.

The advanced features of the MX6000 Pro include a highly integrated design, excellent image quality, extraordinary performance, impressive load capacity and intuitive control.

User benefits

• Exceptional image quality: with 12-bit color depth, HDR support and up to 360 Hz refresh rate, it delivers true-to-life colors and precise brightness
• Can handle up to 141 Mpixels
• Flexible, lag-free transmission with zero frame latency
• Allows the use of multiple input / output cards thanks to its modular design
• Automatic backup and switching to reduce the risk of interruptions
• Compatible with VMP (Vision Management Platform) software

Areas of use

• Large-scale event rental services
• xR / VP studios
• Large-scale fixed installations
• TV production
• E-sports events
• Exhibition halls etc.

Technical characteristics

• Color depth: 8 / 10 / 12 bit
• Refresh rate: up to 480 Hz
• Latency: 0-frame latency
• HDR support: HDR10, HLG
• Maximum load capacity: 141 Mpixels
• Video inputs: up to 24 x 4K @ 60 Hz or 12 x 8K @ 30 Hz
• Input cards supported: up to 8 types of 8K / 4K / VoIP input cards
• Layers: up to 32 x 4K layers
• Backup system: seamless backup and automatic switching
• Software compatibility: works with Vision Management Platform (VMP)

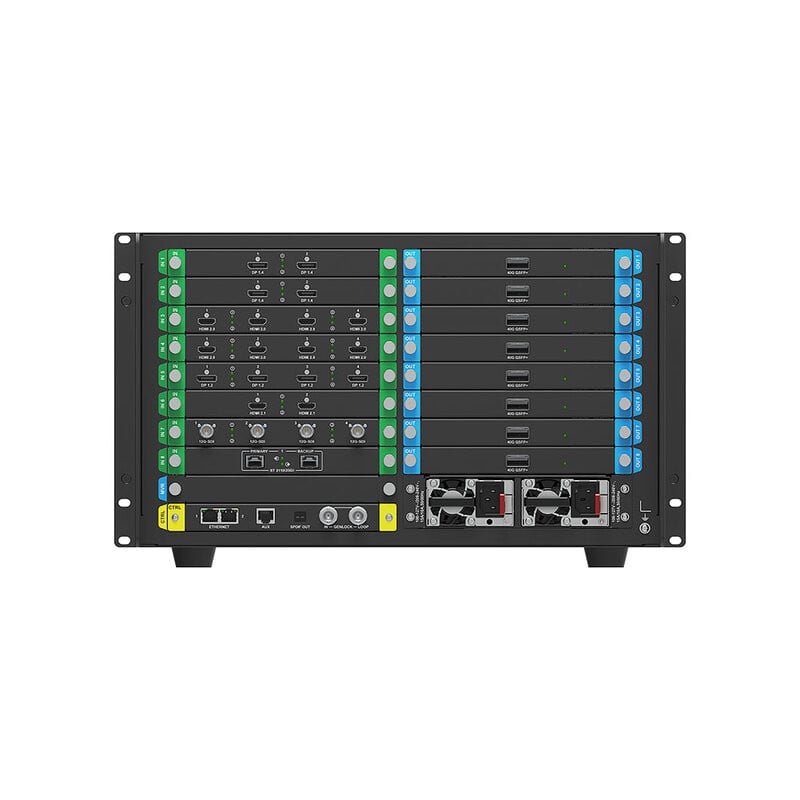

• Modular design: card-based modular input / output configuration
• Size: 6U form factor
• Certifications: CE, UKCA, FCC, IC
• IP rating: IP20
• Noise level (typically at 25 °C) : 53 dB (A)
• Power supply: 100 - 240 V_AC 50/60 Hz
• Max power consumption: 740 W
• Working temperature: -10 to 45 °C
• Working humidity: 0 to 80% RH, non-condensing
• Storage temperature: -10 to 60 °C
• Storage humidity: 0 to 90% RH, non-condensing
• Dimensions: 48.26 x 28.29 x 53.88 cm (foot pad included)
• Weight:

  • Fully installed (1 x control card, 8 x input card, 8 x output card): 31 kg
• What's in the box:
  • MX6000 Pro
  • 1 x power cord
  • 1 x Ethernet cable
  • 1 x quick start guide
  • 1 x customer Letter
  • 1 x safety manual
  • 1 x certificate of approval
